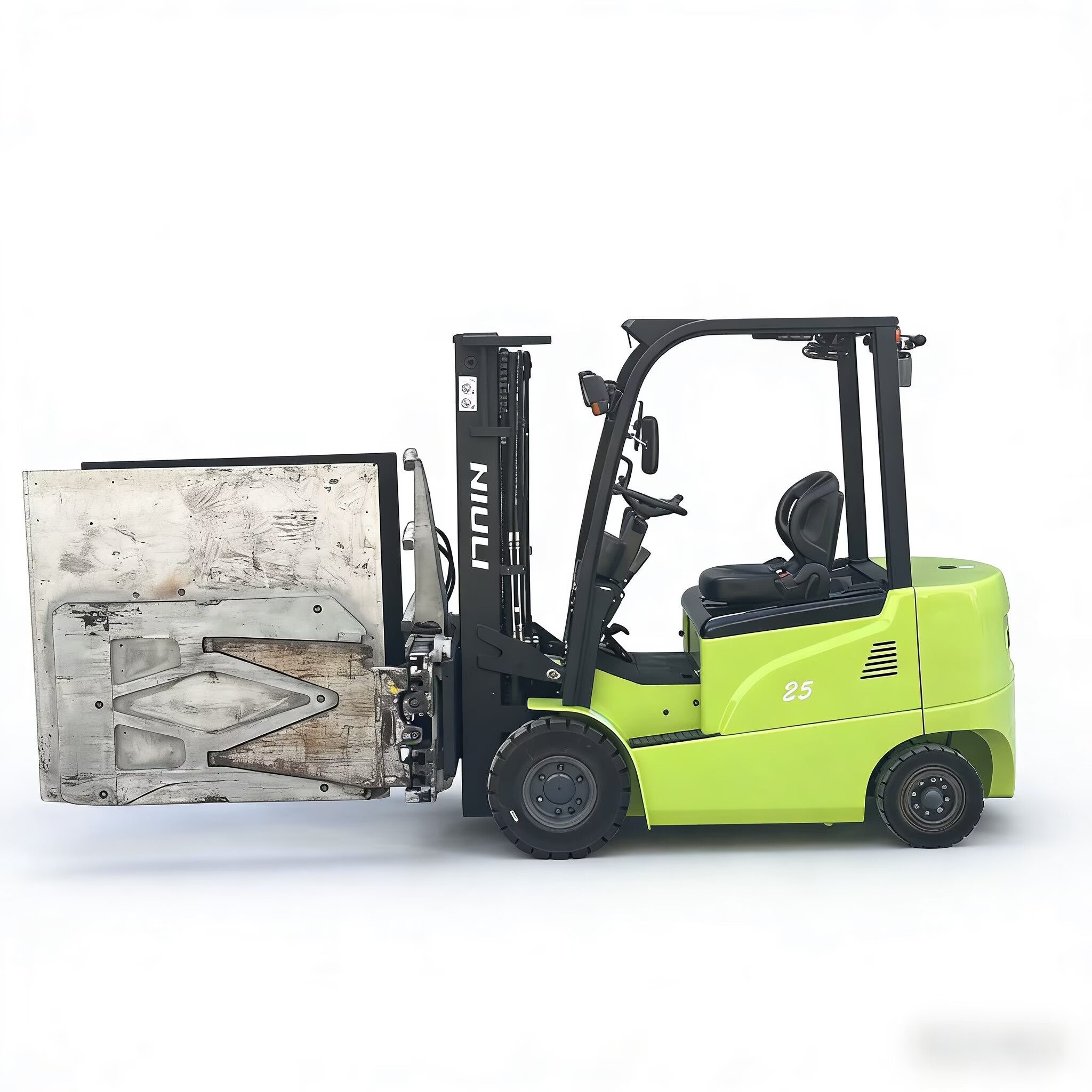

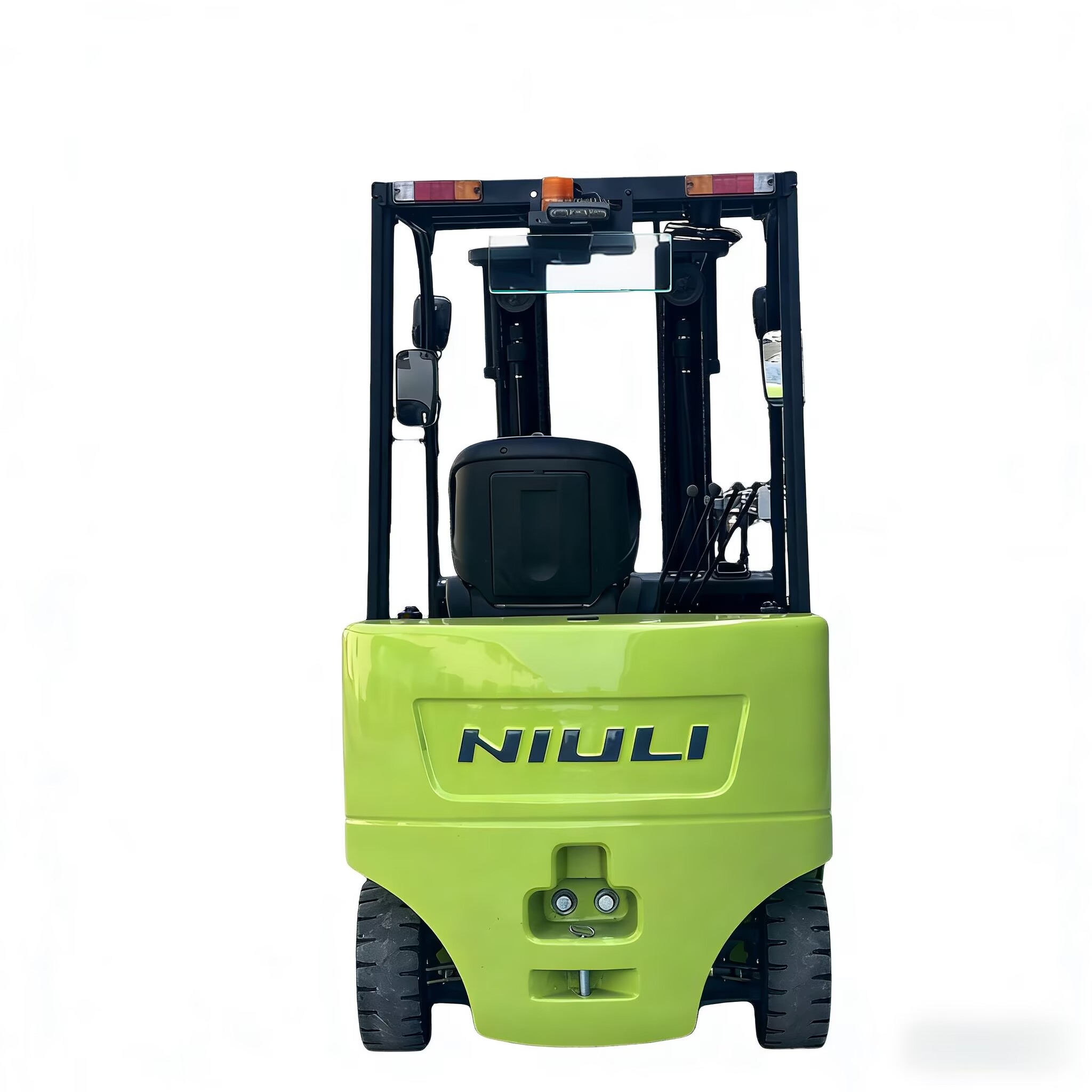

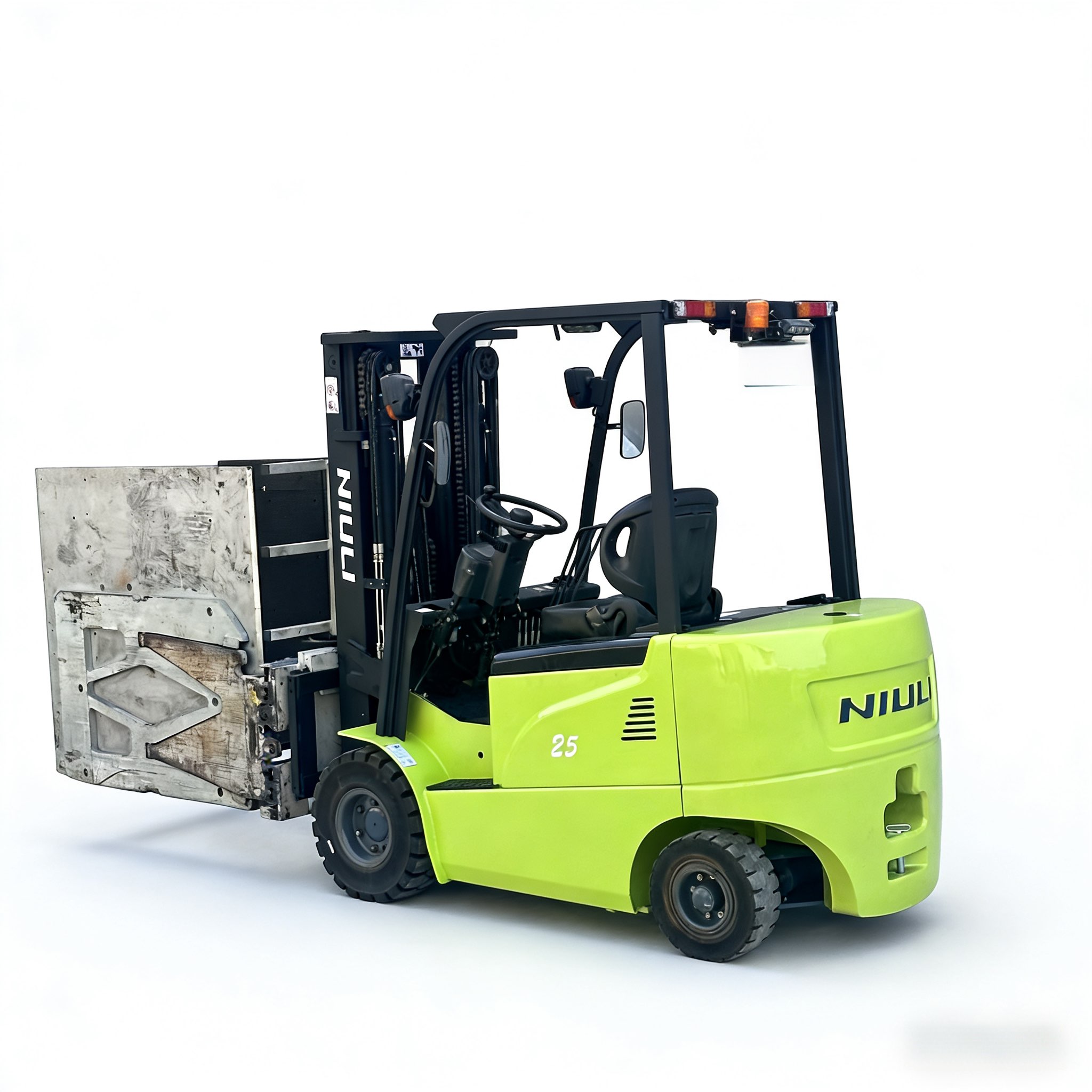

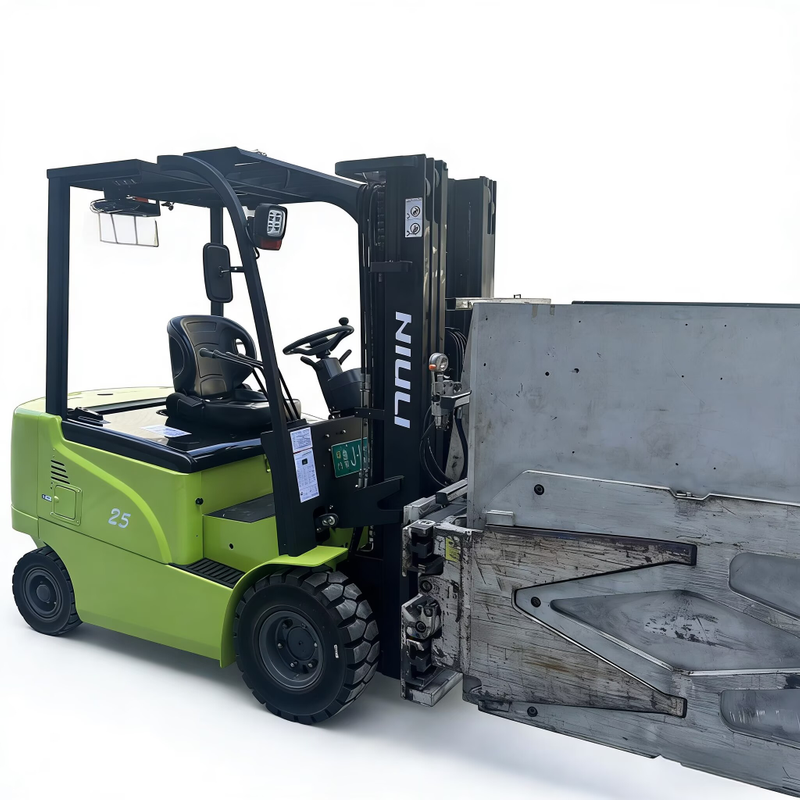

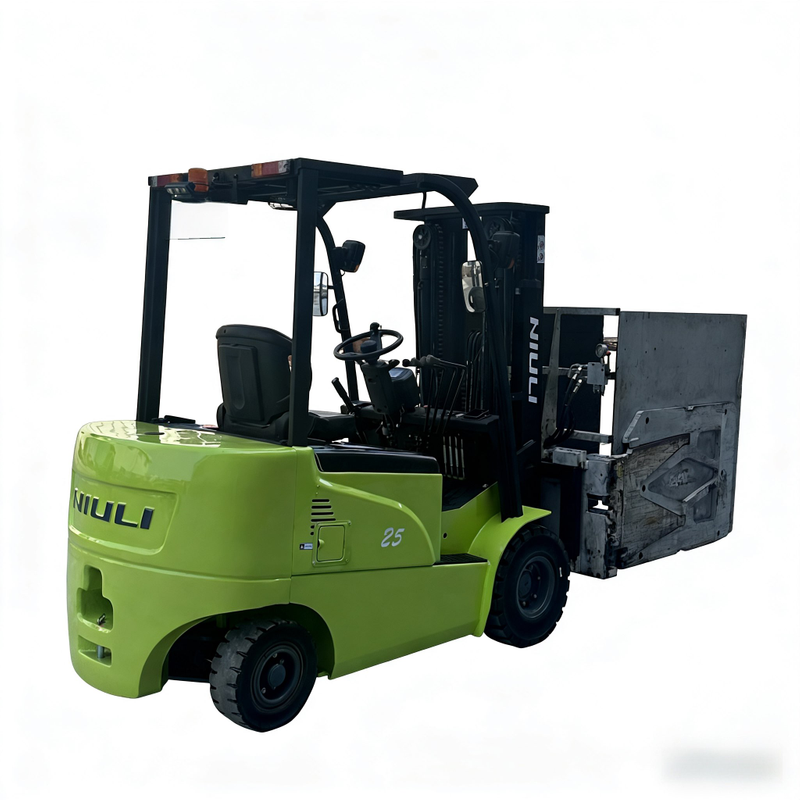

CPD "E 25 series"

Name: CPD "E 25 series"
Brand: NIULI
Rating: 5.0 (45 reviews)

CPD "E series"

Electric Forklift

Capacity: 2000kg/2500kg/3000kg/3500kg

Max.lifting height: 6000mm
This lithium-ion forklift is the latest designed forklift by Niuli, with excellent appearance and performance, as well as flexible handling, making it the best choice for warehouse operations
Remark: Lithium battery(standard)Option: Lead-acid battery

◆ Excellent exterior design
◆ Ergonomic design of cockpit
◆ Intelligent Vehicle Connection Management
◆ Excellent performance
◆ Low center of gravity chassis

Availability:



Inquire Add to Basket

Model:
CPD E SERIES
Brand:
NIULI

Product Description

CPD Series Electric Forklift Specification Table

PARAMETER TABLE

1. Overview

Item	Description	Unit	CPD20	CPD25	CPD30	CPD35
1.1	Manufacturer	-	NIULI	NIULI	NIULI	NIULI
1.2	Model	-	CPD20	CPD25	CPD30	CPD35
1.3	Power Type	-	Electric	Electric	Electric	Electric
1.4	Operation Type	-	Seat	Seat	Seat	Seat
1.5	Rated capacity	kg	2000	2500	3000	3500
1.6	Load centre	mm	500	500	500	500
1.7	Front overhang	mm	-	468	473	495
1.8	Wheelbase	mm	-	1495	1495	1500

2. Weight

Item	Description	Unit	CPD20	CPD25	CPD30	CPD35
2.1	Self weight	kg	3820	4020	4520	5150
2.2	Axle load (Front/Rear, Full load)	kg	5200/620	5920/700	-	6846/794
2.3	Axle load (Front/Rear, Empty load)	kg	1680/2140	1760/2360	-	1940/2700

3. Tire Chassis

Item	Description	Unit	CPD20	CPD25	CPD30	CPD35
3.1	Tire Type	-	Solid	Solid	Solid	Solid
3.2	Front Tire	-	23×9-10	23×9-10	23×9-10	23×9-10
3.3	Rear Tire	-	18×7-8	18×7-8	18×7-8	18×7-8
3.4	Number of tires (x = drive wheel)	-	2X/2	2X/2	2X/2	2X/2
3.5	Front-wheel tread	mm	1035	1035	1035	1035
3.6	Rear-wheel tread	mm	984	984	984	984

4. Dimensions

Item	Description	Unit	CPD20	CPD25	CPD30	CPD35
4.1	Mast Tilt Angle (Front/Rear)	Grad	5 / 10	5 / 10	5 / 10	5 / 10
4.2	Mast closed height	mm	2055	2055	2140	2140
4.3	Free lift height	mm	140	140	145	145
4.4	Standard lift height	mm	3000	3000	3000	3000
4.5	Mast extended height (with Lifting frame)	mm	3985	3985	-	4075
4.6	Overhead Guard Height	mm	-	-	-	-
4.7	Total Length (With Forks)	mm	3407	3407	3410	3410
4.8	Total Length (Without Forks)	mm	2337	2337	2342	2342
4.9	Total Width	mm	1265	1265	1265	1265
4.10	Fork Size (L×W×T)	mm	1070×125×40	1070×125×40	1070×125×45	1070×125×50
4.11	Fork Rack Standard	-	ISO2A	ISO2A	ISO3A	ISO3A
4.12	Fork Rack Width	mm	-	1100	1100	1100
4.13	Fork Spacing	mm	250/1040	250/1040	250/1100	250/1100
4.14	Min. ground clearance (Lifting frame)	mm	-	-	120	120
4.15	Min. ground clearance (Truck Body)	mm	-	-	125	125
4.16	Aisle width for pallets 1000×1200, Transversal	Ast mm	4288	4288	4295	4295
4.17	Aisle width for pallets 800×1200, Longitudinal	Ast mm	4320	4320	4325	4325
4.18	Min. turning radius	Wa mm	-	-	2100	2100

5. Performance Parameters

Item	Description	Unit	CPD20	CPD25	CPD30	CPD35
5.1	Max. travel speed (No load/Full load)	km/h	-	-	18/15	18/15
5.2	Max. lifting speed (Full load/No load)	mm/s	-	-	280/390	280/390
5.3	Descending speed (No load/Full load)	mm/s	-	-	≤600	≤600
5.4	Traction power, laden/unladen	KW	20	20	-	21
5.5	Gradeability (laden/unladen)	%	-	-	18/15	18/15
5.6	Driving brake	-	Mechanical hydraulic type	Mechanical hydraulic type	Mechanical hydraulic type	Mechanical hydraulic type
5.7	Parking brake	-	Mechanical type	Mechanical type	Mechanical type	Mechanical type

6. Electrical System

Item	Description	Unit	CPD20	CPD25	CPD30	CPD35
6.1	Traction motor power, S2 60min work system	kW	-	-	17	17
6.2	Lifting motor power, S3 15% work system	kW	-	-	13	13
6.3	Battery Specification (Voltage/Capacity)	V/Ah	80V/200Ah	80V/200Ah	80V/280Ah	80V/450Ah

7. Other Specifications

Item	Description	Unit	CPD20	CPD25	CPD30	CPD35
7.1	Driving control system	-	MOSFET/AC	MOSFET/AC	MOSFET/AC	MOSFET/AC
7.2	Controller brand	-	MEGMEET / CURTIS / ZAPI	MEGMEET / CURTIS / ZAPI	MEGMEET / CURTIS / ZAPI	MEGMEET / CURTIS / ZAPI
7.3	Noise	dB	74	74	74	74
7.4	Traction pin diameter	mm	Φ25	Φ25	Φ25	Φ25
7.5	Hydraulic oil tank capacity	L	50	50	50	50
