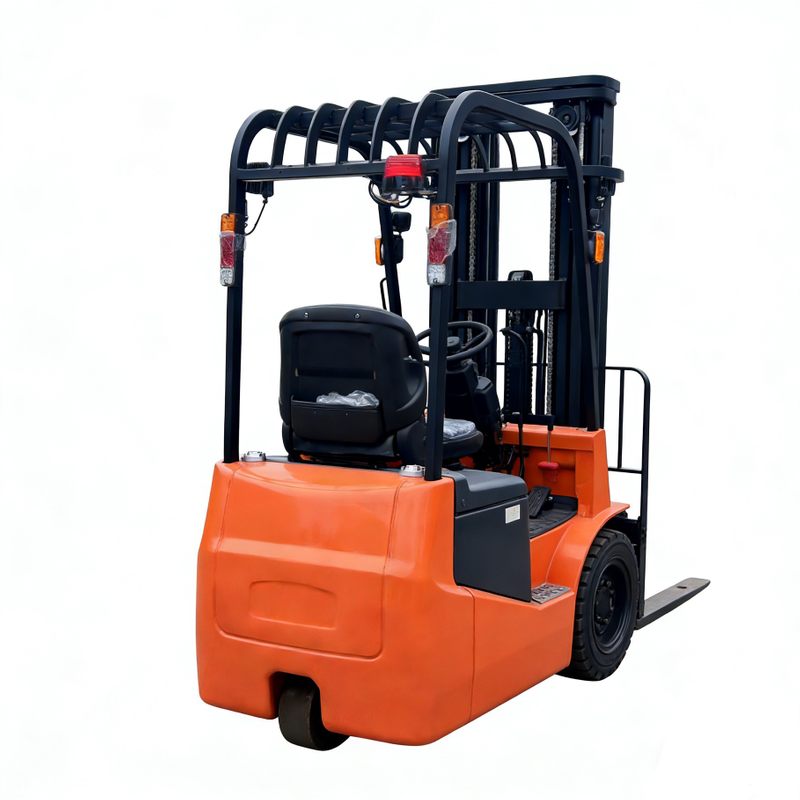

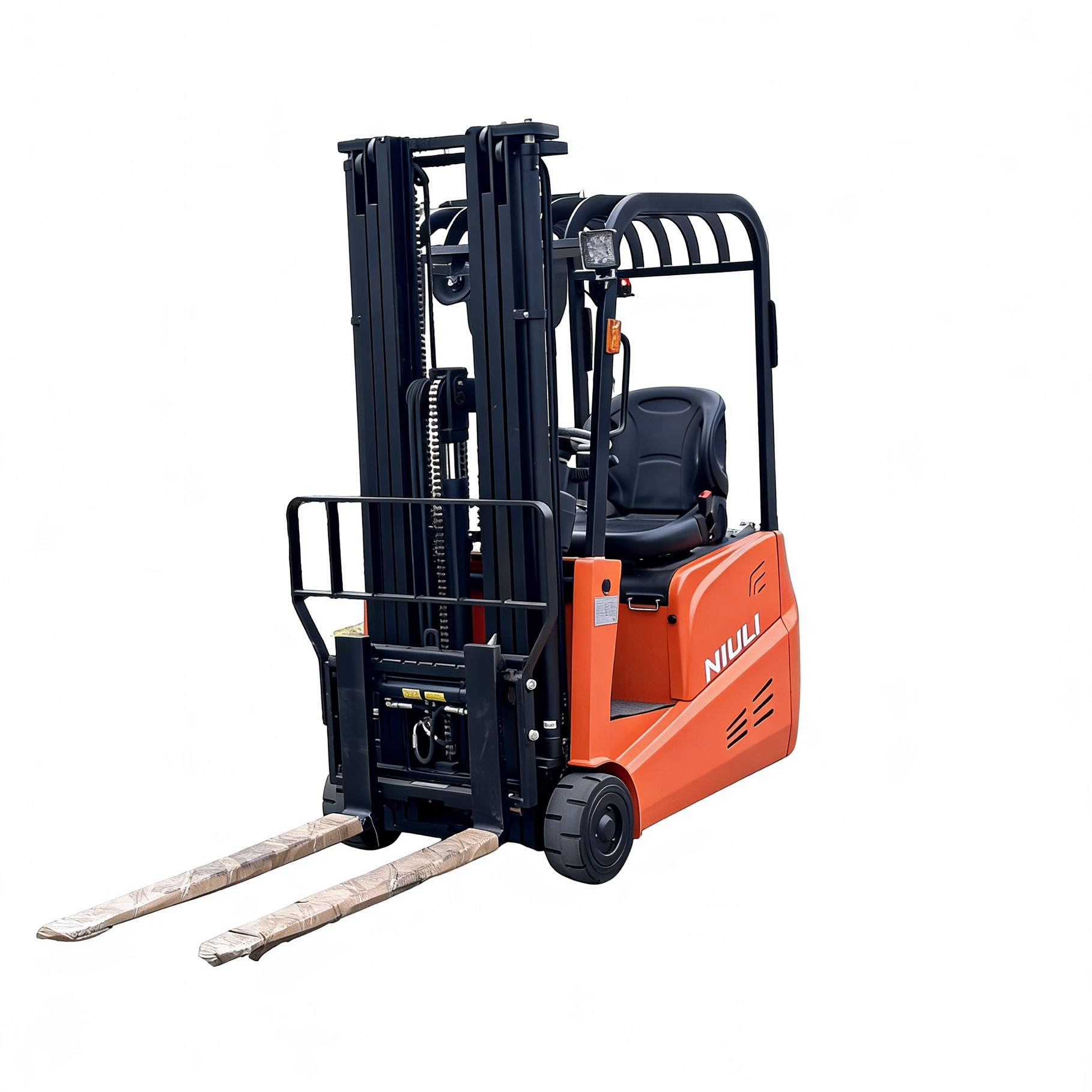

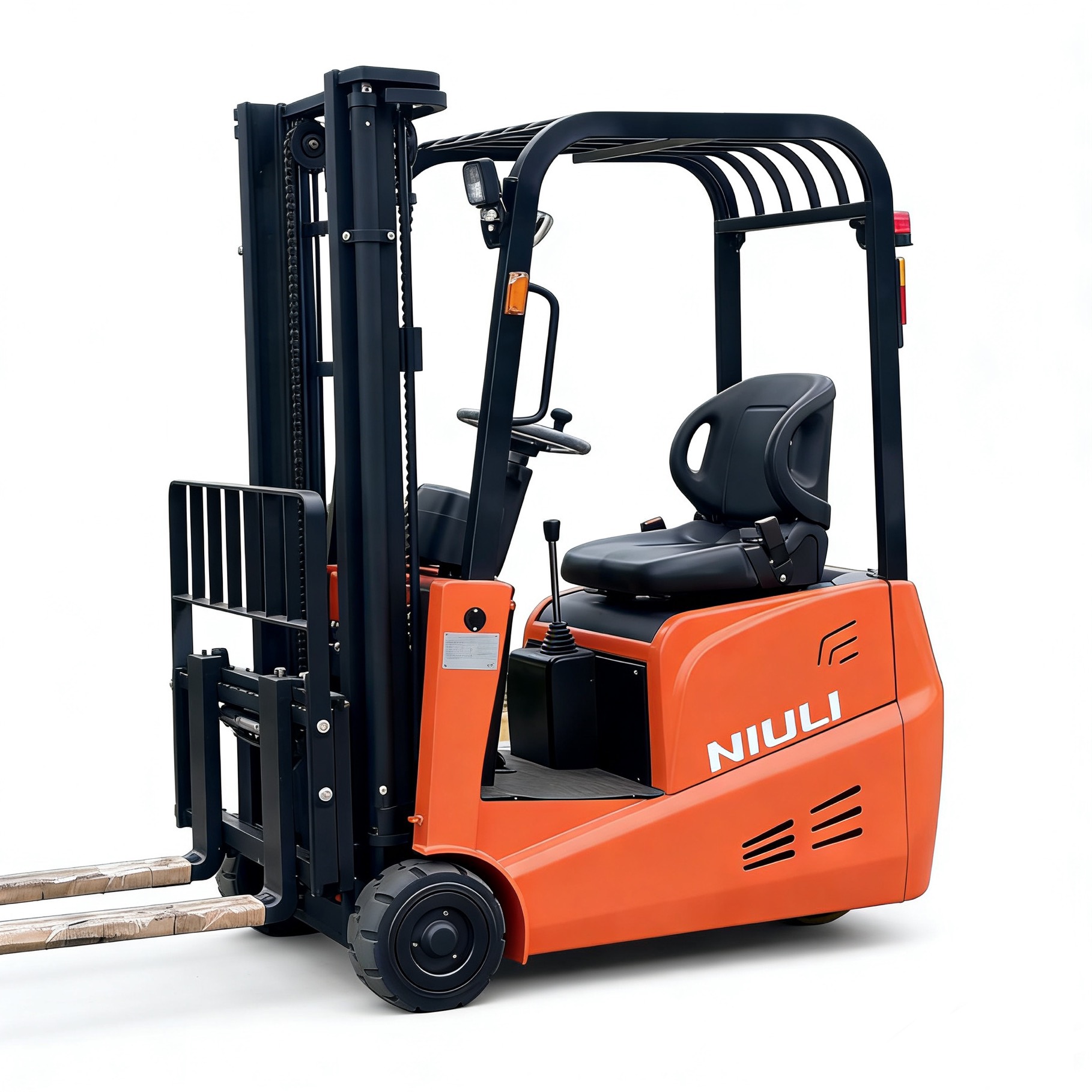

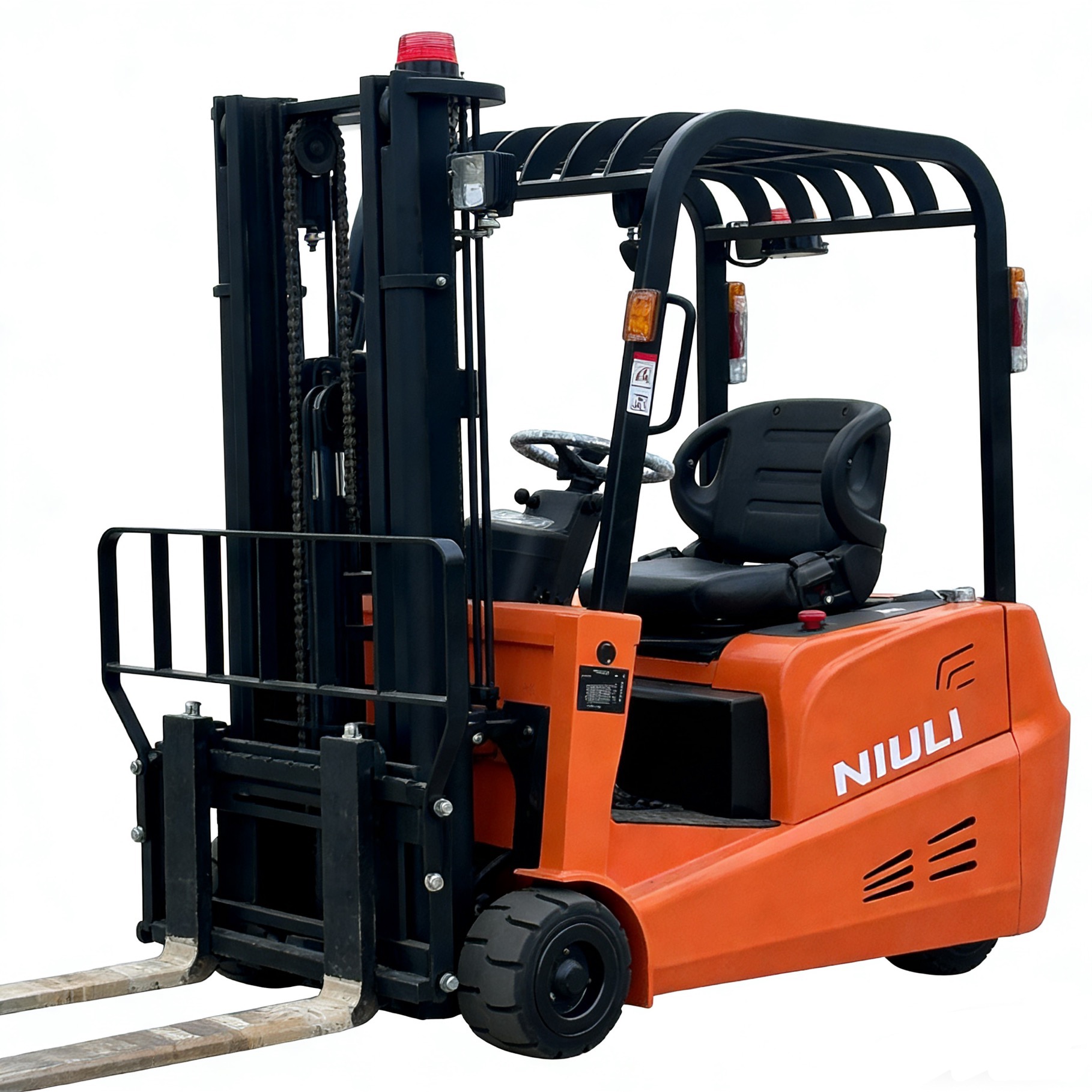

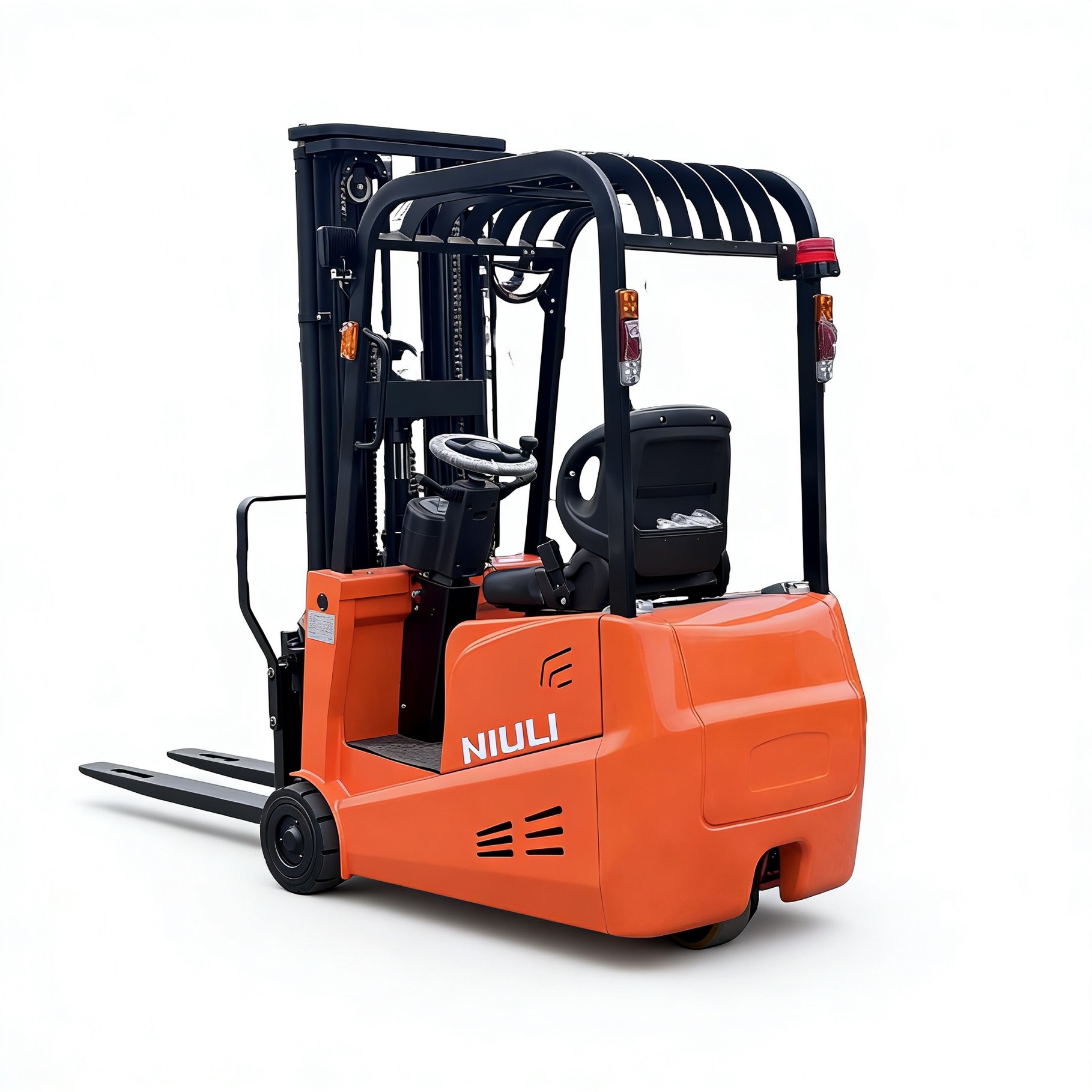

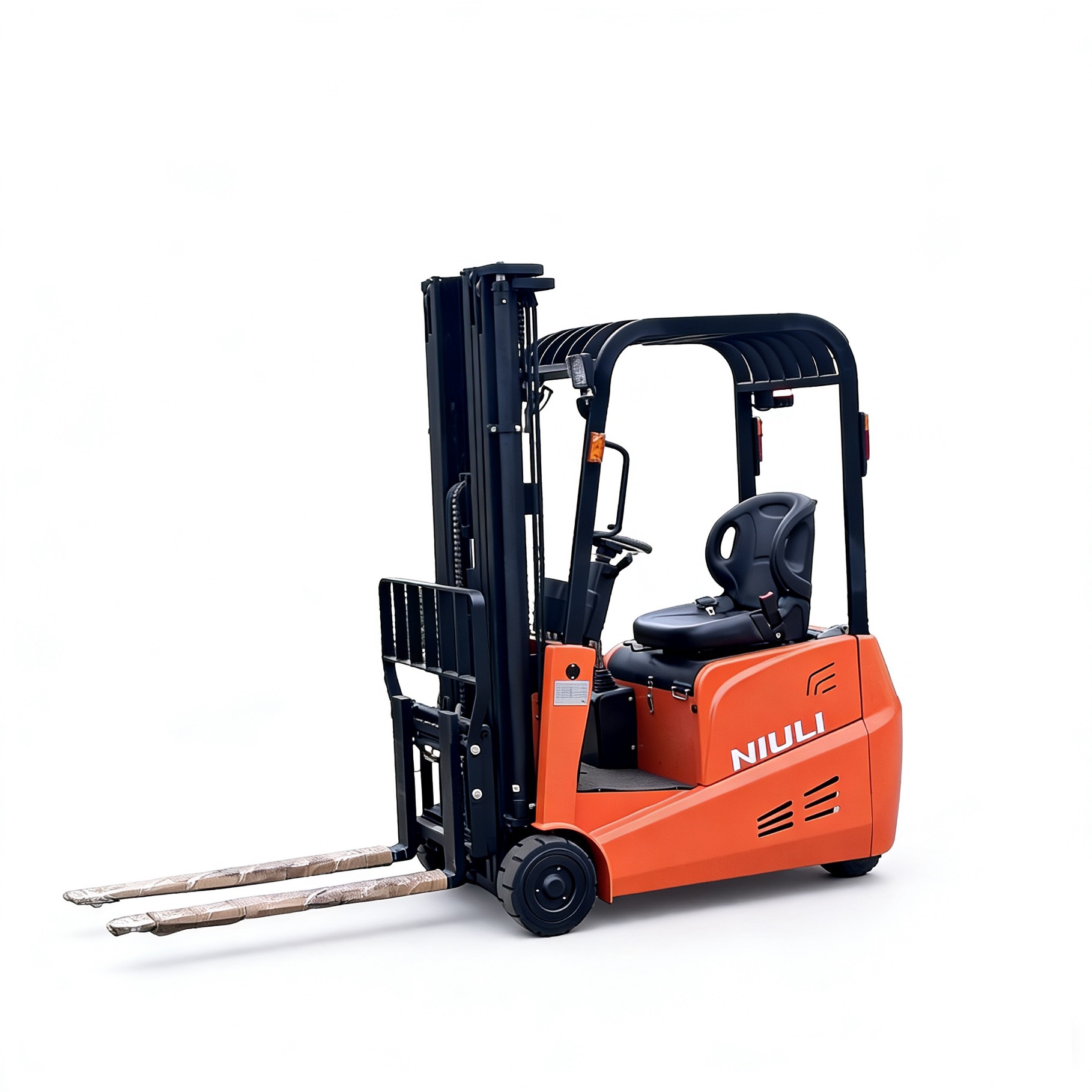

CPDA
NIULI
| Characteristic | CPDA10-30 | CPDA15-30 |
|---|---|---|
| 1.1 Model | CPDA10-30 | CPDA15-30 |
| 1.2 Power Type | Electric | Electric |
| 1.3 Operation Type | Seated Type | Seated Type |
| 1.4 Load Capacity (Q) | 1000 Kg | 1500 Kg |
| 1.5 Load Center (C) | 500 mm | 500 mm |
| 1.6 Front Overhang (X) | 196 mm | 196 mm |
| 1.7 Wheelbase (Y) | 1130 mm | 1130 mm |
| Characteristic | CPDA10-30 | CPDA15-30 |
|---|---|---|
| 2.1 Service Weight (With Battery) | 2120 kg | 2150 kg |
| Characteristic | CPDA10-30 | CPDA15-30 |
|---|---|---|
| 3.1 Wheel Type | Front Wheel Rubber / Rear Wheel Polyurethane | Front Wheel Rubber / Rear Wheel Polyurethane |
| 3.2 Driving Wheel (∅×w) | ∅230×110 mm | ∅230×110 mm |
| 3.3 Front Wheel (∅×w) | ∅305×127 mm | ∅305×127 mm |
| 3.4 Front Wheelbase | 752 mm | 752 mm |
| Characteristic | CPDA10-30 | CPDA15-30 |
|---|---|---|
| 4.1 Mast Tilting Angle (Forward/Backward, α/β) | 2/4 ° | 2/4 ° |
| 4.2 Mast Height, Lowered (h1) | 2035 mm | 2035 mm |
| 4.3 Free Lift (h2) | 0 mm | 0 mm |
| 4.4 Lifting Height (h3) | 3000 mm | 3000 mm |
| 4.5 Height, mast extended (h4) | 3918 mm | 3918 mm |
| 4.6 Height of Overhead Guards (h13) | 1930 mm | 1930 mm |
| 4.7 Fork Clearance When Mast Lowered (h) | 35 mm | 35 mm |
| 4.8 Overall Length (With Fork, L1) | 2680 mm | 2680 mm |
| 4.9 Length to cargo fork face (Without Fork, L2) | 1610 mm | 1610 mm |
| 4.1 Overall Width (b1) | 880 mm | 880 mm |
| 4.1 Fork Size (s/e/l) | 35/100/1070 mm | 35/100/1070 mm |
| 4.1 Fork Spread (b5) | 210-580 mm | 210-580 mm |
| 4.1 Min. Ground Clearance (m2) | 60 mm | 60 mm |
| Characteristic | CPDA10-30 | CPDA15-30 |
|---|---|---|
| 5.1 Aisle Width for Pallet 1000×1200 crossways (1200 placed across forks, Ast) | 2931 mm | 2931 mm |
| 5.2 Min. Turning Radius (Wa) | 1425 mm | 1425 mm |
| 5.3 Max. Travel Speed (Unladen/Laden) | 5.2/5 km/h | 5.2/5 km/h |
| 5.4 Lifting Speed (Unladen/Laden) | 0.135/0.095 m/s | 0.135/0.090 m/s |
| 5.5 Lowering Speed (Unladen/Laden) | 0.085/0.120 m/s | 0.085/0.120 m/s |
| 5.6 Max. Gradeability (Unladen/Laden) | 6/4 % | 6/4 % |
| 5.7 Service Brake | Hydraulic+Electromagnetic | Hydraulic+Electromagnetic |
| Characteristic | CPDA10-30 | CPDA15-30 |
|---|---|---|
| 6.1 Drive Motor | 1.5 kw | 2.5 kw |
| 6.2 Lift Motor | 3.0 kw | 3.0 kw |
| 6.3 Battery voltage/nominal capacity | 24V/270Ah | 24V/300Ah |
| 6.4 Charger | 24V/40A | 24V/40A |
| Characteristic | CPDA10-30 | CPDA15-30 |
|---|---|---|
| 7.1 Type of Drive Control | AC | AC |
| 7.2 Noise Level (dB(A)) | 75 | 75 |
