CPD
NIULI
NO. | ltem | Description |
1. | Model | CPD25 |
2. | Power type | Electric |
3. | Rated Capacity | 2500kg |
4. | Lift Height | 3000mm |
5. | ForkSize | 1070*125*40 |
6. | Front Overhang | 468mm |
7. | Ground Clearance | 120mm |
8. | Max.Gradeability | 20% |
9. | Wheelbase | 1495mm |
10. | Self weight | 4020kg |

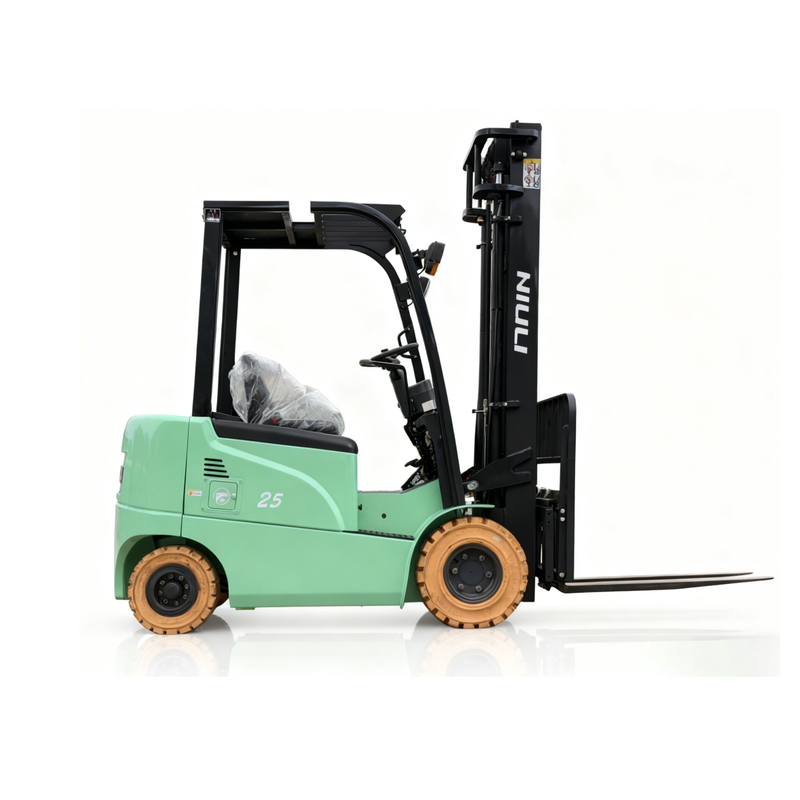

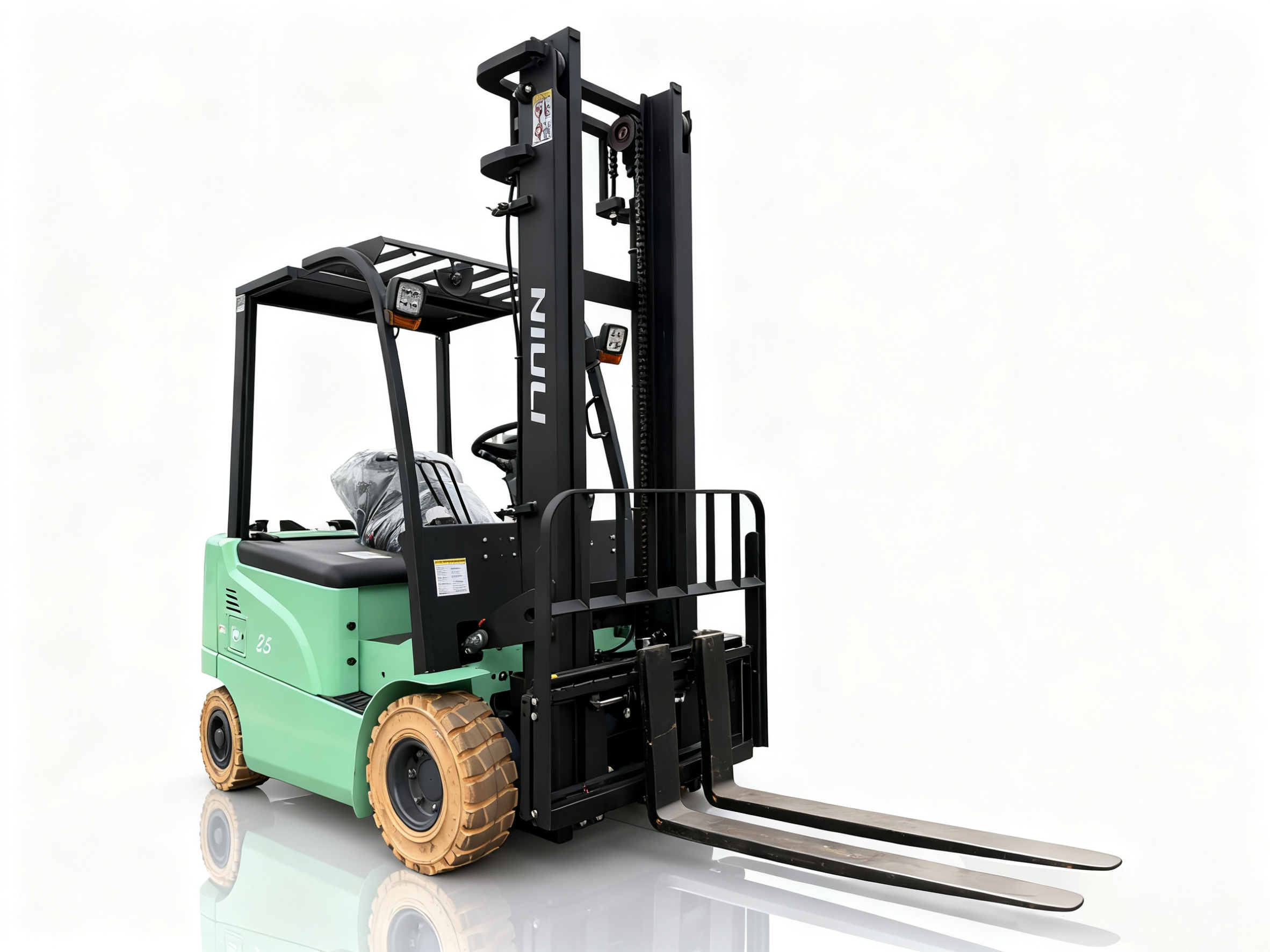

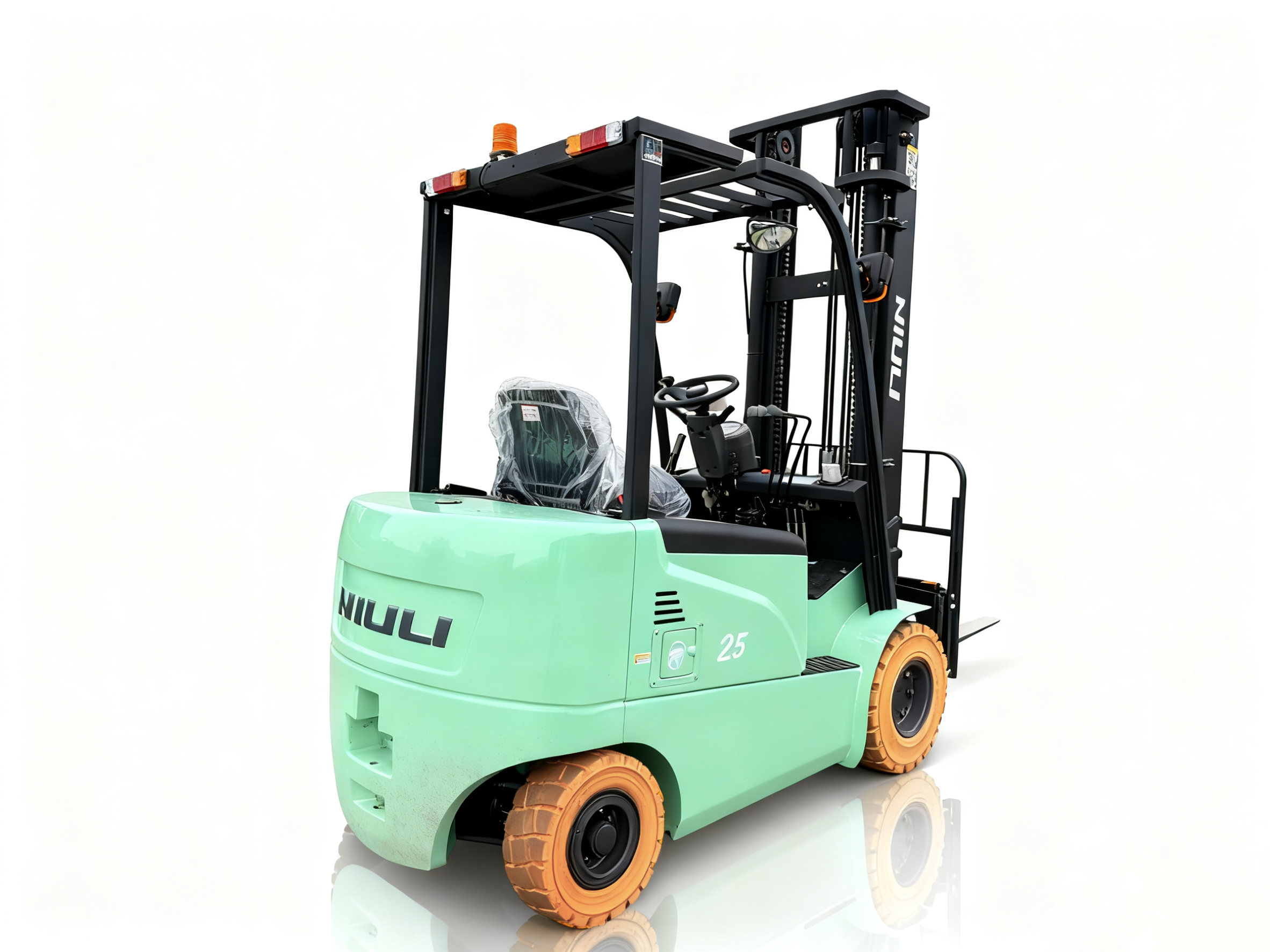

This model has a rated load capacity of 2.5 tons and a load center distance of 500mm, belonging to a four-wheel counterbalanced electric forklift. Its core applicable scenarios include warehouse cargo loading and unloading, short-distance transportation in logistics parks, and material transfer in production workshops. It can also be adapted for stacking operations in industries such as food, textiles, and building materials, and is particularly suitable for indoor operating environments with strict requirements on noise and exhaust emissions.
The power type is battery-powered, equipped with a high-power AC drive motor and an oil pump motor, ensuring efficient and stable power output. The battery life depends on the specific operating intensity; under normal working conditions, it can meet 8-10 hours of continuous operation. It is equipped with a dedicated charger, and the standard charging time is about 8 hours. It is recommended to disconnect the power in time after full charging to avoid battery damage caused by overcharging.
In terms of driving speed, it can reach 15km/h both with and without load; the lifting speed is 420mm/s with load and 450mm/s without load, and the descending speed is stable and controllable. The maximum climbing capacity is 15% with load and 20% without load (S2=5min working condition), and the minimum turning radius is 2020mm, which can adapt to operations in narrow spaces such as workshop passages and warehouse lanes. The minimum ground clearance at the mast is 95mm, which can cope with slight protrusions on conventional flat ground.
It supports customized configurations. In addition to the basic model, safety auxiliary devices such as reversing image, reversing radar, fork tip image, orange safety belt alarm, strobe light, and front/rear blue light can be installed according to needs; it can also customize the mast, load guard, and fork size. At the same time, it supports the choice of pneumatic tires or environmentally friendly tires. In some scenarios, it can be customized to a 2.85-ton load capacity model by adding counterweight.
Operators must receive professional training, be familiar with vehicle performance and operating procedures, and obtain the corresponding special equipment operation qualification before going on duty. Unauthorized operation, operation under the influence of alcohol, or fatigued operation is strictly prohibited. This model has a simple operation interface and flexible steering, equipped with panoramic rearview mirrors and other auxiliary devices. Newcomers can get started after short-term training. During operation, it is necessary to maintain a safe speed and avoid sharp turns and sudden braking.
The key points of daily maintenance include three parts: ① Battery system: Check the liquid level daily (distilled water should be added, tap water/electrolyte is prohibited), clean the white oxide powder on the battery terminals weekly, rinse with hot water and apply vaseline to prevent oxidation; ② Traveling and lifting system: Check tire wear and air pressure daily (pneumatic tires: front tire 2.5bar, rear tire 2.8bar), apply special lubricating oil to the chain monthly, and check for deformation and cracks of the forks; ③ Hydraulic system: Regularly check the oil level to ensure no leakage of pipelines, and the operation handle moves smoothly without jamming.
Common reasons include: ① Insufficient hydraulic oil in the hydraulic tank or incorrect hydraulic oil model; ② Insufficient pressure of the relief valve; ③ Air in the lifting cylinder; ④ Leakage of hydraulic pipelines or joints. Preliminary troubleshooting steps: First, check the hydraulic oil level and add hydraulic oil of the same model; if it is still weak, discharge the air in the cylinder through multiple loading and lifting operations; finally, check the pipeline leakage and the pressure of the relief valve, and contact professional personnel for maintenance if necessary.
Core safety configurations include a overhead guard (height 2195mm), parking brake, horn, front and rear work lights, and turn signals. Optional configurations such as safety belt alarm and warning light are available. Operation safety regulations: ① Before lifting goods, confirm that the forks are fully inserted into the bottom of the goods and the center of gravity is centered; ② When driving, the forks are 15-20cm above the ground, and the mast is tilted back; ③ Drive slowly when going up and down slopes, with the forks in front when going up the slope and the forks in the back when going down the slope; turning on the slope is strictly prohibited; ④ After the goods are lifted, no one is allowed to stand or pass under them.
After-sales services include free technical consultation, fault maintenance, spare parts supply, etc. The official customer service hotline is 4008-832-368, and the after-sales service dedicated line is 0750-8383708. The warranty policy refers to industry standards: the whole vehicle warranty period is 12 months or 1200 working hours (whichever comes first). The warranty for core components (such as motors and electronic controls) can be consulted at local service outlets; in terms of fault response, service outlets can reach the site for processing within 24 hours within 300 kilometers.
Three preparations are needed for long-term idleness: ① Battery maintenance: First, fully charge the battery. During storage, regularly supplement the power to prevent battery sulfation due to undercharging and avoid plate damage; ② Vehicle inspection: Lower the forks to the ground, pull the parking brake tightly, put the gear in neutral, and turn off the power; ③ Environment selection: Store in a dry and ventilated indoor environment, away from fire sources, heat sources, and corrosive gases, to avoid component rust caused by a humid environment.
