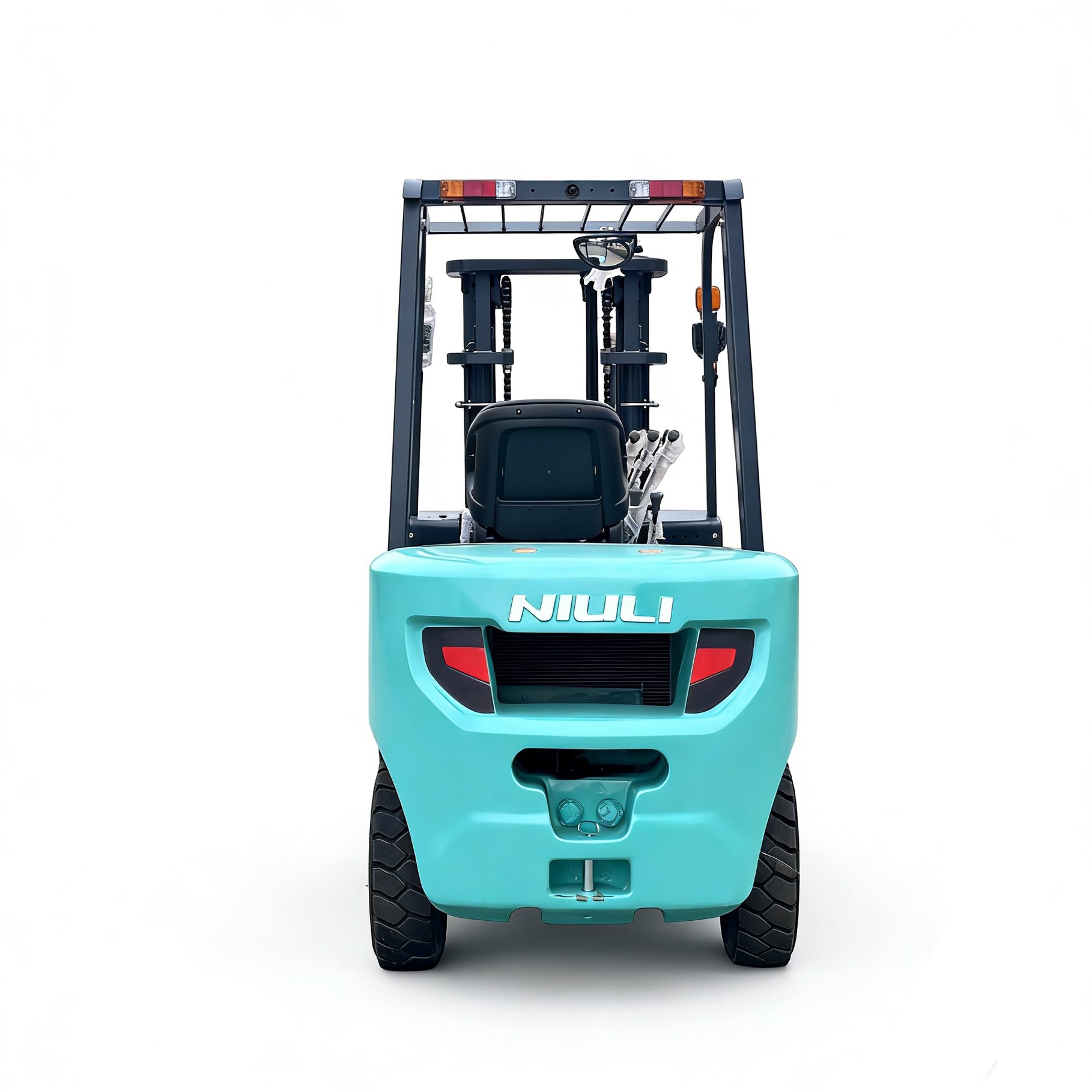

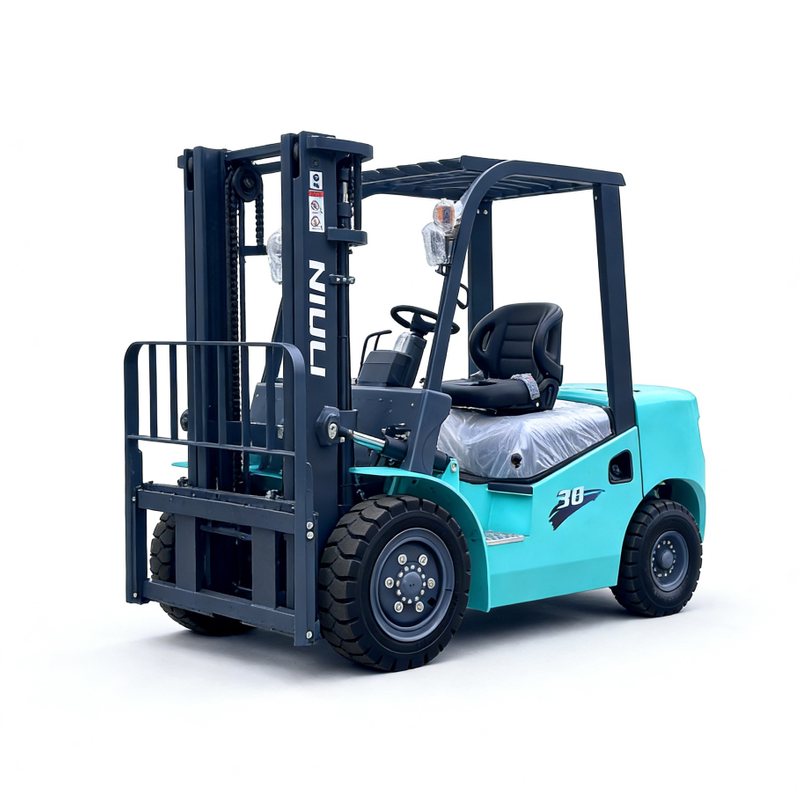

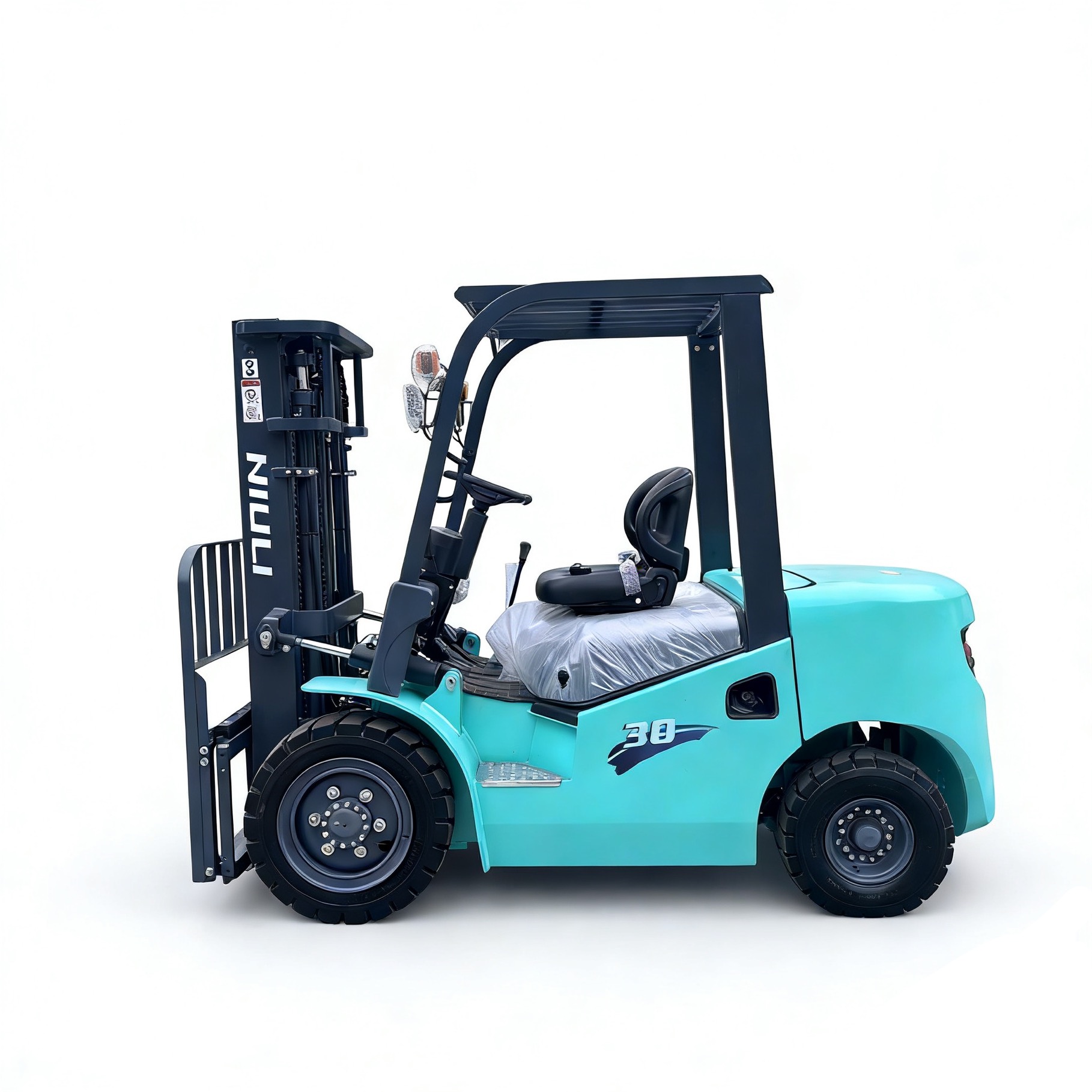

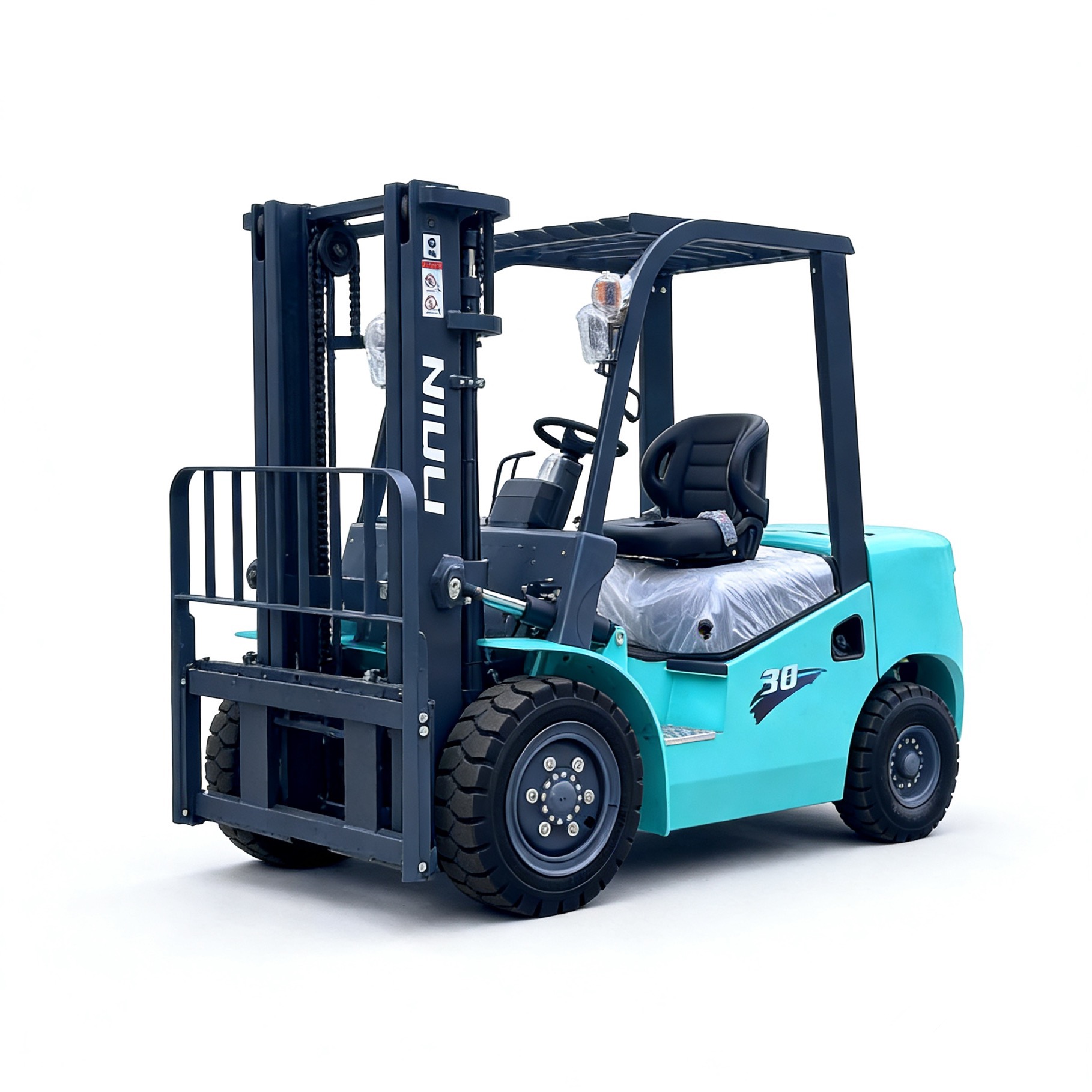

CPD "K Series Diesel Forklift"

Name: CPD "K Series Diesel Forklift"
Brand: NIULI
Rating: 5.0 (35 reviews)

Diesel Forklift "K2 Series"
Capacity: 3000kg/3500kg
Max. lifting height: 6000mm
The K2 diesel forklift is based on the K-type forklift and has been redesigned with a counterweight and cabin, providing better driving comfort and flexibility. Can load 3000kg to 3500kg, can be equipped with door frames ranging from 3000m to 6000mm, and can be optionally equipped with a gasoline engine. It is the best choice for logistics operations such as warehouses and factories

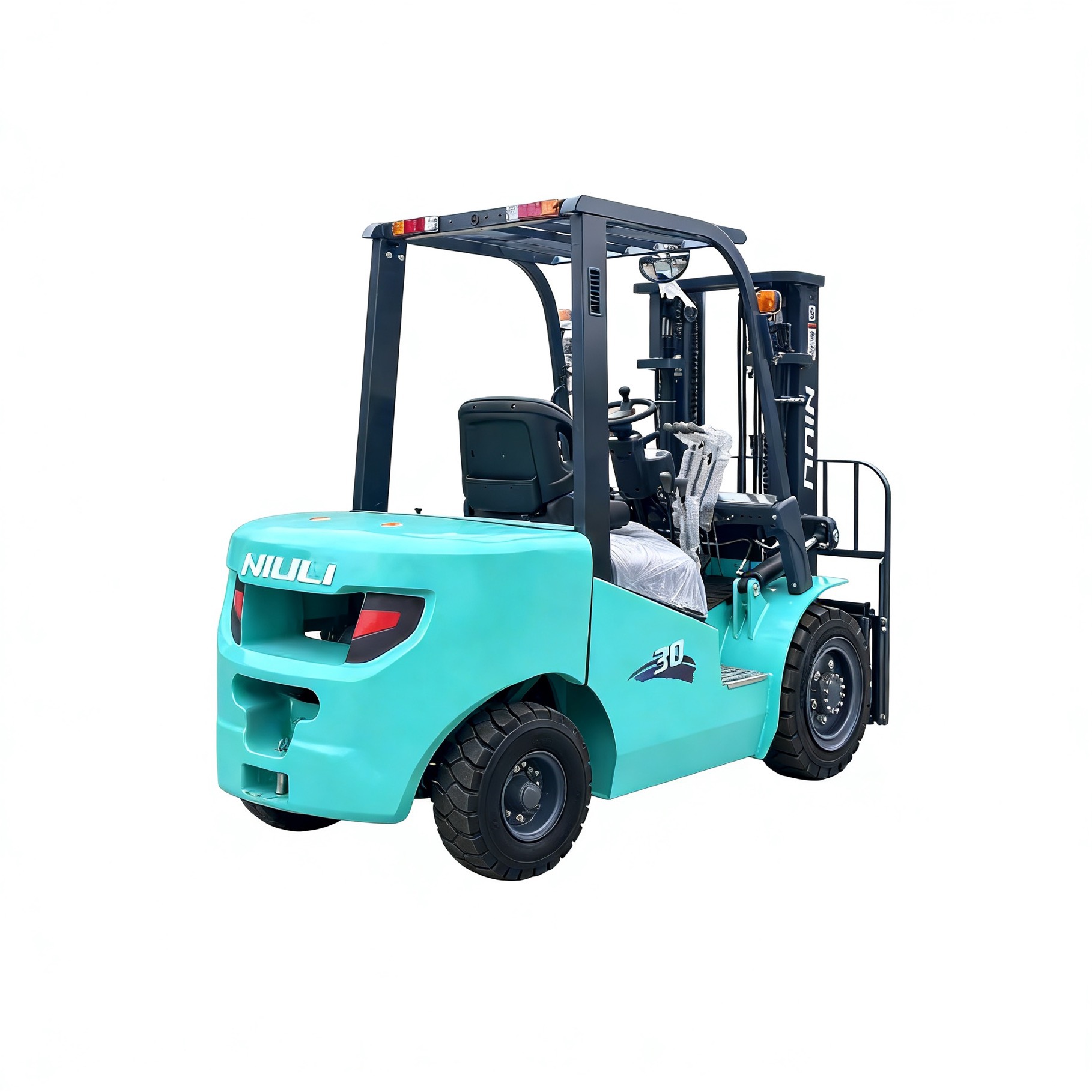

New counterweight design

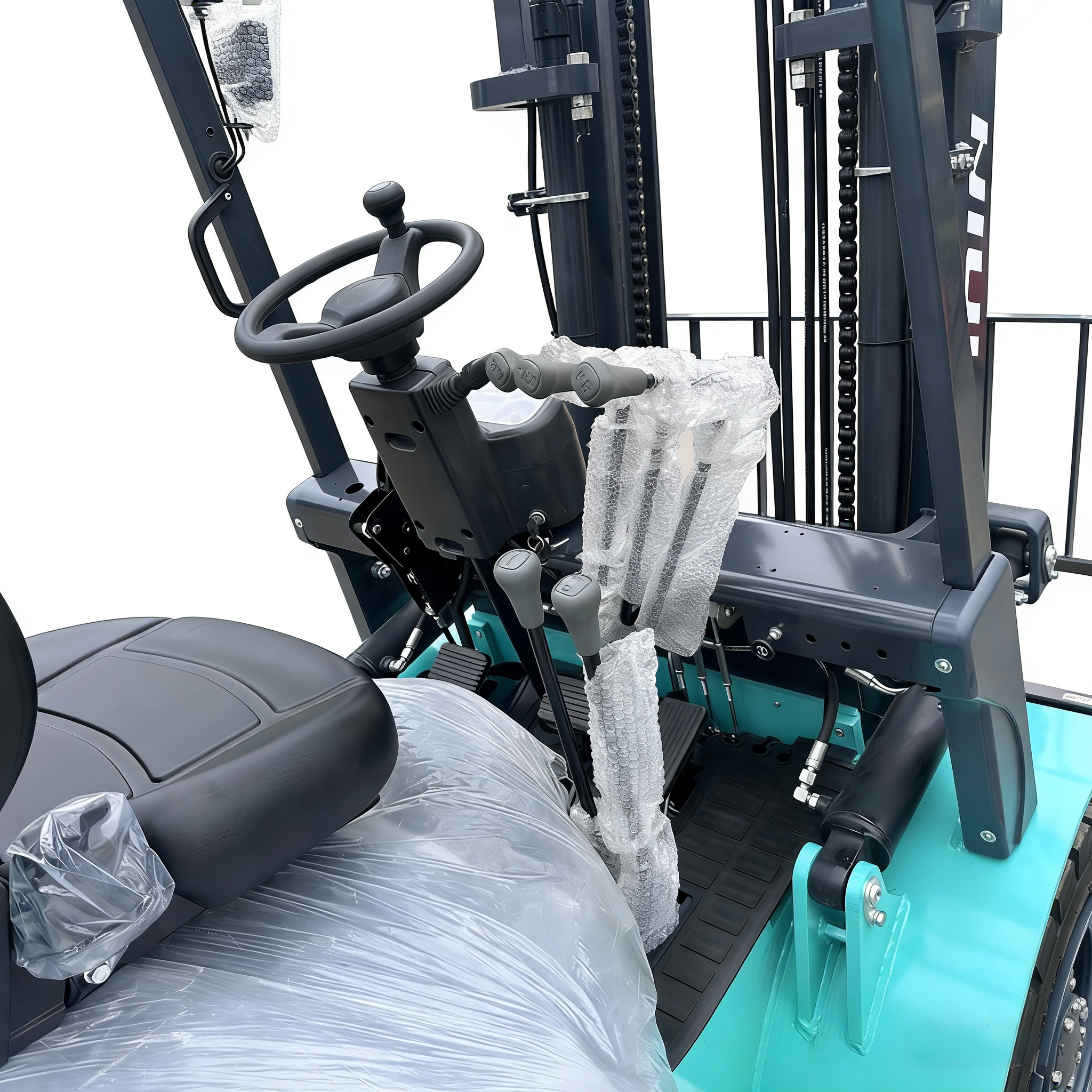

• New integrated floating cockpit
› High strength gantry
• Multiple engine brands available
Standard front and tail lights

Availability:



Inquire Add to Basket

Model:
CPD30
Brand:
NIULI

Product Description

Forklift Product Specification Document

1. Mast Height Parameters

Parameter	Two mast specifications	Two mast specifications	Two mast specifications	Two mast specifications	Three mast specifications	Three mast specifications	Three mast specifications	Three mast specifications	Three mast specifications
Lift height (h)	3000mm	3500mm	4000mm	4500mm	4500mm	4800mm	5000mm	5500mm	6000mm
Mast lowered height (h1)	2130mm	2380mm	2630mm	2930mm	2130mm	2230mm	2280mm	2480mm	2630mm
Free lift (h3)	145mm	145mm	145mm	145mm	1500mm	1600mm	1667mm	1833mm	2000mm
Extended mast height (h2)	4340mm	4590mm	4840mm	5140mm	5140mm	5440mm	5640mm	6140mm	6640mm

2. Core Parameter Comparison by Model

Category	Parameter	CPC/CPCD30（Diesel）	CPC/CPCD35（Diesel/Gas）
Characteristic	Power type	Diesel	Diesel/Gas
	Load capacity	3000 kg	3500 kg
	Load center	500 mm	500 mm
	Lifting height	3000 mm	3500 mm
	Free height	145 mm	145 mm
	Fork size (L×W×H)	1070×125×45 mm	1070×125×50 mm
	Mast angle (Front/Rear)	6/12 °	6/12 °
	Min. turning radius	2470 mm	2400 mm
	Min. right angle stacking channel width	4280 mm	4335 mm
	Min. right angle channel width	2120 mm	2235 mm
	Ground clearance	120 mm	120 mm
	Overhead guard height	2120 mm	2120 mm
	Front overhang	498 mm	498 mm
Performance	Max. driving speed (Full Load)	19 km/h	19 km/h
	Max. lifting speed (Full Load)	460 mm/s	460 mm/s
	Max. traction (Full load)	20 KW	22 KW
	Max. climb capacity	20 %	20 %
Dimensions	Overall length (With fork)	3825 mm	3730 mm
	Overall length (Without fork)	2735 mm	2660 mm
	Overall width	1230 mm	1230 mm
	Max. lifting height of fork (with shelving)	4265 mm	4265 mm
	Mast landing height	2040 mm	2040 mm
Chassis	Tire	Front wheel: 28×9-15-12PR Rear wheel: 6.50-10-10PR	Front wheel: 28×9-15-12PR Rear wheel: 6.50-10-10PR
	Wheelbase	1700 mm	1750 mm
	Track width (Front/Rear)	1000/970 mm	1000/970 mm
	Selfweight (Unload)	4250 Kg	4600 Kg
	Battery (V/capacity)	12/80 V/Ah	12/80 V/Ah
Driving	Engine
	Model	XINCHANG 4D27G31 XINCHANG C490BPG NISSAN K25	BAIYANG BY491 YANMAR 4TNE98 XINCHANG 4D30G31
	Rated power (kw/r.p.m)	37/2650 37.4/2300	22/1500 193.6/1700- 36.8/2650
	Rated torque (Nm/r.p.m)	148/2000 176.5/1600	176/1800 174/1700
	Bore*stroke (mm)	90×105 89×100	91×86 98×110 95×105
	No. of cylinder	4	4
	Full tank capacity (L)	2.54 2.54	2.27 3.319 2.98
	Fuel tank (L)	50	50
	Transmission gear (front/rear)	2/2 Manual shift	1/1 Power shift
	Working pressure (Mpa)	17.5	17.5
