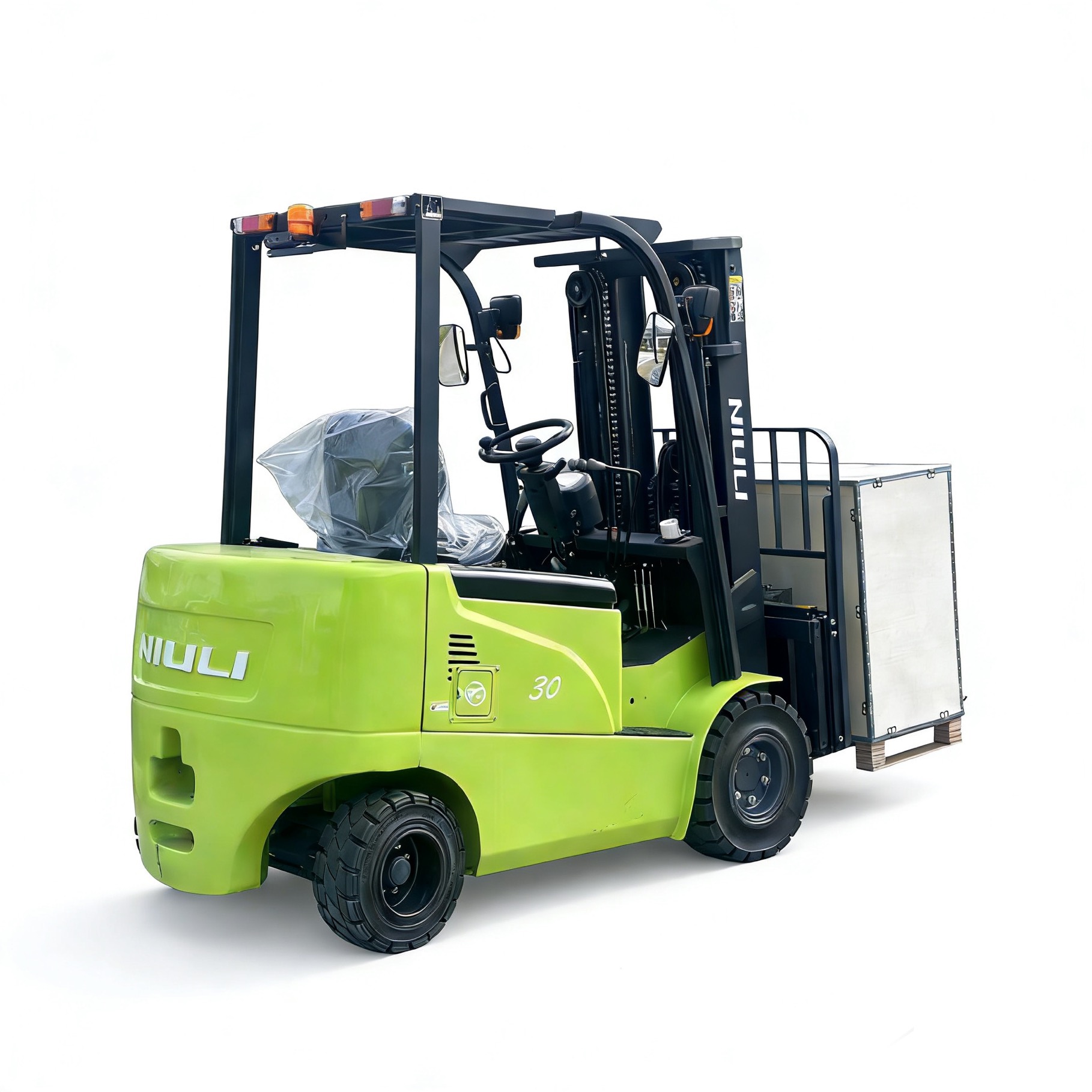

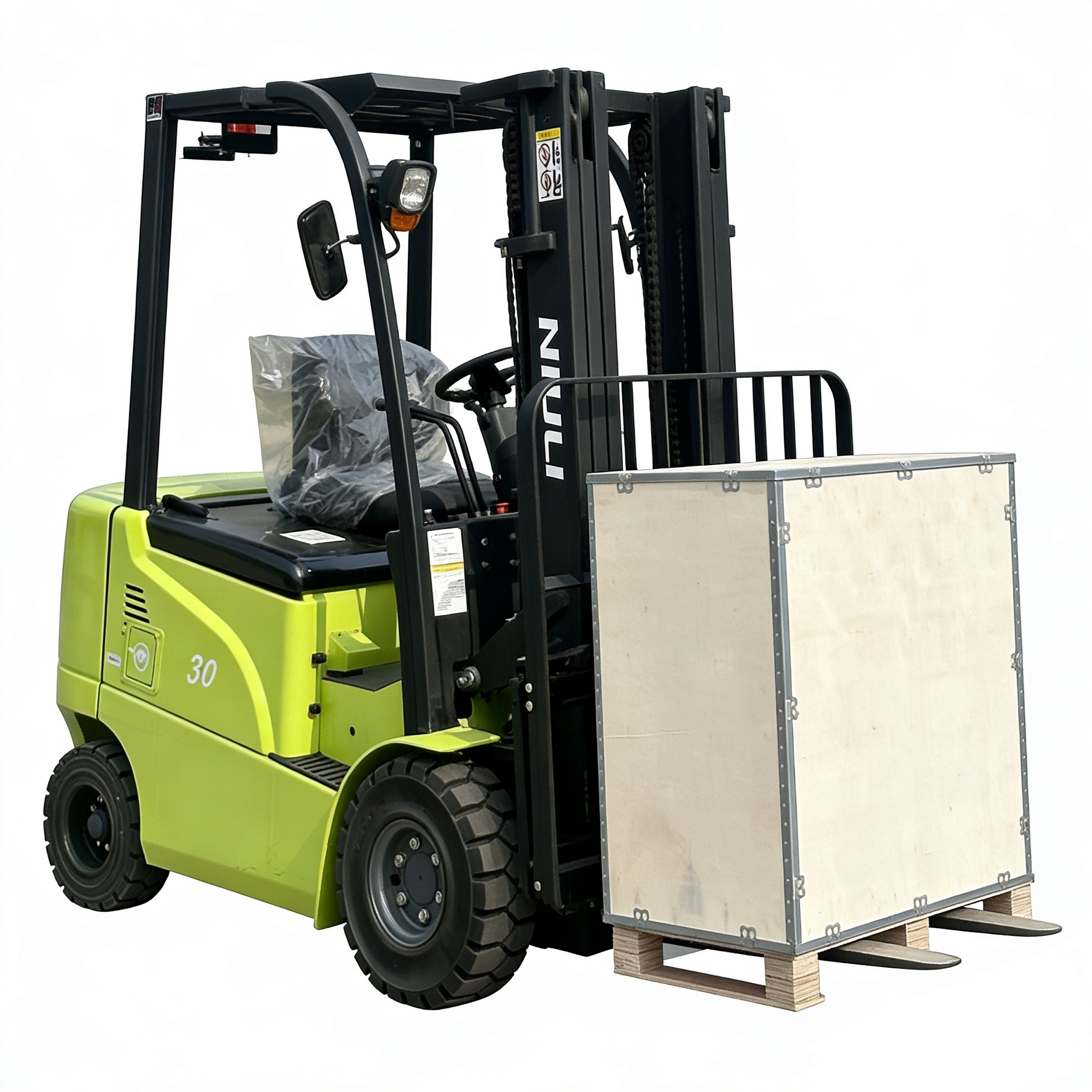

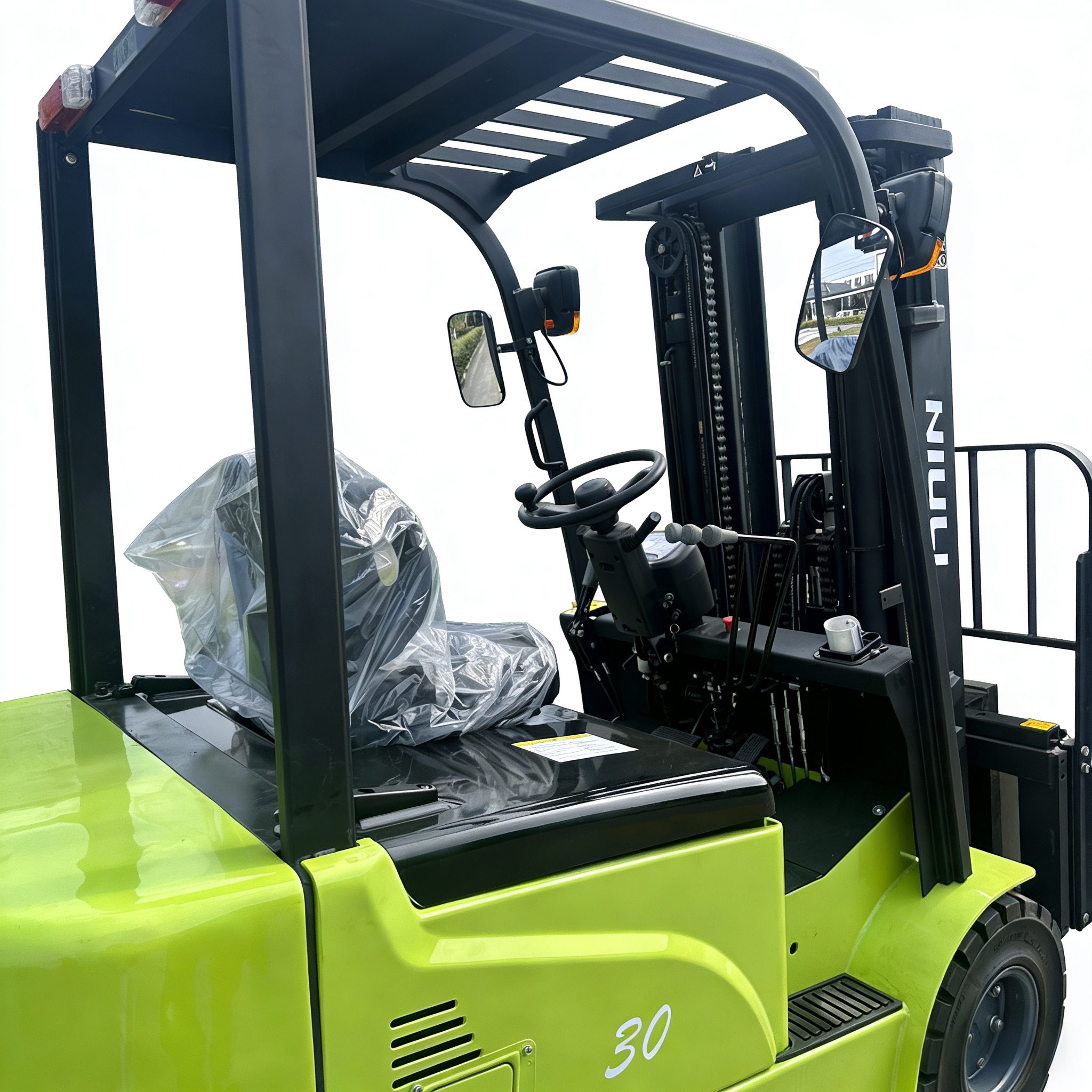

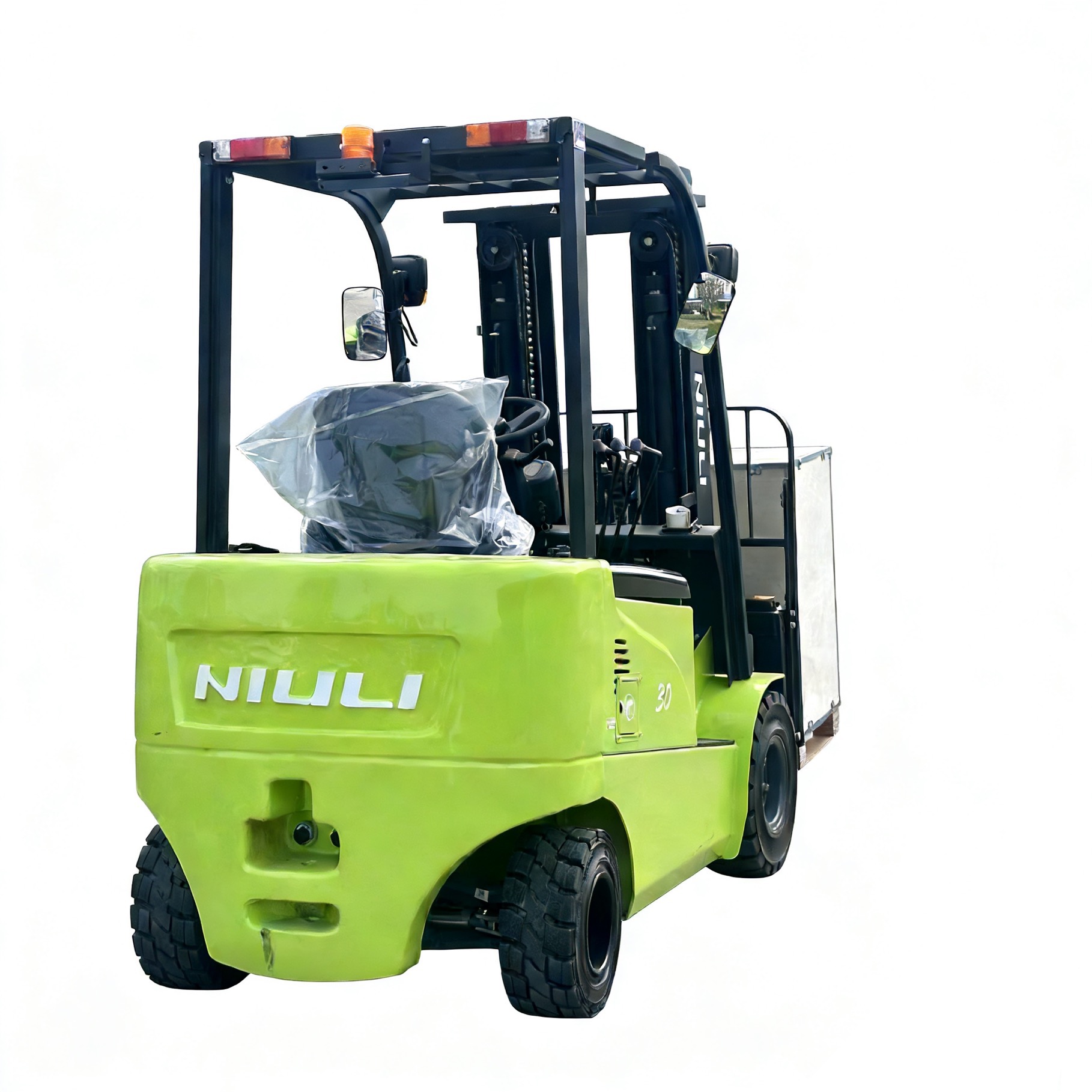

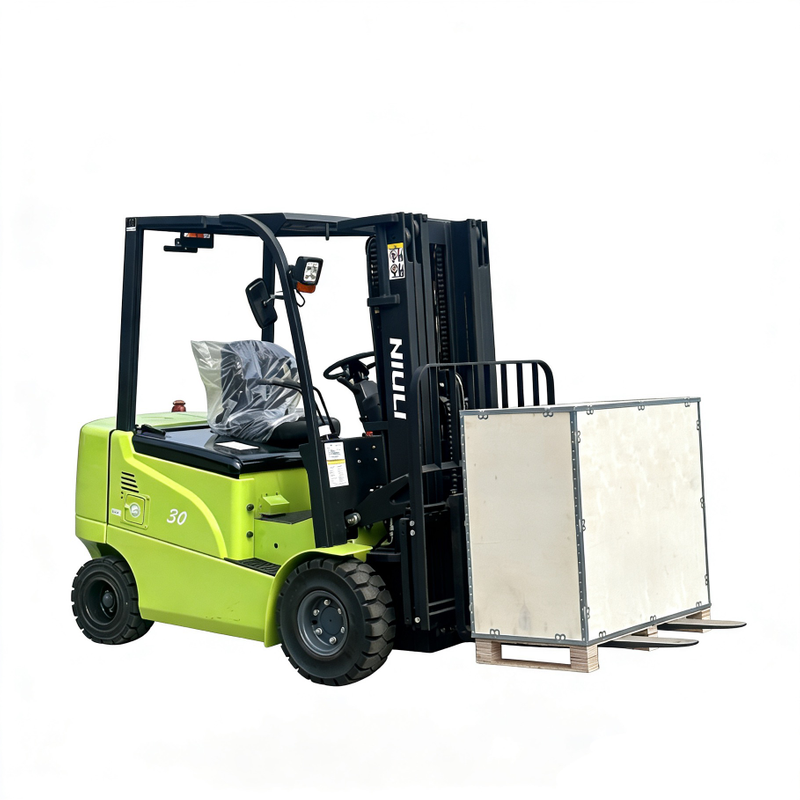

CPD 30 E Series Electric Forklift

Name: CPD 30 E Series Electric Forklift
Brand: NIULI
Rating: 5.0 (72 reviews)

Electric Forklift
Capacity: 2000kg/2500kg/ 3000kg/3500kg
Max.lifting height: 6000mm
This lithium-ion forklift is the latest designed forklift by Null, with excellent appearance and performance, as well as flexible handling, making it the best choice for warehouse operations
Remark: Lithium battery (standard)
Option: Lead-acid battery
• Excellent exterior design
• Ergonomic design of cocKpit
• Intelligent Vehicle Connection Management
• Excellent performance
• Low center of gravity chassis

Availability:



Inquire Add to Basket

Model:
CPD E SERIES
Brand:
NIULI

Product Description

PARAMETER TABLE

Overview	Unit	N/ULI CPD20	CPD25	CPD30	CPD35
1.1 Manufacturer	-	-	-	-	-
1.2 Model	-	CPD20	CPD25	CPD30	CPD35
1.3 Power Type	-	Electric	Electric	Electric	Electric
1.4 Operation Type	-	Seat	Seat	Seat	Seat
1.5 Rated capacity	Q kg	2000	2500	3000	3500
1.6 Load centre	x mm	500	500	500	500
1.7 Front overhang	y mm	468	473	495	495
1.8 Wheelbase	-	1495	1495	1500	1510

Weight	Unit	N/ULI CPD20	CPD25	CPD30	CPD35
2.1 Self weight	kg	3820	4020	4520	5150
2.2 Axle load Front/Rear(Full load)	kg	5200/620	5920/700	-	6846/794
2.3 Axle load Front/Rear(Empty load)	kg	1680/2140	1760/2360	-	1940/2700

The chassis	Unit	N/ULI CPD20	CPD25	CPD30	CPD35
3.1 Tire Type	-	Solid	Solid	Solid	Solid
3.2 Front	-	23×9-10	23×9-10	23×9-10	23×9-10
3.3 Rear	-	18×7-8	18×7-8	18×7-8	18×7-8
3.4 Number of tires (x = drive wheel)	-	2X/2	2X/2	2X/2	2X/2
3.5 Front-wheel tread	b3 mm	1035	1035	1035	1035
3.6 Rear-wheel tread	b4 mm	984	984	984	984

Dimensions	Unit	N/ULI CPD20	CPD25	CPD30	CPD35
4.1 Mast Tilt Angle Front/Rear	α/β Grad	5/10	5/10	5/10	5/10
4.2 Mast closed height	h1 mm	2055	2055	2055	2055
4.3 Free lift height	h2 mm	140	145	-	-
4.4 Standard lift height	h3 mm	3000	3000	4075	4075
4.5 Mast extended height (with Lifting frame)	h4 mm	3985	-	-	-
4.6 Overhead Guard Height	h5 mm	2140	2140	2140	2140
4.7 Total Length With Forks	L1 mm	3407	-	3410	-
4.8 Total Length Without Forks	L2 mm	2337	-	2342	-
4.9 Total Width	L1 mm	1265	1265	1285	1285

Dimensions	Unit	N/ULI CPD20	CPD25	CPD30	CPD35
4.1 Fork Size (L×W×T)	s×e×L mm	1070×125×40	1070×125×45	1070×125×50	1070×125×50
4.11 Fork Rack Standard	-	ISO2A	ISO2A	ISO3A	ISO3A
4.12 Fork Rack Width	W mm	1100	1100	1100	1100
4.13 Fork Spacing	mm	250/1040	-	250/1100	250/1100
4.14 Min. ground clearance Lifting frame	m1 mm	-	120	-	-
4.15 Min. ground clearance Truck Body	m2 mm	-	125	-	-
4.16 Aisle width for pallets 1000×1200,Transversal	Ast mm	4288	4288	4295	4295
4.17 Aisle width for pallets 800×1200,Longitudinal	Ast mm	4320	4320	4325	4325
4.18 Min. turning radius	Wa mm	-	2100	-	-

Parameters	Unit	N/ULI CPD20	CPD25	CPD30	CPD35
5.1 Max. travel speed No load/Full load	km/h	18/15	18/15	18/15	18/15
5.2 Max. lifting speed Full load/No load	mm/s	280/390	≤600	≤600	≤600
5.3 Descending speed No load/Full load	mm/s	≤600	≤600	≤600	≤600
5.4 Traction power laden/unladen	KW	20	20	21	21
5.5 Gradeability laden/unladen	%	18/15	18/15	18/15	18/15
5.6 Driving brake	-	Mechanical hydraulic type	Mechanical hydraulic type	Mechanical hydraulic type	Mechanical hydraulic type
5.7 Parking brake	-	Mechanical type	Mechanical type	Mechanical type	Mechanical type

Electrical	Unit	N/ULI CPD20	CPD25	CPD30	CPD35
6.1 Traction motor power, S2 60min work system	kW	17	17	17	17
6.2 Lifting motor power, S3 15% work system	kW	13	13	13	13
6.3 Specification of battery(Voltage/Capacity)	V/Ah	80V/200Ah & 280Ah & 450Ah	80V/200Ah & 280Ah & 450Ah	80V/200Ah & 280Ah & 450Ah	80V/200Ah & 280Ah & 450Ah

Other	Unit	N/ULI CPD20	CPD25	CPD30	CPD35
7.1 Driving control system	-	MOSFET/AC	MOSFET/AC	MOSFET/AC	MOSFET/AC
7.2 Controller brand	-	MEGMEET / CURTIS / ZAPI	MEGMEET / CURTIS / ZAPI	MEGMEET / CURTIS / ZAPI	MEGMEET / CURTIS / ZAPI
7.4 Noise	dB	74	74	74	74
7.5 Traction pin diameter	-	φ25	φ25	φ25	φ25
7.6 Hydraulic oil tank capacity	liter	50	50	50	50
