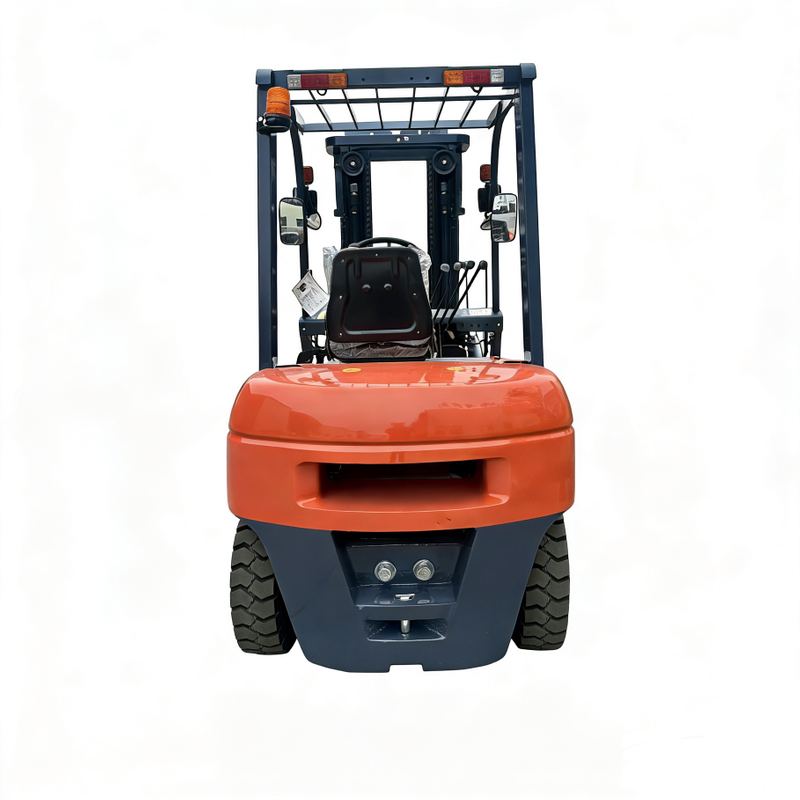

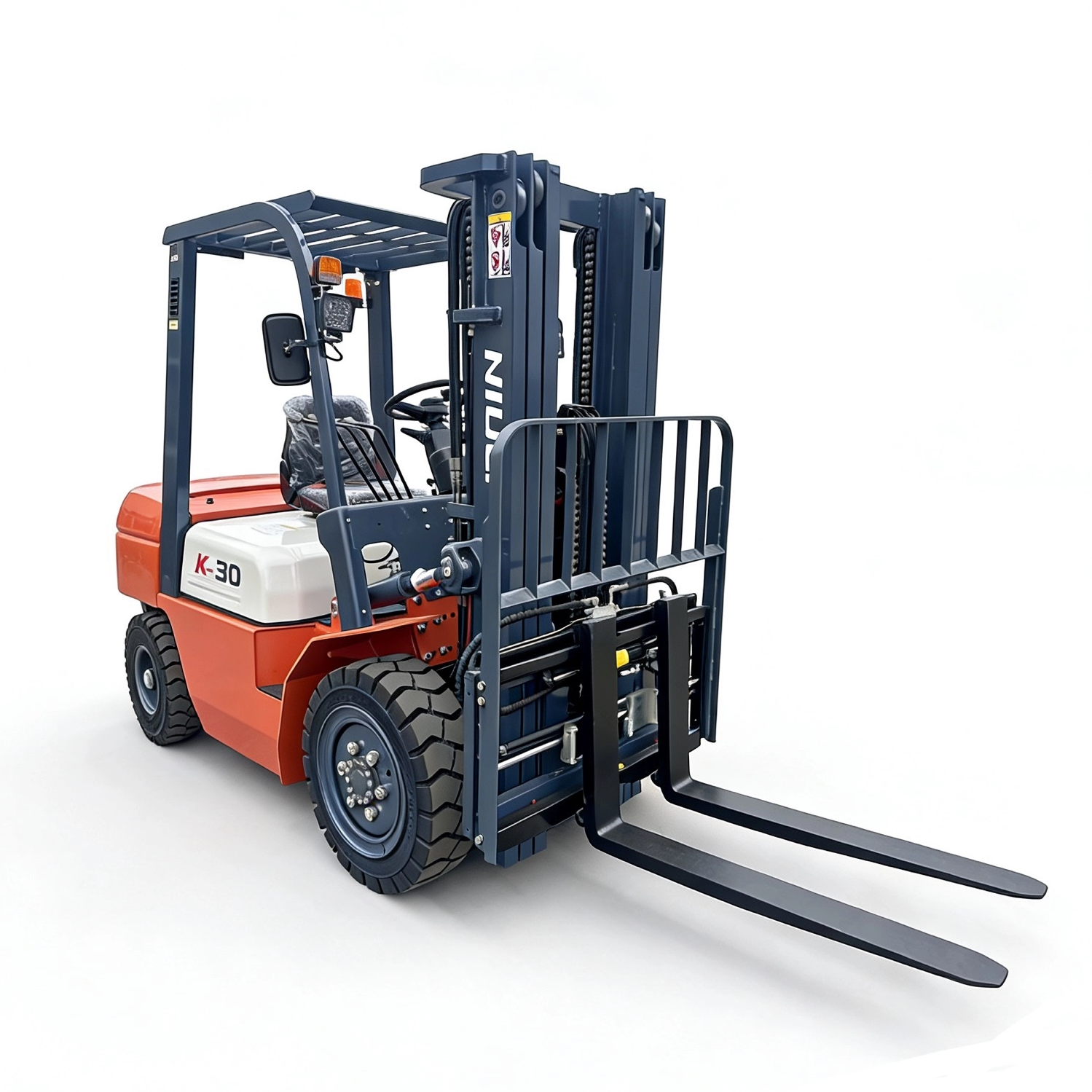

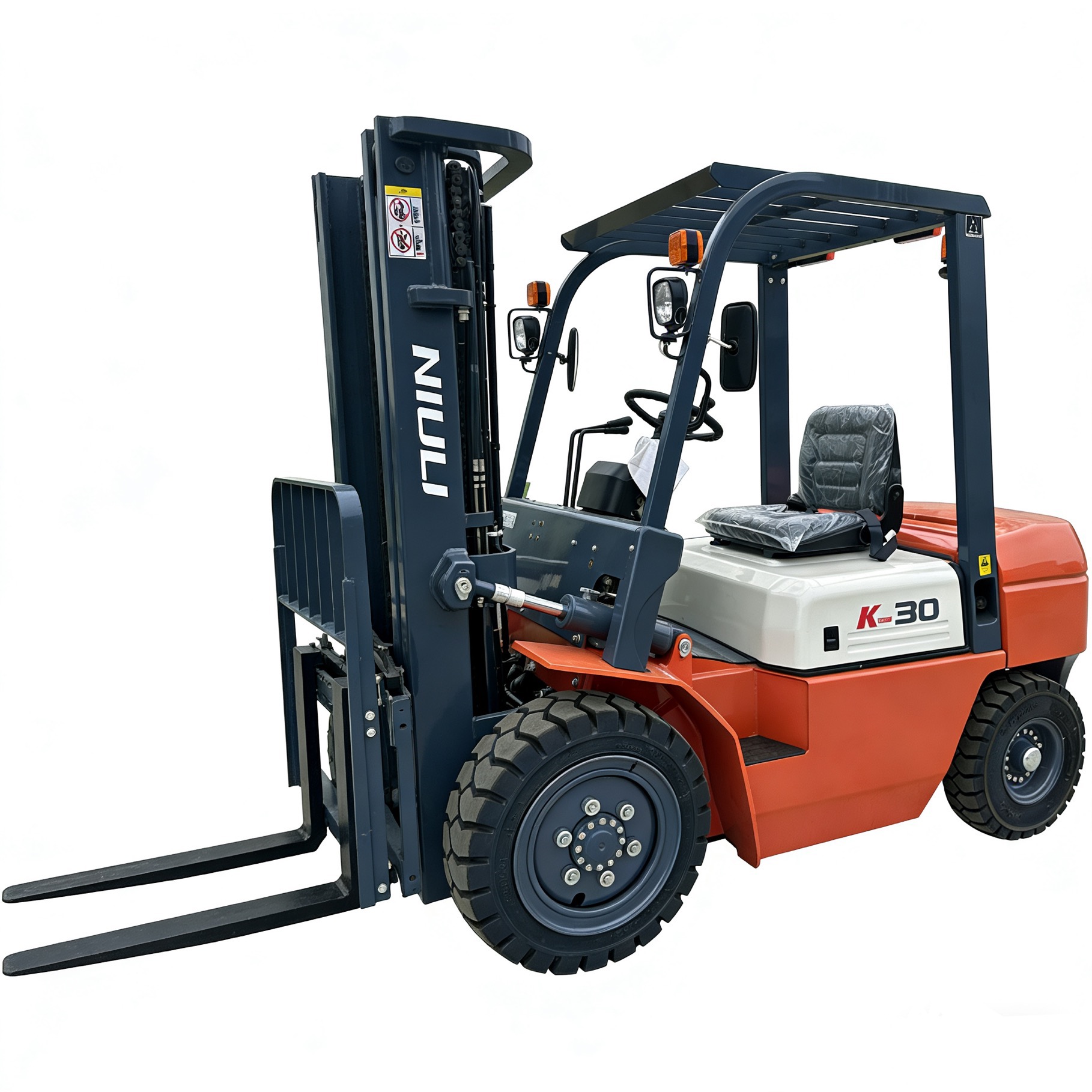

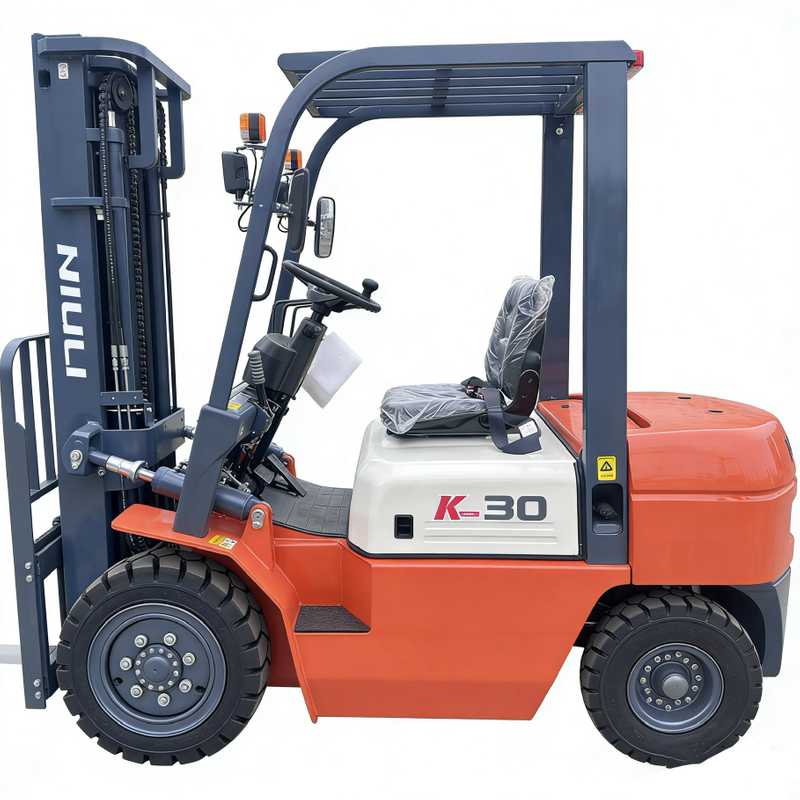

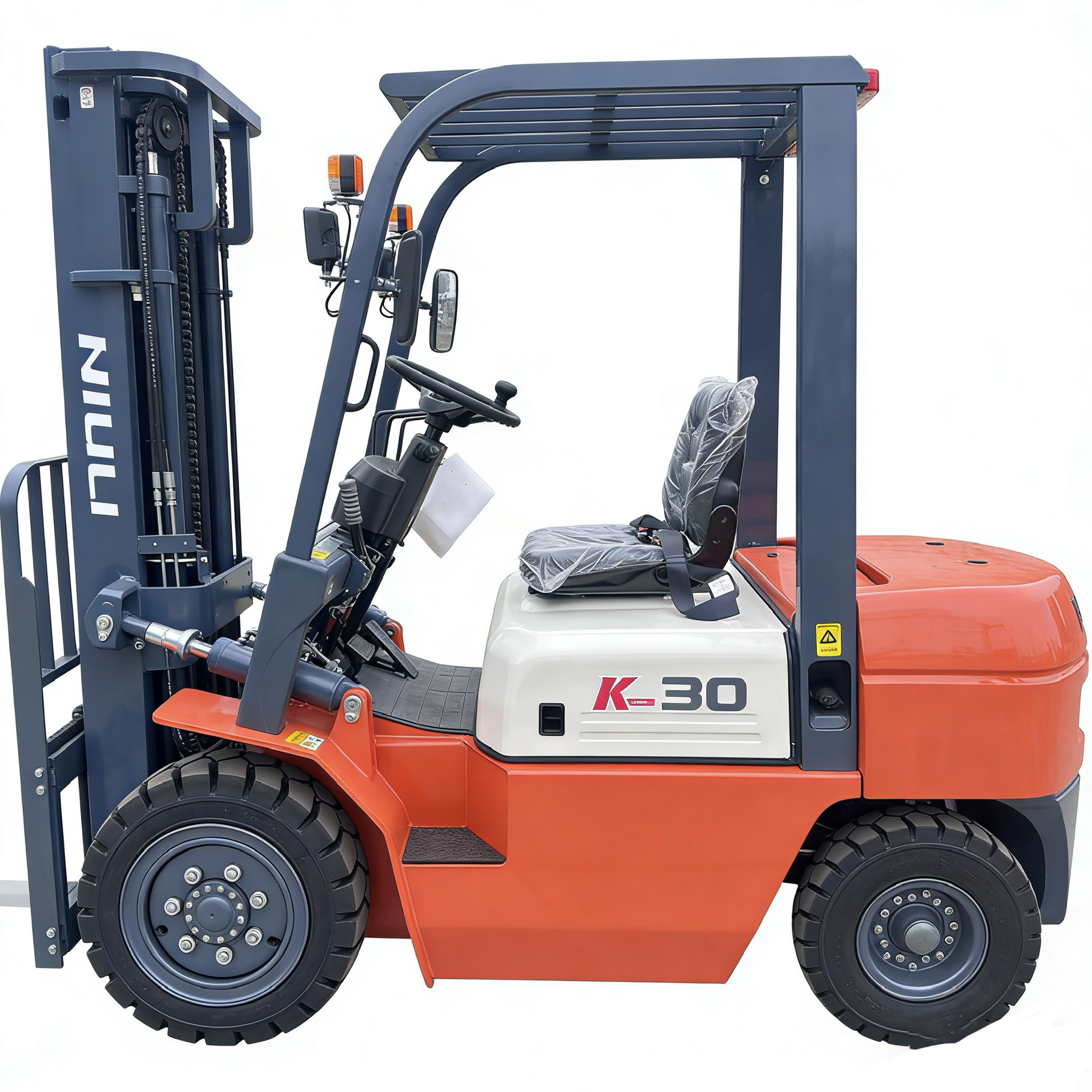

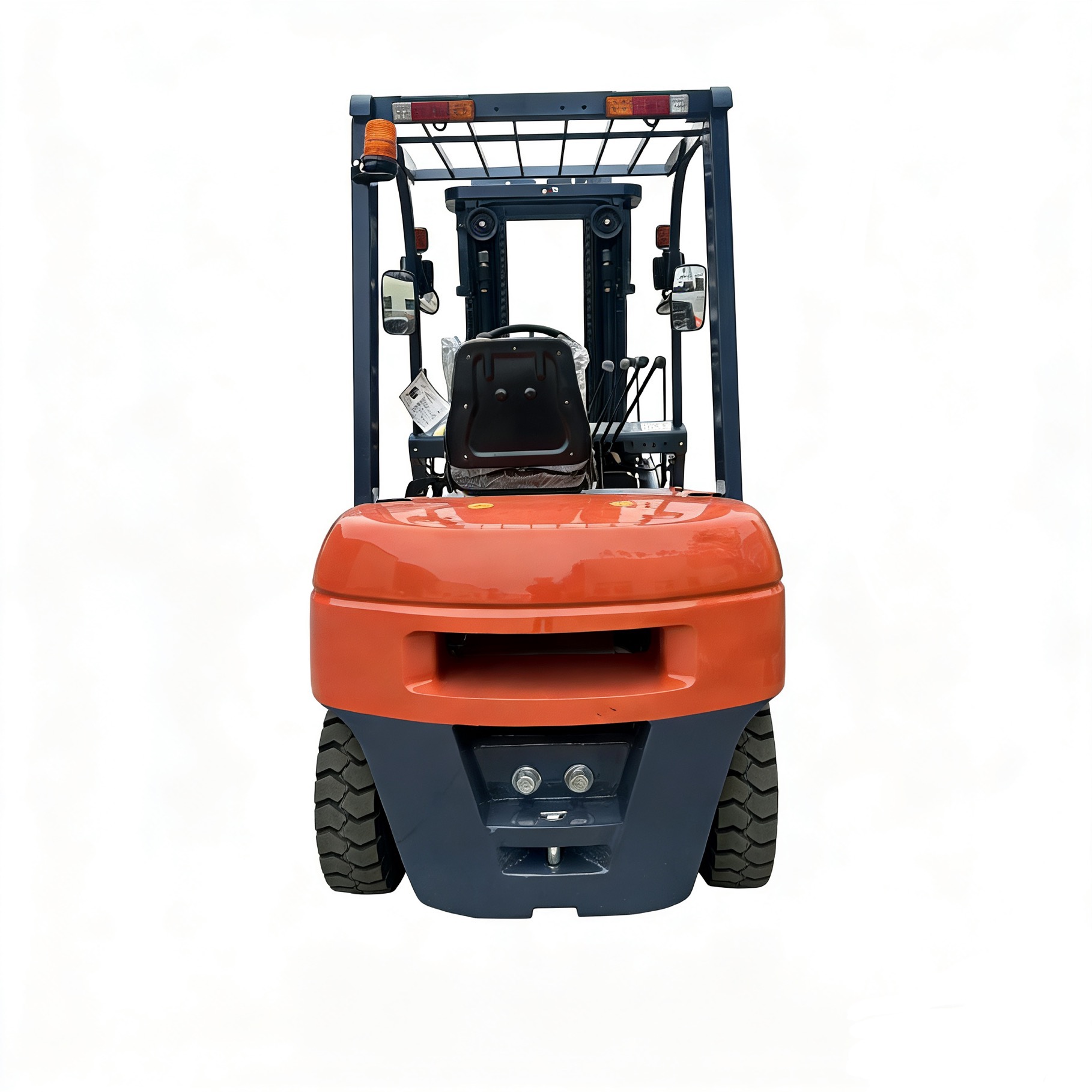

CPC/CPCD Diesel Forklift "K1 Series”

Name: CPC/CPCD Diesel Forklift "K1 Series”
Brand: NIULI
Rating: 5.0 (6 reviews)

Diesel Forklift "K series"
Capacity: 3000kg/3500kg
Max. lifting height 6000mm
The K-type diesel forklift is a lower chassis diesel forklift with high stability and decent passability. It can be loaded from 3000kg to 3500kg and can be equipped with a door frame from 3000m to
6000mm. It is the best choice for logistics operations such as ware-
houses and factories

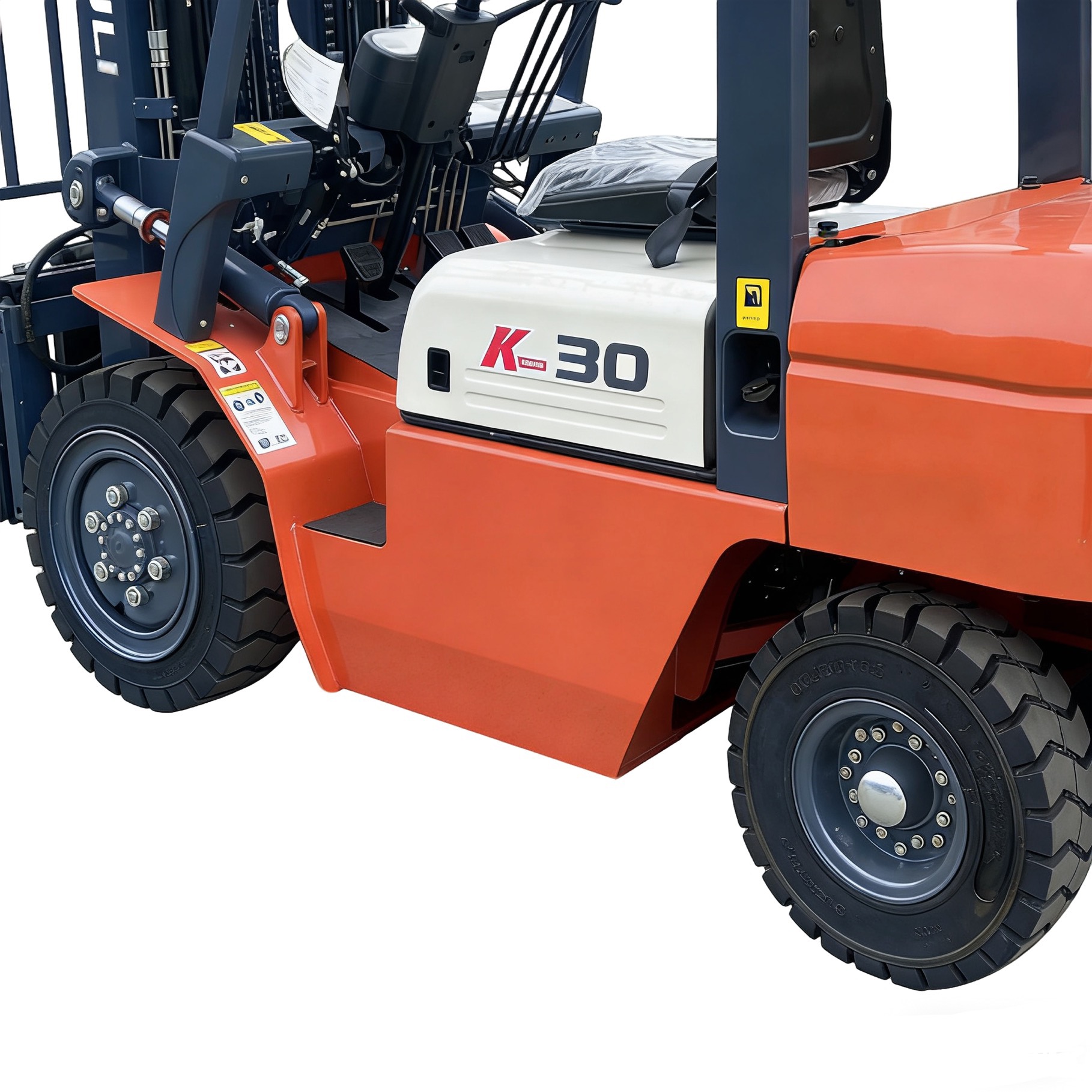

• New low chassis design
Suspended cockpit
• High strength gantry
• Multiple engine brands available
Standard front and tail lights

Availability:



Inquire Add to Basket

Model:
CPC/CPCD "K1 Series”
Brand:
NIULI

Product Description

CPC-K Series Diesel Forklift Specification Sheet

1. General

No.	Item	Unit	3000kg Spec	3500kg Spec
1	Model	-	CPC-K	CPC-K
2	Power Type	-	Diesel	Diesel
3	Rated Capacity	kg	3000	3500
4	Load Center	mm	500	500
5	Lift Height	mm	3000	3000
6	Fork Size (LWT)	mm	122025055	122025055
7	Mast Tilt Angle (F/R)	Deg	6°/12°	6°/12°
8	Front Overhang (wheel center to fork face)	mm	468	468
9	Ground Clearance (Bottom of mast)	mm	120	120

2. Characteristic Dimension

No.	Item	Unit	3000kg Spec	3500kg Spec
10	Length of fork (with/without fork)	mm	1220	1220
11	Overall Dimension - Overall width	mm	1265	1265
12	Overall Dimension - Mast lowered height	mm	2105	2105
13	Overall Dimension - Mast extended height (with backrest)	mm	4110	4110
	Overall Dimension - Overhead guard height	mm	2140	2140
14	Turning radius (outside)	mm	2640	2700
15	Min. intersecting aisle	mm	2700	280

⚡ 3. Performance

No.	Item	Unit	3000kg Spec	3500kg Spec
16	Speed - Travel (full load)	km/h	39	39
17	Speed - Lifting (full load)	mm/s	15/20	15/20
18	Max. gradeability	%	28-29.5	28-29.5

4. Chassis

No.	Item	Unit	3000kg Spec	3500kg Spec
19	Tire - Front	-	650-10	650-10
20	Tire - Rear	-	1800	1800
21	Wheelbase	mm	4290	4740
22	Self weight	kg	4290	4740
23	Battery - Voltage/Capacity	V/Ah	12V/120Ah	12V/120Ah
24	Battery - Model	-	C490BPG	C240

5. Power & Transmission

No.	Item	Unit	3000kg Spec	3500kg Spec

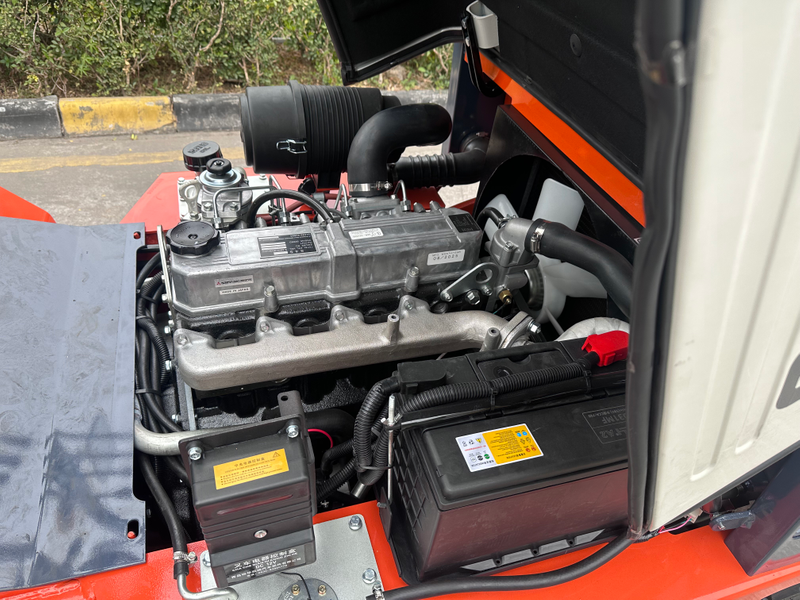

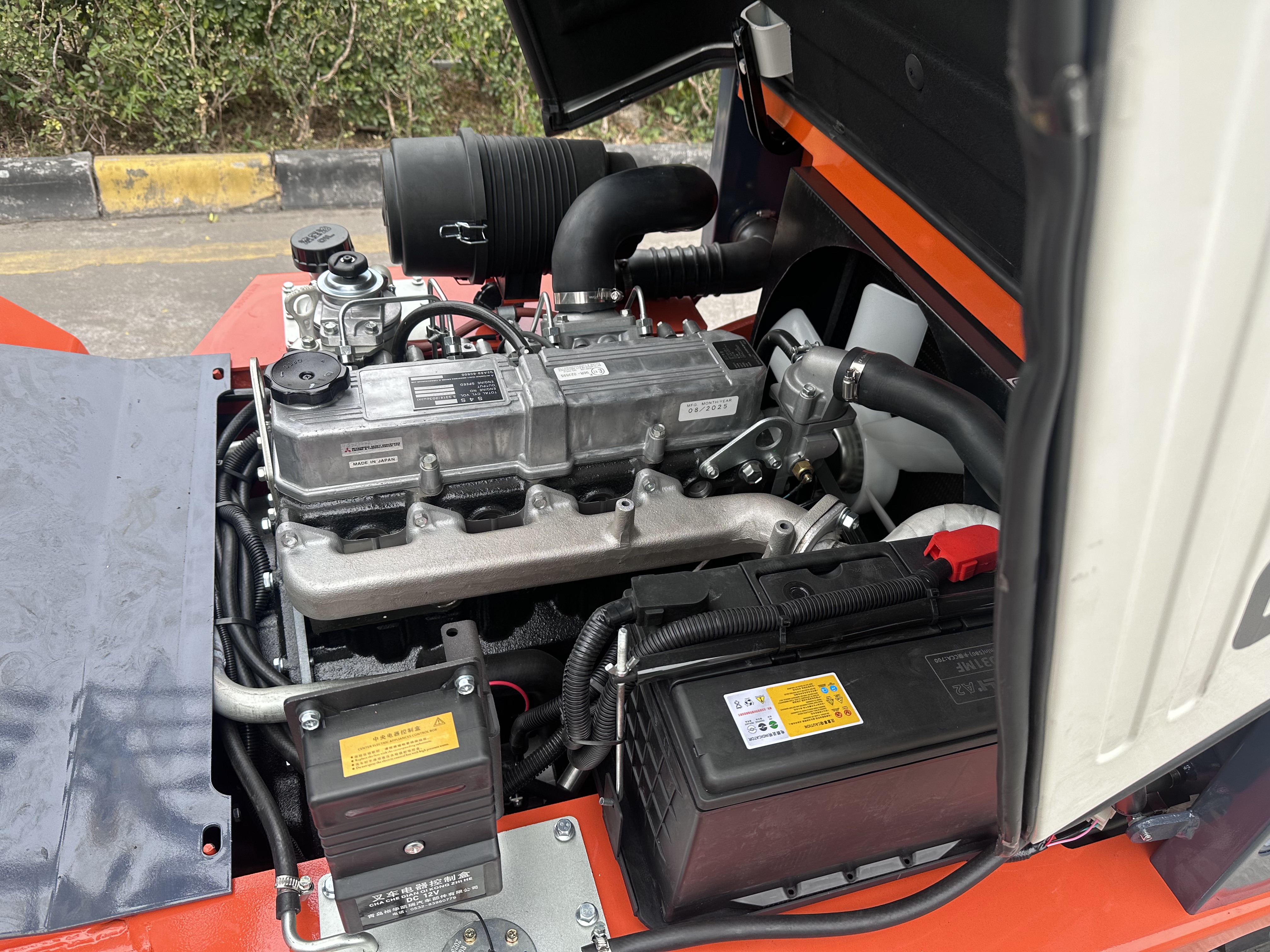

25	Engine - Manufacturer	-	XinChai	ISUZU
26	Engine - Rated output/r.p.m.	Kw/r.p.m	40/2650	34.3/2400
27	Engine - Rated torque/r.p.m.	Nm/r.p.m	160/1800-2000	137.7/1800
28	Engine - No. of cylinder	-	4	4
29	Engine - Bore*stroke	mm	93*102	93*102
30	Engine - Displacement	cc	2670	2369
31	Engine - Fuel tank capacity	L	60	60
32	Transmission - Type	-	Hydraulic	Hydraulic
33	Transmission - Stage (FWD*RVS)	-	1/1(2)/1/1	1/1(2)/1/1
34	Operating pressure for attachment	Mpa	17.5	17.5
