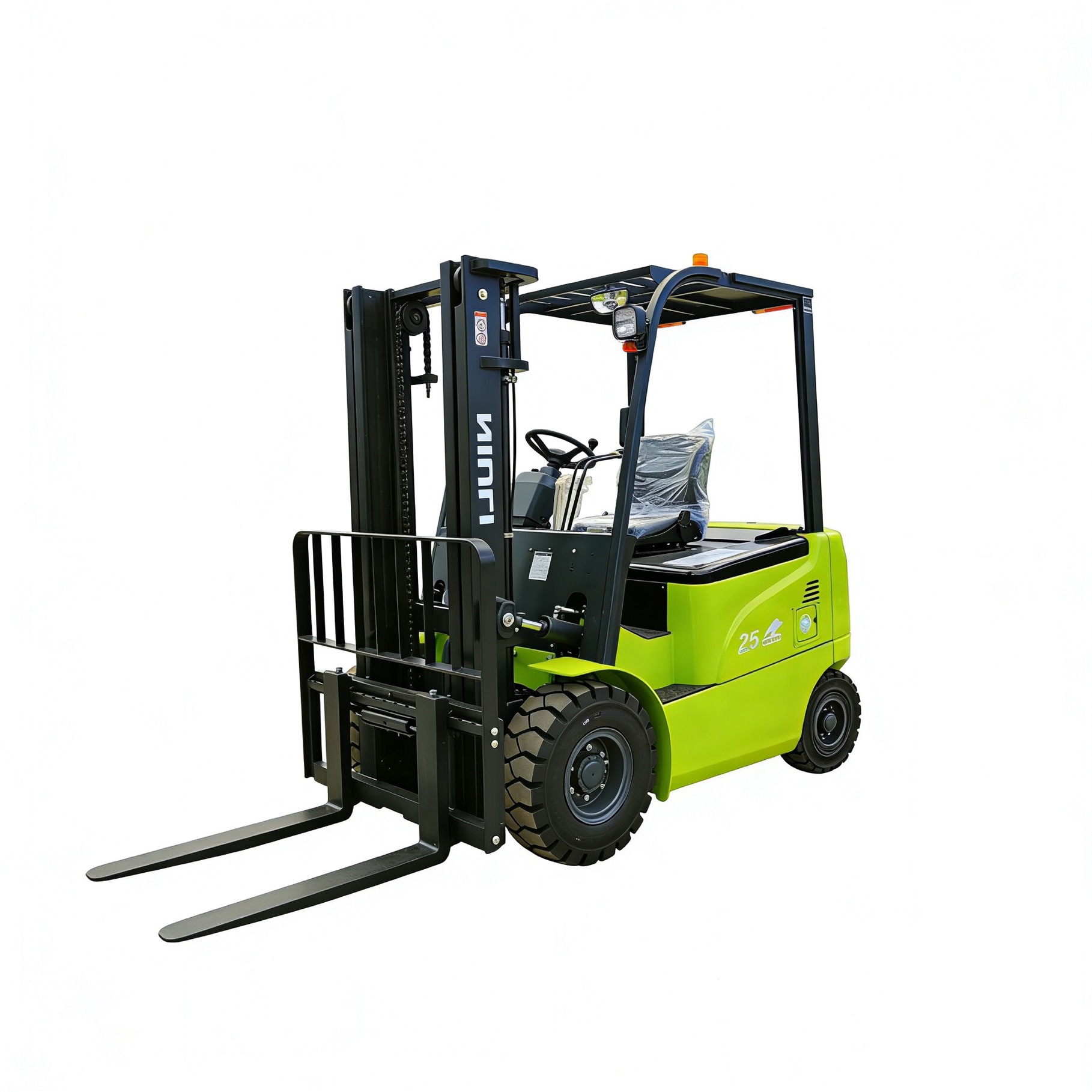

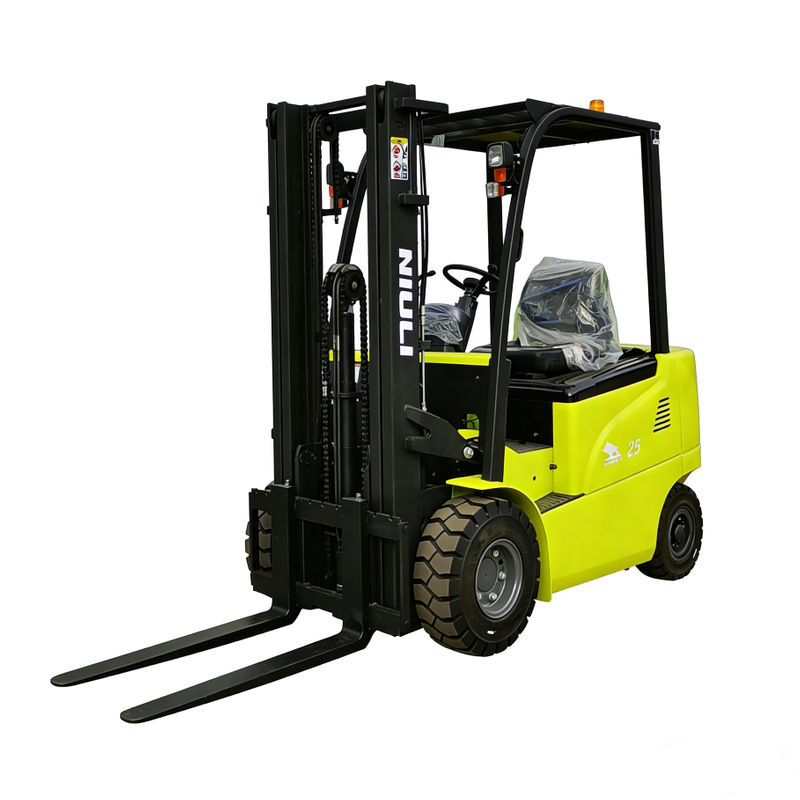

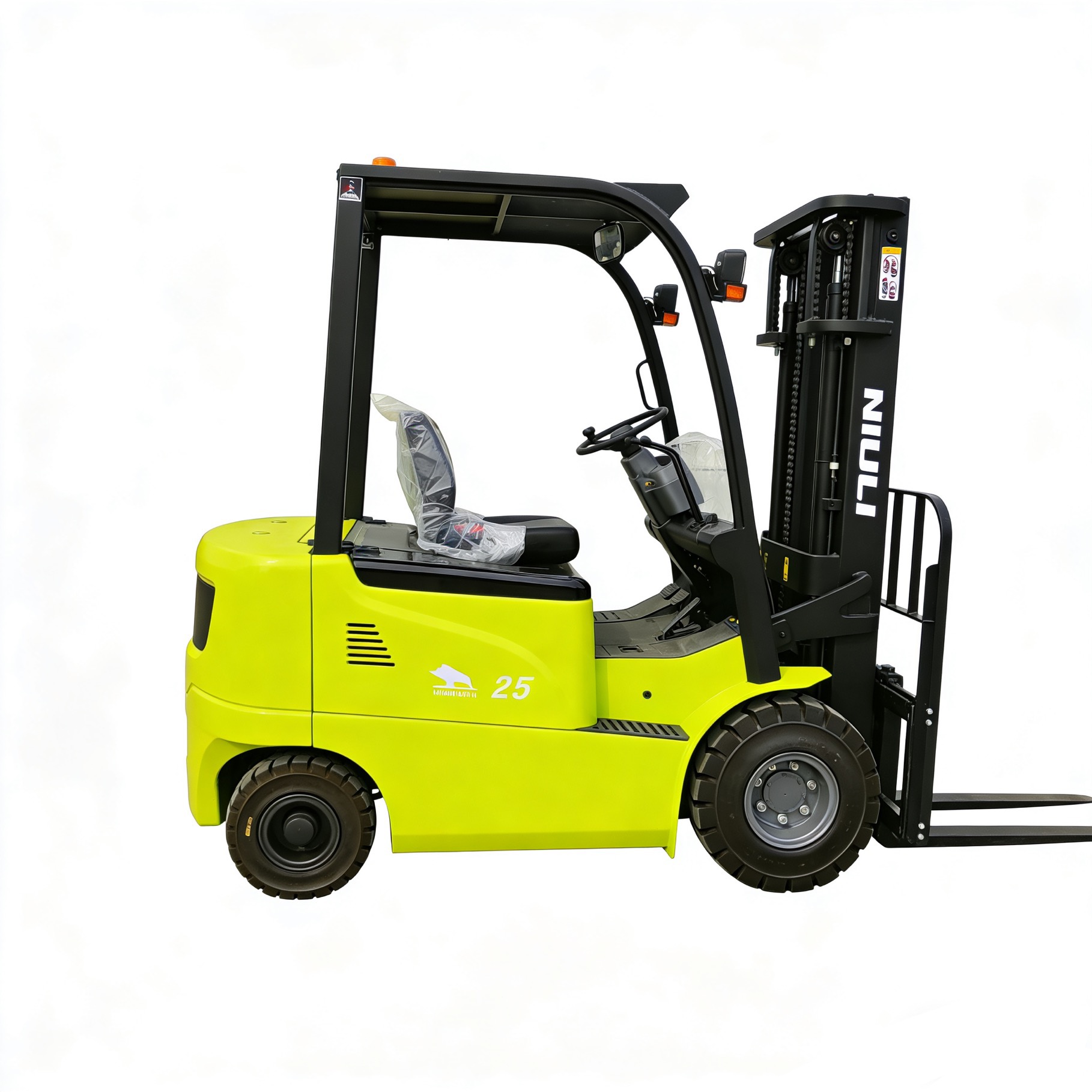

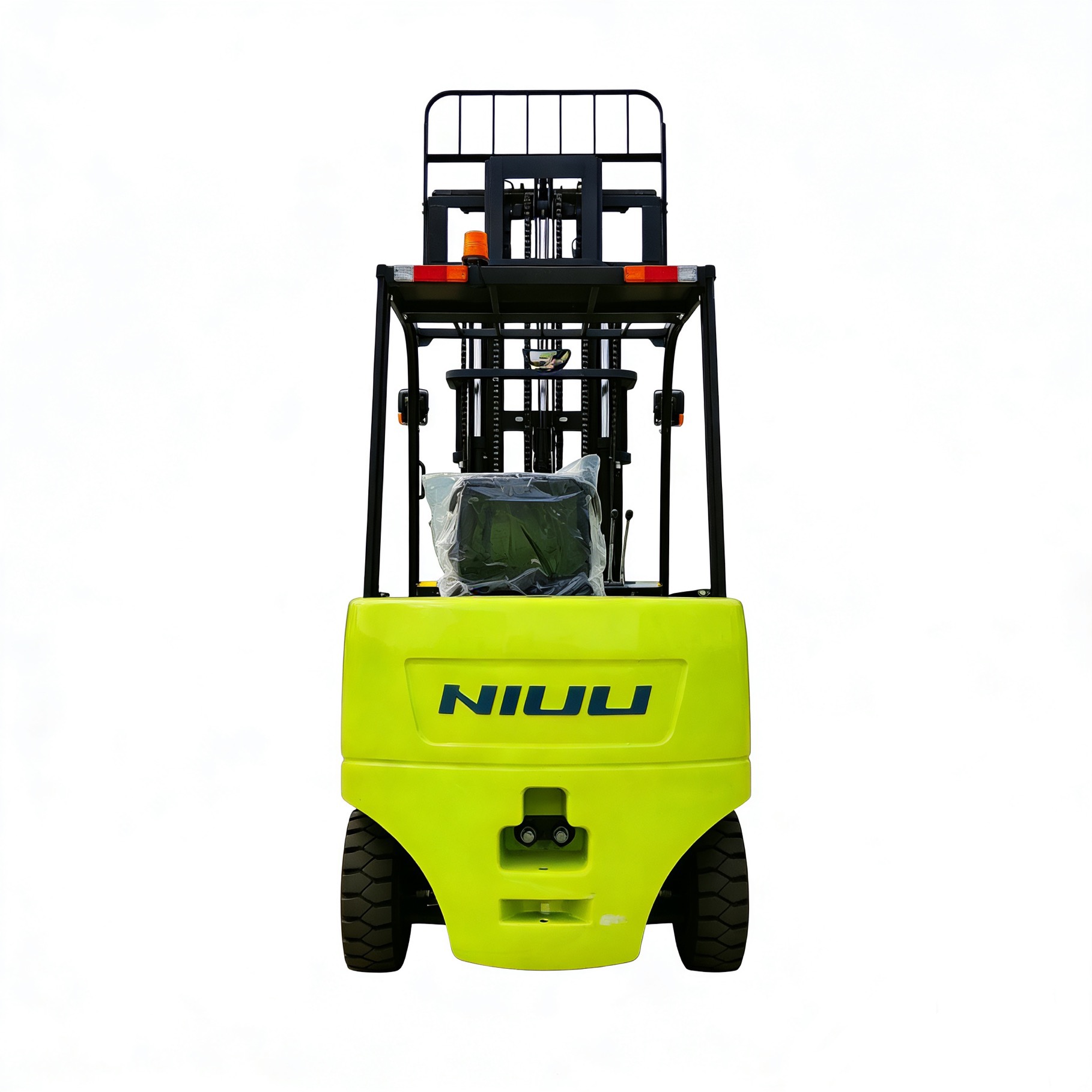

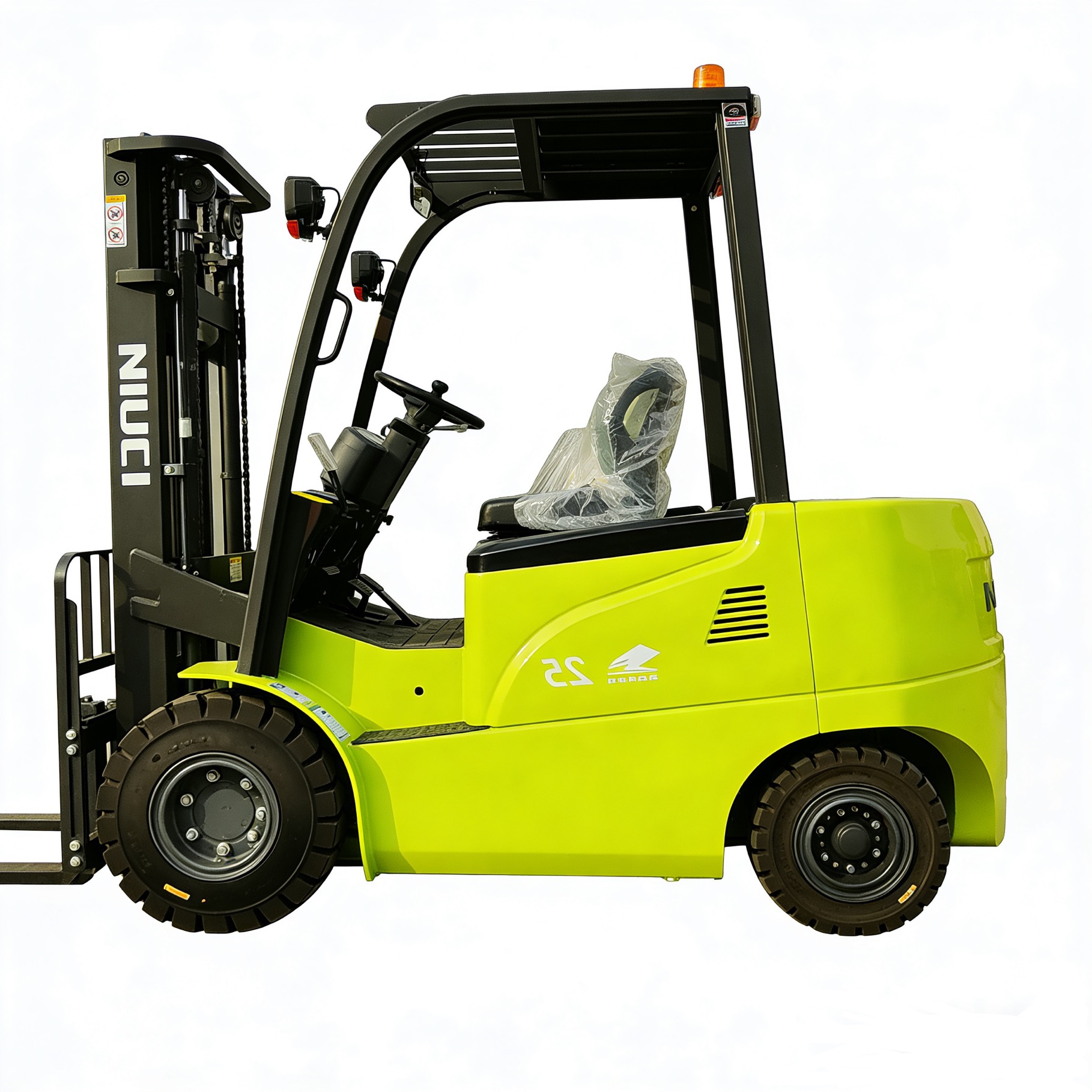

CPD"E series"

Name: CPD"E series"
Brand: NIULI
Rating: 5.0 (42 reviews)

Electric Forklift
Capacity: 2000kg/2500kg/ 3000kg/3500kg
Max.lifting height: 6000mm
This lithium-ion forklift is the latest designed forklift by Niult, with excellent appearance and performance, as well as flexible handling, making it the best choice for warehouse operations
Remark: Lithium battery(standard)
Option: Lead-acid battery
• Excellent exterior design
• Ergonomic design of cockpit
• Intelligent vehicle Connection Management
• Excellent pertormance
• Low center of gravity chassis

Availability:



Inquire Add to Basket

Model:
CPD E
Brand:
NIULI

Product Description

PARAMETER TABLE

Overview

No.	Item		Unit	CPD20	CPD25	CPD30	CPD35
1.1	Manufacturer		-			NIULI
1.2	Model		-	CPD20	CPD25	CPD30	CPD35
1.3	Power Type		-			Electric
1.4	Operation Type		-			Seat
1.5	Rated capacity	Q	kg	2000	2500	3000	3500
1.6	Load centre	c	mm			500
1.7	Front overhang	x	mm	468		473	495
1.8	Wheelbase	y	mm	1495		1495	1500

Weight

No.	Item		Unit	CPD20	CPD25	CPD30	CPD35
2.1	Self weight		kg	3820	4020	4520	5150
2.2	Axle load	Front/Rear(Full load)	kg	5200/620	5920/700		6846/794
2.2	Axle load	Front/Rear(Empty load)	kg	1680/2140	1760/2360		1940/2700

Tire Chassis

No.	Item		Unit	CPD25
3.1	Tire Type	Front	-	Solid
3.2	Tire Type	Rear	-	23×9-10
3.3	Number of tires (x = drive wheel)		-	18×7-8
3.4	Front-wheel tread		-	2×2
3.5	Rear-wheel tread	b3	mm	1035
3.6	Mast Tilt Angle	b4	mm	984

Dimensions

No.	Item		Unit	CPD20	CPD25	CPD30	CPD35
4.1	Mast Tilt Angle	Front/Rear	d/β	Grad	5/10
4.2	Mast closed height	h1	mm		2055
4.3	Free lift height	h2	mm	140		145
4.4	Standard lift height	h3	mm		3000
4.5	Mast extended height (with Lifting frame)	h4	mm	3985			4075
4.6	Overhead Guard Height	h5	mm		2140
4.7	Total Length	With Forks	L1	mm	3407		3410
4.7	Total Length	Without Forks	L1	mm	2337		2342
4.8	Total Width		b2	mm	1265
4.9	Fork Size (L×W×T)		s×e×L	mm	1070×125×40	1070×125×45	1070×125×50
4.10	Fork Rack Standard		-	ISO2A		ISO3A
4.11	Fork Rack Width	W	mm		1100
4.12	Fork Spacing		mm	250/1040		250/1100
4.13	Min. ground clearance	Lifting frame	m1	mm		120
4.13	Min. ground clearance	Truck Body	m2	mm		125
4.14	Aisle width for pallets 1000×1200, Transversal	Ast	mm	4288	4288	4295	4295
4.14	Aisle width for pallets 800×1200, Longitudinal	Ast	mm	4320	4320	4325	4325
4.15	Min. turning radius		Wa	mm		2100

Parameters

No.	Item		Unit	CPD20	CPD25	CPD30
5.1	Max. travel speed	Full load/No load	km/h		18/15
5.2	Max. lifting speed	No load/Full load	mm/s		280/390
5.3	Descending speed	No load/Full load	mm/s		≤600
5.4	Traction power, laden/unladen		KW	20		21
5.5	Gradeability	laden/unladen	%		18/15
5.6	Driving brake		-		Mechanical/hydraulic type
5.7	Parking brake		-		Mechanical type

Electrical

No.	Item	Unit	CPD25
6.1	Traction motor power, S2 60min work system	kW	17
6.2	Lifting motor power, S3 15% work system	kW	13
6.3	Specification of battery(Voltage/Capacity)	V/Ah	80V/200Ah & 80V/450Ah

Other

No.	Item	Unit	CPD25
7.1	Driving control system	-	MOSFET/AC
7.2	Controller brand	-	MEGMEET / CURTIS / ZAPI
7.4	Noise	dB	74
7.5	Traction pin diameter	-	∅25
7.6	Hydraulic oil tank capacity	liter	50
