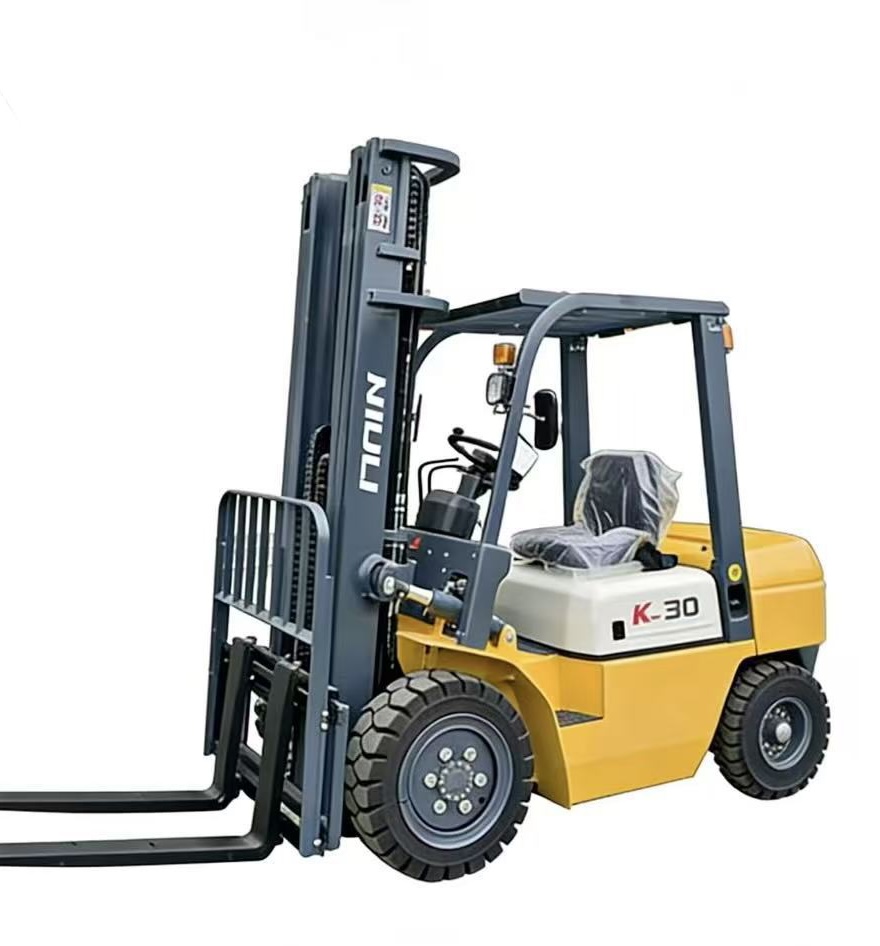

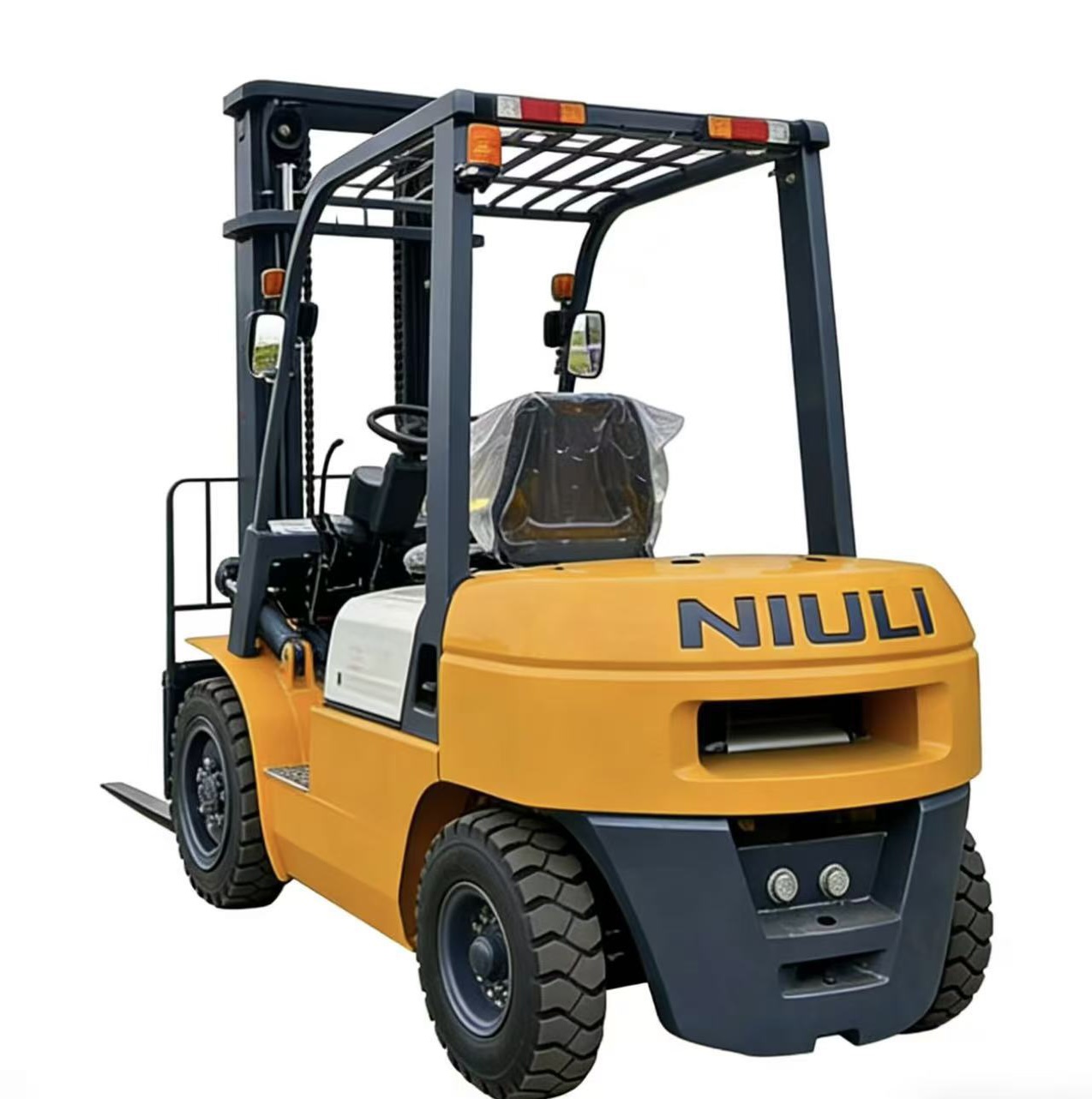

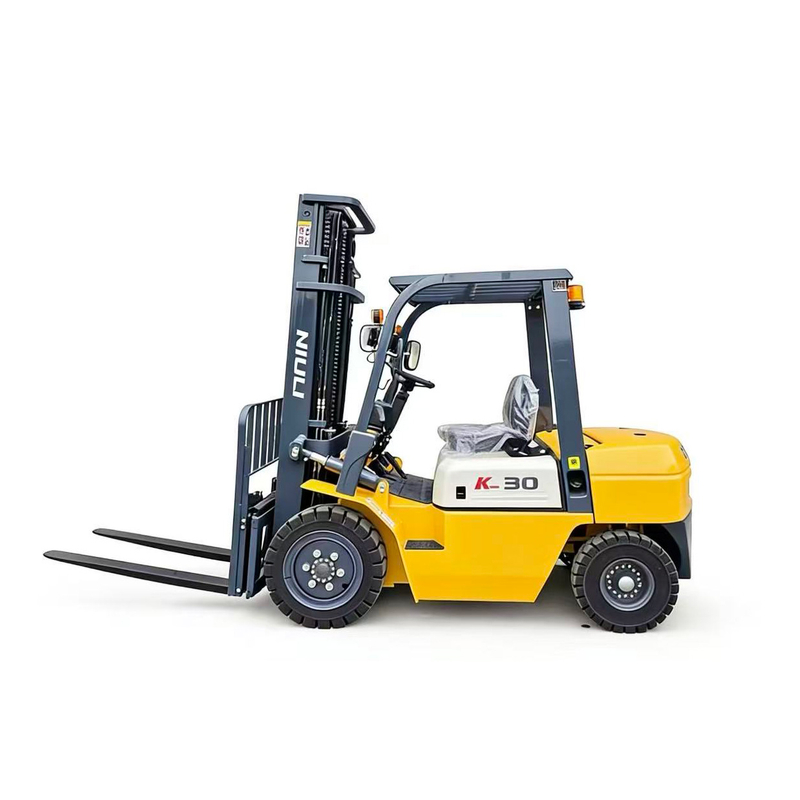

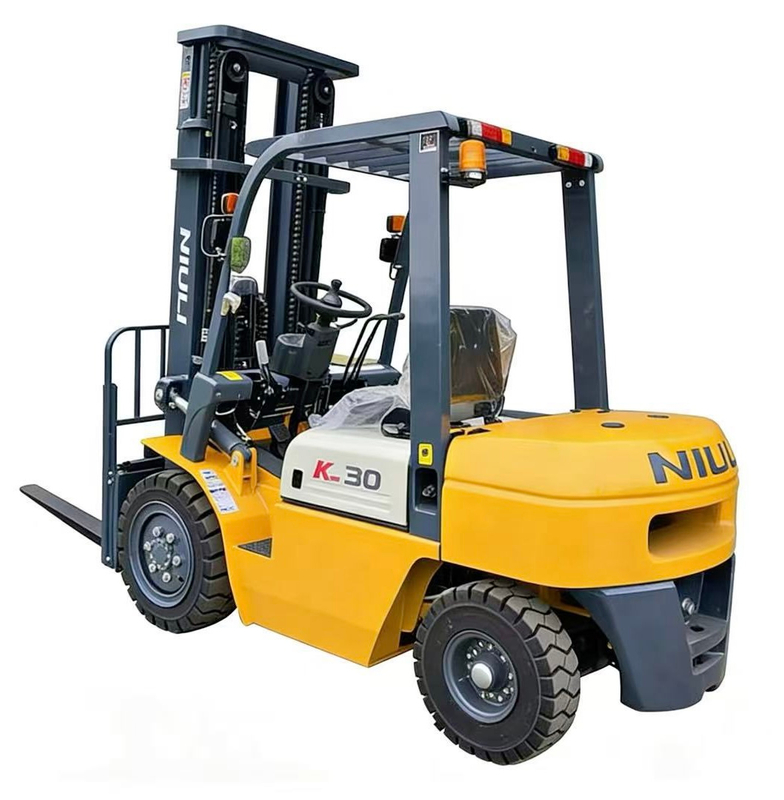

CPC/CPCD 30 SERIES

Name: CPC/CPCD 30 SERIES
Brand: NIULI
Rating: 5.0 (65 reviews)

Diesel Forklift
Capacity: 3000kg/3500kg
Max. lifting height: 6000mm
This diesel forklift has a load capacity of 3000kg-3500kg and can be equipped with an optional door frame of 3000mm-6000mm, which can meet the needs of most logistics operations. It has excellent stability and passability, whether it is a construction site or a warehouse
• High strength, wide Tield of view gantry
• Solid counterweight, stable chassis
• High chassis design with strong passability

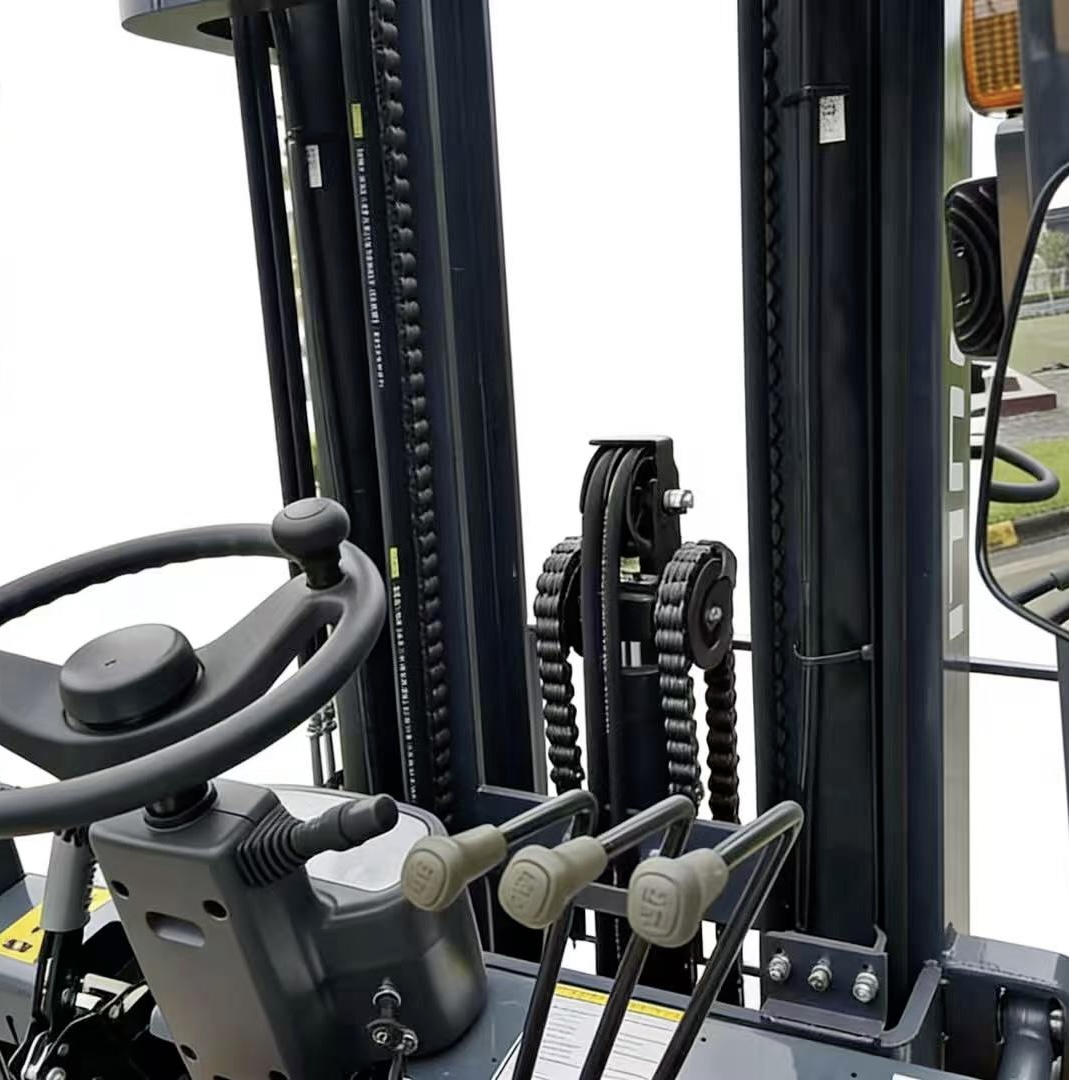

• Car style cockpit, easy to operate
• Multiple engine options available

Availability:



Inquire Add to Basket

Model:
CPC/CPCD K30
Brand:
NIULI

Product Description

PARAMETER TABLE (Forklift Specification Sheet)

Category	No.	Parameter Item	Unit	CPC30	CPCD30	CPC35	CPCD35
General	1	Model	-	CPC30	CPCD30	CPC35	CPCD35
	2	Power Type	-	-	Diesel	-	-
	3	Rated Capacity	kg	3000	3000	3500	3500
	4	Load Center	mm	-	500	-	500
	5	Lift Height	mm	-	3000	-	3000
	6	Fork Size (LWT)	mm	-	107012545	-	-
	6	Fork Size (F/R)	-	-	6"/12"	-	-
Characteristic-Dimension	7	Mast Tilt (F/R)	Deg	-	500	-	-
	8	Front Overhang (Wheel Center to Fork Face)	mm	-	126	-	-
	9	Ground Clearance (Bottom of Mast)	mm	-	-	-	-
	10	Length of Fork (with/without Fork)	mm	3790/2700	-	3980/2980	-
	11	Overall Width	mm	-	1230	-	-
	12	Mast Lowered Height	mm	-	2105	-	-
	13	Mast Extended Height (with Backrest)	mm	-	4110	-	-
	14	Overhead Guard Height	mm	-	2140	-	-
Performance	15	Turning Radius (Outside)	mm	2415	-	2640	-
	16	Min. Intersecting Aisle	mm	2500	-	2700	-
	17	Travel Speed (full/empty load)	km/h	-	18/19	-	-
	18	Lifting Speed (full/empty load)	mm/s	460/540	-	360/440	-
	19	Max. Gradeability	%	-	20	-	-
Chassis	20	Tire (Front)	-	-	28*9-15-12PR	-	-
	21	Tire (Rear)	-	-	6.50-10-10PR	-	-
	22	Wheelbase	mm	1650	-	1850	-
	23	Self Weight	kg	4210	-	4330	-
Power & Transmission	24	Battery (Voltage/Capacity)	V/Ah	-	-	12/120	-
	25	Battery Model	-	C240	C409BPG	J493G	4JG2
	25	Battery Manufacturer	-	ISUZU	XinChai	ISUZU	ISUZU
	26	Engine Model	-	C240	C409BPG	J493G	4JG2
	26	Engine Manufacturer	-	ISUZU	XinChai	ISUZU	ISUZU
	27	Rated Output/r.p.m	Kw/r.p.m	34.3/2500	40/2650	36/2500	44/2450
	28	Rated Torque/r.p.m	Nm/r.p.m	137.7/1800	160/1800-2000	160/1800-2000	186/1600-1800
	29	No. of Cylinders	-	-	4	-	-
	30	Bore*Stroke	mm	86*102	90*105	93*102	95.4*107
	31	Displacement	cc	2369	2670	2771	3059
	32	Fuel Tank Capacity	L	-	60	-	-
	33	Transmission Type	-	Mechanical	Hydraulic	Mechanical	Hydraulic
	34	Transmission Stage	FWD*R/VS	-	1/1(2/2)/1/1	-	-
	35	Operating Pressure for Attachment	Mpa	-	17.5	-	-

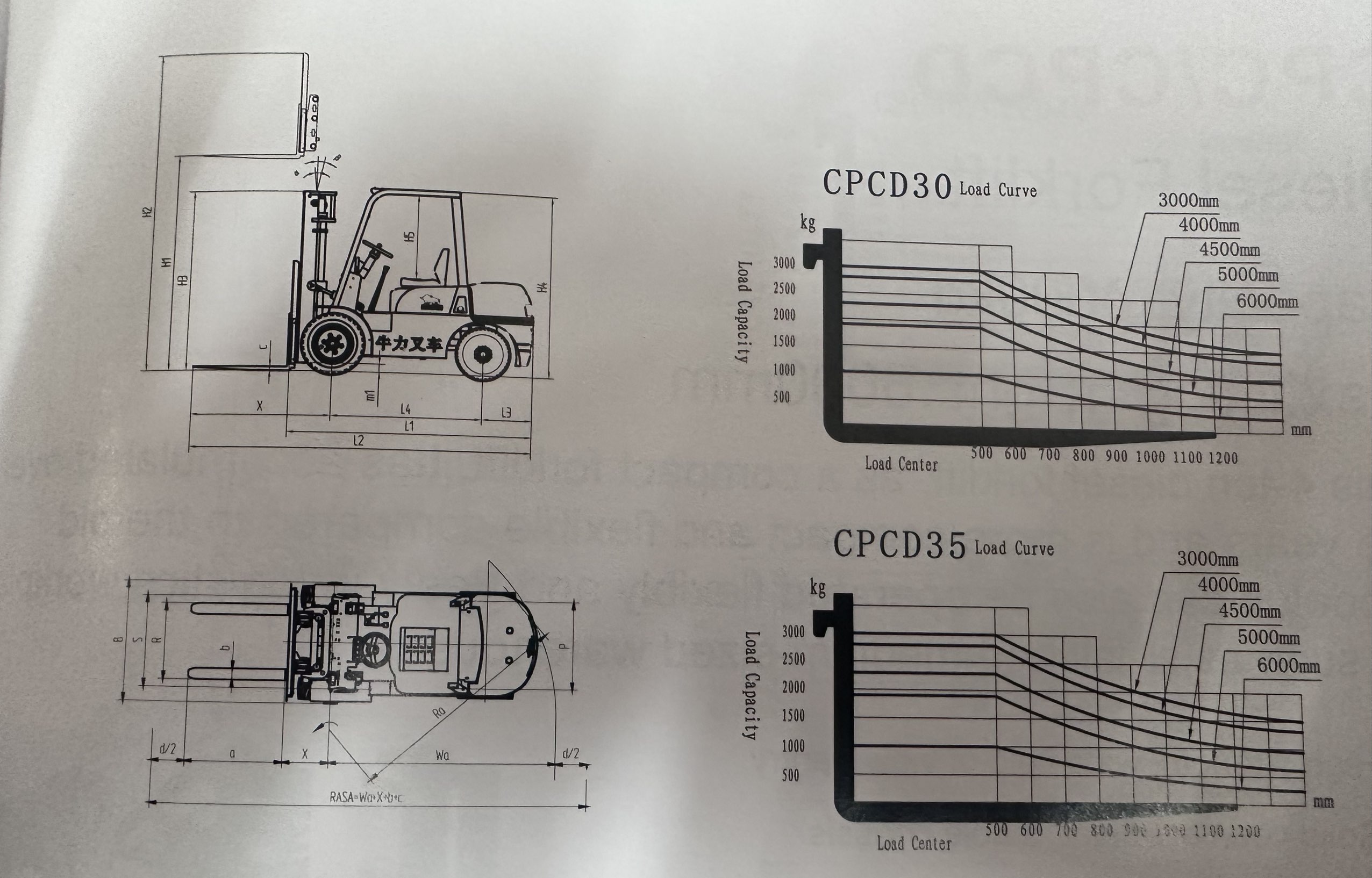

Forklift Technical Document (CPCD30/CPCD35)

1. CPCD30 Forklift

Schematic Diagram Annotations：
(The side-view schematic of the forklift includes dimension labels: H, W, B, C, X, L1, L2, L3, etc.)
Brand Marking: Niuli Forklift
CPCD30 Load Curve：

Vertical Axis (Load Capacity): Unit: kg (Range: 0-3000kg)
Horizontal Axis (Load Center): Unit: mm (Range: 500-1200mm)
Corresponding Lifting Height Curves: 3000mm, 4000mm, 4500mm, 5000mm, 6000mm

2. CPCD35 Forklift

Schematic Diagram Annotations：
(The top-view schematic of the forklift includes dimension labels: b, a, X, Wo, d/2, R(A=Wmax×b+c), etc.)
CPCD35 Load Curve：

Vertical Axis (Load Capacity): Unit: kg (Range: 0-3000kg)
Horizontal Axis (Load Center): Unit: mm (Range: 500-1200mm)
Corresponding Lifting Height Curves: 3000mm, 4000mm, 4500mm, 5000mm, 6000mm
