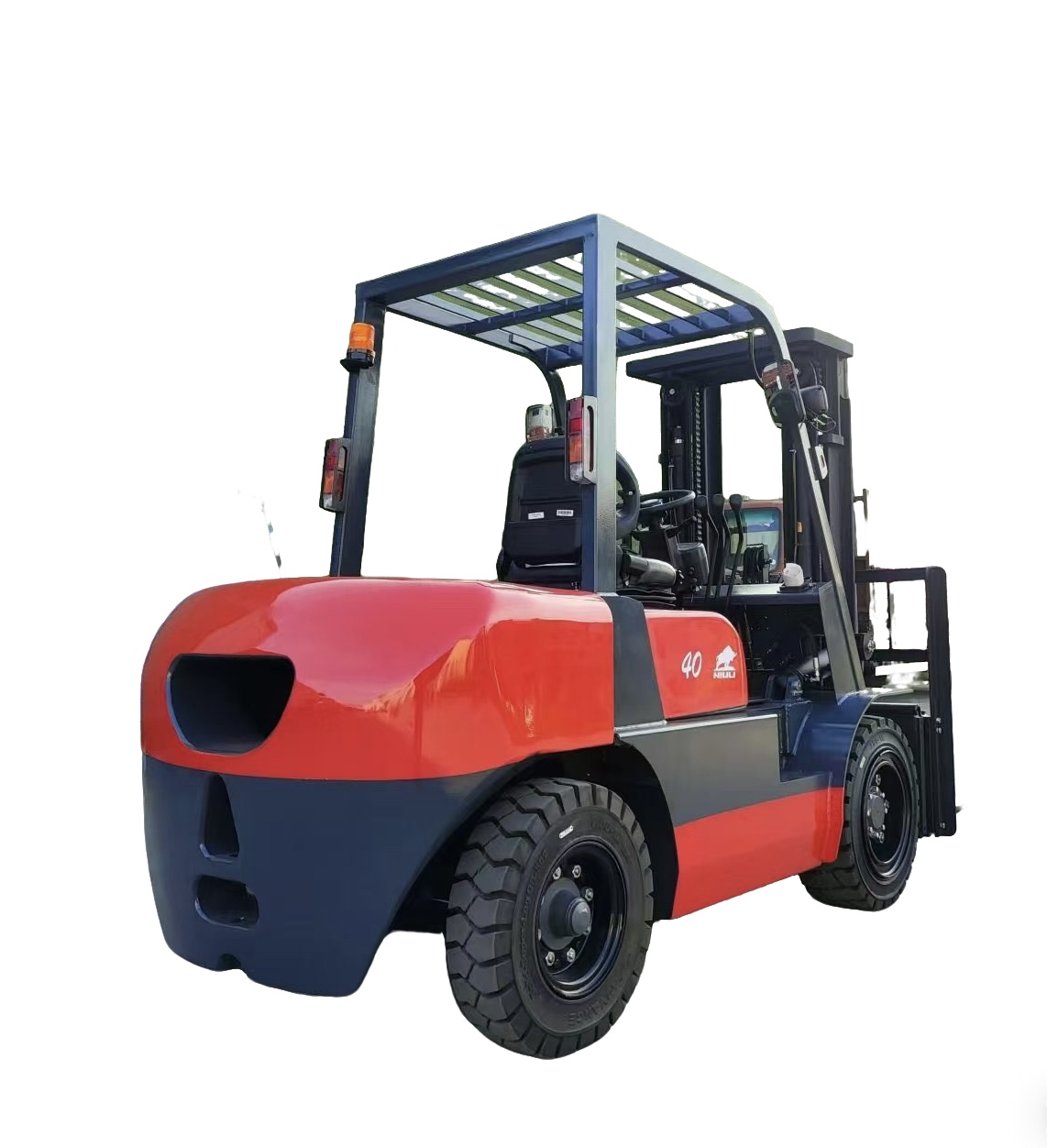

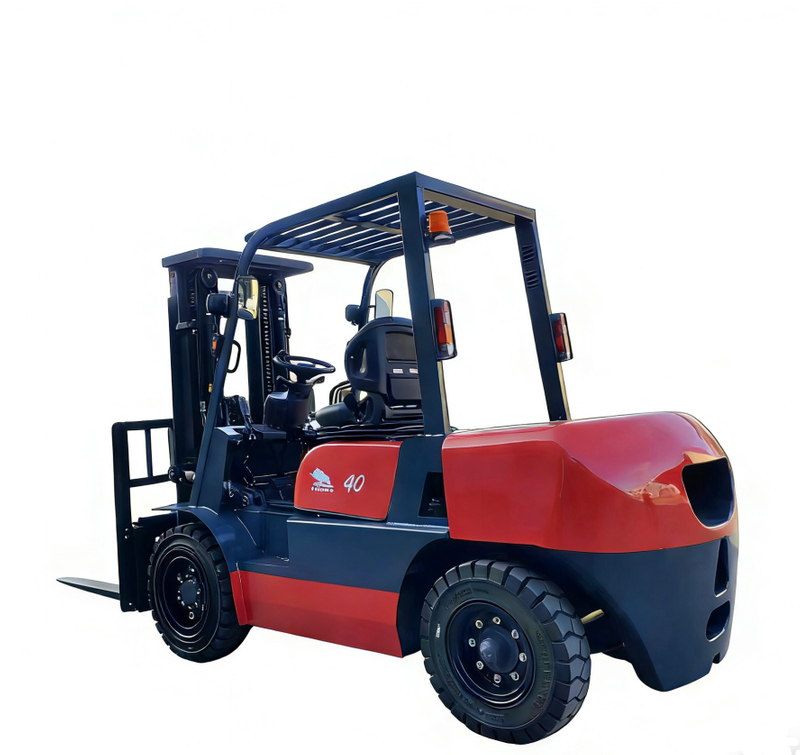

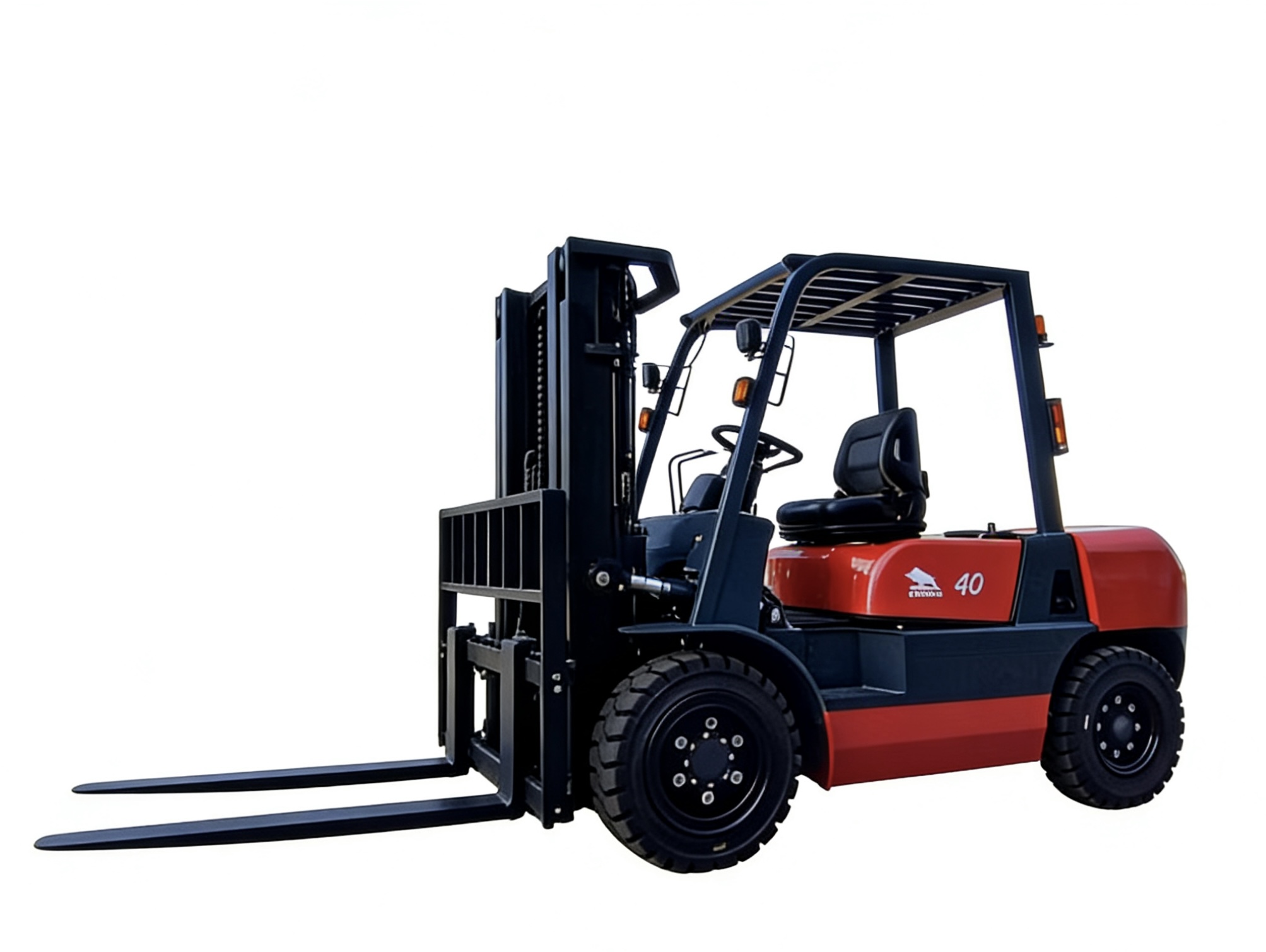

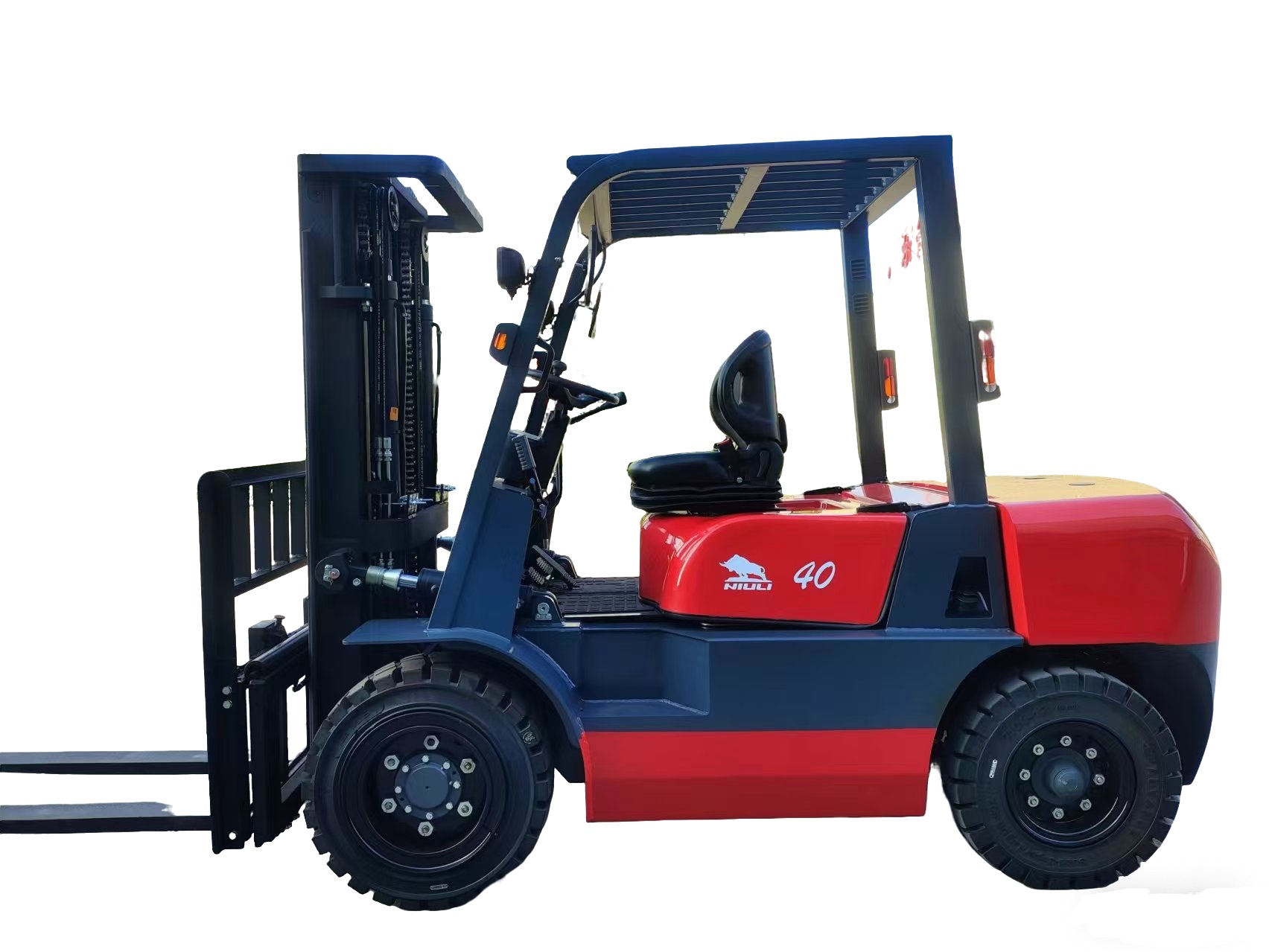

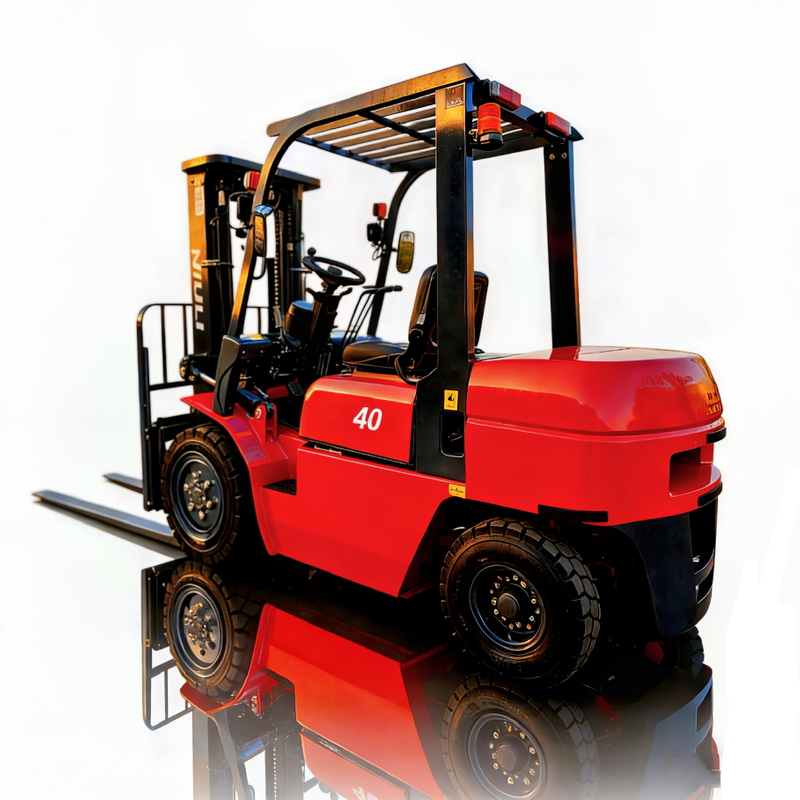

CPCD 40 SERIES FORKLIFT

Name: CPCD 40 SERIES FORKLIFT
Brand: NIULI
Rating: 5.0 (87 reviews)

Capacity: 4000kg
Max. litting height: 6000mm
This 4-ton diesel torklift, as a compact forklift, has accumulated over
the years and is more compact and flexible compared to the old model. It can also be operated flexibly and freely in logistics workplaces such as small and medium-sized warehouses

Availability:



Inquire Add to Basket

Model:
CPC/CPCD
Brand:
NIULI

Product Description

Forklift Parameter

**Model Coverage**: CPC40, CPCD40

1. General Information

Parameter	Unit	CPC40	CPCD40
Model Name	-	CPC40	CPCD40
Power Type	-	Diesel	Diesel
Rated Load Capacity	kg	4000	4000
Load Center Distance	mm	500	500

2. Dimensional Characteristics

Parameter	Unit	Additional Notes	CPC40	CPCD40
Maximum Lift Height	mm	-	3000	3000
Fork Dimensions (L×W×T)	mm	-	1070×150×50	1070×150×50
Mast Tilt Angle	Deg	Forward/Reverse	6°/12°	6°/12°
Front Overhang (Wheel-Fork)	mm	Wheel center to fork face	548	548
Mast Bottom Ground Clearance	mm	-	120	120
Overall Length (With/Without Fork)	mm	-	4064/2963	4064/2963
Overall Width	mm	-	1400	1400
Mast Lowered Height	mm	-	2180	2180
Mast Extended Height (w/ Backrest)	mm	-	4260	4260
Overhead Guard Height	mm	-	2185	2185
Outside Turning Radius	mm	-	2739	2739
Minimum Intersecting Aisle Width	mm	-	2800	2800

3. Performance Parameters

Parameter	Unit	Additional Notes	CPC40	CPCD40
Travel Speed (Full/Empty Load)	km/h	-	17/18	17/18
Lifting Speed (Full/Empty Load)	mm/s	-	300/400	300/400
Maximum Gradeability	%	-	20	20

4. Chassis Configuration

Parameter	Unit	Additional Notes	CPC40	CPCD40
Front Tire Specification	-	-	250-15-18PR	250-15-18PR
Rear Tire Specification	-	-	7.00-12-12PR	7.00-12-12PR
Wheelbase	mm	-	1850	1850
Machine Self Weight	kg	-	5600	5600

5. Power & Transmission System

Parameter	Unit	Additional Notes	CPC40	CPCD40
Battery (Voltage/Capacity)	V/Ah	-	12/120	12/120
Engine Model	-	-	A498	4JG2
Engine Manufacturer	-	-	XINCHAI	ISUZU
Rated Engine Output	Kw/r.p.m	-	45/2450	44/2450
Rated Engine Torque	Nm/r.p.m	-	190/1700-1900	186/1600-1800
Number of Cylinders	-	-	4	4
Cylinder Bore×Stroke	mm	-	98×105	95.4×107
Engine Displacement	cc	-	3168	3059
Fuel Tank Capacity	L	-	90	90
Transmission Type	-	-	Mechanical	Hydraulic
Transmission Stages (FWD/RVS)	-	-	1/1(2/2)/1/1	1/1(2/2)/1/1
Attachment Operating Pressure	Mpa	-	17.5	17.5

Is Forklift Operation Complicated?

Overview

Forklift operation is not complicated—it only requires "standardized training + basic hands-on practice." Once proficient, you can master it quickly. The core challenge lies not in "complex operations" but in "grasping safety regulations" and "adapting to the workplace." For beginners, 1-2 days of professional training plus a small amount of practical exercise are sufficient to complete basic tasks independently. Below is a detailed breakdown:

1. Intuitive Operation Logic with No Complex Steps

The core control of a forklift involves only 3 key parts, with a logic similar to driving a car—easy to get started:

Basic Driving: Like a car, it is equipped with a steering wheel, accelerator, and brakes (some electric forklifts use a knob for speed control). Switching between forward and reverse is simple; beginners can skillfully control direction and speed after 1 hour of practice.
Fork Operation: Two control levers are used to control "lifting/lowering" and "tilting" (tilt forward to unload, tilt backward to prevent cargo from slipping). The movements are single and have direct feedback—no need to memorize complex procedures.
Core Workflow: Forking cargo → Lifting → Driving → Alignment → Lowering → Unloading. This full process has a high repetition rate, and muscle memory can be formed after a few practices.

2. Key Focus: Safety Details (Not Operational Difficulty)

Many people perceive forklift operation as "complicated," but this is actually due to the need to remember safety regulations—not the complexity of the operation itself:

Load Requirements: Do not overload; ensure the forks fully extend into the bottom of the cargo to avoid tipping (clear load capacity labels are provided—just follow the instructions).
Workplace Adaptation: Reduce speed in narrow warehouse aisles, ramps, and when turning; pay attention to surrounding personnel and obstacles (beginners can adapt to the workplace after 2 more practice sessions).
Pre-operation Inspection: Conduct a quick 5-minute walk-around check before operation to inspect tires, forks, and brakes—this is a necessary process, not an "extra hassle."

3. Consistent Operation Logic Across Forklift Types

Whether it’s an internal combustion forklift, electric forklift, reach truck, or counterbalance forklift, the core operation logic is identical. The only differences lie in power switching (fuel/electric) or fork structure. Once you master one type, you can adapt to others in just 10 minutes.

Conclusion

Forklift operation is "easy to learn, with safety as the key focus." No complex technologies need to be mastered—just complete formal training (obtain a forklift operator's license, which usually takes 1-3 days of training and exams), familiarize yourself with safety rules, and accumulate a small amount of practical experience to easily handle daily operations. For enterprises, operator training costs are low and onboarding is fast; for individuals, the operation threshold is not high, and efficiency is high after proficiency—making it a completely "uncomplicated" piece of equipment.

Key Differences Between Manual and Automatic Forklifts

The core differences between manual and automatic forklifts lie in four dimensions: operation difficulty, application scenarios, maintenance costs, and operational efficiency. The selection should be comprehensively judged based on usage scenarios, operator proficiency, and cost budget. Below is a detailed comparison and practical recommendations:

I. Core Difference Comparison Table

Comparison Dimension	Manual Transmission	Automatic Transmission
Operation Difficulty	High: Requires manual shifting (usually 3-5 forward gears + 1-2 reverse gears) and clutch coordination. Beginners need 1-3 days to master, and gear shifting jitter is likely to occur.	Extremely Low: No need for gear shifting or clutch pressing; speed is controlled only by accelerator/brake. Forward/reverse switching with one button; beginners can get started in 1 hour with smooth operation.
Application Scenarios	1. Outdoor long-distance operations (e.g., heavy-load transportation in ports, construction sites); 2. Complex working conditions (climbing slopes, heavy-load starting, rough roads); 3. Scenarios requiring high power control.	1. Indoor narrow spaces such as warehouses and workshops; 2. Frequent start-stop and short-distance turnover (e.g., shelf access, cargo sorting); 3. Teams dominated by new operators.
Operational Efficiency	Stable efficiency when operated by skilled workers with direct power response; unskilled operation by beginners may affect efficiency.	Higher efficiency in high-frequency start-stop scenarios; no waiting for gear shifting, reducing operational errors and the risk of cargo damage.
Operator Fatigue	High: Long-term clutch pressing and gear shifting easily cause waist and leg fatigue, suitable for short-time operations.	Low: Only controls direction and accelerator/brake, with low labor intensity, suitable for continuous operations of more than 8 hours.
Maintenance Cost	Lower: Simple structure (no hydraulic torque converter), low failure rate, cheap maintenance parts. Routine maintenance (clutch plate replacement, gearbox oil change) costs are low.	Higher: Complex structure (including hydraulic torque converter and planetary gear set), high technical requirements for maintenance, high price of parts, and shorter maintenance cycle.
Fuel/Energy Efficiency	More fuel-efficient (internal combustion forklifts): Manual control of gear matching with speed avoids high-speed idling; fuel consumption is 10%-15% lower than automatic transmission under heavy-load conditions.	Slightly more fuel-consuming (internal combustion forklifts): Power loss exists in the hydraulic torque converter, and fuel consumption is higher during frequent start-stop; no obvious energy consumption difference for electric forklifts.
Power Performance	Direct power transmission, more precise torque output, stronger power during climbing and heavy-load starting, and less likely to slip.	Smooth power output and stable starting, suitable for transporting fragile and precision goods, but the ultimate power is slightly inferior to manual transmission.
Purchase Price	Lower: 10%-20% cheaper than automatic transmission with the same configuration (the gap is obvious for internal combustion forklifts, and small for electric forklifts).	Higher: High manufacturing cost, higher price than manual transmission with the same configuration.
Failure Rate	Low: Simple mechanical structure, few wearing parts (mainly clutch plates), long service life (8-10 years with normal maintenance).	Medium: Hydraulic system and electronic control module are prone to failure, service life is about 6-8 years, and higher requirements for maintenance.

II. Supplementary Explanation of Key Details

1. Differences in Operation Logic (Core Difference)

Manual Transmission: Similar to manual transmission cars, it requires the process of "depressing the clutch → shifting gears → releasing the clutch → stepping on the accelerator" to control speed. Operators need to manually switch gears according to the load weight and driving speed (e.g., 1st gear for heavy-load starting, 3rd-5th gears for high-speed driving), which requires high operational proficiency.
Automatic Transmission: The core is "hydraulic torque converter" or "electronic control continuously variable transmission (CVT)". No manual gear intervention is needed; the speed is controlled only by the accelerator pedal (the deeper you step, the faster the speed). Reverse and forward gears are switched through knobs or levers. The operation logic is consistent with electric scooters, with almost no learning cost.

2. In-depth Analysis of Application Scenarios

3 Core Scenarios for Choosing Manual Transmission

Outdoor heavy-load long-distance transportation: For example, transporting containers from terminals to warehouses in ports (distance ≥1km, load ≥5 tons). Manual transmission can maintain a constant speed through high gears with lower fuel consumption.
Complex road operation: Such as climbing slopes (slope ≥15°) and heavy-load starting (load close to the rated load of the forklift) in construction sites. Manual transmission has more precise torque control, avoiding sliding or insufficient power.
Cost-sensitive enterprises: Manual transmission has lower purchase and maintenance costs, suitable for teams with experienced operators and low operation intensity.

3 Core Scenarios for Choosing Automatic Transmission

Indoor high-frequency start-stop: For example, accessing goods on warehouse shelves (starting and stopping once every 5-10 minutes). Automatic transmission does not require gear shifting, reducing operational errors and improving operational efficiency.
Narrow space operation: Scenarios with channel width ≤3 meters such as workshops and cold storage. Automatic transmission is more flexible in operation, avoiding collision with shelves or goods during gear shifting.
New operator-dominated teams: Such as e-commerce warehouses and logistics sorting centers with high operator turnover. Automatic transmission can reduce training costs, enable quick onboarding, and reduce the risk of safety accidents.

3. Key Points of Cost Difference

Maintenance Cost: The annual maintenance cost of manual transmission is about 60%-70% of that of automatic transmission. The main differences are: Manual transmission only needs regular replacement of clutch plates (about 2,000-5,000 yuan/time, replaced every 2-3 years) and gearbox oil; automatic transmission needs to replace hydraulic oil, filter elements, and torque converter maintenance, with a single maintenance cost of about 1,000-3,000 yuan, 1-2 times a year.
Fuel Cost: Taking internal combustion forklifts as an example, the hourly fuel consumption of manual transmission is 0.5-1 liter lower than that of automatic transmission under heavy-load long-distance scenarios (calculated at 8 yuan/liter of diesel, 40-64 yuan can be saved for 8 hours of operation per day); however, under frequent start-stop scenarios, the fuel consumption gap between the two narrows to within 5%.

III. Purchase & Usage Recommendations (Commercial Scenario Adaptation)

1. Prioritize Automatic Transmission If

Your scenario involves indoor short-distance high-frequency operations such as warehouses, workshops, and cold storage, or the operators are mainly newbies;
Pursuing "cost reduction and efficiency improvement": Automatic transmission can reduce training time (from 3 days to 1 hour), reduce operator fatigue (reduce turnover rate), and lower the risk of cargo damage (smooth operation), with better long-term comprehensive cost-effectiveness.

2. Prioritize Manual Transmission If

Your scenario involves outdoor heavy-load, long-distance transportation, complex road conditions, or all operators are skilled workers;
Budget is limited: Manual transmission has a lower purchase price and maintenance cost, suitable for small and medium-sized enterprises sensitive to initial investment and long-term maintenance costs.

3. Special Reminders

Electric forklifts: Most electric forklifts adopt automatic transmission (continuously variable transmission) by default, and manual transmission electric forklifts are very rare. If electric + manual transmission is needed, customization in advance is required;
Compliance requirements: Whether it is manual or automatic transmission, operators must hold a forklift operation certificate. Manual transmission has higher requirements for operators' skills, and training should focus on strengthening gear shifting and clutch coordination training.

IV. Document Purpose & Application Scope

This document is applicable to commercial scenarios such as customer consultation, procurement plan reporting, and operator training materials. It uses professional business English, which is suitable for international communication and cross-border enterprise internal training.
