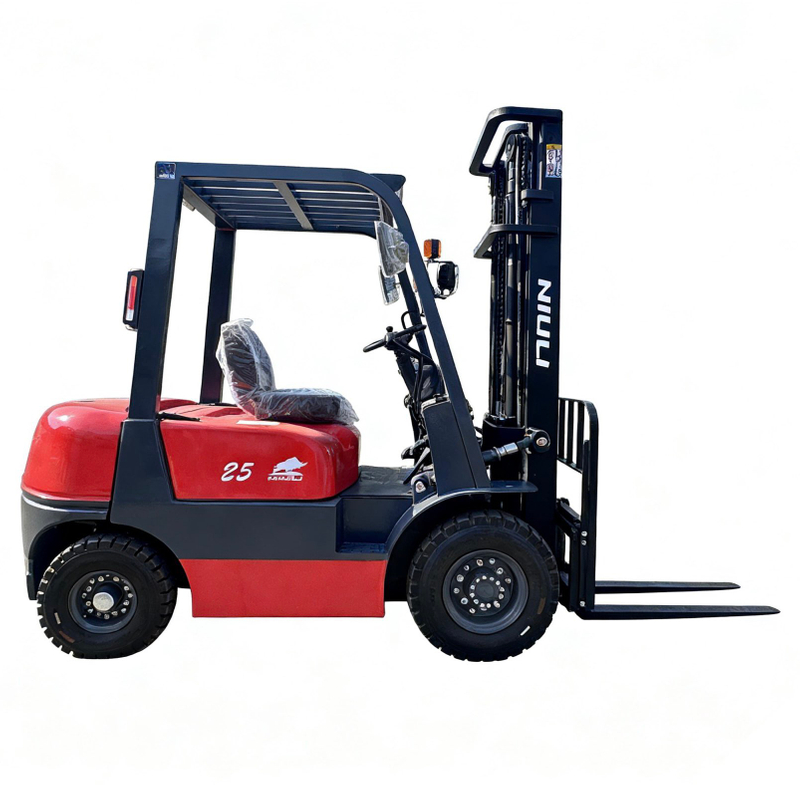

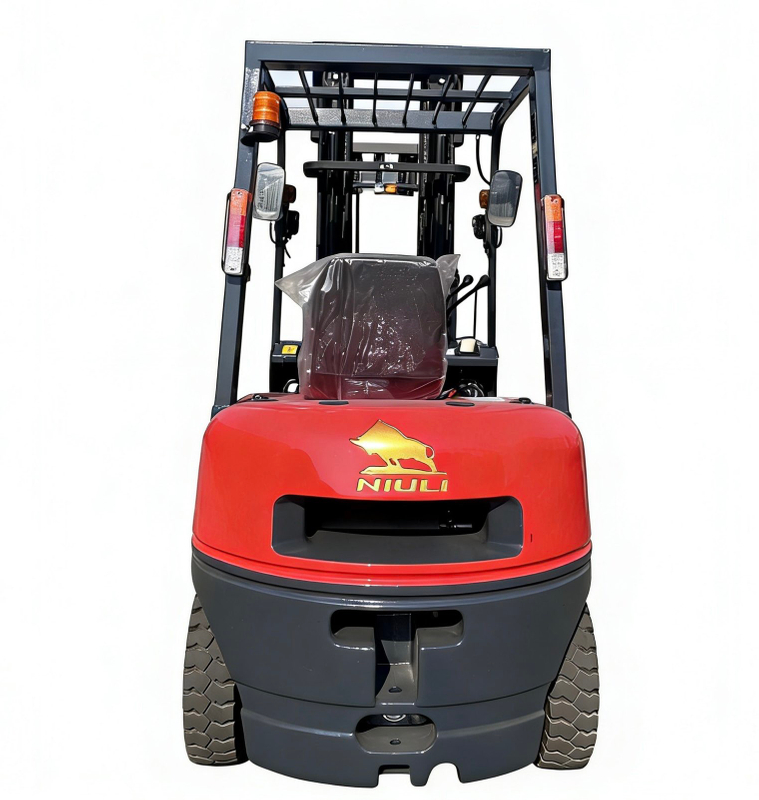

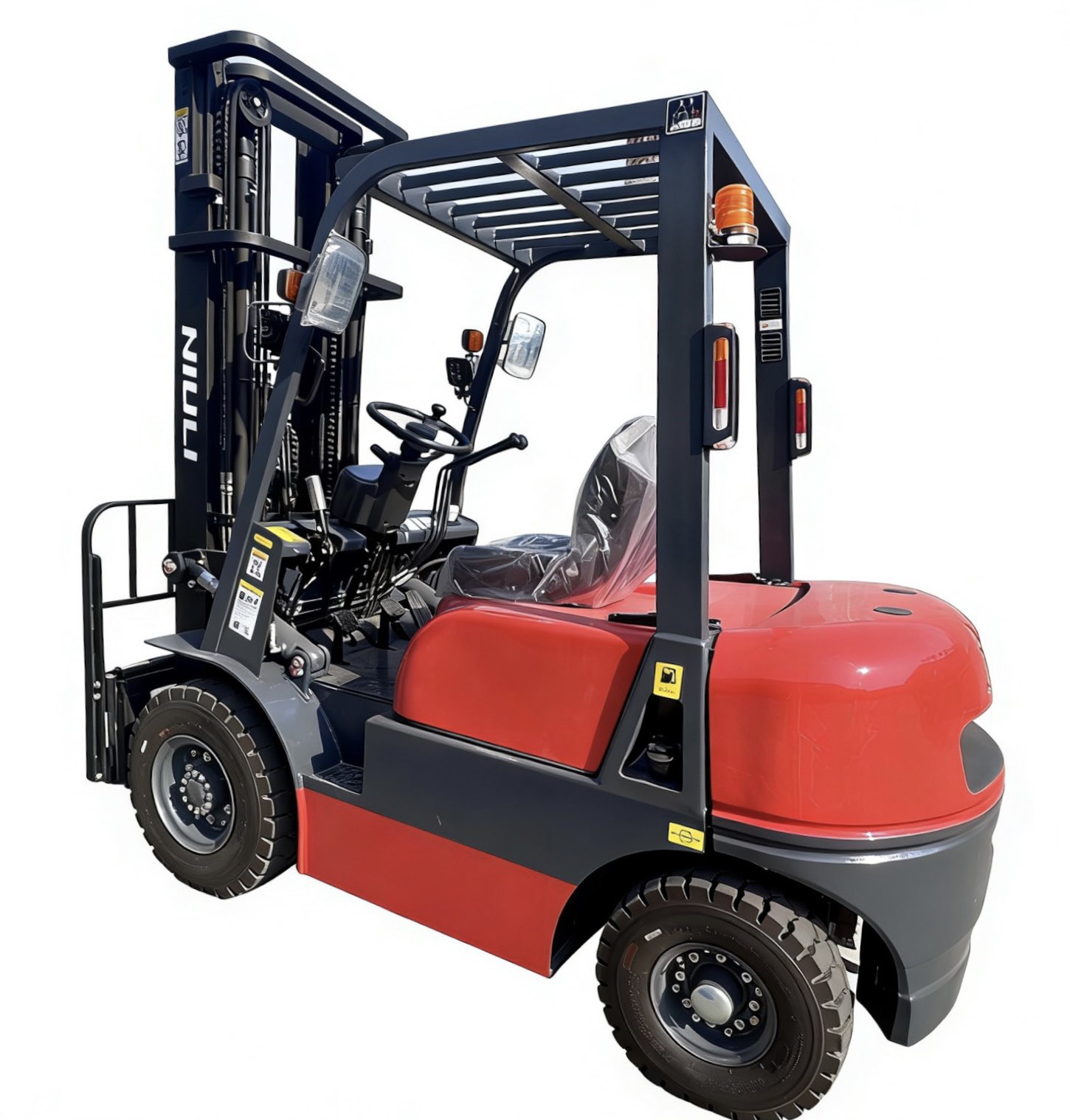

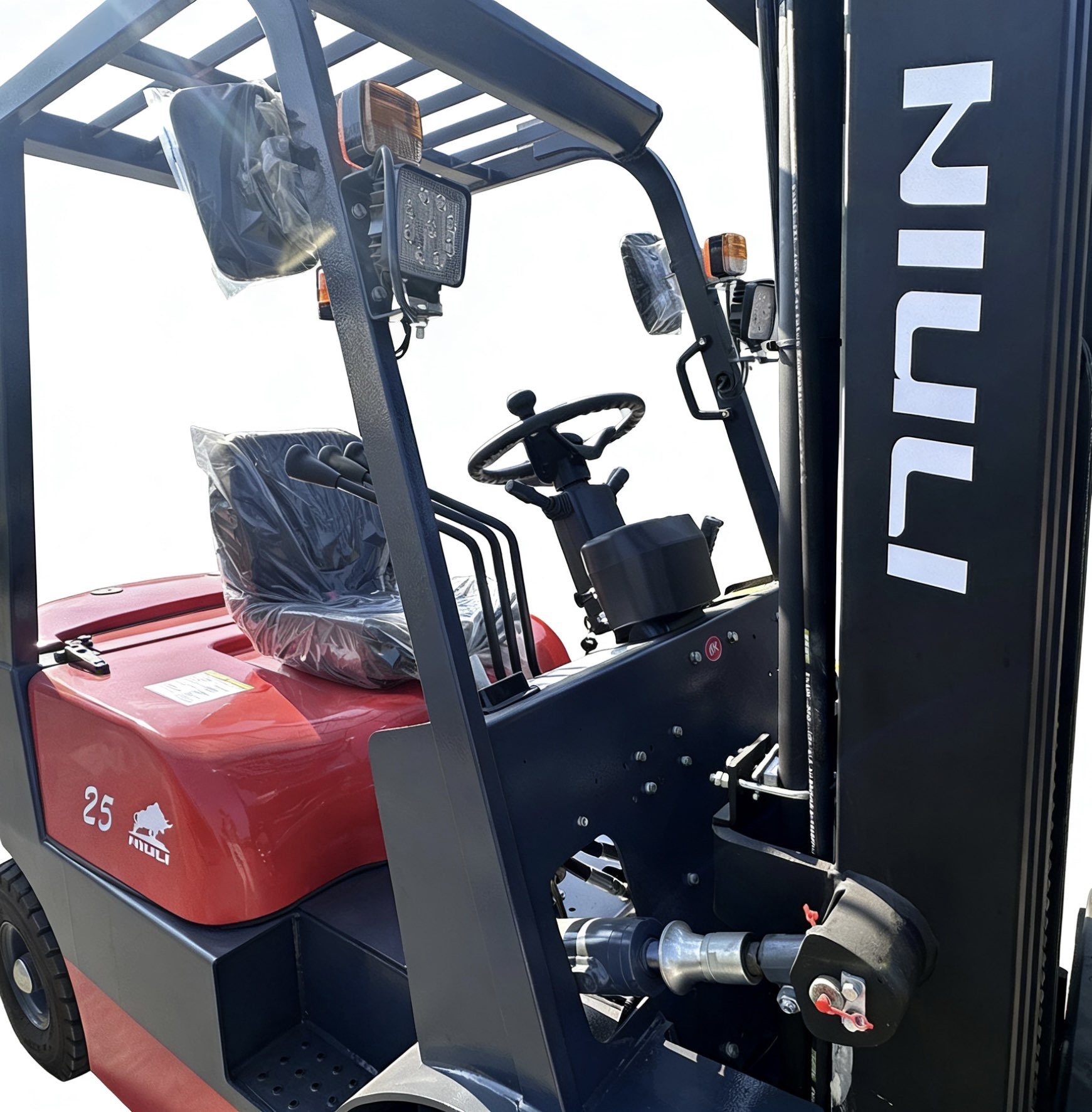

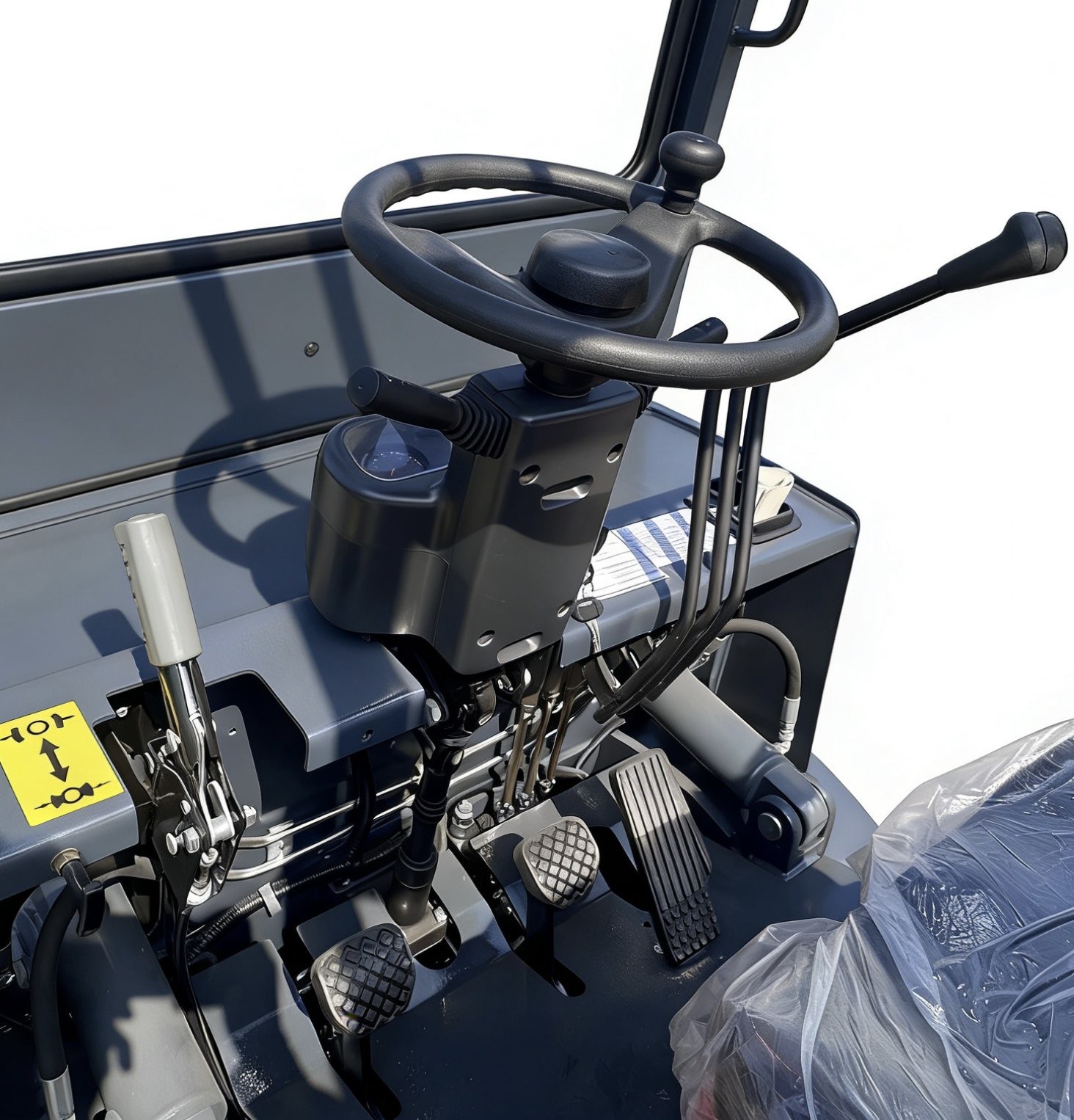

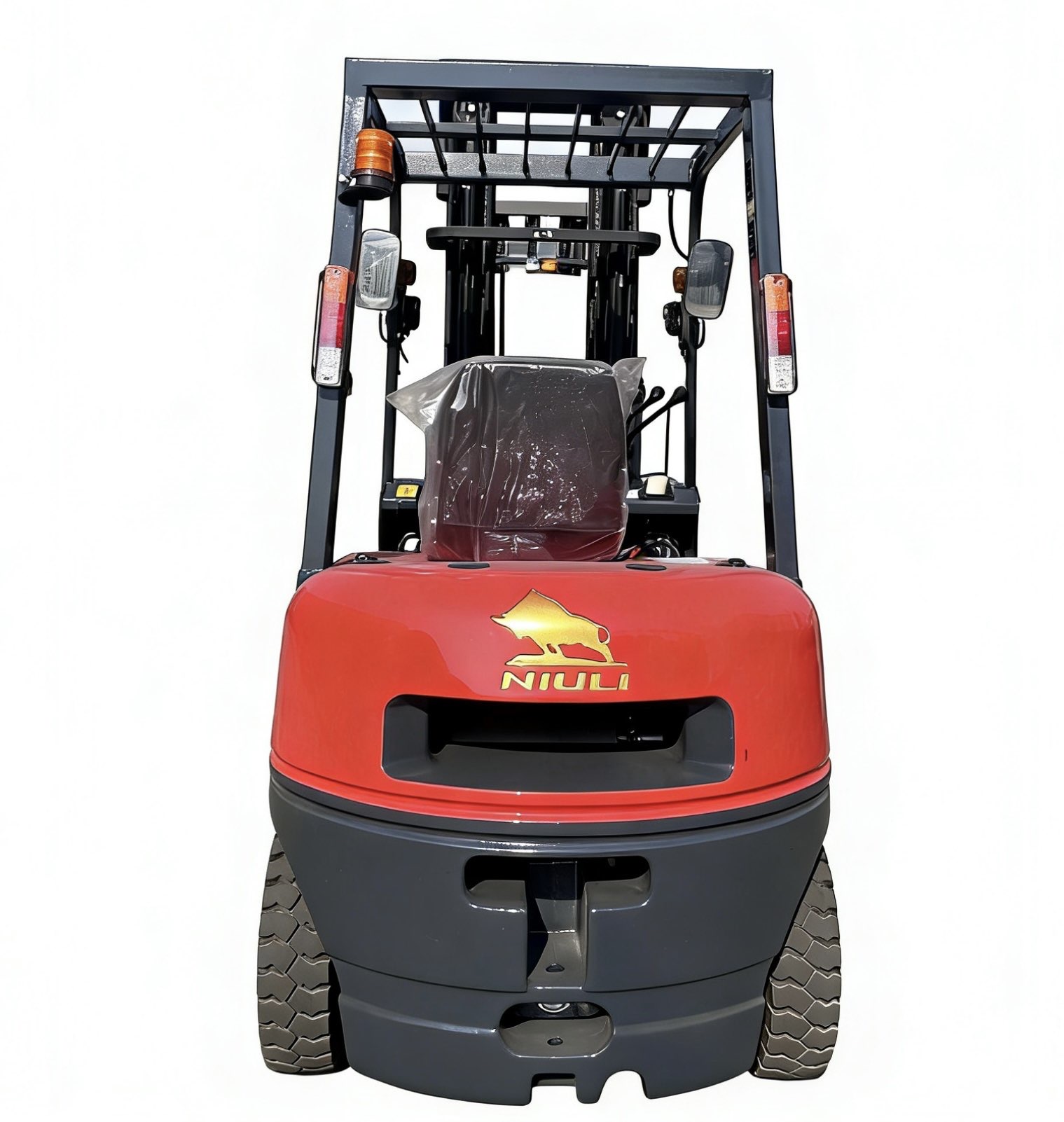

CPCD 20/25

Features:
"Power transmission system, overhead guard and truck frame all use dual suspension structure, Which can weaken the vibration transferred from power system wheel, control lever and seat, thus making the operator feel more comfortable during operation.

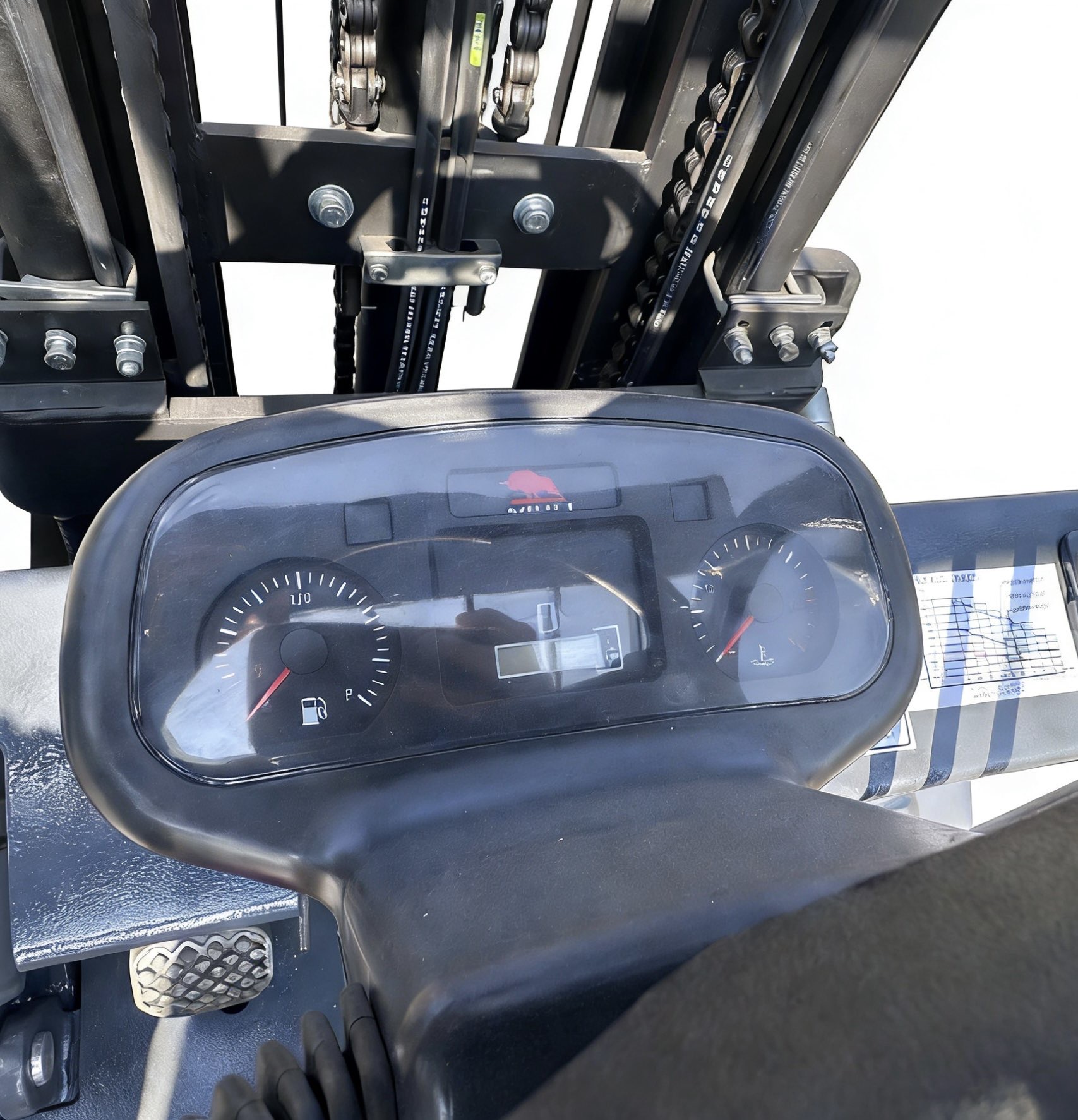

* This forklift truck is designed with high defintion liquid crystal display device which not only provides convenience for operator to understand the working condition of truck, but also broadens the visual field of operator.
* This diesel forklift truck can be designed with two stage free lifting mast or three stage mast, luxurious and closed driving room, solid tire, sideshifter, roll clamps. clamp holder, and nonstandard forks ect, to meet your different needs.
Availability:
CPCD 25 DIESEL FORKLIFT
CPCD 25 DIESEL FORKLIFT
CPCD 25 DIESEL FORKLIFT
CPCD 25 DIESEL FORKLIFT
CPCD 25 DIESEL FORKLIFT
CPCD 25 DIESEL FORKLIFT
  • CPCD

  • NIULI

分类序号参数项子项单位CPC20/CPCD20CPC25/CPCD25
General1Model--CPC20/CPCD20CPC25/CPCD25

2Power Type--DieselDiesel

3Rated Capacity-kg20002500

4Load Centre-mm500500

5Lift Height-mm30003000
Characteristic&DImension6ForkSizeL×W×Tmm1070×122×401070×122×40

7Mast Tilt AngleF/RDeg6°/12°6°/12°

8Front Overhang(Wheel center to fork face)-mm480480

9Ground Clearance(Bottom Of mast)-mm120120

10Overall DimensionLength of fork(With/Without fork)mm3654/25703654/2570

11
Overall Widthmm11601160

12
Mast Lowered Heightmm19951995

13
Mast Extended Height (With backrest)mm41104110



Overhead Guard Heightmm21302130

14Turning Radius(outside)-mm23402340

15Min.intersecting aisle-mm24002400
Performance16SpeedTravel(Full/Empty load)km/h17/1917/19

17
Lifting(Full/Empty load)mm/s530/550530/550

18Max.Gradeability-%2020
Chassis19TireFront-7.00-12-12PR7.00-12-12PR

20
Rear-6.00-9-10PR6.00-9-10PR

21Wheelbase-mm16001600

22Self weight-kg34803680

23BatteryVoltage/CapacityV/Ah12/12012/120
Power&Transmission24EngineModel-C490BPGC240

25
Manufacturer-XinChangISUZU

26
Rated output/r.p.m.Kw/r.p.m40/265034.3/2500

27
Rated torque/r.p.m.Nm/r.p.m160/1800-2000137.7/1800

28
No.of Cylinder-44

29
Bore × Strokemm90×10586×102

30
Displacementcc26702369

31
Fuel Tank CapacityL6060

32TransmissionType-Machanical/HydraulicMachanical/Hydraulic

33
Stage FWD/RVS-1/1(2/2) / 1/11/1(2/2) / 1/1

34Operating Pressure for Attachment-Mpa17.517.5





Why Choose to Buy Niuli Forklifts? A Comprehensive Analysis of Core Advantages

In scenarios such as logistics warehousing, factory production, and construction site operations, forklifts, as core handling equipment, their quality, performance, and services directly affect operational efficiency and operating costs. Having been deeply engaged in the industry for more than 20 years, Niuli Forklifts have formed a full-chain advantage from R&D and production to after-sales support, making them the first choice for many enterprises and individuals. The core reasons can be summarized into the following five dimensions:

I. Solid Quality Lays a Solid Foundation, and Durability Stands the Test of Practical Operation

Niuli Forklifts take "quality first" as the core principle and establish strict standards from raw material selection to factory inspection. All key components of the whole vehicle adopt well-known imported brands, such as the American Curtis electronic control system (Sauer Danfoss optional for AC). The electronic control system is installed in a fully enclosed structure, which effectively avoids damage to components caused by pollution and water splashing. Manual forklifts are equipped with AC cast steel integral oil pumps and integral valve bodies, featuring excellent sealing performance and convenient maintenance, eliminating leakage problems at the source. The vehicle body is made of high-strength alloy steel plates, combined with an active safety valve design, which can effectively avoid overloading, greatly extend the service life of the equipment, and the service life can reach 3-5 years under normal use.
Relying on a strong R&D team and imported German testing equipment, Niuli Forklifts have passed multiple authoritative certifications such as the ISO9001:2000 national quality system certification and the German TUV CE/GS certification, and many products have obtained national patents. In particular, the high-voltage lithium battery forklifts for heavy working conditions have undergone nearly two years of domestic field trial verification, with outstanding quality stability and continuous working time of up to 8 hours, far exceeding the average level of 4 hours of similar domestic electric forklifts, and can stably output even in high-intensity operating environments.

II. Performance Adapts to Diverse Scenarios, Making Efficient Operation More Worry-Free

Niuli Forklifts have built a comprehensive product matrix, covering various types such as manual/electric pallet trucks, stackers, counterbalanced forklifts, off-road stackers, and reach trucks, which can meet the handling needs of diverse scenarios such as factory workshops, warehouse storage, construction site loading and unloading, and supermarket distribution, truly realizing "one-stop procurement". For special operation needs, personalized non-standard customization services are also provided, which can accurately respond to adjusting fork specifications, adding special accessories, or adapting to specific operating environments.
In terms of operational performance, Niuli Forklifts fully integrate ergonomic design: full electric stackers adopt a wide-view mast structure, which optimizes the operator's field of vision and improves operational safety and efficiency; the operating space is spacious, the steering wheel and seat are adjustable, and the reasonably arranged control system can effectively reduce labor intensity and improve comfort during long-term operations. Manual pallet trucks, with their flexible steering design and stable load-bearing capacity, can easily handle heavy object handling at the 3-ton load level. The PU material wheels are suitable for various ground surfaces and are easy to move, even in narrow spaces. In addition, the electric series is equipped with an AC stepless speed regulation controller, the driving and lifting speeds are adapted to different operation rhythms, and the braking system adopts dual protection of regenerative braking and electromagnetic power-off braking, further improving operational safety.

III. Direct Sales Model Highlights Cost-Effectiveness, Making Procurement Costs More Controllable

As a source production enterprise, Niuli Machinery has two large-scale factories, and has established direct sales companies and large-scale finished product warehouses in many regions in China. It directly connects with end customers, eliminating intermediate agent links and realizing "factory-direct sales", allowing customers to purchase high-quality equipment at a more favorable price. Taking the 3.5-ton customized Niuli Forklift as an example, after adding accessories such as reverse teeth, buckets and solid tires, the overall price is still controlled within a reasonable range, and the equipment has a low depreciation rate, showing significant cost-effectiveness in long-term use.
At the same time, the direct sales model ensures the stability of supply and delivery efficiency. Large-scale warehouses have perennial stock of finished products worth tens of millions of yuan. Conventional models can realize "order placed on the same day and fast delivery", and special customized models can also guarantee the delivery cycle, avoiding the impact on operation progress due to equipment shortage. In addition, flexible cooperation models such as leasing and trade-in are provided in some regions, further reducing the initial investment pressure of enterprises.

IV. Full-Cycle Service Guarantee, Making After-Sales Worry-Free and More Assuring

Niuli Forklifts have built a full-cycle service system covering pre-sales, in-sales and after-sales services. They have invested heavily in establishing professional logistics and distribution, equipment installation, and maintenance teams, and are equipped with independent spare parts warehouses to ensure timely and efficient service response. The core service commitments include "one-year warranty and lifelong maintenance". During this period, if the equipment malfunctions, 24-hour all-weather on-site service can be enjoyed. In some regions, preferential policies such as free labor fees for maintenance are also provided, greatly reducing long-term maintenance costs.
In the pre-sales stage, the professional team will provide targeted equipment selection suggestions according to the customer's operation scenarios, load requirements, site conditions, etc.; in the in-sales stage, free installation and commissioning and operation training are provided to ensure that customers can quickly get started; in the after-sales stage, a fast spare parts distribution channel is established, common spare parts can be allocated on the same day, and complex faults can also be repaired in a short time, minimizing equipment downtime. This all-round service guarantee allows customers to have no worries throughout the entire service life of the equipment.

V. Deep Accumulation of Brand Reputation and High Market Recognition

Since entering the logistics handling equipment industry in 1999, Niuli Forklifts have accumulated a deep brand reputation relying on stable quality and high-quality services. The annual sales volume has exceeded 700 million yuan, and products are exported to more than 200 countries around the world. Direct sales subsidiaries have been established in regions such as Canada, Europe, and the Middle East, and international market recognition has continued to improve. In the domestic market, well-known enterprises such as Midea, Chery, Fujitsu, and SAIC Volkswagen have all chosen Niuli Forklifts as their logistics handling partners, which indirectly confirms their product strength.
In end-user evaluations, "reliable quality", "timely service" and "high cost-effectiveness" are high-frequency keywords. Both long-term cooperative enterprise customers and individual users purchasing for the first time highly recognize their products and services, forming a good spread of market reputation.
In summary, relying on solid product quality, performance advantages adapting to diverse scenarios, a cost-effective direct sales model, full-cycle after-sales support, and deep brand reputation, Niuli Forklifts have become the preferred choice for logistics handling equipment procurement. Whether it is improving operational efficiency, controlling operating costs, or ensuring long-term stable operations, choosing Niuli Forklifts can achieve a better user experience and value return.
