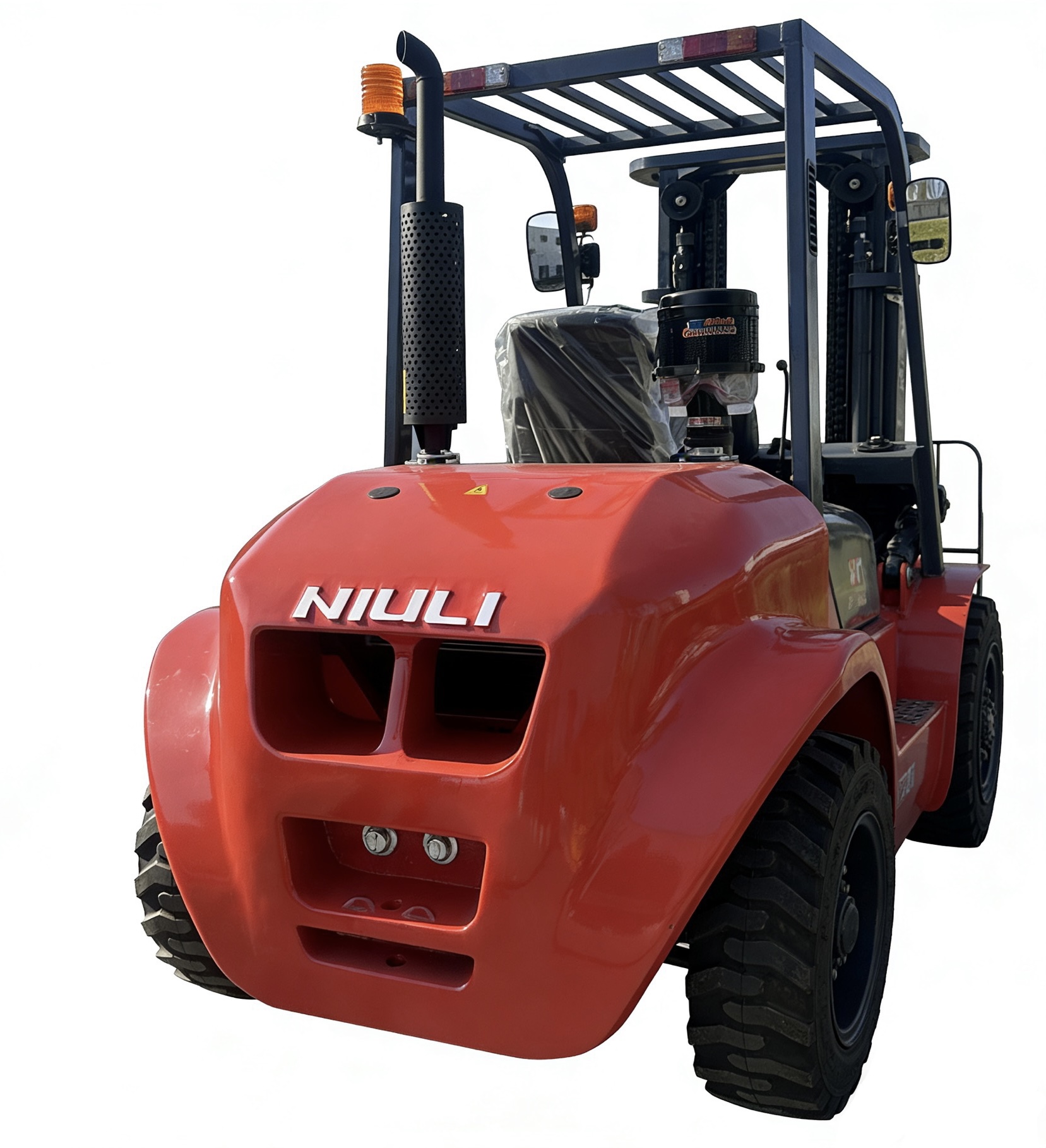

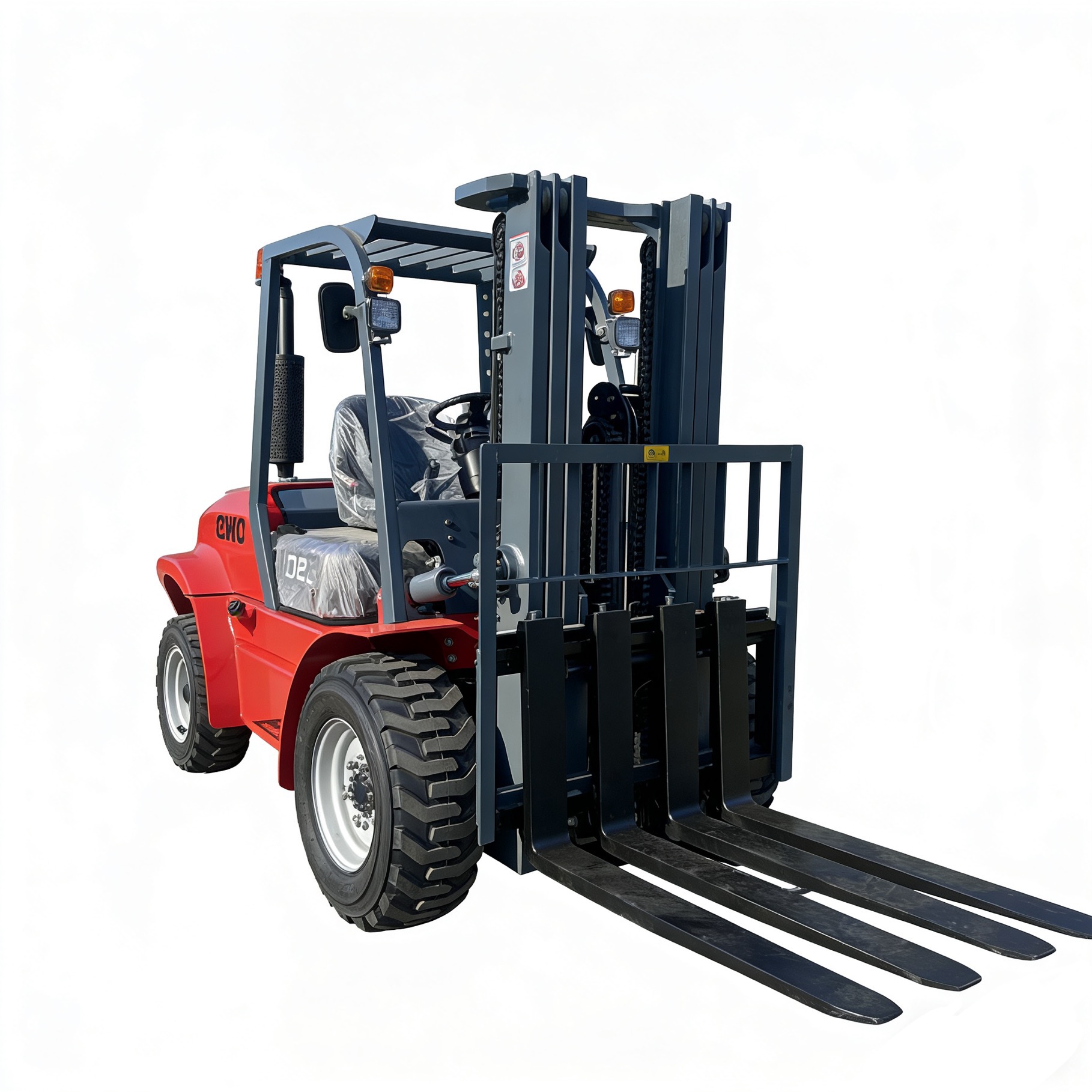

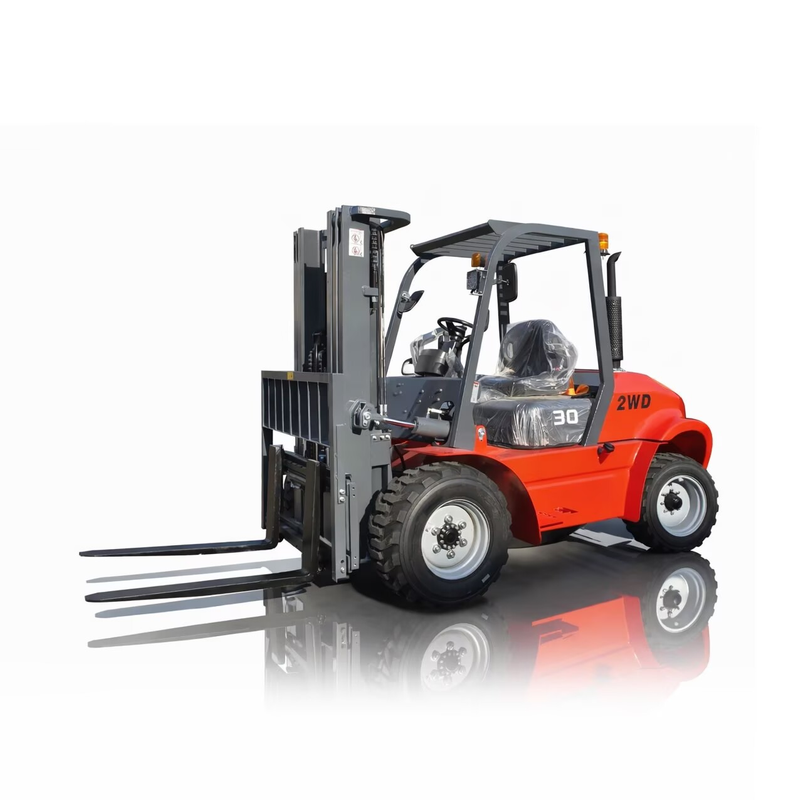

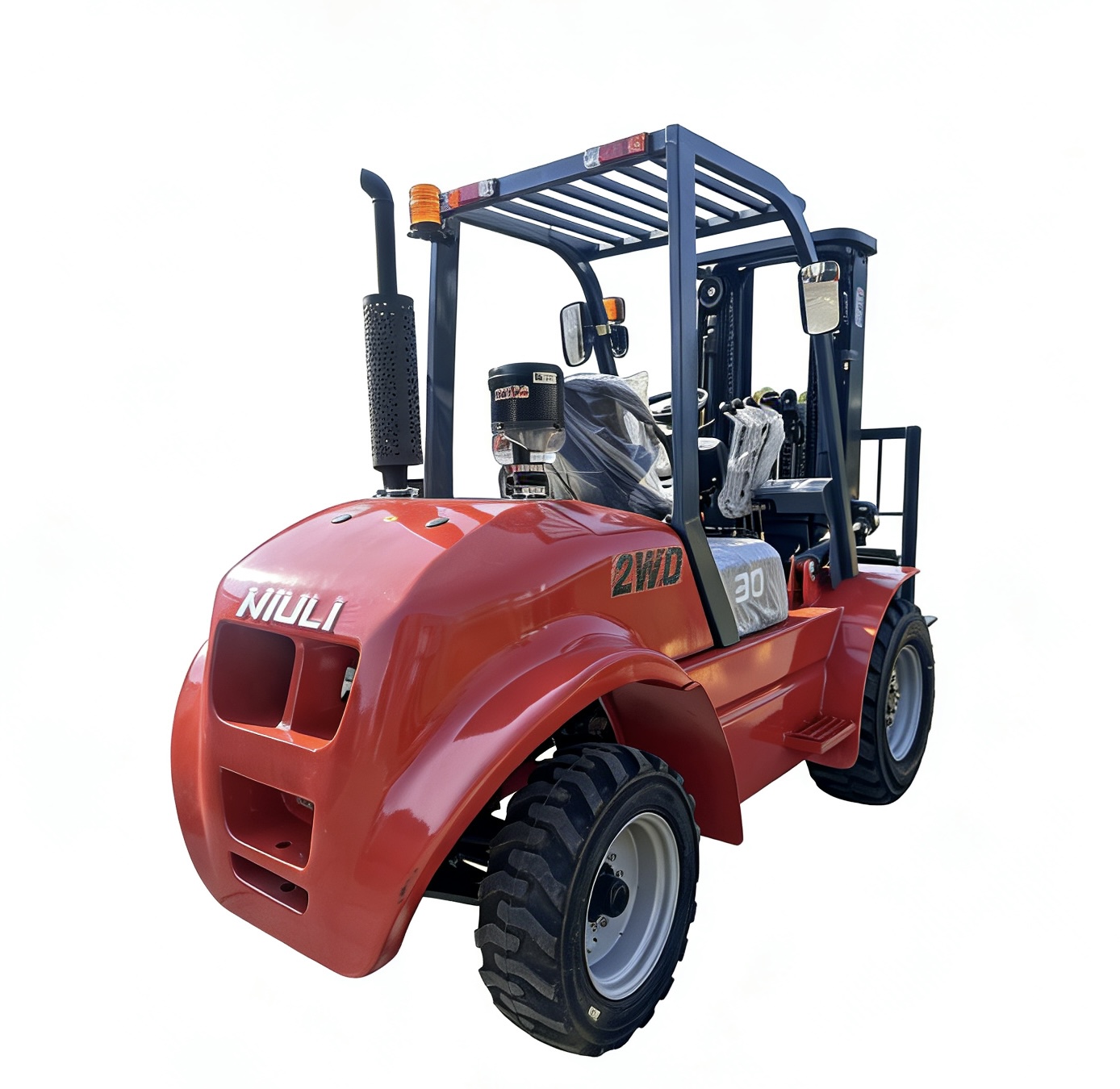

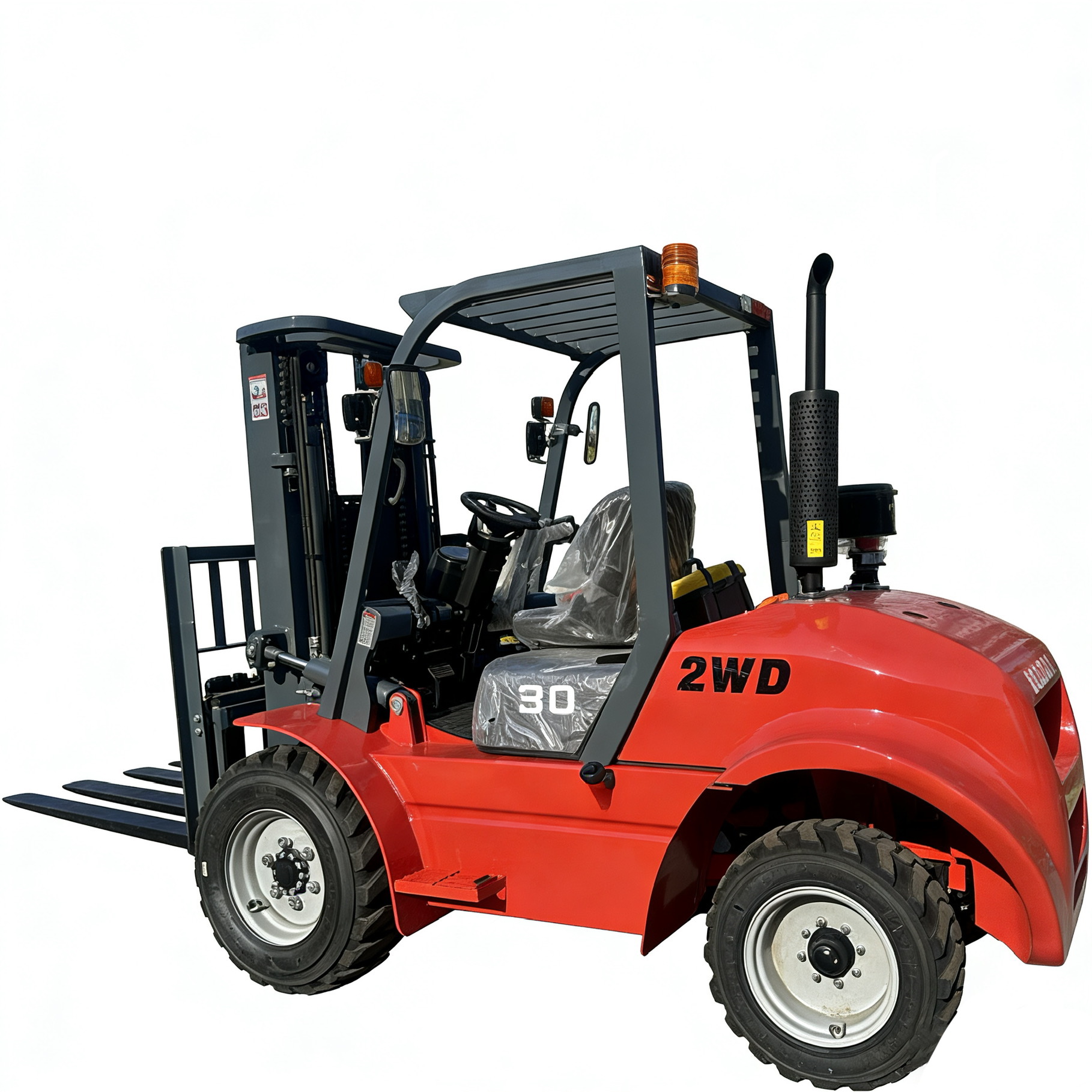

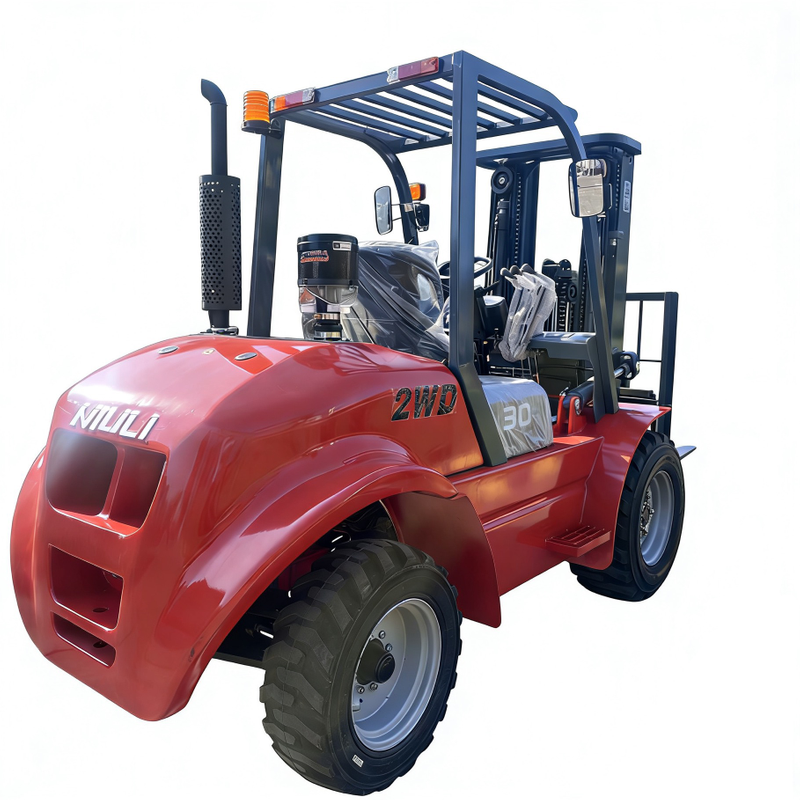

CPD30（Off-road） Diesel forklift

Name: CPD30（Off-road） Diesel forklift
Brand: NIULI
Rating: 5.0 (32 reviews)

At construction sites, sand and gravel yards, logistics parks, and rural roads,
where ordinary forklifts can't move,
the Niuli off-road forklift can still operate steadily.

It is equipped with large-sized off-road tires,
providing stronger grip.
Whether on potholed roads, muddy grounds, or gravelly areas,
its passability is excellent.

The high chassis design
effectively increases the ground clearance,
easily coping with complex terrains,
without fear of scraping or getting stuck.

In terms of power,
the powerful engine delivers stable and reliable output.
It has strong starting power and doesn't feel weak even when fully loaded.

Availability:



Inquire Add to Basket

Model:
CPD30
Brand:
NIULI

Product Description

CPD30 3-Ton Fuel-Powered Off-Road Forklift Product Specification Document

1. Product Overview

The CPD30 3-ton fuel-powered off-road forklift is a heavy-duty material handling equipment specially designed for complex outdoor terrains. Driven by diesel power, it has a rated lifting capacity of 3000kg, featuring strong off-road passability, stable lifting performance and flexible operation experience. This product is widely applicable to unpaved road scenarios such as construction sites, mining areas, agricultural and forestry pastures, and outdoor logistics warehouses. It can efficiently complete cargo loading and unloading, stacking, short-distance transportation and other operations, fully meeting the usage requirements of harsh outdoor working conditions. It complies with current industry standards such as GB/T 35205.1-2025 "Off-Road Forklifts - Safety Requirements and Verification - Part 1: Telescopic Boom Forklifts".

2. Core Technical Parameters

2.1 Basic Parameters

Parameter Name	Specification Value	Remarks
Rated Lifting Capacity	3000kg	Load Center Distance 500mm
Power Type	Diesel	Optional Gasoline/LPG Dual-Fuel System
Operation Mode	Ride-On	Single-Seat with Safety Protection Top Frame
Total Machine Weight	4320kg	Including Standard Configuration and Fuel
Load Center Distance	500mm	Compliant with General Industrial Vehicle Standards

2.2 Dimension Parameters

Parameter Name	Specification Value
Total Machine Length (with Forks)	3630mm
Total Machine Length (without Forks)	2570mm
Total Machine Width	1270mm
Top Frame Height (Mast Lowered)	2110mm
Maximum Lifting Height	3000mm (Optional 3-6m Multi-Stage Mast)
Free Lifting Height	160mm
Minimum Ground Clearance	135mm
Wheelbase	1700mm
Minimum Turning Radius (Outer)	2400mm
Fork Dimensions (Length×Width×Thickness)	1220×122×45mm
Fork Adjustment Range (Min-Max)	250-1090mm

2.3 Performance Parameters

Parameter Name	Specification Value
Travel Speed (Loaded/Unloaded)	12.5km/h / 14km/h
Lifting Speed (Loaded/Unloaded)	280mm/s / 450mm/s
Lowering Speed (Loaded/Unloaded)	450mm/s / 500mm/s
Maximum Climbing Capacity (Loaded/Unloaded)	15% / 20%
Mast Tilt Angle (Forward/Backward)	6° / 12°
Maximum Traction Force (Loaded)	1780kg

2.4 Power System Parameters

Parameter Name	Specification Value
Engine Model	Xinchang 490BPG (Optional Quanchai QC490G/Isuzu C240PKJ)
Engine Type	Four-Cylinder Four-Stroke Diesel Engine
Rated Power/Rotational Speed	36.8kw / 2650rpm
Maximum Torque/Rotational Speed	148Nm / 1900rpm
Displacement	2.54L
Emission Standard	China Stage Ⅱ (Optional Euro Ⅲ Standard)
Fuel Tank Capacity	60L
Transmission Type	2 Forward & 2 Reverse Manual Shift (Optional Power Shift)

2.5 Chassis and Brake Parameters

Parameter Name	Specification Value
Tire Type	Off-Road Pneumatic Tires (Reinforced Front Tires)
Front Tire Specification	28×9-15-12PR
Rear Tire Specification	6.50-10-10PR
Front Track Width	1000mm
Rear Track Width	980mm
Service Brake System	Hydraulic Pedal Brake
Parking Brake System	Mechanical Manual Brake
Steering System	Hydraulic Power Steering for Easy Operation

3. Core Configuration and Features

3.1 Power and Transmission System

Equipped with a well-known brand diesel engine, featuring strong power, sufficient torque, suitable for continuous outdoor heavy-load operations, with low failure rate, easy maintenance, and support for long-term high-load operation.
Adopting reinforced transmission and drive axle, it has high transmission efficiency and strong impact resistance. The gear ratio is optimized for off-road working conditions to ensure stable power transmission in complex terrains.
Equipped with dual air filters, which can effectively block dust and impurities, protect the engine air intake system, extend service life, and adapt to dusty outdoor environments.

3.2 Lifting and Mast System

Adopting a wide-view mast design, optimizing the opening size of the fork carrier, expanding the operator's field of vision, reducing operational blind spots, and improving operational safety.
The mast is welded with high-strength section steel and reinforced by heat treatment, with strong load-bearing capacity. It is equipped with high-quality lifting cylinders for stable lifting and precise positioning.
Optional side shifter to realize left and right fine adjustment of forks, facilitating precise alignment for loading and unloading, and improving work efficiency; supporting customization of multi-stage masts to meet different lifting height requirements.

3.3 Operation and Safety Configuration

Equipped with a large-size LED display instrument, which displays data clearly and intuitively, with multiple monitoring functions such as speed, temperature, and power. It has friendly human-computer interaction, allowing operators to grasp the equipment status in real time.
Adopting an ergonomic seat with adjustable backrest angle and excellent shock absorption effect, reducing fatigue during long-term operation; the operation handle layout is reasonable, with sensitive response and easy operation.
Equipped with a sturdy top frame and safety belt, complying with GB/T 35205.1-2025 safety standards, effectively protecting the operator's safety; equipped with emergency power-off switch and overload protection device, providing multiple safety guarantees.
The whole machine has a low center of gravity, combined with widened track width and off-road tires, with excellent stability, which can work safely on sloping and bumpy roads, effectively preventing rollover.

3.4 Off-Road Performance Optimization

Adopting special off-road pneumatic tires with deep tread patterns and strong grip, suitable for complex terrains such as mud, gravel, and grassland, with good anti-skid and anti-puncture performance.
Optimized chassis structure to increase minimum ground clearance, which can easily cross road obstacles, avoid chassis collision damage, and enhance outdoor passability.
The brake system is strengthened for off-road working conditions, with short braking distance and good stability, ensuring reliable braking even on wet and sloping roads.

4. Application Scenarios

This product is suitable for various complex outdoor working conditions, including but not limited to: material transportation at construction sites, cargo loading and unloading in mining areas, straw/feed handling in agricultural and forestry pastures, cargo stacking in outdoor logistics parks, short-distance transportation at ports and terminals, material scheduling at infrastructure construction sites, etc. It can effectively replace traditional indoor forklifts and solve the problem of material handling on outdoor unpaved roads.

5. Executive Standards

This product is designed, produced and inspected in strict accordance with the following national and industry standards:

GB/T 35205.1-2025 "Off-Road Forklifts - Safety Requirements and Verification - Part 1: Telescopic Boom Forklifts"
GB/T 42784.2-2025 "Off-Road Forklifts - Test Methods for Verifying Field of Vision - Part 2: Off-Road Slewing Telescopic Boom Forklifts"
GB/T 26949.3-2025 "Industrial Vehicles - Stability Verification - Part 3: Reach Trucks and Straddle Trucks"
JB/T 11037-2025 "Ride-On Counterbalanced Forklifts with Load Capacity of 10000kg～65000kg"

6. Notes

1. The parameters listed in this document are for standard configuration. The actual product parameters may vary slightly due to configuration upgrades and customized requirements. Please refer to the supply contract and product certificate for details.

2. The product appearance and color can be customized according to customer needs. Optional configurations include enclosed cab, air conditioning, warning lights, reversing image, etc.

3. It is recommended to perform regular maintenance in accordance with the product manual to ensure stable equipment performance and service life.
