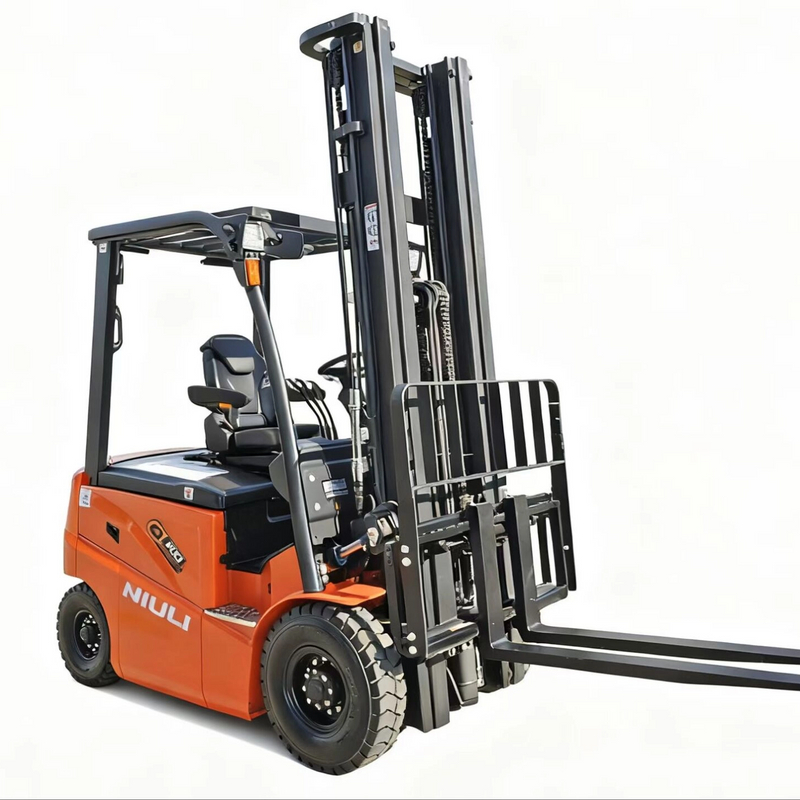

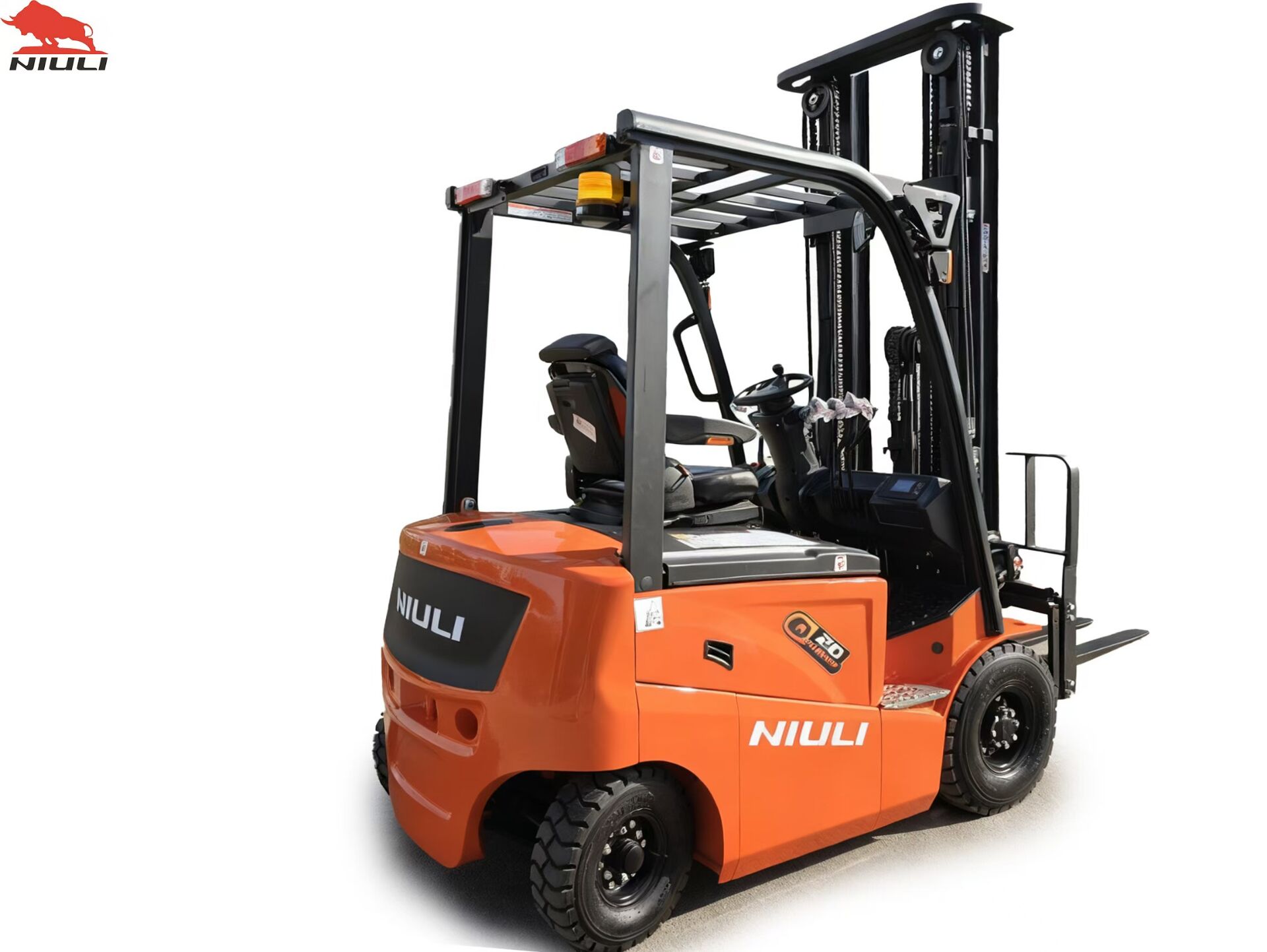

FDN Electric Forklift

Name: FDN Electric Forklift
Brand: NIULI
Rating: 5.0 (46 reviews)

Capacity: 1600kg/2000kg
Max. lifting height: 6000mm
This series of electric counterweight forklifts is designed based on the design of counterweight forklifts and combined with advantages to meet the needs of medium and lightweight working conditions, while providing a comfortable and efficient driving experience.
• AC maintenance-free drive motor
• Quiet low vibration design
Side-extraction battery
Safer and easier electromagentic brake
Lowe center of gravity

Availability:



Inquire Add to Basket

Model:
FDN
Brand:
NIULI

Product Description

Product Specification Document

1. Overview

Item	FDN16	FDN20	Unit
1.1 Manufacturer	NIULI	NIULI	-
1.2 Model	FDN16	FDN20	-
1.3 Power Type	Electric	Electric	-
1.4 Operation Type	Seat	Seat	-
1.5 Rated Capacity	1600	2000	kg
1.6 Load Centre	500	500	mm
1.7 Front Overhang	381	386	mm
1.8 Wheelbase	1360	1360	mm

2. Weight

Item	FDN16	FDN20	Unit
2.1 Self Weight	2940	3180	kg

3. Tyre & Chassis

Item	FDN16	FDN20	Unit
3.1 Tyre Type	Superelastic	Superelastic	-
3.2 Front Tyre	18*7-8	18*7-8	-
3.3 Rear Tyre	15*4 1/2-8	15*4 1/2-8	-
3.4 Number of Tyres (Drive Wheel)	2X/2	2X/2	-
3.5 Front-wheel Tread	960	960	mm
3.6 Rear-wheel Tread	180	180	mm

4. Dimensions (Mast & Vehicle)

Item	FDN16	FDN20	Unit
4.1 Mast Tilt Angle (Front/Rear)	6/10	6/10	Grad
4.2 Mast Closed Height	1985	1985	mm
4.3 Free Lift Height	130	130	mm
4.4 Standard Lift Height	3000	3000	mm
4.5 Mast Extended Height (with Lifting Frame)	3990	3990	mm
4.6 Overhead Guard Height	2075	2075	mm
4.7 Total Length (With Forks)	3050	3200	mm
4.8 Total Length (Without Forks)	2130	2130	mm
4.9 Total Width	1150	1150	mm

5. Dimensions (Forks & Passability)

Item	FDN16	FDN20	Unit
5.1 Fork Size (L×W×T)	920×100×35	1070×120×40	mm
5.2 Fork Carriage Width	1040	1040	mm
5.3 Fork Spacing	200/980	240/980	mm
5.4 Min. Ground Clearance (Lifting Frame)	98	98	mm
5.5 Min. Ground Clearance (Truck Body)	100	100	mm
5.6 Aisle Width for Pallets (1000×1200, Transversal)	3571	3576	mm
5.7 Aisle Width for Pallets (800×1200, Longitudinal)	3771	3776	mm
5.8 Min. Turning Radius	1990	1990	mm

6. Performance Parameters

Item	FDN16	FDN20	Unit
6.1 Max. Travel Speed (No Load/Full Load)	12/13	12/13	km/h
6.2 Max. Lifting Speed (Full Load/No Load)	270/350	270/350	mm/s
6.3 Descending Speed (No Load/Full Load)	520/420	520/420	mm/s
6.4 Gradeability (Laden/Unladen)	12/15	12/15	%
6.5 Driving Brake	Hydraulic Type	Hydraulic Type	-
6.6 Parking Brake	Mechanical	Mechanical	-

7. Electrical Parameters

Item	FDN16	FDN20	Unit
7.1 Traction Motor Power (S2 60min Work System)	7	7	kW
7.2 Lifting Motor Power (S3 15% Work System)	8.6	8.6	kW
7.3 Battery Specification (Voltage/Capacity)	Acid: 48/360, 480/400 Li: 48/200, 48/300, 48/400	Acid: 480/400, 48/460 Li: 48/200, 48/300, 48/400	V/Ah
