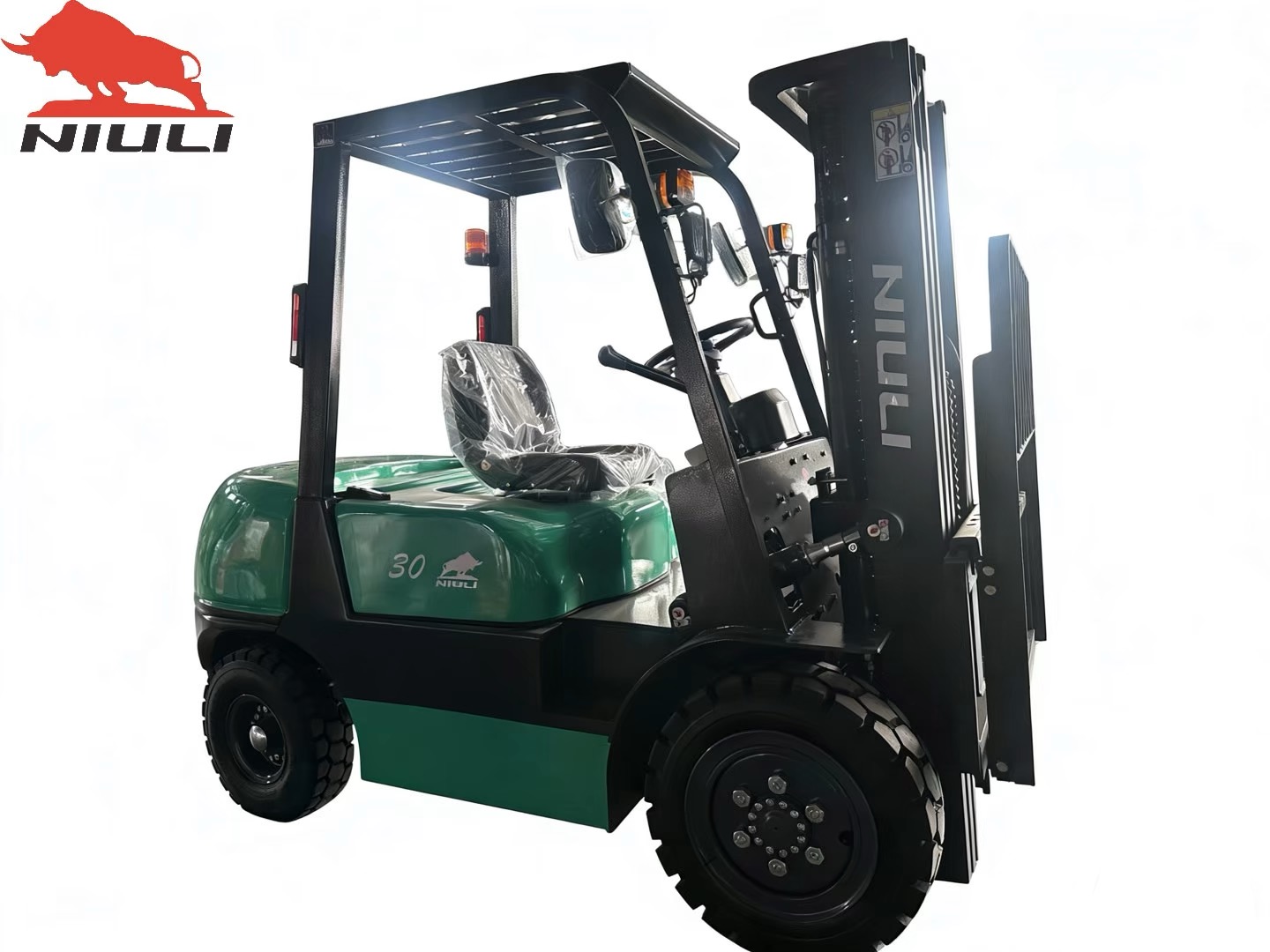

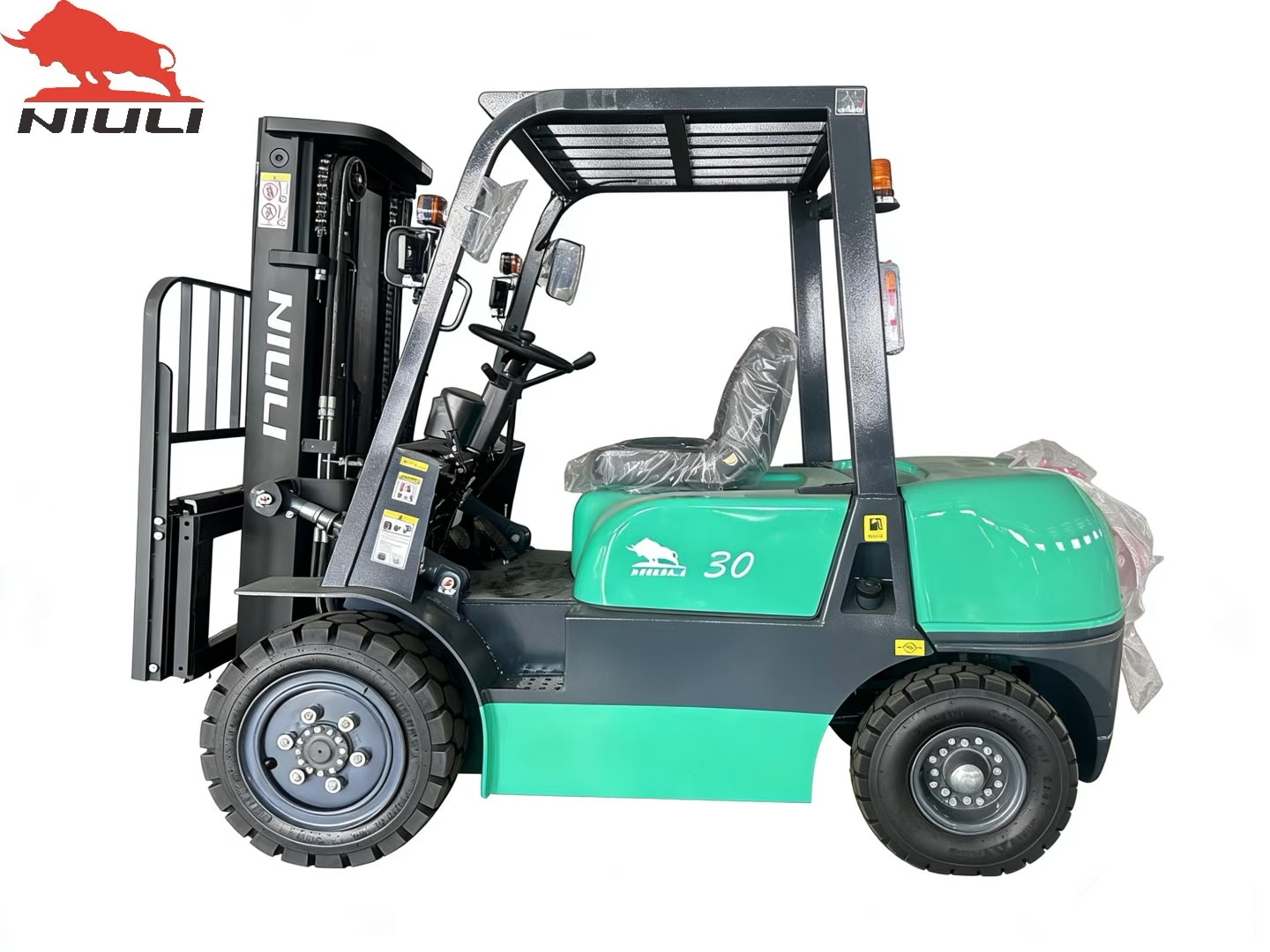

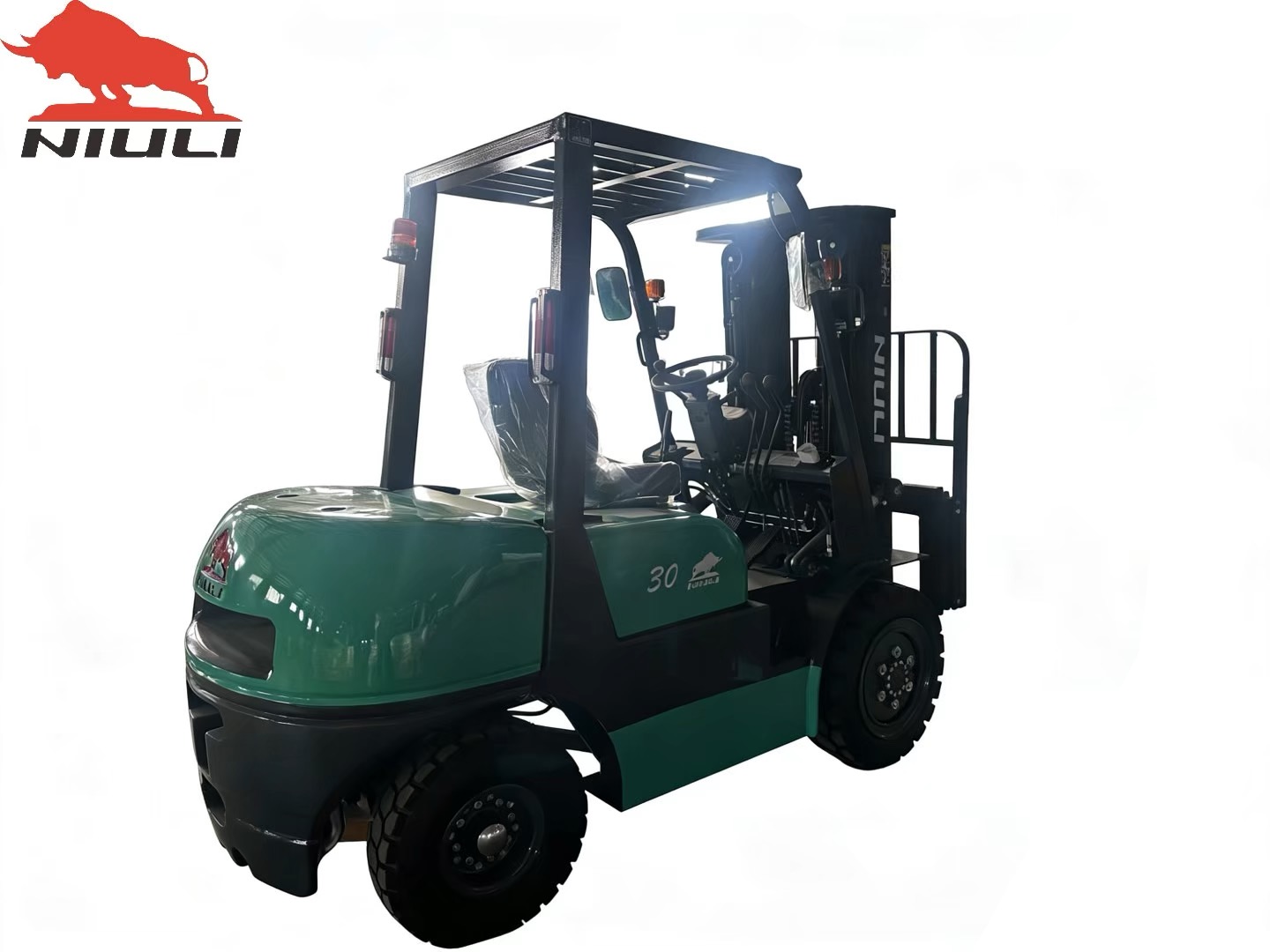

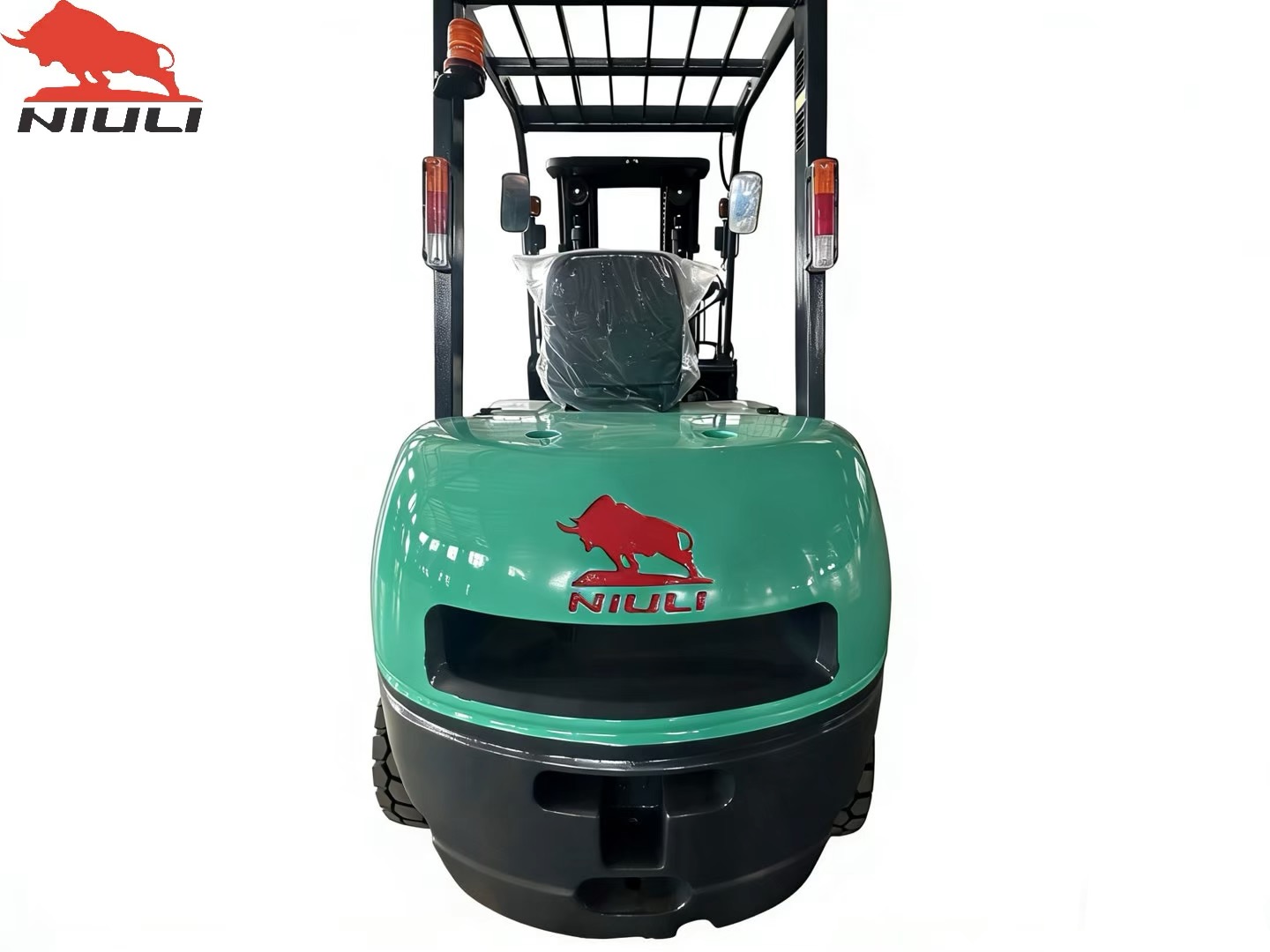

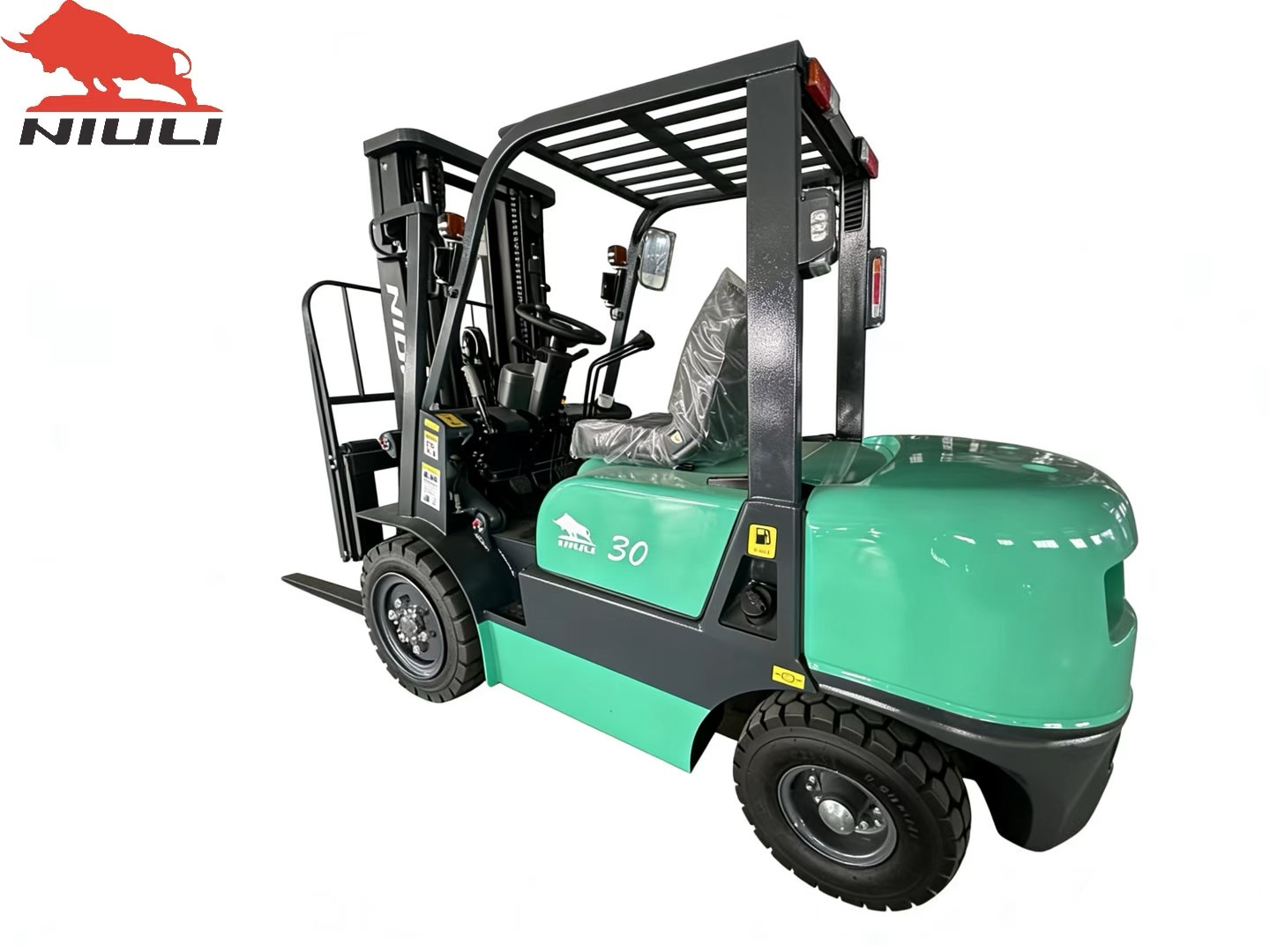

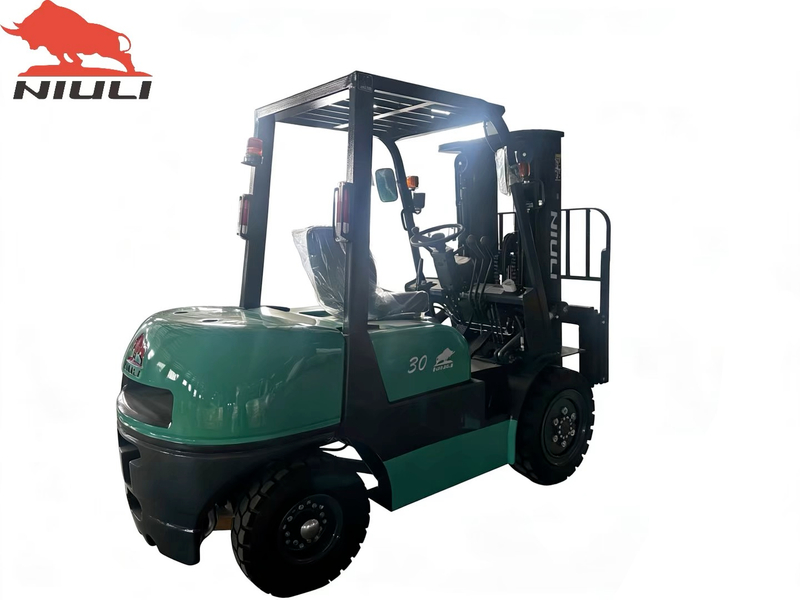

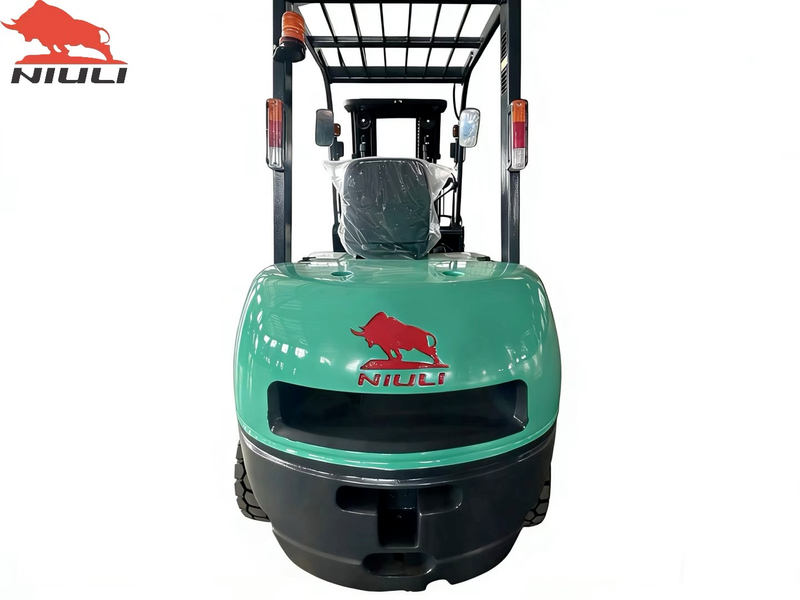

CPC/CPCD 30

Diesel Forklift
Capacity: 3000kg/3500kg
Max. lifting height: 6000mm
This diesel forklift has a load capacity of 3000kg-3500kg and can be equipped with an optional door frame of 3000mm-6000mm, which can meet the needs of most logistics operations. It has excellent stability and passability, whether it is a construction site or a warehouse
Availability:
CPC/CPCD 30
CPC/CPCD 30
CPC/CPCD 30
CPC/CPCD 30
CPC/CPCD 30
CPC/CPCD 30
  • CPC/CPCD

  • NIULI

PARAMETER TABLE

CategoryItemUnitCPC30CPCD30CPC35CPCD35



General1. Model-CPC30CPCD30CPC35CPCD35




2. Power Type---Diesel-




3. Rated Capacitykg3000300035003500




4. Load centermm-500-500



Characteristic Dimension5. Lift Heightmm-3000-3000




6. Fork Size (LWT)mm-107012545-107012545




7. Mast Tilt (F/R)Deg-6°/12°-6°/12°




8. Front Overhang (wheel center to fork face)mm-500-500




9. Ground Clearance (Bottom of mast)mm-126-126




10. Length (with/without fork)mm3790/27003790/27003980/29803980/2980




11. Overall widthmm-1230-1230




12. Mast lowered heightmm-2105-2105




13. Mast extended height (with backrest)mm-4110-4110




14. Overhead guard heightmm-2140-2140




15. Turning radius (outside)mm2415241526402640




16. Min. intersecting aislemm2500250027002700



Performance17. Travel speed (full/empty load)km/h-18/19-18/19




18. Lifting speed (full/empty load)mm/s460/540460/540360/440360/440




19. Max. gradeability%-20-20



Chassis20. Tire (Front)--28*9-15-12PR-28*9-15-12PR




21. Tire (Rear)--6.50-10-10PR-6.50-10-10PR




22. Wheelbasemm1650165018501850




23. Self weightkg4210421043304330



Power&Transmission24. Battery (Voltage/Capacity)V/Ah-12/120-12/120




25. Engine (Model)-C240<brISUZUC490BPG<brXinChaiC240<brISUZUC490BPG<brXinChaiJE493G<brISUZU4JG2<brISUZUJE493G<brISUZU4JG2<brISUZU

26. Engine (Manufacturer)-ISUZUXinChaiISUZUXinChaiISUZUISUZUISUZUISUZU

27. Engine (Rated output/r.p.m)Kw/r.p.m34.3/250040/265034.3/250040/265036/250044/245036/250044/2450

28. Engine (Rated torque/r.p.m)Nm/r.p.m137.7/1800160/1800-2000137.7/1800160/1800-2000160/1800-2000186/1600-1800160/1800-2000186/1600-1800

29. Engine (No. of cylinder)----4----

30. Engine (Bore*stroke)mm86*10290*10586*10290*10593*10295.4*10793*10295.4*107

31. Engine (Displacement)cc23692670236926702771305927713059

32. Fuel tank capacityL---60----

33. Transmission (Type)-MachanicalHydraulicMachanicalHydraulicMachanicalHydraulicMachanicalHydraulic

34. Transmission (Stage FWD*RVS)--1/(2/2)/1/1-1/(2/2)/1/1----

35. Operating pressure for attachmentMpa-17.5-17.5----


Core Advantages of Fuel-Powered Forklifts

As a classic handling equipment in the industrial logistics field, fuel-powered forklifts, with their unique performance characteristics, remain the first choice for many scenarios such as warehouses, ports, and construction sites. Compared with other types such as electric forklifts, fuel-powered forklifts have significant advantages in multiple dimensions including power output, environmental adaptability, and endurance capacity, as detailed below:

I. Powerful Power Output, Outstanding Load-Bearing and Climbing Capabilities

Fuel-powered forklifts use diesel, gasoline, or liquefied petroleum gas as their power source. Their engines have high output power and sufficient torque, enabling them to easily meet heavy-load operation requirements. Whether transporting heavy goods of several tons or even more than ten tons, or frequently performing high-intensity operations such as lifting, handling, and stacking in factories, fuel-powered forklifts can maintain stable power output without power attenuation. In addition, the strong power endows fuel-powered forklifts with excellent climbing ability. They can still drive and operate stably in scenarios such as sloped warehouse passages and outdoor construction site ramps, which is difficult for many electric forklifts to match. Especially in high-load and high-frequency operation scenarios such as ports and mines, the power advantage of fuel-powered forklifts is indispensable.

II. Wide Environmental Adaptability, Fearless of Complex Working Conditions

Fuel-powered forklifts have extremely low requirements for the operating environment and can adapt to a variety of harsh working conditions, which is also an important reason for their wide application. In outdoor low-temperature environments, the battery capacity and performance of electric forklifts will drop significantly, while fuel-powered forklifts can work stably with normal startup, unaffected by low temperatures; in high-temperature, dusty, and humid construction sites or warehousing environments, the mechanical structure of fuel-powered forklifts has stronger anti-interference ability, is less prone to circuit failures, and has lower maintenance costs. In addition, fuel-powered forklifts do not rely on charging facilities and can operate freely in scenarios without power supply such as wilderness and remote construction sites, with far greater flexibility than electric forklifts.

III. Long Endurance, Uninterrupted Operation Efficiency

Endurance capacity is a key factor affecting forklift operation efficiency. Limited by battery capacity, electric forklifts usually need to be charged after 3-6 hours of continuous operation, and the charging time is as long as 1-2 hours, which seriously affects operation continuity. Especially in three-shift, 24-hour continuous operation scenarios, multiple sets of backup batteries need to be equipped, increasing equipment costs and management difficulties. In contrast, fuel-powered forklifts only need to be refueled in a timely manner, and the refueling time takes only a few minutes, enabling all-weather uninterrupted operation and effectively ensuring the efficient operation of processes such as logistics handling and cargo loading and unloading. For projects with high operation intensity and tight schedules, the endurance advantage of fuel-powered forklifts can directly improve the overall operation efficiency and reduce the risk of construction delays.

IV. Convenient Supply, Mature Maintenance System

The supply method of fuel-powered forklifts is very convenient. Gas stations are widely distributed everywhere. Whether storing fuel inside the factory or refueling nearby during outdoor operations, it can be completed quickly, without relying on special charging equipment and fixed charging areas like electric forklifts. In terms of maintenance, the core components of fuel-powered forklifts such as engines and gearboxes have mature technologies, sufficient supply of accessories in the market, and maintenance outlets all over the country. Maintenance personnel have more abundant experience in maintaining fuel-powered machinery and can quickly diagnose and solve faults. In contrast, the maintenance technology of core components such as batteries and motors of electric forklifts requires high requirements, the accessories are expensive, and the maintenance cycle is longer. In addition, the service life of fuel-powered forklifts is generally longer. Under normal maintenance conditions, the service life can reach 8-10 years, far exceeding that of some electric forklifts, and the long-term use cost is more advantageous.

V. Diverse Applicable Scenarios, Strong Versatility

Fuel-powered forklifts have extremely strong versatility and can adapt to a variety of operating scenarios and cargo types. Whether it is pallet handling and cargo stacking in warehousing and logistics, container loading and unloading and short-distance transportation at ports and terminals, or building material handling and equipment hoisting at construction sites, fuel-powered forklifts can meet diverse operation needs by replacing different attachments (such as forks, clamps, side shifters, etc.). Especially in enterprises that need to frequently switch operating scenarios, fuel-powered forklifts do not need to be equipped with additional special equipment, and can solve multiple handling problems in one stop, reducing the enterprise's equipment procurement costs. At the same time, the operation method of fuel-powered forklifts is relatively unified, and operators can get started quickly without multiple trainings for different types of equipment, further improving the enterprise's operational efficiency.
In summary, relying on strong power, wide environmental adaptability, long endurance capacity, convenient supply and maintenance, and diverse applicable scenarios, fuel-powered forklifts have irreplaceable advantages in demand scenarios such as heavy-load, outdoor, and continuous operations, and are reliable handling partners in the field of industrial production and logistics transportation.


Niuli Brand Forklifts: Highlighting Advantages, Inheriting the Spirit of Ox, True King of Heavy Loads!

In China's industrial logistics field, Niuli brand forklifts are definitely the backbone. As a national brand benchmark with more than 20 years of experience in the industry, Niuli forklifts inherit the "diligent and pragmatic" spirit of ox, boasting outstanding performance, and have become the preferred choice for warehouses, ports, construction sites and other scenarios. Compared with electric forklifts, they have obvious advantages in core dimensions such as power, adaptability and endurance, as detailed below:

I. Powerful Ox-like Power, Easily Handling Heavy Loads and Climbing Slopes

Niuli fuel-powered forklifts are equipped with high-quality engines, featuring strong power and sufficient torque, which can easily handle heavy loads of 3 tons and above. They maintain stable power during high-frequency operations such as lifting, handling and stacking without any breakdowns. The efficient lifting structure equipped can also achieve stable clamping and fast operation. Their climbing performance is particularly impressive—they can pass smoothly on warehouse ramps and construction site steep slopes. They are truly reliable equipment for heavy-load scenarios such as ports and mines, and this "ox-like power" is no empty boast!

II. Full-Scenario Adaptation, Easily Navigating Harsh Working Conditions

Niuli forklifts have extremely strong adaptability, worthy of being "all-weather operation experts". In severe cold environments of minus tens of degrees Celsius, they can start instantly with stable power, far surpassing electric forklifts that are prone to "strike". Under harsh working conditions such as high temperature, heavy dust and humidity, their mechanical structure is solid and durable, with few failures and low maintenance costs. They do not rely on charging piles—they can work as long as there is fuel in remote construction sites and mining areas, with full flexibility!

III. Outstanding Endurance, Uninterrupted 24-Hour Operation

In terms of endurance, Niuli fuel-powered forklifts have significant advantages. Electric forklifts need to be charged for 1-2 hours after 3-6 hours of operation, and additional backup batteries are required, which seriously affects efficiency. In contrast, Niuli fuel-powered forklifts can be fully operational in just 5 minutes of refueling, capable of 24-hour uninterrupted operation, ensuring non-stop logistics handling and loading/unloading. With them in time-sensitive and high-intensity operation scenarios, the progress is reliably guaranteed—their endurance performance stands the test!

IV. Convenient Supply and Maintenance, More Reliable Brand Guarantee

Niuli forklifts are worry-free to use! In terms of supply, gas stations are widely distributed across the country—storing fuel in factories or refueling nearby during outdoor operations is convenient, without relying on special charging piles. For maintenance, the core components have mature technology and sufficient spare parts. Relying on the brand's nationwide maintenance outlets, minor faults can be quickly resolved. Customers can also enjoy a one-year warranty and lifelong maintenance services. In contrast, the maintenance of core components of electric forklifts is expensive and time-consuming. More importantly, Niuli forklifts are solid and durable, with a service life of 8-10 years under normal maintenance, highlighting outstanding cost performance!

V. Versatile All-Rounder, More Efficient Full-Scenario Adaptation

Niuli forklifts are hailed as "all-rounders" in industrial logistics, adapting to all scenarios and capable of handling various types of goods. For scenarios such as warehouse stacking, port loading/unloading and construction site transportation, they can be easily handled by replacing attachments. The brand also provides personalized customization services to meet different customer needs. Enterprises do not need to purchase multiple types of equipment, greatly saving procurement costs. The operation follows ergonomic principles, with a spacious space and adjustable steering wheel, enabling workers to get started quickly without repeated training, directly improving operational efficiency. The strength of this national brand is truly reliable!
In a word, Niuli brand forklifts inherently have the "ox-like power" advantages—strong power, wide adaptability, long endurance and low maintenance costs. They perform outstandingly in heavy-load, outdoor, continuous operation and other scenarios, with almost no rivals! When choosing industrial handling equipment, trust Niuli forklifts. With the hard-core strength of a brand deeply rooted in the industry for more than 20 years to escort you, your operation efficiency will be doubled, truly realizing "Choose Niuli, save money and effort". They are absolutely high-quality partners in industrial production and logistics transportation!
