Core Differences Between Manual Pallet Jacks and Electric Pallet Jacks
Both manual pallet jacks (also known as hand trucks or pump trucks) and electric pallet jacks (including fully electric and semi-electric pallet trucks) are commonly used cargo handling tools in logistics warehousing, factory workshops and other scenarios. The core difference between the two stems from the power drive method, which further extends to multiple dimensions such as operation, performance, cost, and applicable scenarios. The following details the differences from 8 key aspects to help accurately distinguish and make a choice:
I. Core Power and Drive Method
Manual Pallet Jack: No independent power source, completely relying on human-driven power. Movement is achieved by manually pushing and pulling the body, and cargo lifting is realized through repeated manual pressing of the hydraulic cylinder, utilizing hydraulic principles to lift the cargo. Lowering is controlled by manual pressure relief. It has a simple structure, including only basic components such as a manual hydraulic pump, forks, and traveling wheels, and does not require power devices such as batteries or motors.

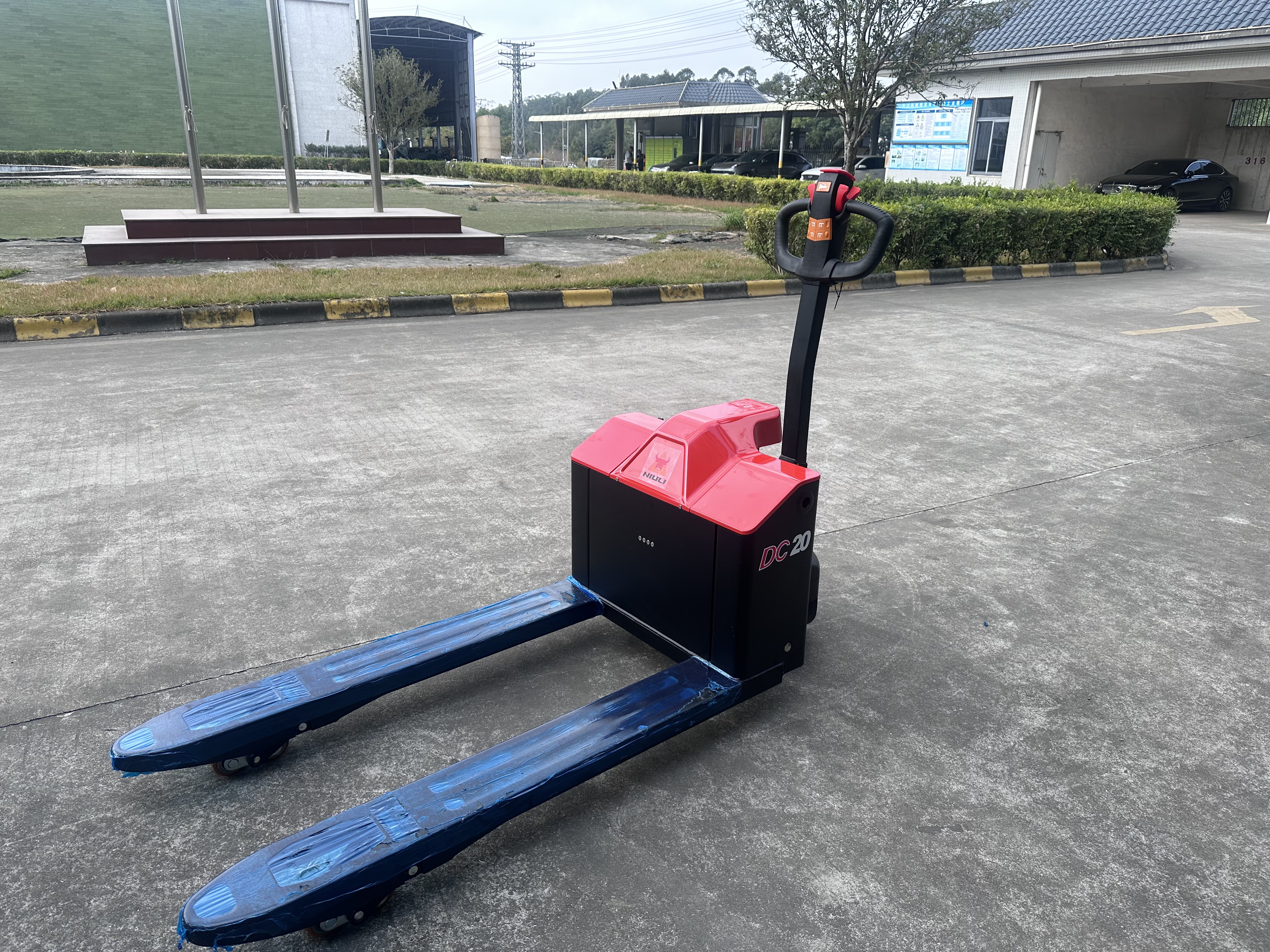

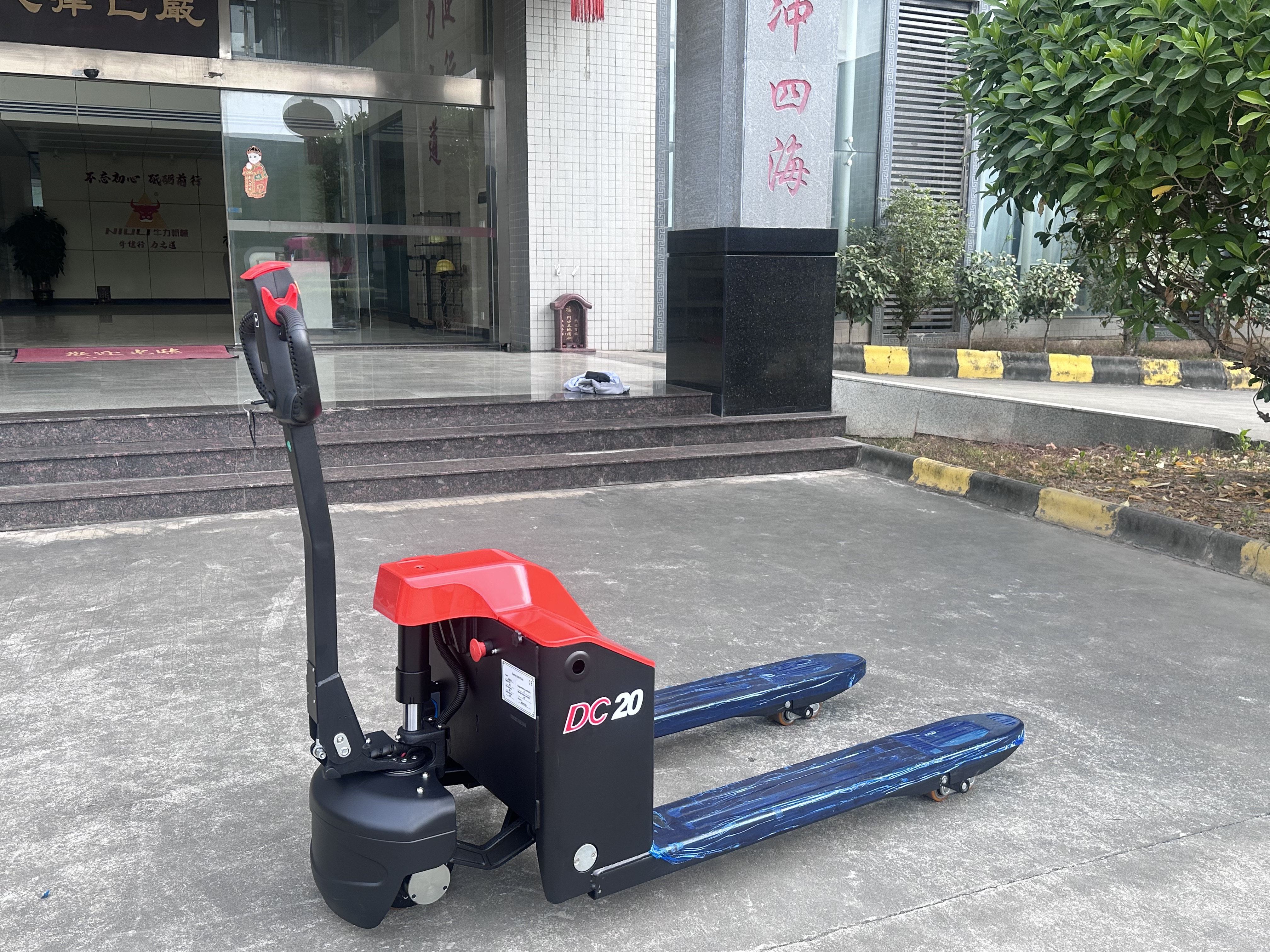

Electric Pallet Jack: Takes a storage battery as the core power source, with both movement and lifting driven by motors. It realizes forward movement and turning through a DC motor driving the drive wheel, and the fork lifting is completed by the motor driving the hydraulic pump station to push the hydraulic oil in the cylinder. The entire process only needs to be controlled by the buttons or steering handle on the control lever, without manual load-bearing. Some semi-electric pallet jacks only have electric lifting and manual movement, which is a transitional type between the two.
II. Operation Difficulty and Labor Consumption
Manual Pallet Jack: Low operation threshold, no professional training required, only need to master the hydraulic lifting handle and pushing/pulling skills. However, it consumes a lot of manpower. Especially when handling goods over 2 tons, on uneven ground or for long-distance transportation, operators need to have a certain physical strength. Long-term operation is prone to fatigue, and there are risks of work-related injuries such as waist and shoulder strain.
Electric Pallet Jack: More convenient and labor-saving to operate. The entire process controls speed, direction and lifting through the control lever or steering handle, without manual pushing/pulling or pressing the hydraulic rod. One person can easily complete the entire handling process. Even when handling heavy goods or operating for a long time, it can greatly reduce labor consumption, and the operation stability is higher, with lower physical requirements for operators. Only simple training is required to get on the job.
III. Comparison of Core Performance Parameters
The two have significant differences in key performance indicators such as load-bearing capacity, running speed, and lifting efficiency, as follows:
Load-bearing Capacity: The load-bearing capacity of manual pallet jacks is limited. Conventional models are mostly 1-3 tons, and it is difficult to handle heavier goods due to human constraints. Electric pallet jacks have stronger load-bearing capacity. Conventional models can reach 2-5 tons, and some heavy-duty models can meet higher load requirements, completely not restricted by manpower.
Running Speed: The running speed of manual pallet jacks is completely dependent on the manual walking speed, usually ≤3km/h, just like "moving at a snail's pace". The running speed of electric pallet jacks can be steplessly adjusted through the control lever, with a conventional speed of 3-6km/h, and some models can reach 8km/h, which is far more efficient than manual types.
Lifting Speed: Manual pallet jacks need to repeatedly press the hydraulic rod to lift, with a slow speed (conventional lifting speed ≤5mm/s), just like "weightlifting-style repetitive operation". Electric pallet jacks are driven by motors controlled by buttons, with a fast lifting speed (conventional lifting speed ≥10mm/s), stable lifting and lowering, and can quickly complete cargo loading and unloading.
Continuous Operation Capacity: The continuous operation time of manual pallet jacks is short due to the physical constraints of operators, requiring frequent rest. The continuous operation of electric pallet jacks is only limited by battery life. A single charge can support continuous operation for 4-8 hours (depending on battery capacity and load). In some scenarios, 24-hour uninterrupted operation can be achieved with spare batteries.
IV. Cost Investment and Maintenance Cost
Cost difference is an important consideration for choosing between the two, covering initial purchase cost and later maintenance cost:
Manual Pallet Jack: Low purchase cost, mature market. The market price of conventional 2-ton models is only about 1,000 yuan, with an extremely low entry threshold. The maintenance cost is almost negligible. Only regular inspection of hydraulic oil, tightening of screws, and replacement of worn wheel sets are required. Accessories are easy to obtain and cheap, without the need for professional maintenance personnel.
Electric Pallet Jack: Higher purchase cost. Due to the need to equip high-quality storage batteries, imported electronic control systems, drive motors and other core components, the price of conventional models is mostly 10,000-50,000 yuan, which is more than 10 times that of manual pallet jacks. The later maintenance cost is also higher. It is necessary to regularly replace the battery (service life of 2-3 years), maintain the motor and electronic control system. Some core accessories rely on original factory supply, and maintenance requires professional personnel to operate.
V. Applicable Scenarios and Space Adaptability
The core of the difference in applicable scenarios between the two is "operation intensity" and "space size". The specific applicable scenarios are as follows:
Manual Pallet Jack: More suitable for light-load, short-distance, low-frequency handling scenarios. For example: small warehouses, convenience store logistics areas, retail store replenishment, truck loading and unloading (short distance within 15 meters), especially suitable for narrow spaces (such as aisle width ≤1.5 meters) and flat ground. With its compact and flexible size, it can adapt to almost any narrow space.
Electric Pallet Jack: More suitable for heavy-load, long-distance, high-frequency handling scenarios. For example: large logistics centers, manufacturing factory workshops, high-throughput warehouses, especially suitable for scenarios with plane handling distance over 30 meters and large daily pallet transfer volume. Some models are equipped with ultra-thin body and small turning radius design, which can also adapt to some narrow spaces, but the overall flexibility is slightly inferior to manual pallet jacks.
VI. Safety and Environmental Protection
Manual Pallet Jack: Excellent environmental protection, no noise, no exhaust emissions, completely relying on manpower without energy consumption. However, there are certain potential safety hazards. When manually pushing and pulling heavy goods, it is easy to cause goods to tip over due to uneven force or bumpy road surface, and long-term operation is likely to cause work-related injuries to personnel.
Electric Pallet Jack: Higher safety, equipped with safety components such as braking system, speed limiting device, and anti-collision sensor. The lifting and operation of goods are more stable, which can effectively reduce the risk of goods tipping over and personnel injury. It is also environmentally friendly, with no exhaust emissions and low operating noise (usually ≤60 decibels). However, it relies on battery power supply, waste batteries need to be disposed of in a standardized manner, and attention should be paid to electrical safety during charging.
VII. Operation Threshold and Personnel Requirements
Manual Pallet Jack: Extremely low operation threshold, no professional qualification required. Ordinary employees can operate independently after 5-10 minutes of simple guidance, adapting to the personnel allocation needs of various enterprises, without the need to additionally equip professional operators.
Electric Pallet Jack: Requires professional operators. Although the operation difficulty is not high, it is necessary to be familiar with battery maintenance, safe operation specifications and other knowledge. In some scenarios (such as factories, logistics centers), operators are required to have corresponding qualifications and need systematic training before going on the job.
VIII. Summary: Core Difference Comparison Table
| Comparison Dimension | Manual Pallet Jack | Electric Pallet Jack |
| Power Drive | Manpower + Manual Hydraulics | Storage Battery + Motor Drive |
| Load-bearing Capacity | 1-3 tons (conventional) | 2-5 tons (conventional, can be heavy-duty) |
| Purchase Cost | Low (about 1,000 yuan/2-ton model) | High (10,000-50,000 yuan/conventional model) |
| Applicable Scenarios | Light-load, short-distance, narrow space | Heavy-load, long-distance, high-frequency operation |
| Labor Consumption | High, easy to fatigue | Low, labor-saving and efficient |
| Maintenance Cost | Extremely low, simple to maintain | Relatively high, requires professional maintenance |
| Operation Threshold | Extremely low, no professional training required | Medium, professional training required |
| Continuous Operation | Limited by manpower, short time | Limited by battery life, long-time operable |
In summary, manual pallet jacks are an "economical and practical" choice, suitable for small enterprises and low-intensity operations; electric pallet jacks are an "efficient and labor-saving" choice, suitable for medium and large enterprises and high-intensity operations. Enterprises or individuals can accurately select suitable handling tools according to their own operation needs, budget, site conditions and other factors.
