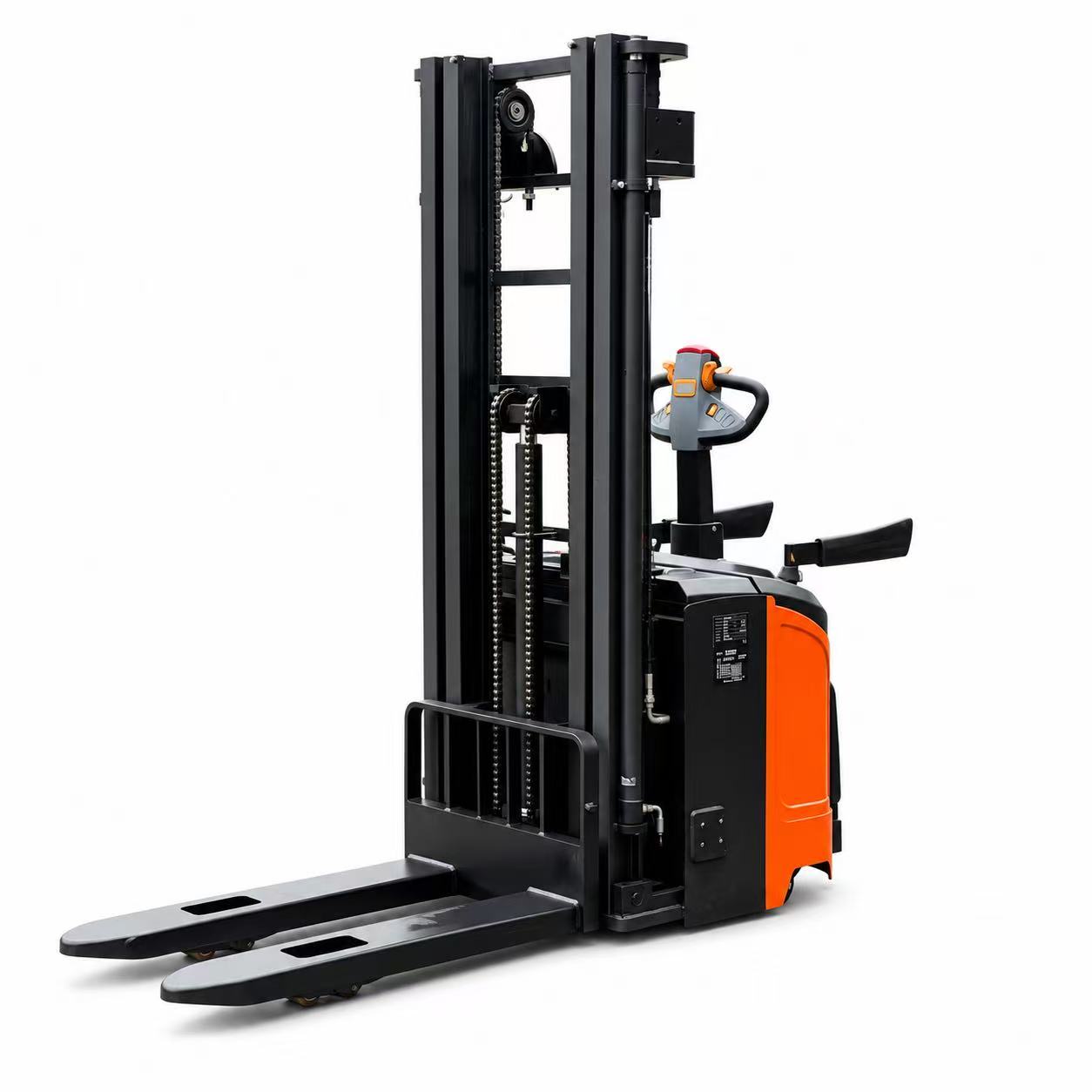

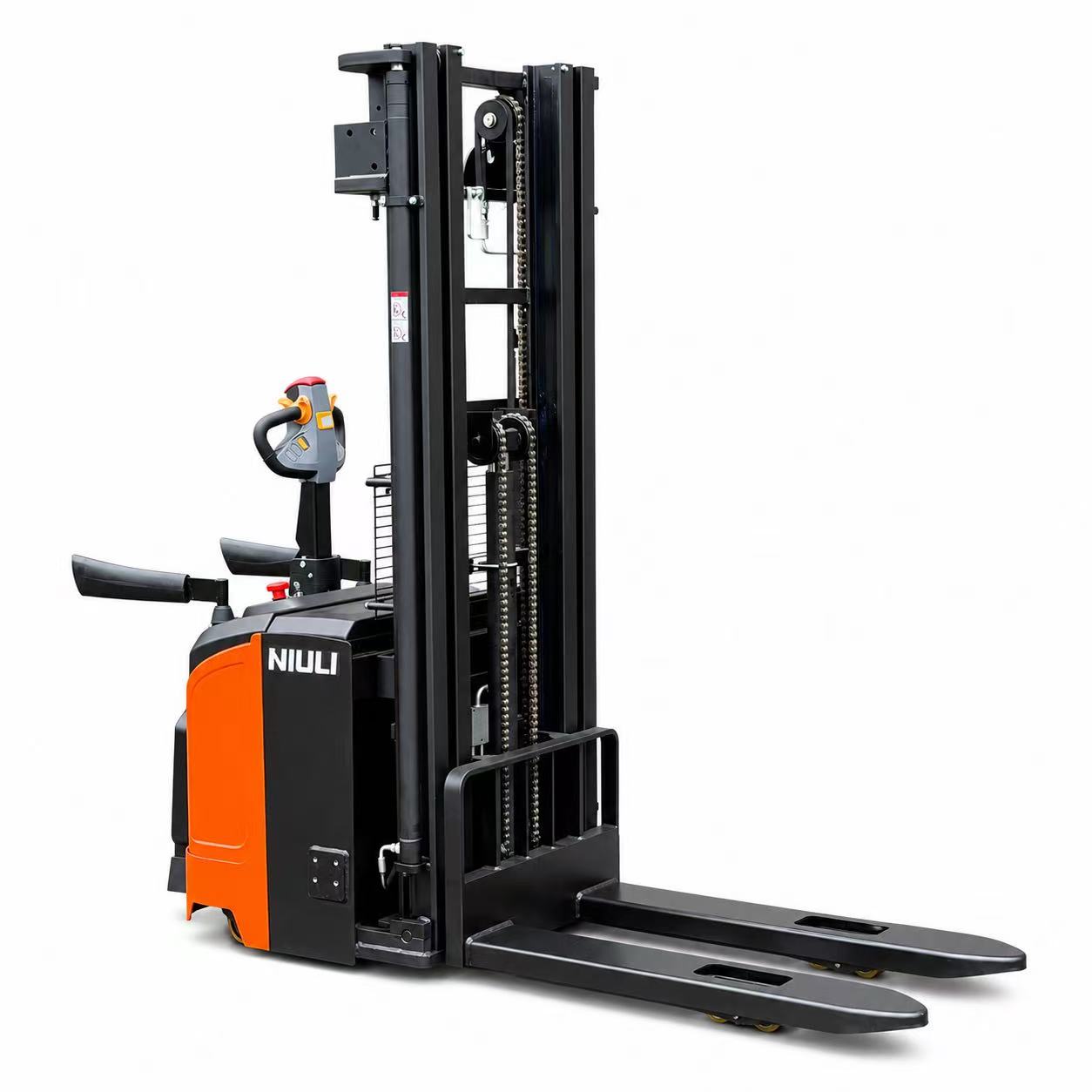

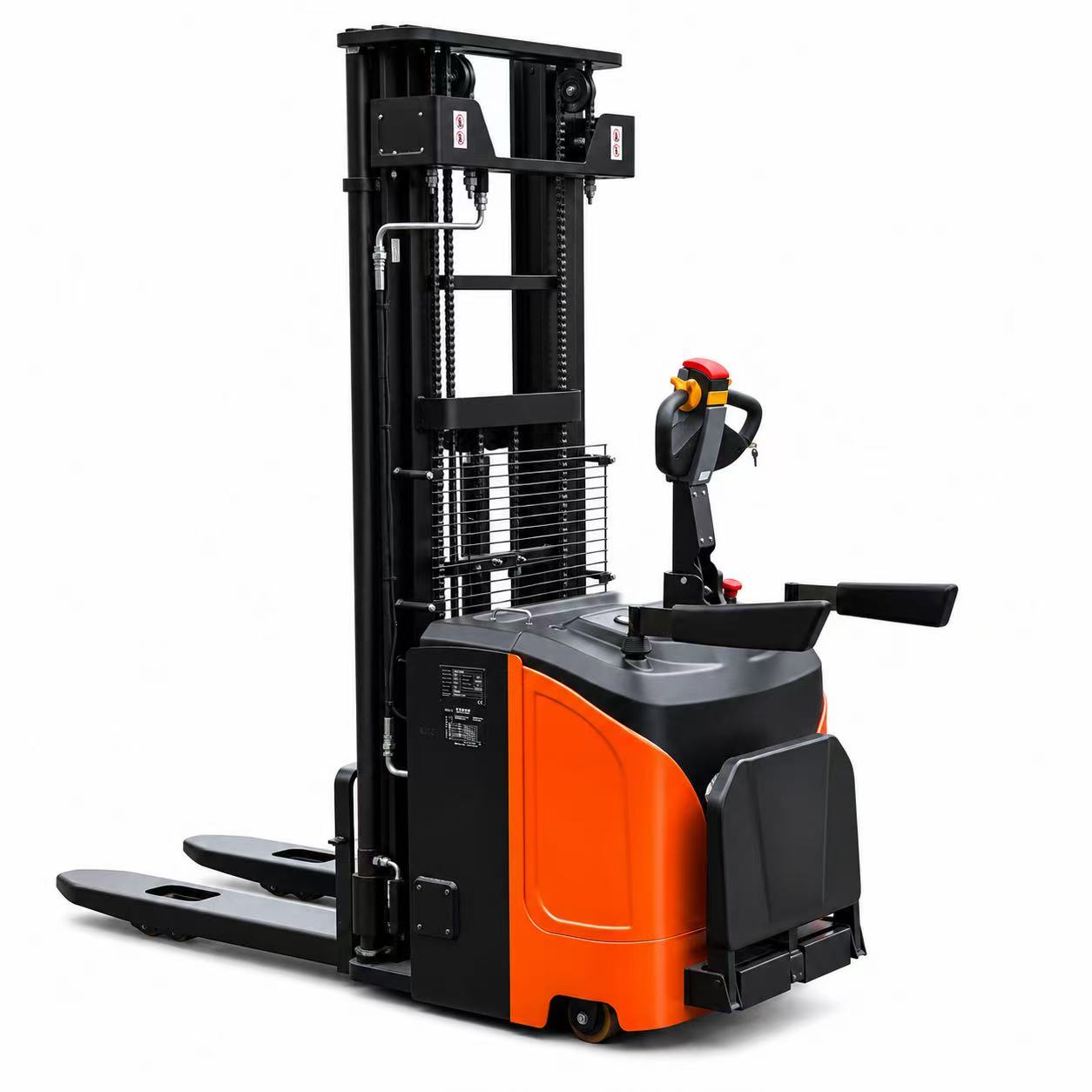

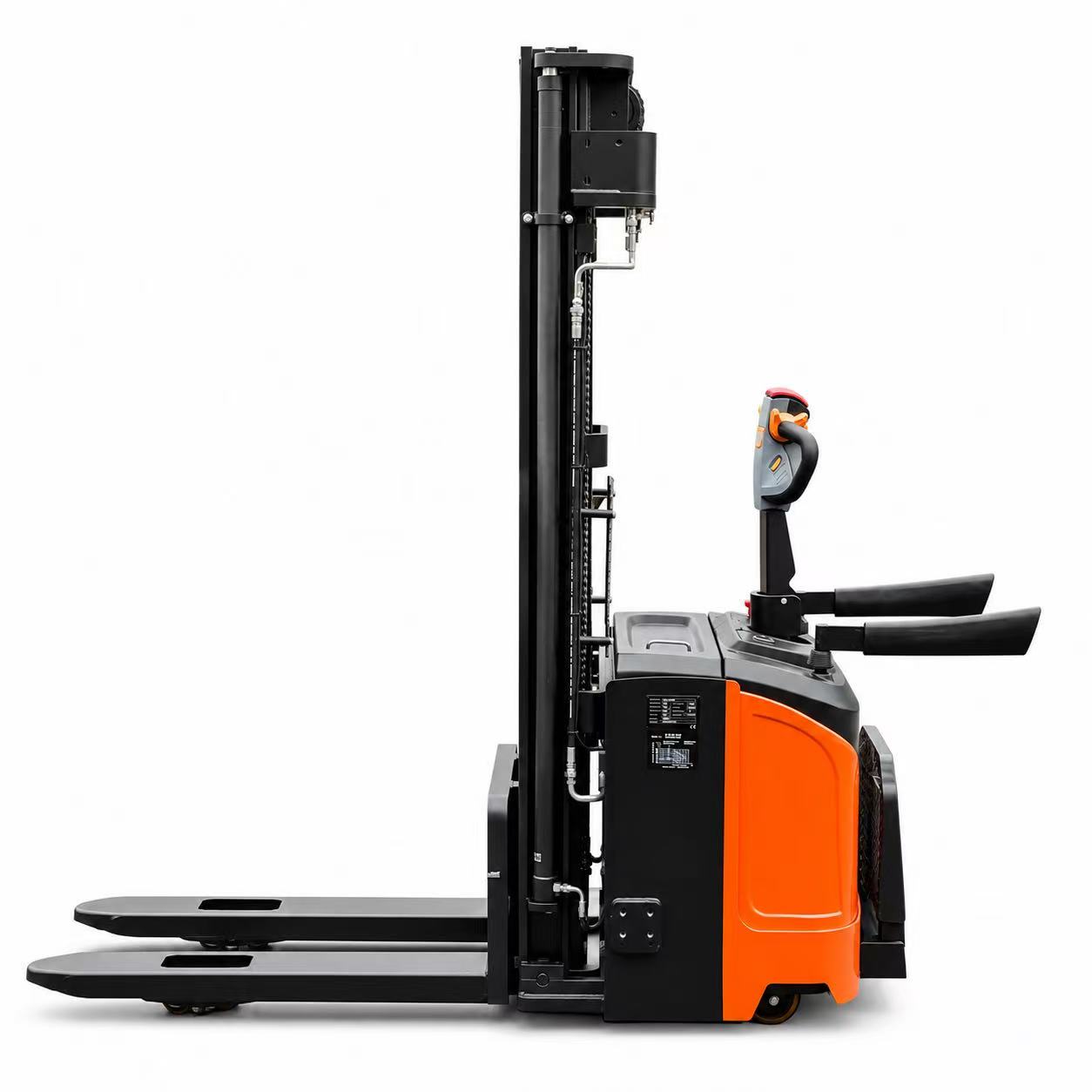

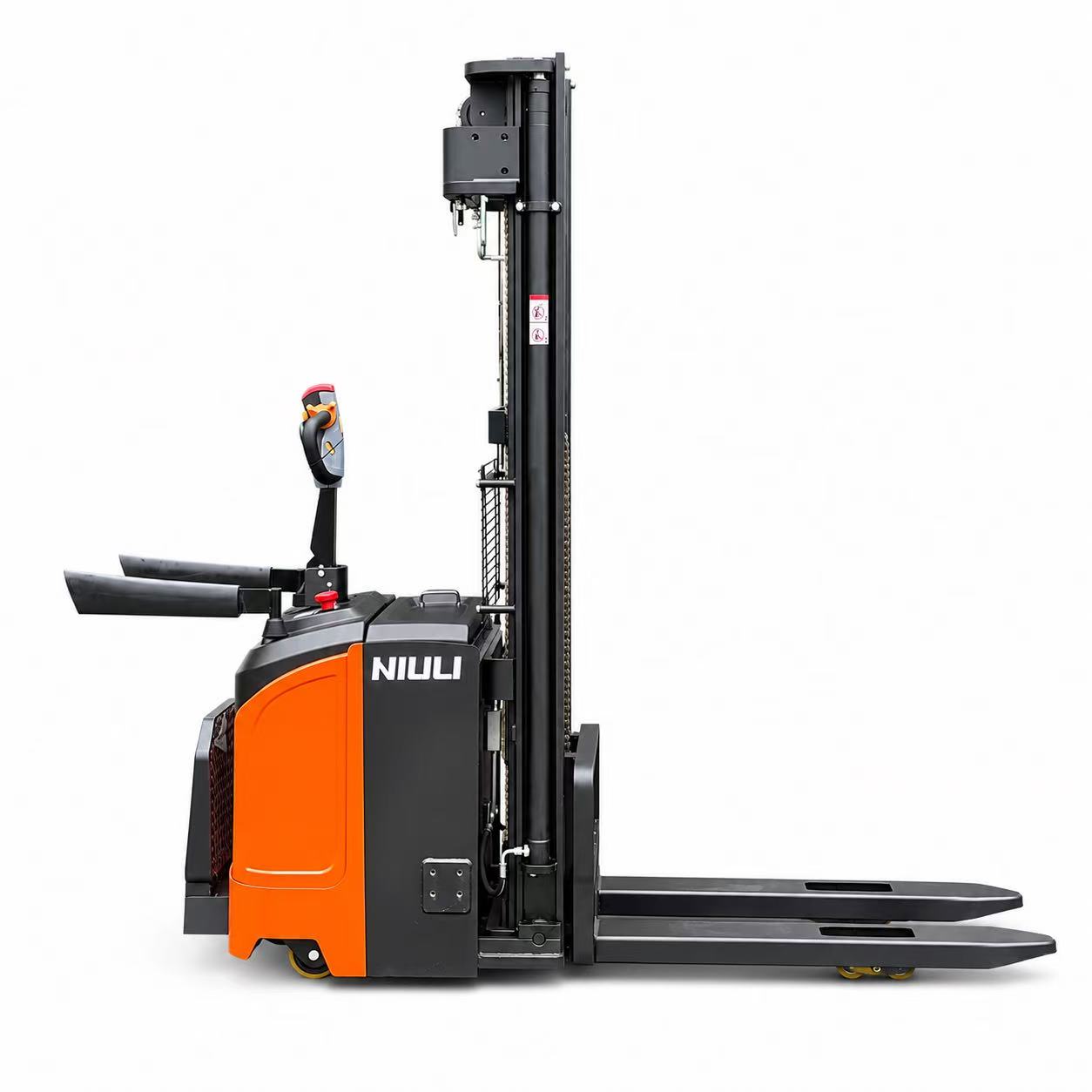

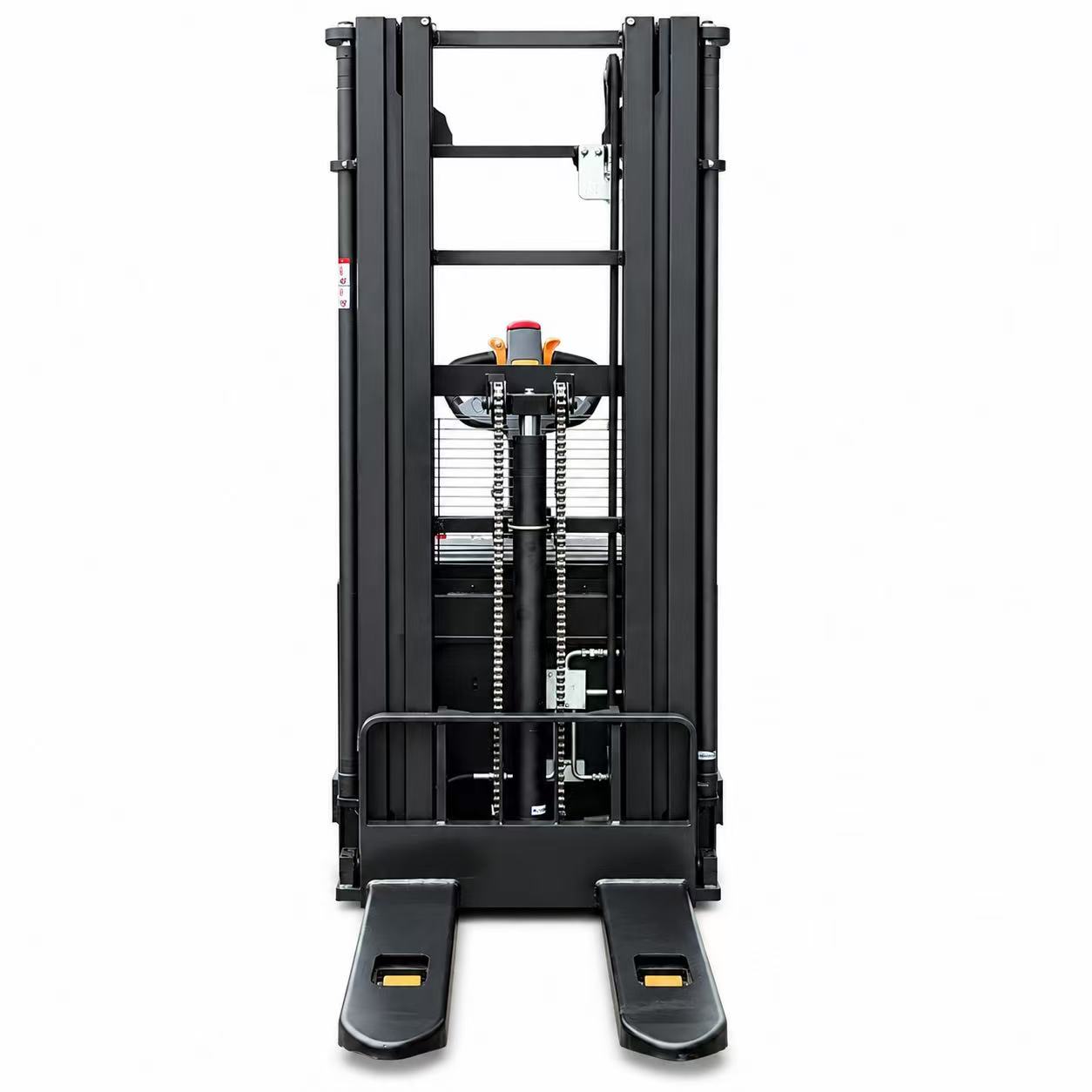

CTQD
NIULI
Item | Parameter | CTQD15/30 | CTQD20/30 |
|---|---|---|---|
Model | - | CTQD15/30 | CTQD20/30 |
Power type | - | Electric | Electric |
Operation type | - | Rider type | Rider type |
Load capacity | Q(kg) | 1500 | 2000 |
Load center | C(mm) | 500 | 500 |
Load distance, load center | X(mm) | 728 | 813 |
Wheelbase | Y(mm) | 1302 | 1338 |
Self-weight(with battery) | kg | 860 | 870 |
Wheel type | - | PU | PU |
Front wheel | Ø*w(mm) | 80*70 | 80*70 |
Rearing wheel | Ø*w(mm) | 210*75 | 250*80 |
Balance wheel | Ø*w(mm) | 125*50 | 125*50 |
Front wheel base | b2(mm) | 515 | 490 |
Rearing wheel base | b3(mm) | 624 | 624 |
Mast lowered height | h1(mm) | 2086 | 2086 |
Lift height | h3(mm) | 3000 | 3000 |
Max. lifting height | h4(mm) | 3540 | 3540 |
Handle height | h5(mm) | 1474 | 1474 |
Fork clearance when mast lowered | h13(mm) | 86 | 86 |
Overall length(Platform folded/unfolded) | l2(mm) | 2041/2456 | 2000/2411 |
Overall width | b1(mm) | 850 | 850 |
Fork size | s/e/l(mm) | 65/165/1150 | 65/160/1150 |
Forks outer width | b5(mm) | 680 | 680 |
Min. ground clearance | m2(mm) | 30 | 30 |
Aisle width for Pallet 1000*1200 crossaway(platform folded) | Ast(mm) | 2505 | 2505 |
Aisle width for Pallet 1000*1200 crossaway(platform unfolded) | Ast(mm) | 2910 | 2910 |
Min. turning radius(platform folded/unfolded) | Wa(mm) | 1641/2052 | 1678/2080 |
Travel speed(unload/load) | km/h | 4/3.5 | 5.5/5.1 |
Lifting speed(unload/load) | m/s | 0.101/0.095 | 0.101/0.095 |
Descent speed(unload/load) | m/s | 0.096/0.115 | 0.096/0.115 |
Max. gradeability(unload/load) | % | 5/3 | 6/4 |
Service brake | - | Electromagnetic | Electromagnetic |
Drive motor | kw | 0.75 | 1.5 |
Lift motor | kw | 2.2 | 2.2 |
Battery type | - | Lead Acid | Lead Acid |
Battery voltage/nominal capacity | V/Ah | 24/100 | 24/(160/200) |
Charger | V/A | 24/10 | 24/20 |
Type of drive control | - | DC | AC |
Sound level at driver's ear acc. to EN12053 | dB(A) | 75 | 75 |
Q：What is an electric stacker?
A：An electric stacker is battery-powered warehouse lifting equipment used to stack pallets, load and unload goods in factories and warehouses.
Q：Can an electric stacker work in narrow aisles?
A：Yes. Most walkie electric stackers have compact body, perfectly suitable for narrow aisle storage.
Q：What’s the maximum lifting height of NIULI electric stacker?
A：NIULI electric stackers support lifting height from 1.6m up to 5.5m for different models.
Q：Is electric stacker easy to operate for new workers?
A：Definitely. It adopts simple control handles, low learning cost, no complicated operation procedures.
Q：How long can the battery of electric stacker last on one charge?
A：Lead-acid battery models support continuous work 4–6 hours; lithium battery versions have longer working time and faster charging.
Q：Does NIULI electric stacker support customization?
A：Yes. We can customize fork length, lifting height, add safety lights, foldable guard and other accessories.
Q：What’s the difference between electric stacker and electric forklift?
A：Electric stacker is mainly for indoor pallet stacking with smaller load capacity; electric forklift is for heavier cargo and wider application scenarios.
Q：Can electric stacker be used for loading containers?
A：Suitable for light cargo stacking inside containers. For heavy loading work, we recommend full electric forklifts.
