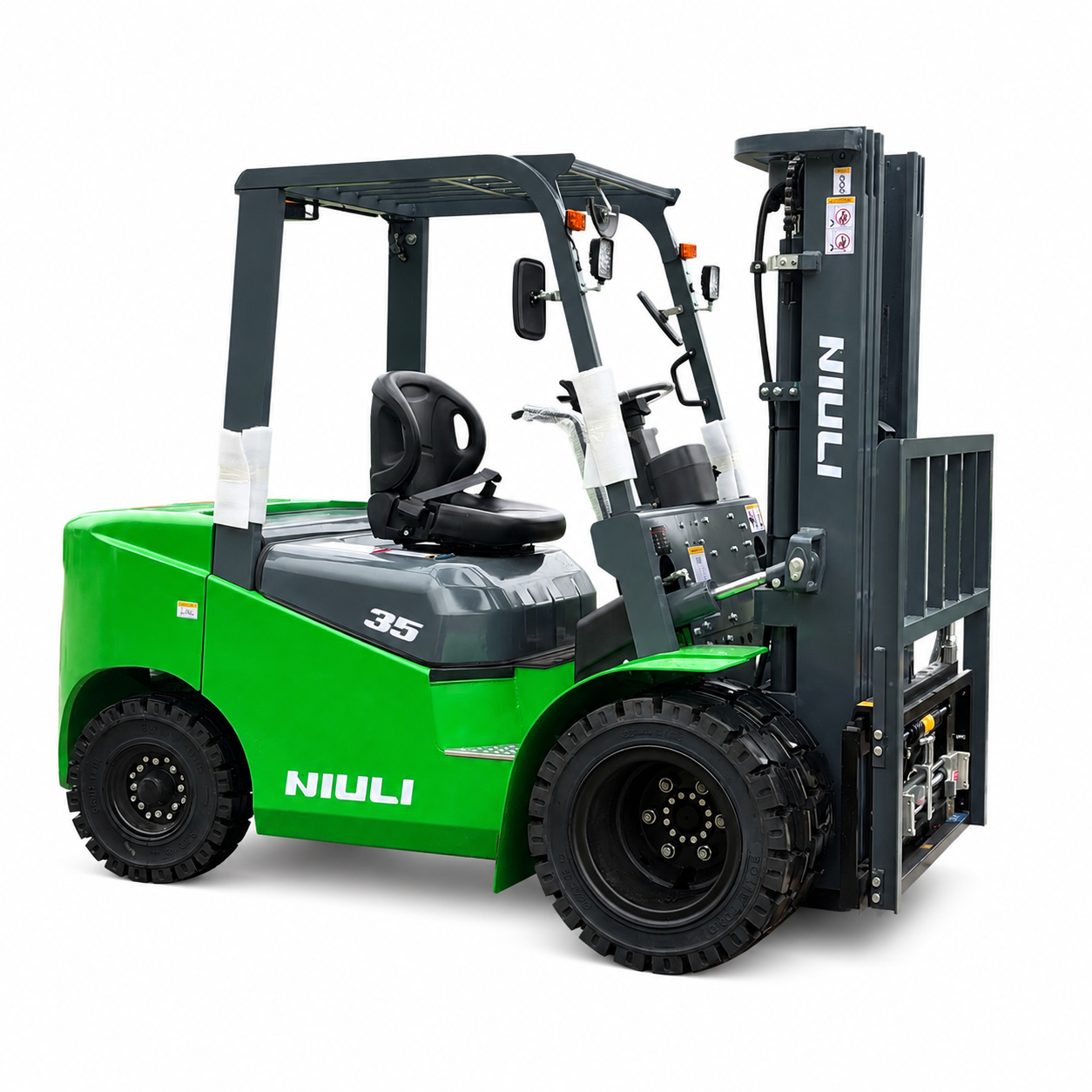

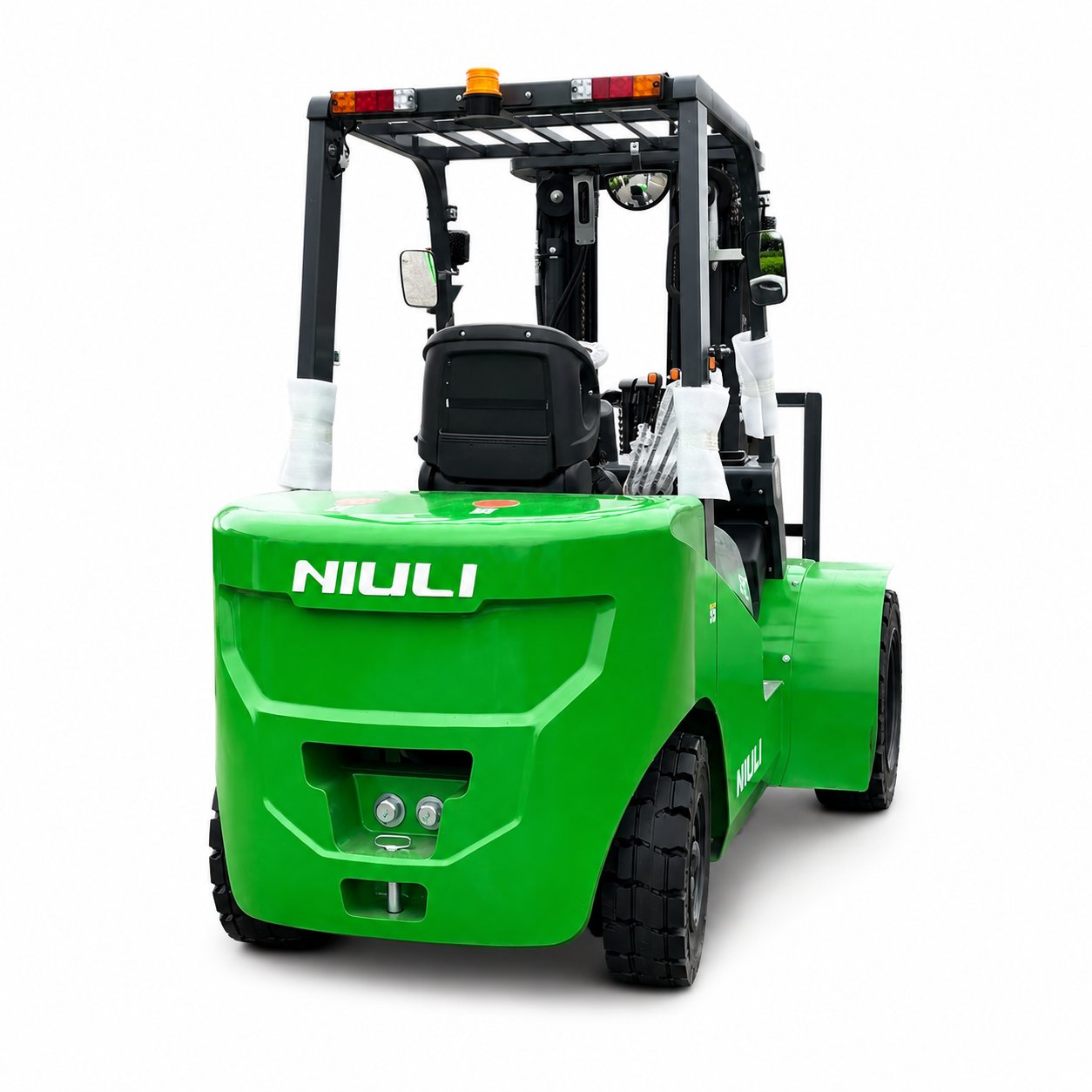

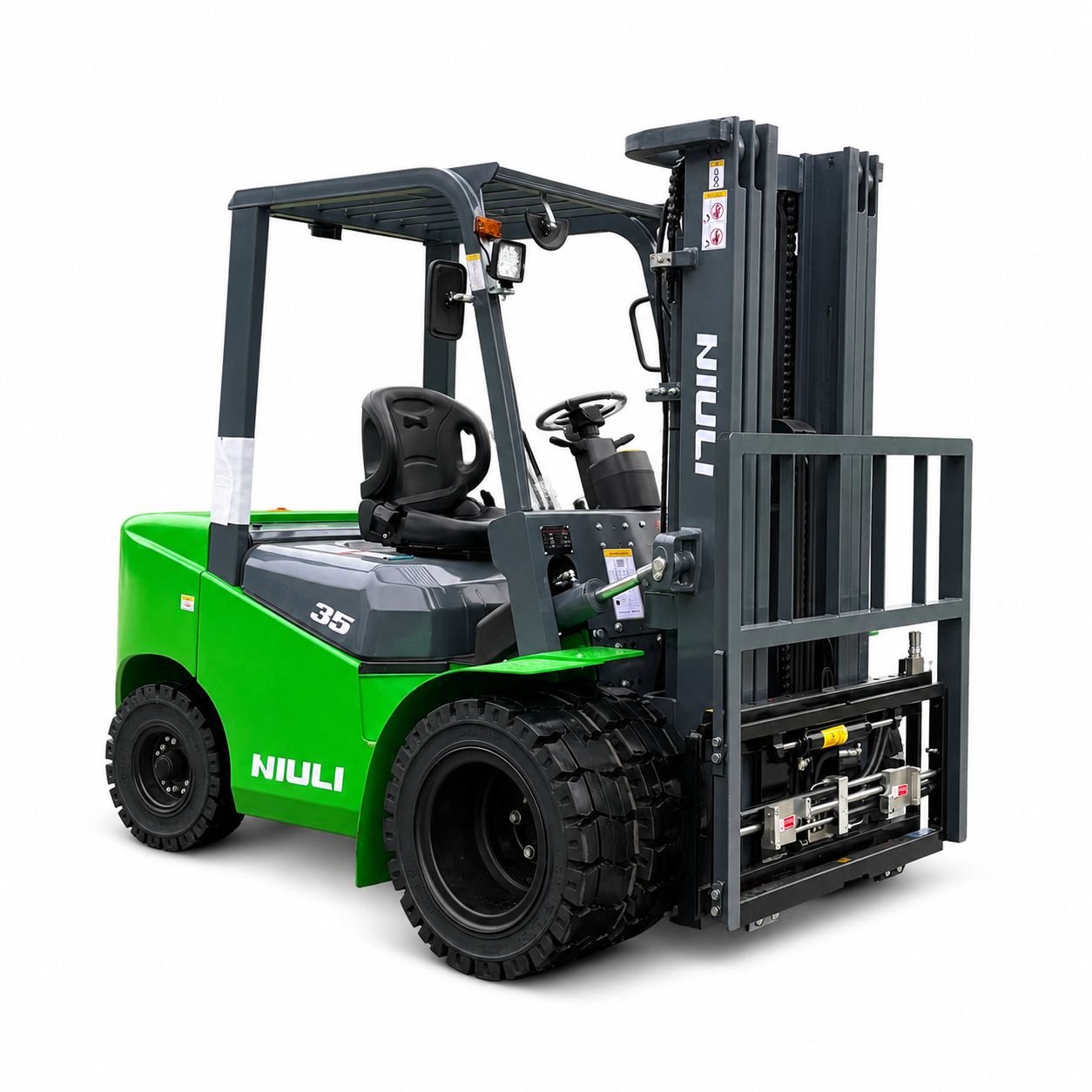

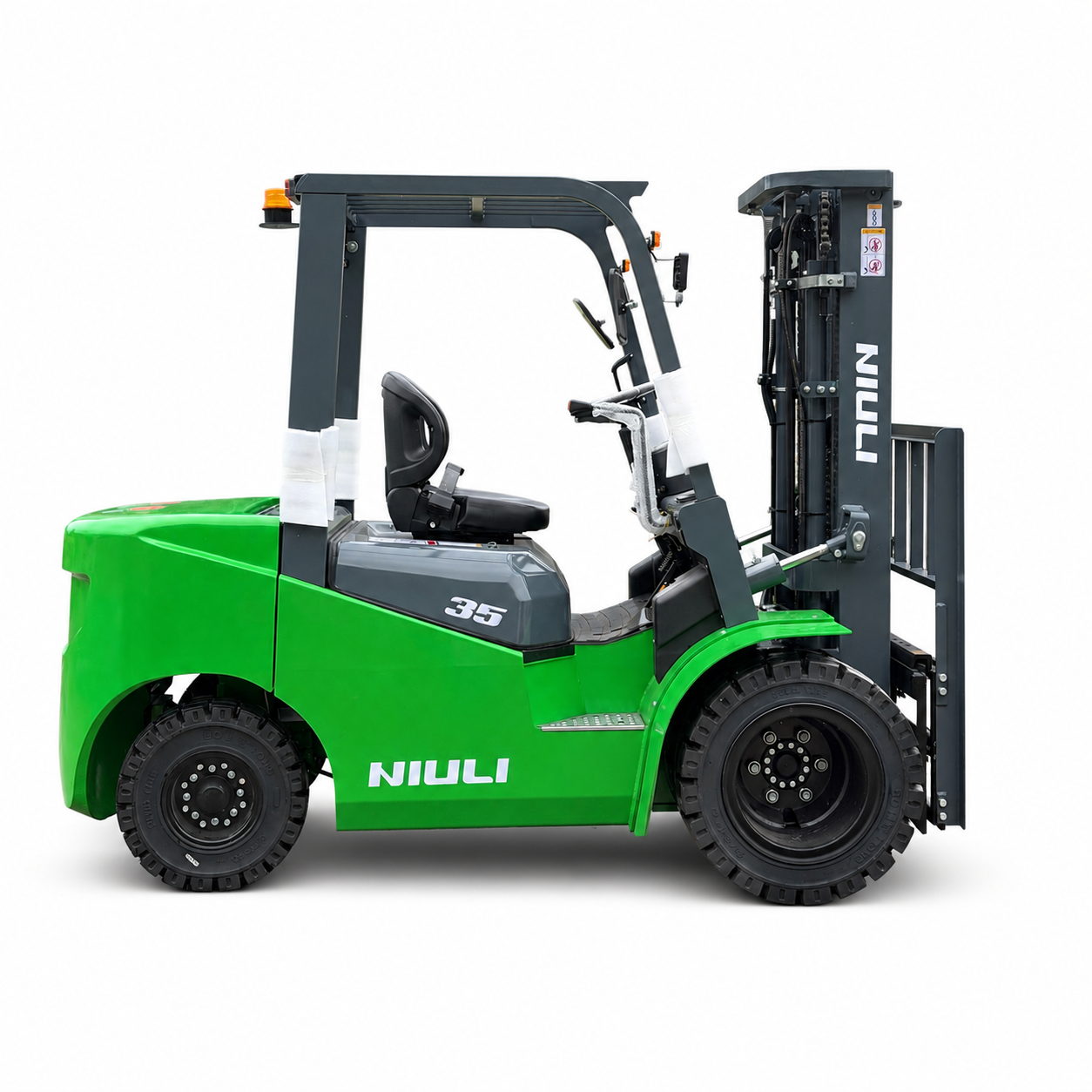

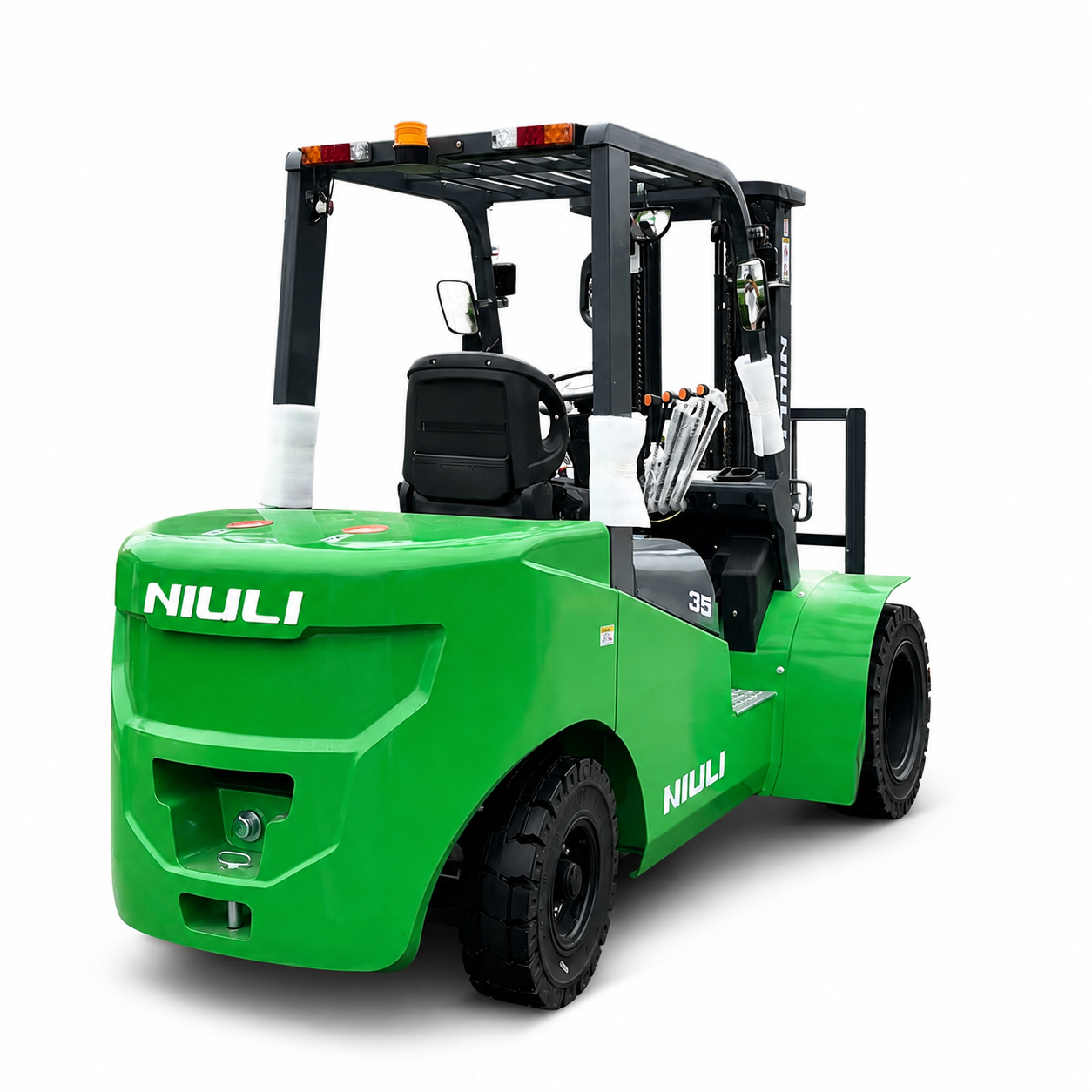

CPD35

Name: CPD35
Brand: NIULI
Rating: 5.0 (86 reviews)

Electric Forklift "K2 Series"
Capacity: 3000kg/3500kg/3800kg
Max. lifting height: 6000mm
The K2 electric forklift is based on the K2-service forklift and has been same counterweight and cabin, providing better driving comfort and flexi. bility. Can load 3000kg to 3800kg, can be equipped with mast frames ranging from 3000m to 6000mm, It is the best choice for logistics operations such as warehouses and factories
New counterweight design
New integrated floating cockpit
High strength gantry
Multiple engine brands available
Standard front and tail lights

Availability:



Inquire Add to Basket

Model:
CPD
Brand:
NIULI

Product Description

Forklift Technical Specification & Dual-Drive Difference (English Version)

1. PRODUCT PARAMETER TABLE

Manufacturer: NIULI

Product Type: Electric Forklift

No.	Characteristic	Unit	CPD30	CPD35	CPD38
1.1	Manufacturer	-	NIULI	NIULI	NIULI
1.2	Model	-	CPD30	CPD35	CPD38
1.3	Power Type	-	Battery	Battery	Battery
1.4	Driving Style	-	Seat Type	Seat Type	Seat Type
1.5	Rated Capacity	t	3.0	3.5	3.8
1.6	Load Center Distance	mm	500	500	500
1.7	Wheelbase	mm	1750	1750	1750
1.8	Front Overhang	mm	485	485	485
1.9	Rear Overhang	mm	520	520	520
2	Weight Parameter
2.1	Vehicle Weight (with standard battery)	kg	4450	4820	5200
2.2	Full Load Front Axle Load	kg	1000	1000	1000
2.3	Full Load Rear Axle Load	kg	2320	2320	2320
2.4	Empty Load Front Axle Load	kg	3030	3030	3030
3	Tire Configuration
3.1	Front Tire Size	inch	28×9-15	28×9-15	28×9-15
3.2	Rear Tire Size	inch	650-10	650-10	650-10
3.3	Wheel Quantity (Front/Rear)	-	2/2	2/2	2/2
4	Dimension & Mast Parameter
4.1	Mast Inclination Angle (Forward/Backward)	°	6/12	6/12	6/12
4.2	Standard Lifting Height	mm	3000	3000	3000
4.3	Free Lifting Height	mm	4260	4260	4260
4.4	Overall Vehicle Length	mm	2660	2660	2660
4.5	Overall Vehicle Width	mm	1250	1250	1250
4.6	Mast Closed Height	mm	2060	2060	2060
4.7	Mast Extended Height	mm	3550	3550	3550
4.8	Fork Size	mm	1070×125×45	1070×125×45	1070×125×45
4.9	Min Turning Radius	mm	2220	2220	2220
5	Performance Parameter
5.1	Driving Speed (Full/Empty Load)	km/h	14/15	14/15	14/15
5.2	Lifting Speed (Full/Empty Load)	mm/s	310/410	310/410	310/410
5.3	Max Climbing Gradient (Full/Empty Load)	%	10/15	10/15	10/15
6	Drive & Control System
6.1	Walking Motor Power	kW	15	15	15
6.2	Pump Motor Power	kW	16	16	16
6.3	Steering Mode	-	Hydraulic Steering	Hydraulic Steering	Hydraulic Steering
6.4	Control Mode	-	MOSFET	MOSFET	MOSFET
7	Battery Parameter
7.1	Battery Type	-	Lithium Battery	Lithium Battery	Lithium Battery
7.2	Voltage / Capacity	V/Ah	80V/300Ah	80V/300Ah	80V/300Ah
8	Others
8.1	Working Noise (7.5m)	dB(A)	70	70	70

2. DIFFERENCE BETWEEN DUAL-DRIVE & SINGLE-DRIVE FORKLIFT

2.1 Core Structural Difference

Comparison Item	Dual-drive Forklift	Ordinary Single-drive Forklift
Drive Configuration	Two front wheels with independent drive motors, no mechanical differential	Single motor + mechanical differential to drive two front wheels
Differential Control	Electronic differential; left and right wheels independently control speed and steering	Mechanical differential; power passively distributed by gear structure
Maintenance	No differential, fewer wearing parts, low failure rate	Differential & half shaft require regular maintenance

2.2 Advantages of Dual-Drive Forklift

1. Excellent Maneuverability in Narrow Aisles

Dual independent drive motors support electronic differential and reverse wheel rotation, achieving ultra-small turning radius and flexible in-situ steering. It adapts to narrow warehouse channels and improves stacking efficiency greatly.

2. Strong Anti-slip & Stable Performance

The system intelligently distributes torque for left and right wheels in real time. It effectively prevents wheel slipping on wet ground, ramps and during heavy-load starting, ensuring stable operation and high safety.

3. Higher Power & Longer Service Life

Dual-motor parallel output provides stronger climbing and overload capacity. Dual motors share the operating load, reducing single-motor pressure and mechanical wear, with lower maintenance cost and longer service life.

4. Smoother & Quieter Operation

Electronic differential steering eliminates driving stuttering. Full electronic control replaces mechanical transmission, bringing lower noise and more comfortable driving experience for indoor working scenarios.

2.3 Application Scenarios

Dual-drive Recommended: Narrow aisle warehouses, cold storage, e-commerce high-frequency operation, wet & sloped working conditions, heavy-load frequent steering.

Single-drive Applicable: Ordinary open yards, low-frequency use, cost-effective basic handling work.
