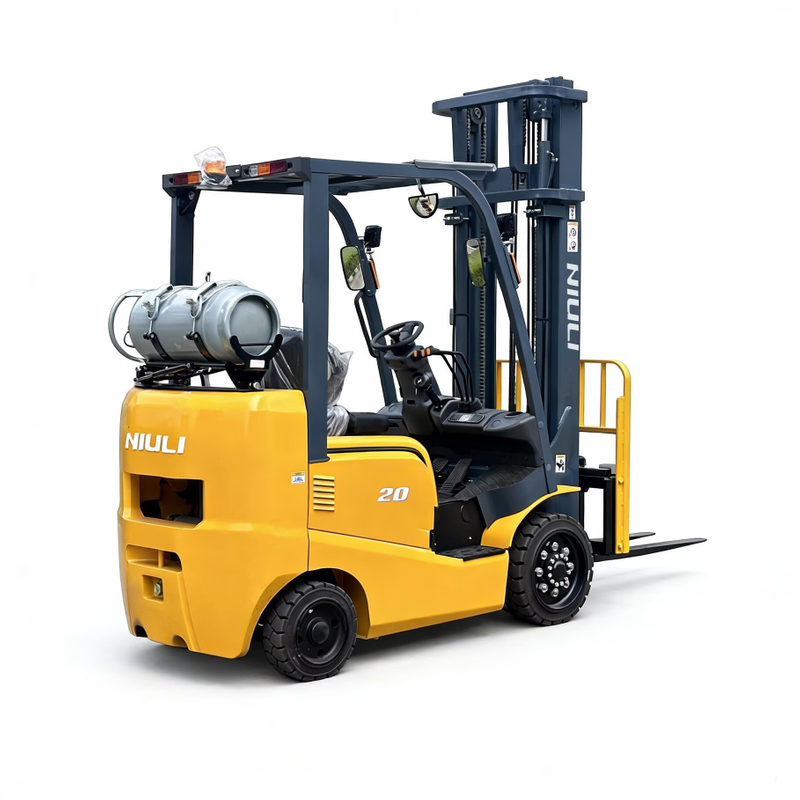

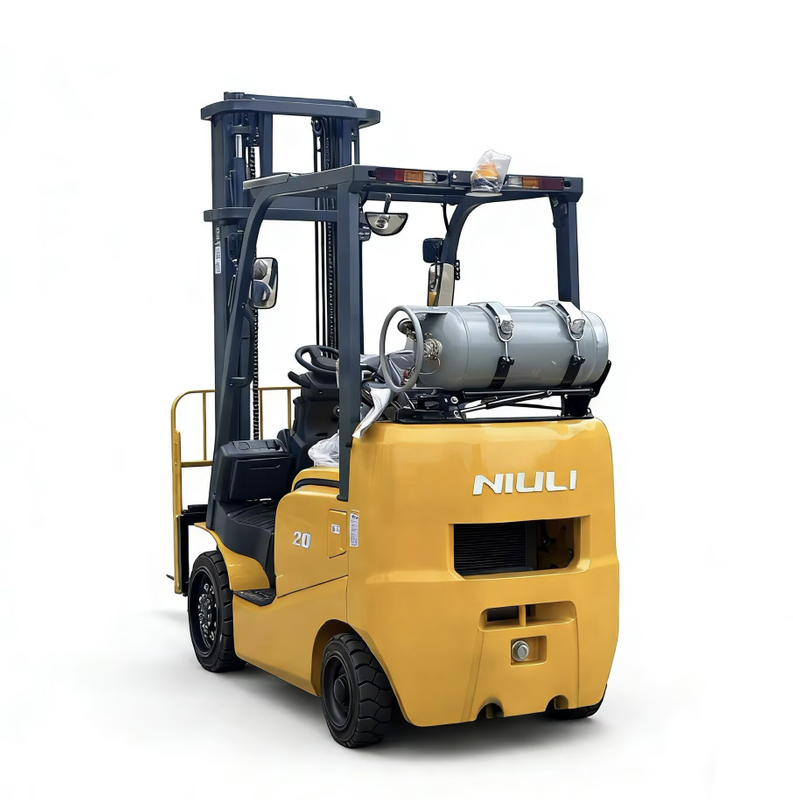

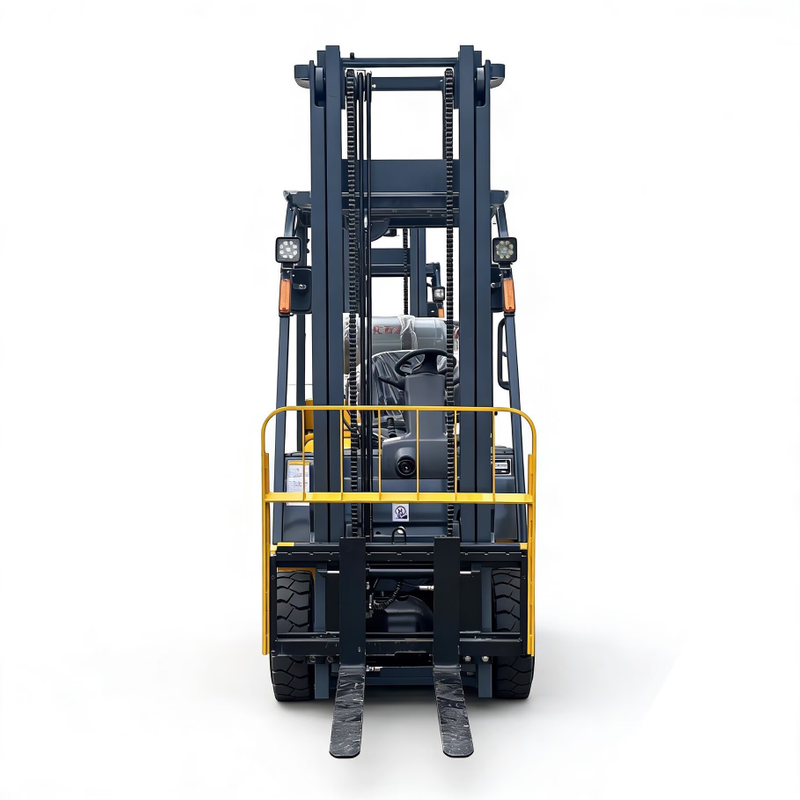

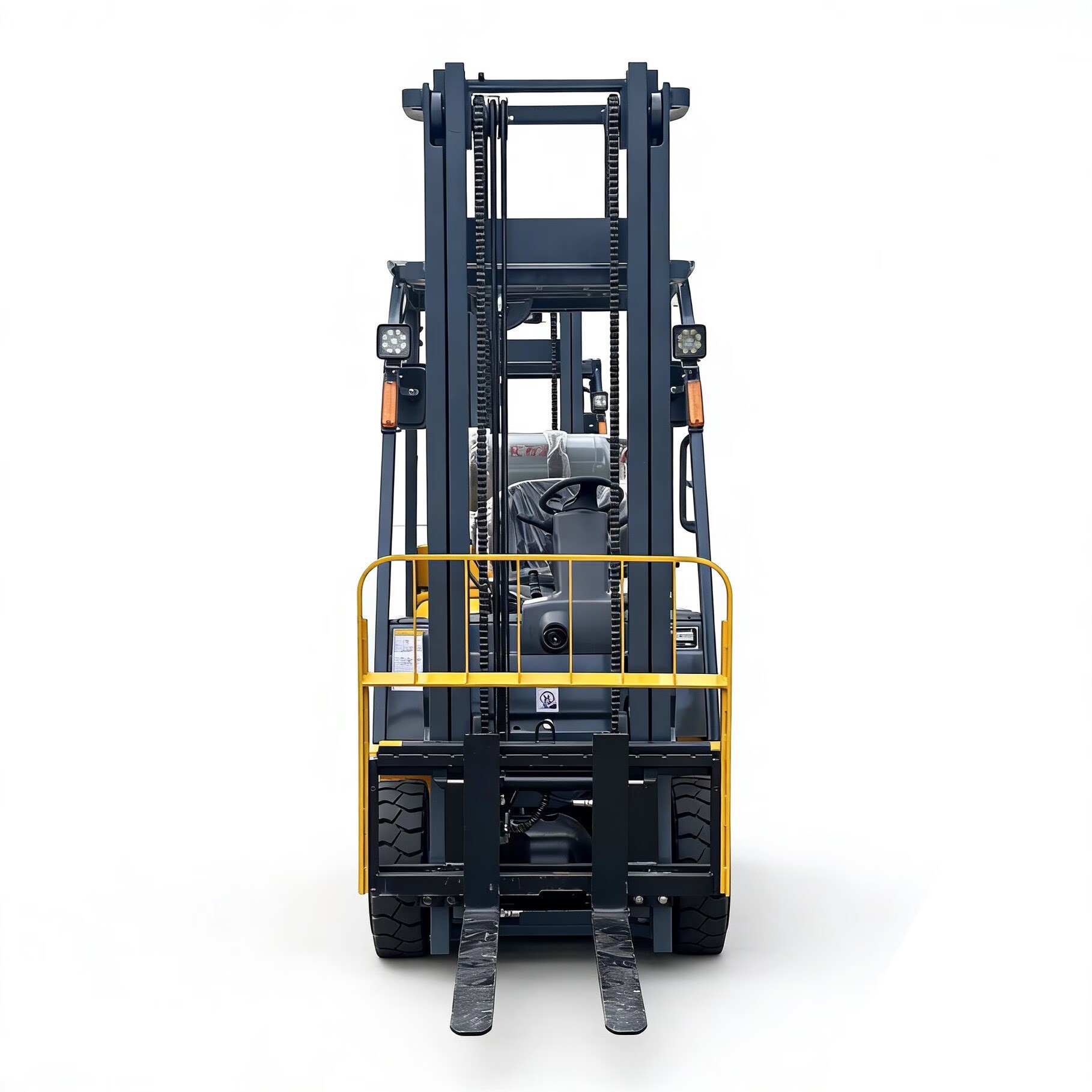

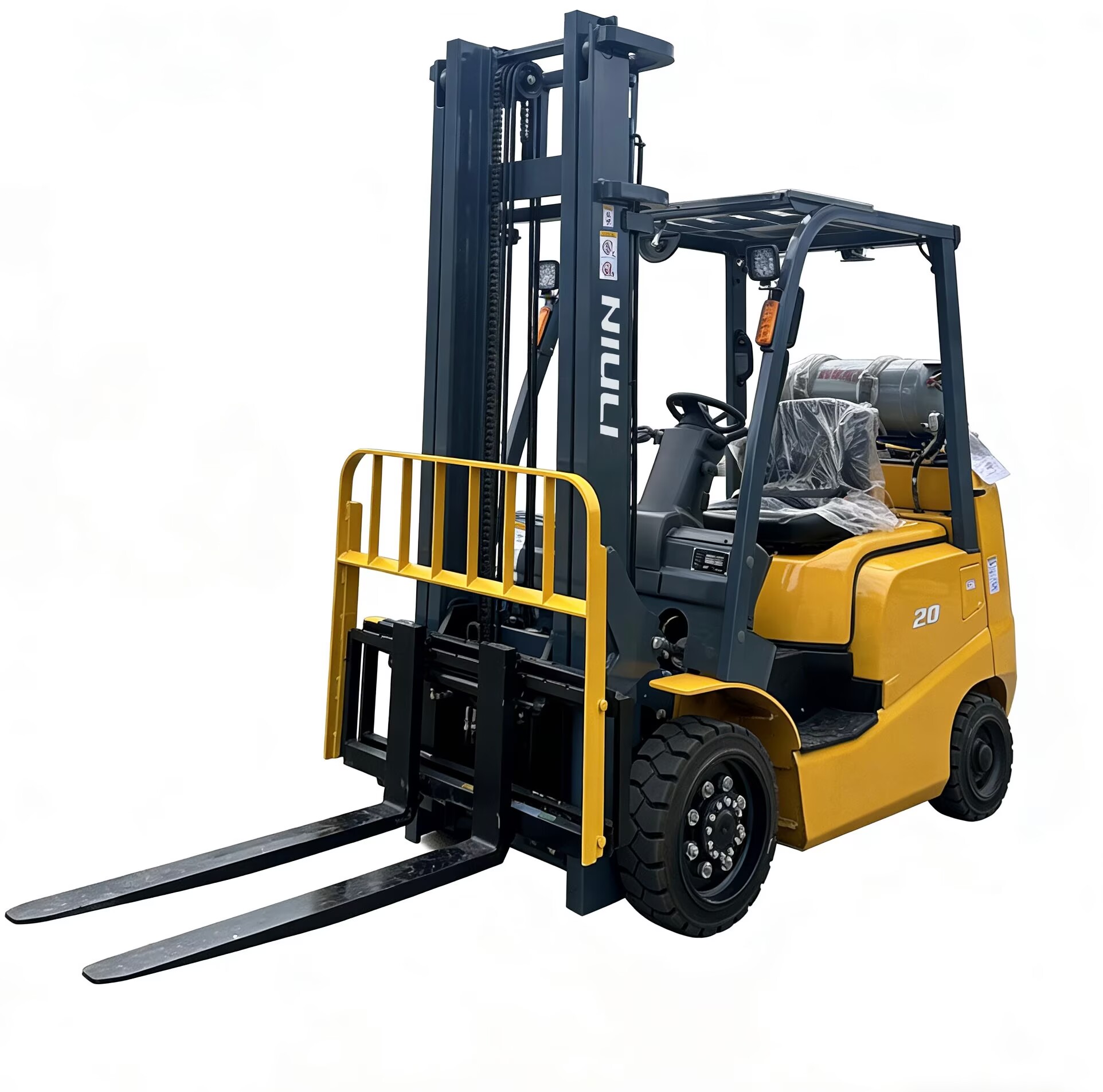

Short-axis GAS/LPG Forklift

General

1

Model

FGL20

FGL25

-

2

Power Type

Gas/Lpg

Gas/Lpg

-

3

Rated Capacity

2000

2500

kg

Characteristic*Dimension

4

Load center

500

500

mm

5

Lift Height

3000

3000

mm

6

Fork Size (LWT)

1070×122×40

1070×122×40

mm

7

Mast Tilt Angle (F/R)

6°/12°

6°/12°

Deg

8

Front Overhang (wheel center to fork face)

480

480

mm

9

Ground Clearance (Bottom of mast)

120

120

mm

10

Length of fork (with/without fork)

3654/2570

3654/2570

mm

11

Overall Dimension (Overall width)

1160

1160

mm

12

Mast lowered height

1995

1995

mm

13

Mast extended height (with backrest)

4110

4110

mm

14

Overhead guard height

2130

2130

mm

15

Turning radius (outside)

2340

2400

mm

16

Min. intersecting aisle

2400

2400

mm

Performance

17

Speed (Travel, full/empty load)

17/19

17/19

km/h

18

Speed (Lifting, full/empty load)

530/550

530/550

mm/s

19

Max. gradeability

20

20

%

Chassis

20

Tire (Front)

7.00-12-12PR

28x9-15-12PR

-

21

Tire (Rear)

6.00-9-10PR

6.50-10-10PR

-

22

Wheelbase

1600

1850

mm

23

Self weight

3480

4500

kg

Power&Transmission

24

Battery (Voltage/Capacity)

12/120

12/120

V/Ah

25

Engine (Manufacturer)

GCT

GCT

-

26

Engine (Rated output/r.p.m)

31.2/2250

31.2/2250

Kw/r.p.m

27

Engine (Rated torque/r.p.m)

143.7/1600

143.7/1600

Nm/r.p.m

28

Engine (No. of cylinder)

4

4

-

29

Engine (Bore*stroke)

89×83

89×83

mm

30

Engine (Displacement)

2065

2065

cc

31

Engine (Fuel tank capacity)

60

60

L

32

Transmission (Type)

Mechanical/Hydraulic

Mechanical/Hydraulic

-

33

Transmission (Stage, FWD*RVS)

1/1(2/2) / 1/1

1/1(2/2) / 1/1

-

34

Operating pressure for attachment

17.5

17.5

Mpa
