If you are planning to transport a forklift, ensure your floor can support its load, or simply want to understand the mechanics of your machinery, one question is critical: how much does the forklift actually weigh?
It is a common misconception that a forklift weighs roughly the same as its lifting capacity. In reality, a forklift usually weighs 1.5 to 2 times its lift capacity. This counterweight is essential for keeping the machine stable while it lifts heavy loads high into the air.
This guide explores the various factors that influence service weight, provides average weight charts for different forklift types, and explains why knowing these numbers is vital for workplace safety.
Before looking at specific numbers, it is important to distinguish between two terms that often confuse new operators and facility managers: Service Weight and Lift Capacity.
Lift Capacity: This is the maximum weight the forklift is rated to pick up safely. For example, a standard warehouse forklift might have a lift capacity of 5,000 lbs (approx. 2,200 kg).
Service Weight: This is the total weight of the truck itself, including the chassis, battery, counterweight, and fluids. This is the number you need to know when calculating floor loads or transport requirements.
1

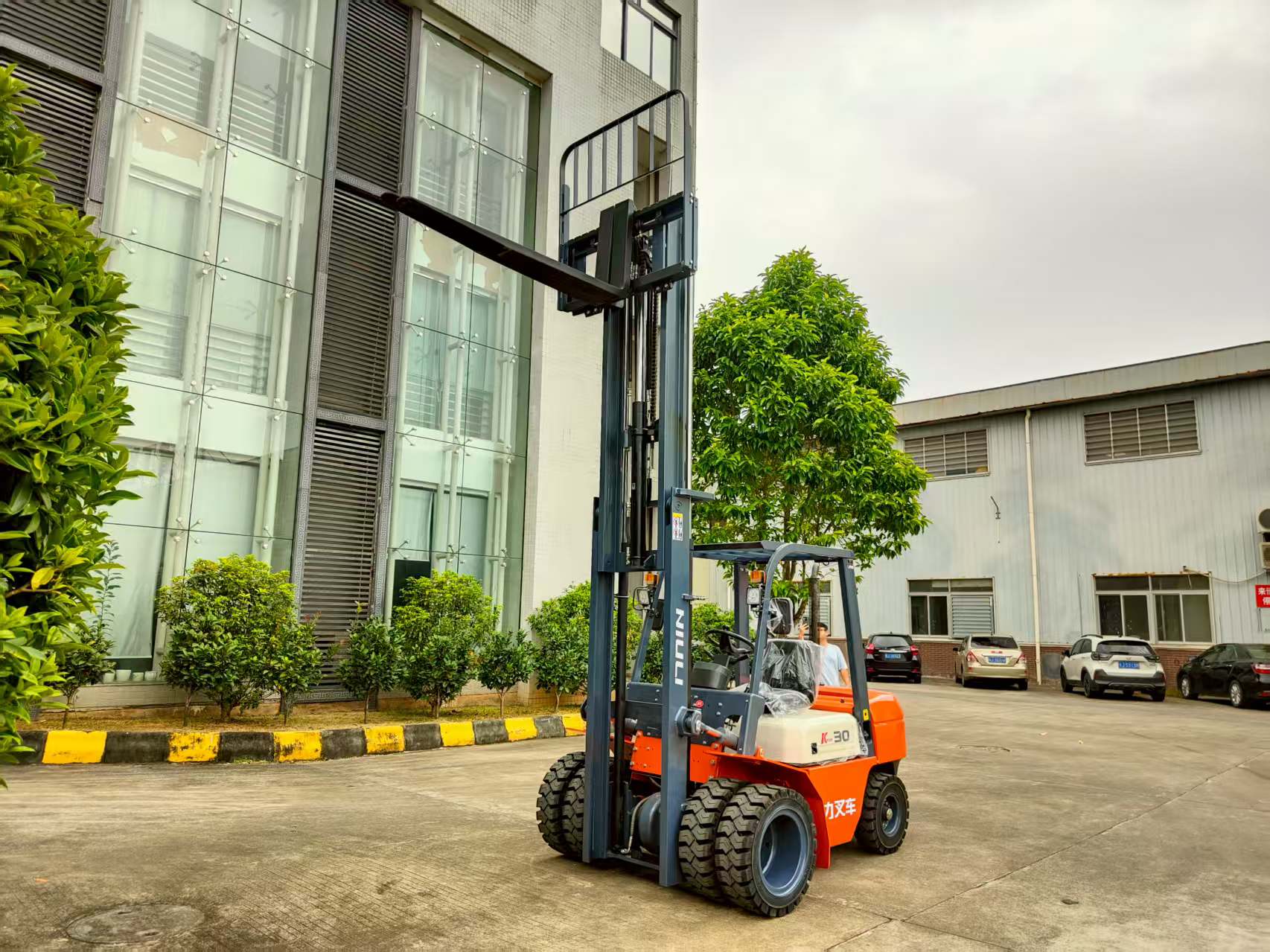

The relationship between the two is all about leverage. To lift a heavy load on the front forks without tipping over, the forklift needs substantial weight in the back. This is why a forklift made in China or anywhere else will always be significantly heavier than the load it carries.
Forklifts come in various shapes and sizes, from small electric pallet jacks to massive heavy lift forklifts used in shipping ports. Below is a breakdown of average service weights based on the type of equipment.
Electric forklifts are popular for indoor warehouse use because they produce no emissions. Their weight comes primarily from the heavy lead-acid or lithium-ion battery, which often acts as part of the counterweight.
Lift Capacity (lbs/kg) | Approx. Service Weight (lbs) | Approx. Service Weight (kg) |
|---|---|---|
3,000 lbs / 1,360 kg | 4,800 - 5,500 lbs | 2,170 - 2,500 kg |
5,000 lbs / 2,270 kg | 7,500 - 9,000 lbs | 3,400 - 4,080 kg |
8,000 lbs / 3,630 kg | 12,000 - 13,500 lbs | 5,440 - 6,120 kg |
Diesel or propane forklifts are often used outdoors. They rely on a heavy cast-iron counterweight at the rear of the vehicle to maintain stability. A standard Niuli diesel forklift falls into this category.
Lift Capacity (lbs/kg) | Approx. Service Weight (lbs) | Approx. Service Weight (kg) |
|---|---|---|
5,000 lbs / 2,270 kg | 8,000 - 9,500 lbs | 3,630 - 4,310 kg |
10,000 lbs / 4,540 kg | 15,000 - 17,000 lbs | 6,800 - 7,700 kg |
35,000 lbs / 15,875 kg | 45,000 - 50,000 lbs | 20,400 - 22,680 kg |
These are smaller units designed for moving pallets horizontally or stacking them at lower heights. Since they don't always require a massive counterweight (especially walkie stackers where the operator walks behind), they are significantly lighter.
Equipment Type | Approx. Lift Capacity | Approx. Service Weight |
|---|---|---|
Electric Pallet Truck | 4,500 lbs (2,000 kg) | 1,100 lbs (500 kg) |
Walkie Stacker | 3,000 lbs (1,360 kg) | 2,500 lbs (1,130 kg) |
A heavy lift forklift is designed for extreme industrial applications, such as moving steel coils, concrete pipes, or shipping containers. These machines are massive. A heavy lift forklift with a capacity of 70,000 lbs (31,750 kg) can easily weigh over 90,000 lbs (40,800 kg).
Knowing the exact weight of your equipment isn't just trivia—it is a critical safety and operational requirement. Here are three reasons why you need to check the data plate on your machine.
Every warehouse floor, mezzanine, and shipping container has a maximum weight limit per square foot. If you drive a 9,000 lb forklift carrying a 5,000 lb load onto a mezzanine rated for light storage, you risk structural collapse. You must calculate the combined weight of the forklift plus the load.
If you need to move your forklift to a different job site, you need a trailer and towing vehicle capable of handling the load. Underestimating the weight of a forklift is a common cause of transport accidents and trailer failure.
Loading docks use metal plates or levelers to bridge the gap between the warehouse floor and the truck. These plates have weight ratings. Driving a heavy lift forklift over a standard dock plate can cause it to buckle, leading to severe injuries and equipment damage.
While the charts above provide averages, you should never guess when safety is on the line. Here is how to find the specific weight of your machine:
Check the Data Plate: Every compliant forklift made in China, the US, or Europe will have a manufacturer's data plate (usually located near the dashboard or seat). This plate lists the "Service Weight" or "Truck Weight" alongside the model number and lift capacity.
Check the Manual: The operator’s manual provided by the manufacturer will list the technical specifications, including the weight.
Manufacturer Website: If the plate is unreadable, visit the manufacturer's website. For example, Niuli Machinery Manufacture Co., Ltd. provides detailed specs for their electric and diesel models online.
Weighbridge: If you have modified the forklift with attachments (which add weight), the data plate might no longer be accurate. In this case, driving the forklift onto a certified weighbridge is the only way to get a 100% accurate reading.
Yes, significantly. In electric forklifts, the battery acts as part of the counterweight.
Lead-Acid Batteries: These are heavy and bulky. Manufacturers design the forklift chassis around this weight to ensure stability.
Lithium-Ion Batteries: These are much lighter and more energy-dense.
If you switch a forklift from a lead-acid battery to a lighter lithium-ion battery, you may actually disturb the weight distribution. Manufacturers often have to add ballast (extra metal weights) to the battery compartment to ensure the forklift retains its rated lifting capacity.
Yes, significantly. An average mid-size car weighs about 3,000 to 4,000 lbs. A standard warehouse forklift often weighs between 8,000 and 10,000 lbs. Even though the forklift is smaller in size, it is made of dense steel and iron to act as a counterweight.
Yes. Any attachment you add to the front carriage—such as a side shifter, paper roll clamp, or fork positioner—adds to the service weight of the truck. Furthermore, because this weight is added to the front of the fulcrum point, it typically reduces the maximum lifting capacity of the forklift.
Forklift batteries are incredibly heavy. A standard lead-acid battery for a 5,000 lb capacity forklift can weigh anywhere from 2,000 to 3,000 lbs (900 to 1,360 kg).
Forklifts made in China, such as those from Niuli, have gained popularity due to their balance of cost-effectiveness and reliable engineering. They offer a robust range of diesel and electric options that meet global weight and safety standards, making them a viable option for businesses looking to expand their fleet without breaking the budget.
When asking "how much does a forklift truck weigh," remember that the answer is usually "more than you think." Whether you are operating a compact electric pallet truck or a massive diesel unit, understanding the service weight is key to preventing accidents and protecting your infrastructure.
Always consult your data plate, calculate your total load (truck + cargo), and ensure your operating environment is built to handle the heavy lifting.
If you are looking for reliable material handling equipment, check out the range at Niuli Machinery Manufacture Co., Ltd. for durable options that fit your specific weight and lifting requirements.
