Precisely Adapt to Working Conditions

and Empower Efficient Operations

As a core handling equipment in warehousing, logistics, and manufacturing industries, the operational efficiency, safety, and service life of forklifts largely depend on the adaptability and quality of their parts. As a well-known brand deeply engaged in the material handling equipment field, NIULI provides a full range of high-quality forklift parts with advanced production technology, strict quality control, and a global service network.

This article focuses on four core parts: forks, tires, mast configurations, and cabs, offering professional selection suggestions based on working conditions to help users exert the optimal performance ofNIULI forklifts.

Forks: The Core of Load-Bearing Safety, Adaptability to Needs is Key

As the part of the forklift that directly bears goods, the selection of forks must take into account load capacity, size, and working scenarios to avoid potential safety hazards or efficiency losses caused by improper adaptation. NIULI forks are forged from high-strength wear-resistant steel, undergoing rigorous precision testing and fatigue tests to ensure load-bearing stability and service life.

Core selection points: First, clarify the load requirement. The rated load should reserve a 10%-20% margin compared to the actual maximum load. For example, when handling 9-ton metal molds, it is recommended to use 10-ton NIULI forks to avoid deformation and cracking due to long-term overloading. Second, match the pallet size. Common standard fork lengths are 1070mm and 1220mm. European standard pallets (1200×800mm) need to be paired with forks of length ≥1200mm to ensure the center of gravity of the goods does not exceed the load center distance. For large-volume and irregular goods, customized extended NIULI forks or fork extensions can be selected. Fork extensions can be quickly installed without modification, flexibly adapting to different scenarios and reducing additional procurement costs.

In terms of quality identification, NIULI forks have no cracks or rust on the surface, the root angle is strictly controlled within 93°, the thickness is not less than 90% of the original size, and the difference between the tips of left and right forks meets high industry standards. Authentic products can be identified by clear part numbers, certificates of conformity, and brand logos on the parts to eliminate counterfeit and shoddy products.

Tires: The Cornerstone of Adapting to Working Conditions, Balancing Stability and Wear Resistance

Tires directly affect the driving stability, load-bearing capacity, and ground adaptability of forklifts. NIULI provides two series of pneumatic tires and solid tires, which can be precisely matched according to the working ground conditions. It also supports the selection of well-known brand tires, balancing performance and cost-effectiveness.

Pneumatic tires have excellent shock absorption effect, good tire elasticity, and can adapt to uneven outdoor scenarios such as rough roads and construction sites, effectively alleviating the impact of bumps on equipment and goods. However, attention should be paid to avoiding puncture by sharp objects, making them suitable for outdoor operations with high shock absorption requirements. Solid tires are made of full rubber material, featuring extremely strong wear resistance and puncture resistance, small deformation, stable operation, and low maintenance costs. They are the ideal choice for indoor flat warehouses and factory workshops, especially suitable for high-frequency low-speed operation scenarios.

NIULI forklift tires can be flexibly configured with solid front tires & pneumatic rear tires or full solid tires. For working conditions with much dust and sharp debris, special wear-resistant treads can also be matched to extend service life. When selecting, it is necessary to consider ground hardness, debris distribution, and shock absorption needs. For example, solid NIULI tires are preferred for indoor operations in cold chain warehouses, while pneumatic tires are recommended for outdoor infrastructure sites.

Mast Configurations: Determining Operating Height, Balancing Space and Stability

The mast is the core structure for forklifts to lift goods. Its type and height directly affect the operating range and space adaptability. NIULI provides three categories: 2-stage basic masts, 2-stage full-free masts, and 3-stage full-free masts, supporting height customization of 3-6 meters to meet the lifting needs of different scenarios.

Under standard working conditions, ordinary warehouses can use 2-stage basic masts with a height of 3 meters, which have low cost and strong stability, meeting the needs of conventional shelf heights. If it is necessary to enter containers, low warehouse doors, or train carriages for operations, 3-stage full-free masts are the best choice. They can realize full-height lifting of goods under low structural height, avoiding the top of the mast touching space restrictions and adapting to special scenarios with height limitations. For high-rise shelf warehouses (such as 5 or more layers of shelves), 3-stage masts with a lifting height ≥6 meters should be selected, paired with NIULI reach trucks to improve high-position storage efficiency.

When selecting, it should be noted that the gap between the inner and outer rollers of the mast must be controlled within 1.5mm to ensure flexible operation without jamming. NIULI masts are rolled from special section steel, the cross-sectional size of the column is precisely matched according to the tonnage, the tension of the hoisting chain is uniform, and the pitch deviation does not exceed 4% of the original length, balancing stability and durability. At the same time, a 10-20cm safety height should be reserved to avoid collision with the top of the channel due to operational errors during work.

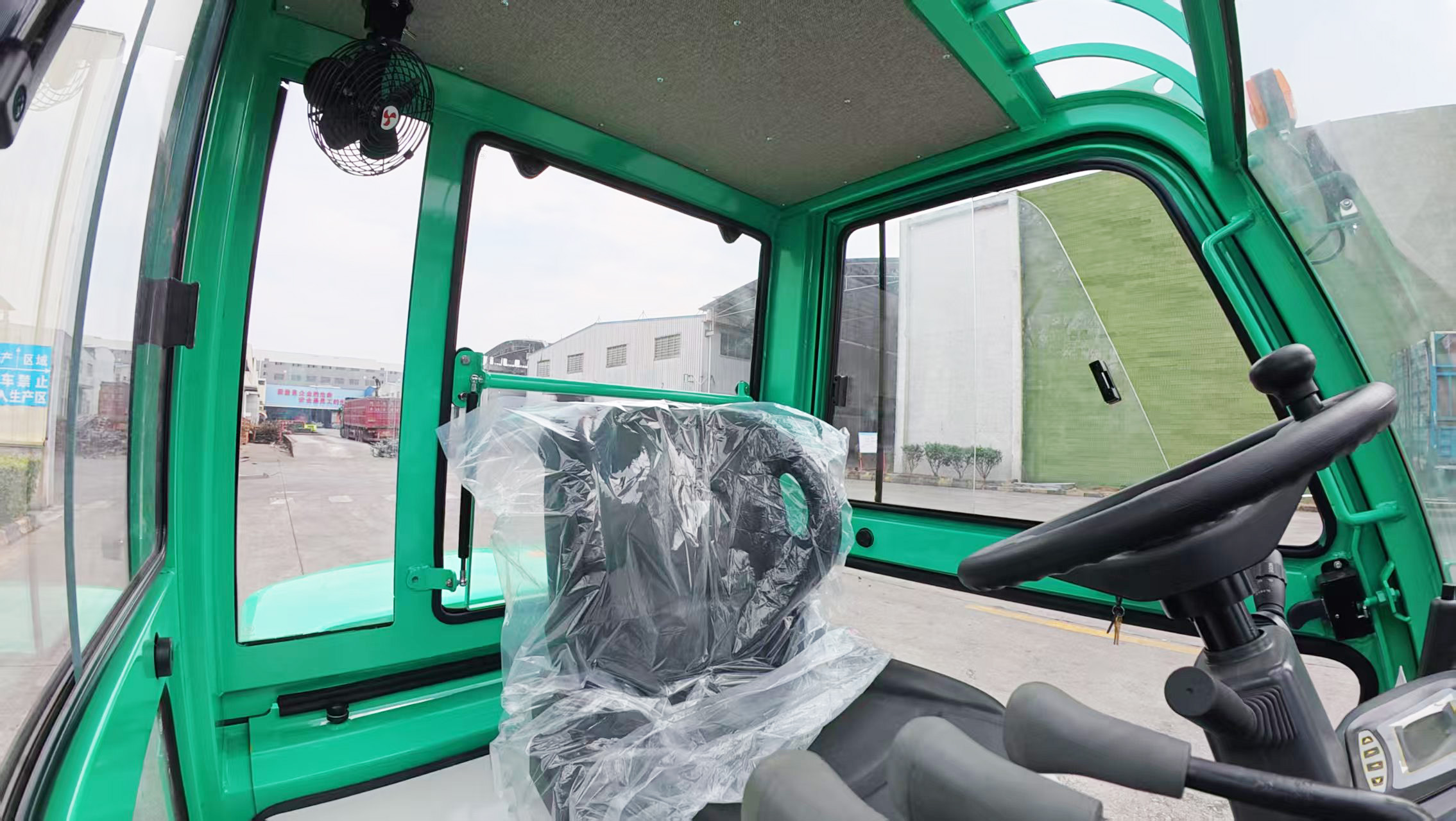

Cab: Balancing Comfort and Safety, Adapting to Extreme Working Conditions

The cab directly affects the operator's operational comfort and safety. With humanized design as the core, NIULI provides open cabs, closed cabs, and a variety of functional options, adapting to different environments and operation duration needs, reducing operator fatigue and improving operational safety.

Open cabs are suitable for indoor operations with good ventilation and mild environments, featuring a wide field of vision and convenient getting on and off, with standard guardrails to ensure safety. Closed cabs have the functions of wind and rain protection, dust and noise insulation, and can be equipped with optional heating and air conditioning, adapting to harsh working conditions such as high temperature, low temperature, and heavy dust. They are especially suitable for scenarios such as cold chain warehouses (extremely cold environments below -25℃) and chemical parks. NIULI closed cabs also adopt anti-condensation circuit design to ensure normal operation of equipment under extreme temperatures.

In terms of comfort configuration, NIULI offers optional suspended seats, which effectively absorb shocks and reduce pressure, alleviating fatigue from long-term operations. Equipped with adjustable armrests and seat angles, they adapt to operators of different heights. In terms of safety configuration, it supports the installation of reversing images, LED headlights, warning lights, and buzzers. Reversing images eliminate blind spots in real time, and LED headlights improve visibility in low-light environments, providing multi-dimensional protection for operational safety. For dusty working conditions, a dual air filter system can also be equipped to filter impurities in the air and extend the service life of the engine.

Core Principles for NIULI Parts Selection and Brand Advantages

Parts selection should follow the three core principles of "working condition adaptation, quality priority, and compatibility guarantee". Priority should be given to original parts to ensure perfect compatibility with NIULI forklifts and avoid performance impacts caused by improper adaptation. All NIULI parts pass standardized quality control, with clear outer packaging marks, attached user manuals and certificates of conformity. Authentic products can be judged by part numbers, surface precision, and protective coatings to eliminate refurbished and counterfeit parts.

As a global brand, NIULI has a rich product line of parts and a professional technical team, providing one-stop parts supply, technical guidance, and after-sales support. With fast nationwide delivery, it ensures timely parts replacement and reduces equipment downtime. Whether for regular parts replacement or customized solutions for special working conditions, NIULI can help users optimize forklift operational efficiency and reduce operating costs with high-quality products and intimate services.

Choosing the right forklift parts enables each NIULI forklift to precisely adapt to working conditions, operate efficiently, and become a powerful assistant in improving production efficiency.
