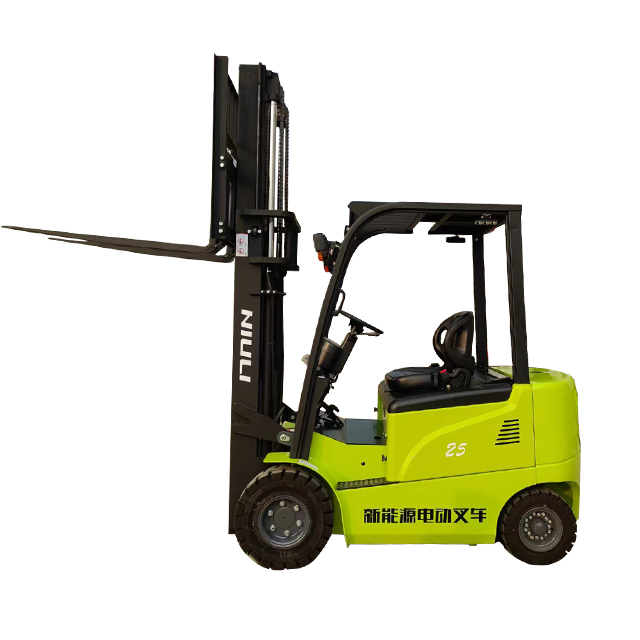

CPD35
NIULI
AC requires no maintenance while driving. The AC motor used for driving is powerful, maintenance-free, and comes equipped with a speed sensor, a temperature sensor, and complete protection functions, without requiring any brush replacements.
Design with a low center of gravity. The transmission system utilizes a transverse sector drive axle that is arranged in parallel and boasts of a large transmission ratio. The battery, which has high stability, is located at the bottom of the frame.
The hydraulic system is designed with a low-noise gear pump and features full hydraulic power steering for a low noise, low vibration operation. The operation is comfortable and the noise level is low. The flexible connection of the steering axle's shock absorption design effectively safeguards the whole vehicle system, prolonging the whole vehicle's service life.
Overview | 1.1 | Manufacturer | NIULI | |||
1.2 | Model | CPD35 | ||||
1.3 | Power Type | Electric | ||||
1.4 | Operation Type | Seat | ||||
1.5 | Rated capacity | Q | kg | 3500 | ||
1.6 | Load centre | c | mm | 500 | ||
1.7 | Front overhang | x | mm | 468 | ||
1.8 | Wheelbase | y | mm | 1495 | ||
weight | 2.1 | Self weight | kg | 4020 | ||
2.2 | Axle load | Front/Rear(Full load) | kg | 5920/700 | ||
2.3 | Front/Rear(Empty load) | kg | 1760/2360 | |||
Tire chassis | 3.1 | Tire Type | Solid | |||
3.2 | Front | 23×9-10 | ||||
3.3 | Rear | 18×7-8 | ||||
3.4 | Number of tires (x = drive wheel) | 2X/2 | ||||
3.5 | Front-wheel tread | b3 | mm | 1035 | ||
3.6 | Rear-wheel tread | b4 | mm | 984 | ||
Dimensions | 4.1 | Mast Tilt Angle | Front/Rear | α/β | Grad | 5/10 |
4.2 | Mast closed height | h1 | mm | 2055 | ||
4.3 | Free lift height | h2 | mm | 140 | ||
4.4 | Standard lift height | h3 | mm | 3000 | ||
4.5 | Mast extended height (with Lifting frame) | h4 | mm | 3985 | ||
4.6 | Overhead Guard Height | h5 | mm | 2140 | ||
4.7 | Total Length | With Forks | L1 | mm | 3407 | |
4.8 | Without Forks | L2 | mm | 2337 | ||
Dimensions | 4.9 | Total Width | b1 | mm | 1265 | |
4.1 | Fork Size (L×W×T) | s×e×L | mm | 1070*125*40 | ||
4.11 | Fork Rack Standard | mm | ISO2A | |||
4.12 | Fork Rack Width | W | mm | 1100 | ||
4.13 | Fork Spacing | mm | 250/1040 | |||
4.14 | Minimum ground clearance | Lifting frame | m1 | mm | 120 | |
4.15 | Truck Body | m2 | mm | 125 | ||
4.16 | Aisle width for pallets | pallets 1000×1200, Transversal | Ast | mm | 4288 | |
4.17 | pallets 800×1200，Longitudinal | Ast | mm | 4320 | ||
4.18 | Minimum turning radius | Wa | mm | 2100 | ||
Parameters | 5.1 | Maximum travel speed | No load/Full load | km/h | 18/15 | |
5.2 | Maximum lifting speed | Full load/No load | mm/s | 280/390 | ||
5.3 | Descending speed | No load/Full load | mm/s | ≤600 | ||
5.4 | Traction power, laden/unladen | KW | 20 | |||
5.5 | Gradeability | laden/unladen | % | 18/15 | ||
5.6 | Driving brake | Mechanical hydraulic type | ||||
5.7 | Parking brake | |||||
Electrical | 6.1 | Traction motor power, S2 60min work system | kW | 17 | ||
6.2 | Lifting motor power, S3 15% work system | kW | 13 | |||
6.3 | Specification of battery(Voltage/Capacity) | V/Ah | 80V/225Ah/350Ah/450Ah | |||
Other | 7.1 | Driving control system | MOSFET/AC | |||
7.2 | Controller brand | MEGMEET / CURTIS / ZAPI | ||||
7.4 | Noise | dB | 74 | |||
7.5 | Traction pin diameter | ϕ25 | ||||
7.6 | Hydraulic oil tank capacity | liter | 50 | |||
