How to Operate a Reach Truck？

Reach trucks are essential workhorses in warehouses and distribution centers. Their ability to navigate narrow aisles and lift loads to impressive heights makes them invaluable for maximizing storage space. But operating one safely and efficiently requires proper training and technique.

Whether you're new to material handling equipment or looking to refine your skills, this guide will walk you through everything you need to know about reach truck operation. From pre-operation checks to advanced maneuvering techniques, you'll gain the knowledge to operate this specialized forklift with confidence.

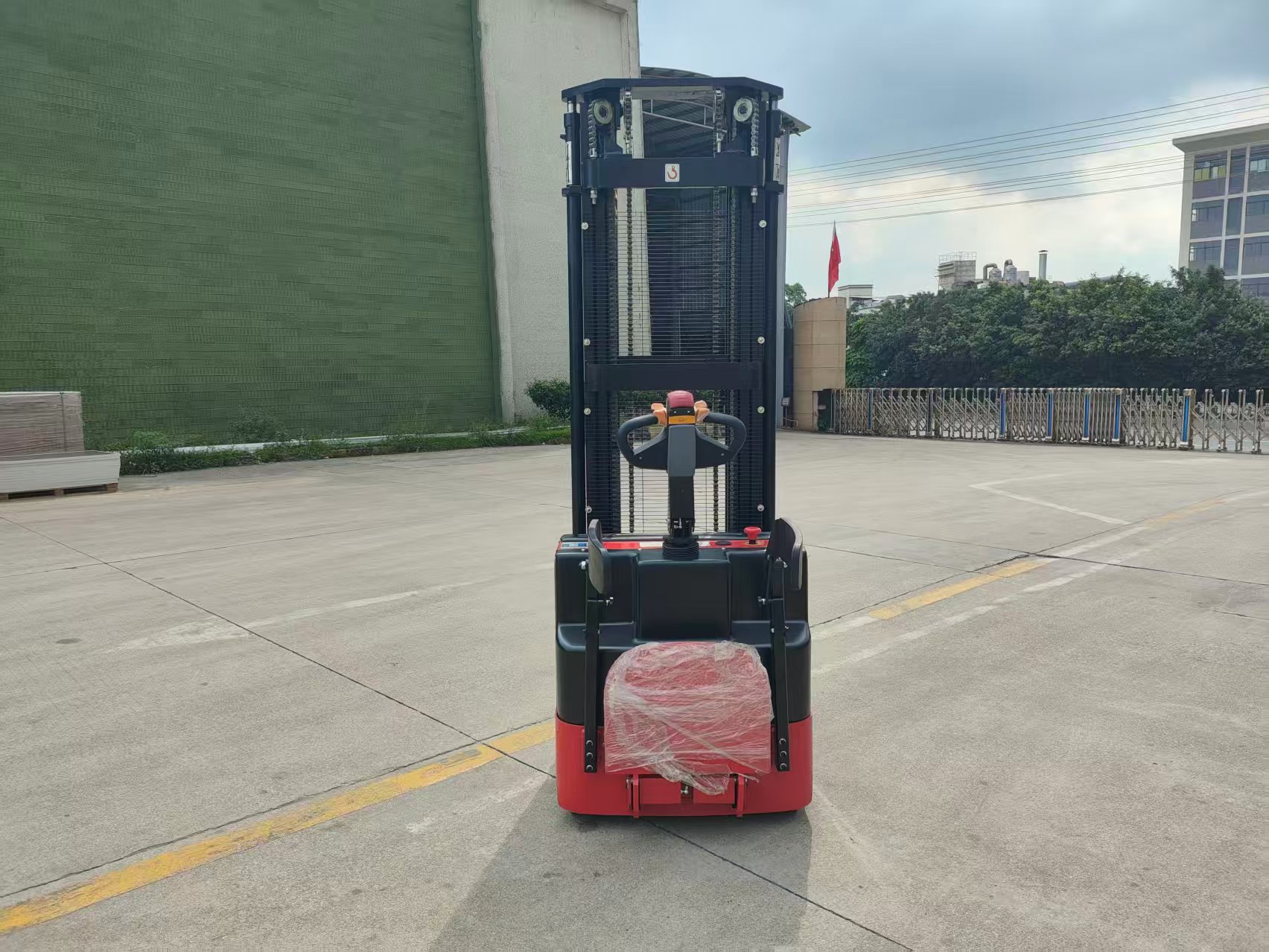

What Is a Reach Truck?

A reach truck is a type of forklift designed specifically for indoor warehouse use. Unlike standard forklifts, reach trucks feature a unique mechanism that allows the forks to extend forward and retract, enabling operators to "reach" into racking systems without moving the entire vehicle.

These machines typically have a narrow chassis and outrigger legs that distribute weight, allowing them to operate in aisles as narrow as 8 to 10 feet. Most reach trucks can lift loads between 3,000 and 5,500 pounds to heights of 30 feet or more.

Pre-Operation Safety Checks

Before you start your shift, conducting a thorough inspection of your reach truck is critical for safe operation. Take a few minutes to examine these key components:

Visual Inspection

· Check for any visible damage to the frame, mast, or forks

· Inspect hydraulic hoses for leaks or wear

· Examine tires for proper inflation and tread depth

· Ensure the overhead guard is secure and undamaged

Functional Tests

· Test the horn, lights, and backup alarm

· Check that the steering operates smoothly

· Verify the brakes respond properly

· Test the lift, tilt, and reach functions

· Confirm the safety seat switch is working

If you discover any defects or malfunctions, tag the equipment as out of service and report the issue to your supervisor immediately. Never operate a reach truck that hasn't passed inspection.

Getting Familiar With the Controls

Reach truck controls may vary slightly by manufacturer, but most follow a similar layout:

Steering: Typically controlled by a small steering wheel or tiller located near the operator's position. Reach trucks have rear-wheel steering, which takes some adjustment if you're used to standard forklifts.

Lift Controls: Usually operated by a multi-function lever or joystick that controls mast height, fork tilt, and reach extension.

Travel Controls: Forward and reverse motion are controlled by a foot pedal or hand control, depending on the model.

Emergency Stop: A clearly marked button that immediately stops all truck functions.

Spend time familiarizing yourself with these controls before moving loads. Practice basic movements in an open area until the controls feel natural.

Operating Your Reach Truck: Step-by-Step

Mounting and Starting

Always use the three-point contact method when entering or exiting the reach truck. Keep both hands and one foot, or both feet and one hand, in contact with the machine at all times.

Once seated, fasten your seatbelt and adjust the seat for comfort and proper visibility. Insert your key or access card, and start the machine according to the manufacturer's instructions.

Basic Movement

Start by practicing straight-line travel in both directions. Remember that reach trucks steer from the rear, so turning requires different spatial awareness than standard vehicles. The back of the truck will swing wide during turns.

Begin with slow speeds until you develop a feel for the machine's responsiveness. Use the horn when approaching blind corners, intersections, or areas with pedestrian traffic.

Picking Up a Load

Position the reach truck squarely in front of the pallet, ensuring the forks are centered and at the appropriate height. Slowly extend the reach mechanism to slide the forks completely under the pallet.

Lift the load just high enough to clear the floor or racking (typically 4 to 6 inches). Retract the reach mechanism to bring the load back toward the mast, which improves stability. Tilt the mast slightly backward to secure the load during travel.

Traveling With a Load

Keep the load low while traveling, ideally 6 to 8 inches above the ground. This lowers your center of gravity and improves stability. Travel in reverse if the load obstructs your forward visibility.

Reduce speed when turning, especially with heavy or unstable loads. Avoid sudden stops or direction changes that could shift the load or tip the truck.

Placing a Load

Approach the storage location slowly and position yourself squarely in front of the bay. Raise the load to the desired height, ensuring adequate clearance above the racking.

Extend the reach mechanism to move the forks and load into position. Once the pallet is fully supported by the racking, slowly lower the forks until they're free from the load. Retract the reach mechanism and carefully back away.

Advanced Techniques and Best Practices

Stacking at Height

When placing loads on high shelves, raise the forks in stages rather than lifting continuously. This gives you better control and allows you to make adjustments. Use the truck's height gauge or markers to ensure proper clearance.

Keep your body centered and avoid leaning to one side, which affects the machine's balance. If you feel uncomfortable with the height or load stability, lower the load and reassess.

Navigating Narrow Aisles

Reach trucks excel in tight spaces, but precision matters. Align yourself carefully before entering narrow aisles. Use your mirrors and maintain awareness of both ends of the truck.

If you need to reposition, back out completely rather than attempting to adjust within the aisle. This prevents accidental contact with racking or inventory.

Battery Management

Most reach trucks run on electric batteries that require proper care. Monitor your battery charge throughout your shift and recharge according to your facility's procedures.

Avoid deep discharges, which shorten battery life. If your battery drops below 20%, take the truck out of service for charging. Always follow manufacturer guidelines for battery maintenance and charging cycles.

Common Mistakes to Avoid

Even experienced operators can develop bad habits. Watch out for these common errors:

· Overloading: Never exceed the truck's rated capacity, which varies based on load height and reach distance

· Speeding: Fast travel with loads increases tip-over risk and reduces reaction time

· Poor visibility: Always ensure you have a clear line of sight, using reverse travel when necessary

· Ignoring warnings: Alarms and warning lights indicate serious issues that require immediate attention

· Rushing: Taking shortcuts or rushing through tasks dramatically increases accident risk

Maintaining Your Skills

Operating a reach truck safely requires ongoing attention and practice. Participate in refresher training offered by your employer, and stay current with any equipment updates or procedural changes.

Pay attention to near-misses or challenging situations you encounter. These learning opportunities help you refine your technique and prevent future incidents.

Ready to Get Started?

Operating a reach truck efficiently takes time, patience, and practice. Focus on mastering the basics before attempting complex maneuvers, and never compromise safety for speed.

Always follow your employer's specific training requirements and operating procedures. With proper technique and a safety-first mindset, you'll become a skilled reach truck operator who contributes to a productive and safe warehouse environment.
