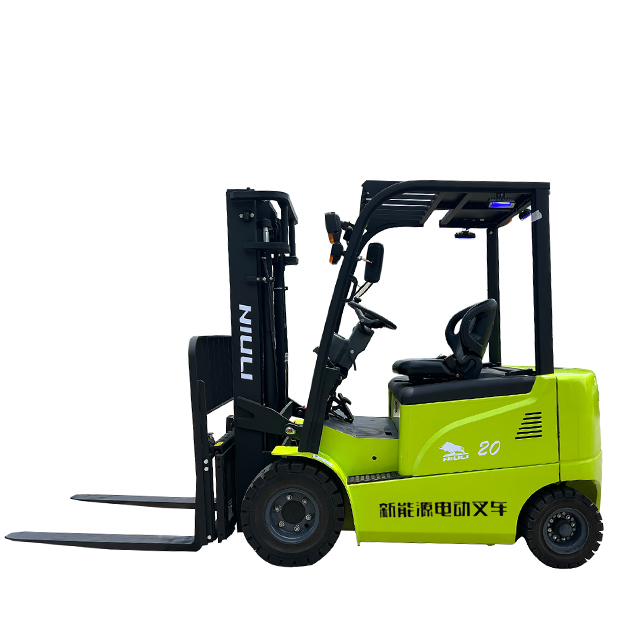

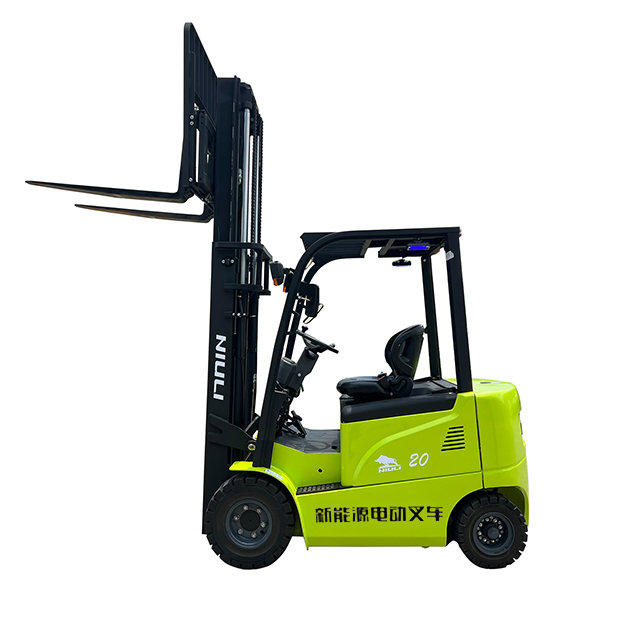

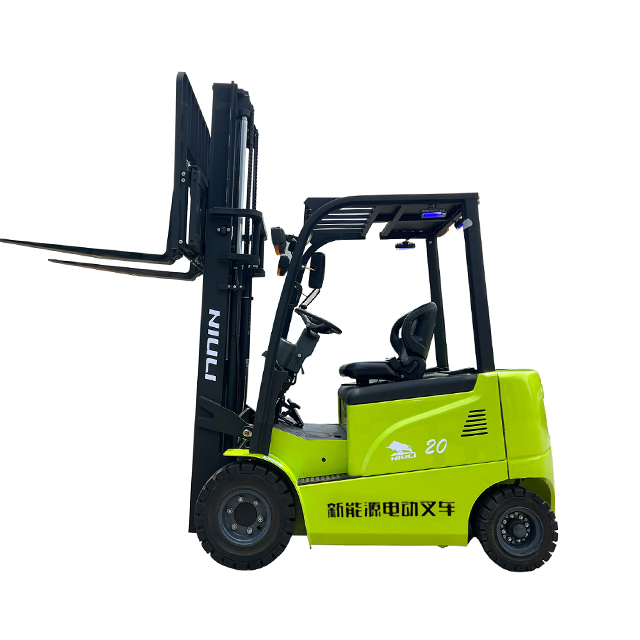

CPD20
NIULI
8427900000
Vehicle characteristics
• Drive AC maintenance free. The driving motor is AC motor, maintenance free, powerful, without replacing the brush, with speed sensor and temperature sensor, and complete protection functions.
• Low center of gravity design. The transmission system adopts transverse sector drive axle, which is arranged in parallel and has large transmission ratio. The battery is sunk at the bottom of the frame and has high stability.
• Low noise, low vibration design.The hydraulic system adopts low-noise gear pump and full hydraulic power steering. Low noise, comfortable operation.The steering axle shock absorption design adopts flexible connection to effectively protect the whole vehicle system and extend the service life of the whole vehicle.
Overview | 1.1 | Manufacturer | NIULI | |||
1.2 | Model | CPD20 | ||||
1.3 | Power Type | Electric | ||||
1.4 | Operation Type | Seat | ||||
1.5 | Rated capacity | Q | kg | 2000 | ||
1.6 | Load centre | c | mm | 500 | ||
1.7 | Front overhang | x | mm | 468 | ||
1.8 | Wheelbase | y | mm | 1495 | ||
Weight | 2.1 | Self weight | kg | 3820 | ||
2.2 | Axle load | Front/Rear(Full load) | kg | 5200/620 | ||
2.3 | Front/Rear(Empty load) | kg | 1680/2140 | |||
Tire chassis | 3.1 | Tire Type | Solid | |||
3.2 | Front | 23×9-10 | ||||
3.3 | Rear | 18×7-8 | ||||
3.4 | Number of tires (x = drive wheel) | 2X/2 | ||||
3.5 | Front-wheel tread | b3 | mm | 1035 | ||
3.6 | Rear-wheel tread | b4 | mm | 984 | ||
Dimensions | 4.1 | Mast Tilt Angle | Front/Rear | α/β | Grad | 5/10 |
4.2 | Mast closed height | h1 | mm | 2055 | ||
4.3 | Free lift height | h2 | mm | 140 | ||
4.4 | Standard lift height | h3 | mm | 3000 | ||
4.5 | Mast extended height (with Lifting frame) | h4 | mm | 3985 | ||
4.6 | Overhead Guard Height | h5 | mm | 2140 | ||
4.7 | Total Length | With Forks | L1 | mm | 3407 | |
4.8 | Without Forks | L2 | mm | 2337 | ||
Dimensions | 4.9 | Total Width | b1 | mm | 1265 | |
4.1 | Fork Size (L×W×T) | s×e×L | mm | 1070×125×40 | ||
4.11 | Fork Rack Standard | mm | ISO2A | |||
4.12 | Fork Rack Width | W | mm | 1100 | ||
4.13 | Fork Spacing | mm | 250/1040 | |||
4.14 | Minimum ground clearance | Lifting frame | m1 | mm | 120 | |
4.15 | Truck Body | m2 | mm | 125 | ||
4.16 | Aisle width for pallets | pallets 1000×1200, Transversal | Ast | mm | 4288 | |
4.17 | pallets 800×1200，Longitudinal | Ast | mm | 4320 | ||
4.18 | Minimum turning radius | Wa | mm | 2100 | ||
Parameters | 5.1 | Maximum travel speed | No load/Full load | km/h | 18/15 | |
5.2 | Maximum lifting speed | Full load/No load | mm/s | 280/390 | ||
5.3 | Descending speed | No load/Full load | mm/s | ≤600 | ||
5.4 | Traction power, laden/unladen | KW | 20 | |||
5.5 | Gradeability | laden/unladen | % | 18/15 | ||
5.6 | Driving brake | Mechanical hydraulic type | ||||
5.7 | Parking brake | Mechanical type | ||||
Electrical | 6.1 | Traction motor power, S2 60min work system | kW | 17 | ||
6.2 | Lifting motor power, S3 15% work system | kW | 13 | |||
6.3 | Specification of battery(Voltage/Capacity) | V/Ah | 80V/225Ah/350Ah/450Ah | |||
other | 7.1 | Driving control system | MOSFET/AC | |||
7.2 | Controller brand | MEGMEET / CURTIS / ZAPI | ||||
7.4 | Noise | dB | 74 | |||
7.5 | Traction pin diameter | ϕ25 | ||||
7.6 | Hydraulic oil tank capacity | liter | 50 | |||
