EPTC
NIULI
8427900000

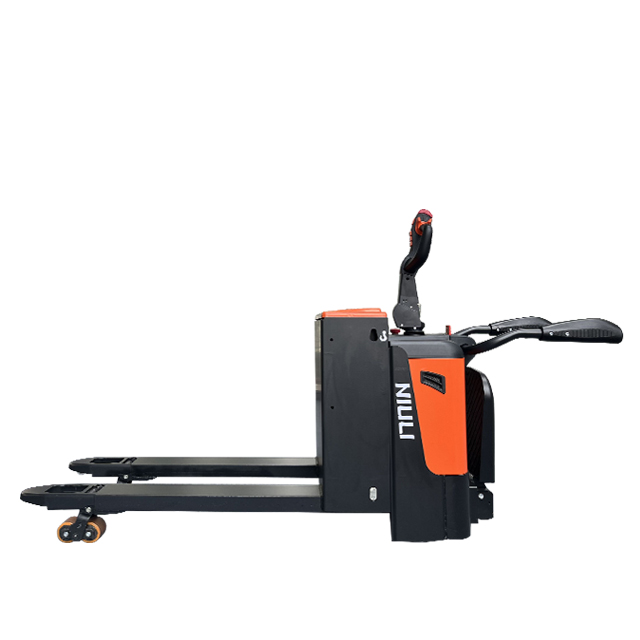

• NL-EPTC20 is a vehicle suitable for medium and long distance transportation of goods. Foldable pedals can meet the ideal choice for most applications.
• NL-EPTC20 has high-power vertical AC drive, which ensures the high-intensity operation capability of the vehicle. Ergonomic handle design optimizes operation comfort. All switches and buttons are integrated in a humanized touch position for easy operation.
• NL-EPTC20 can optionally be equipped with suspended foldable pedals with protective arms. The wide, safe and ergonomic fixed platform is equipped with rubber cushions. The foldable pedals have greater flexibility when operating in narrow spaces.
Parameters | Model | NL-EPTC20 | |
Brand | NIULI | ||
Operate type | Stand up | ||
Rated capacity | KG | 2000 | |
Load center | mm | 600 | |
Drive unit | mm | Electric | |
Wheelbase | mm | 1375 | |
Self weight(with battery) | Kg | 650 | |
Wheels & Tyres | Driving wheel | mm | Φ250*80 |
Load wheel | mm | Φ82*110/84*84 | |
Balance wheel | mm | Φ100*40 | |
Driving wheel wheelbase | mm | 560 | |
Load wheel wheelbase | mm | 367/512 | |
Dimensions | Max. lift height | mm | 120 |
Fork ground clearance | mm | 25 | |
Total width | mm | 820 | |
Fork dimensions | mm | L/W/H=1150*173*60 | |
Fork width | mm | 540/685 | |
Turning radius | mm | 1740 | |
Performance | Traction speed(load/unload) | Km/h | 5.5/6.0 |
Lifting speed(load/ unload) | mm/s | 25/30 | |
Lowering speed(load/unload) | mm/s | 30/25 | |
Max. grade ability(load/unload) | % | 8/15 | |
Brake type | Electromagnetic braking | ||
Motors & Battery | Traction motor | Kw | 1.5 |
Lift motor | Kw | 0.8 | |
Battery volts/ampere | V/Ah | 24/160 | |
Battery weight | Kg | 155 | |
Noise | dB | 69 |
• NL-EPTC20 is a vehicle suitable for medium and long distance transportation of goods. Foldable pedals can meet the ideal choice for most applications.
• NL-EPTC20 has high-power vertical AC drive, which ensures the high-intensity operation capability of the vehicle. Ergonomic handle design optimizes operation comfort. All switches and buttons are integrated in a humanized touch position for easy operation.
• NL-EPTC20 can optionally be equipped with suspended foldable pedals with protective arms. The wide, safe and ergonomic fixed platform is equipped with rubber cushions. The foldable pedals have greater flexibility when operating in narrow spaces.
Parameters | Model | NL-EPTC20 | |
Brand | NIULI | ||
Operate type | Stand up | ||
Rated capacity | KG | 2000 | |
Load center | mm | 600 | |
Drive unit | mm | Electric | |
Wheelbase | mm | 1375 | |
Self weight(with battery) | Kg | 650 | |
Wheels & Tyres | Driving wheel | mm | Φ250*80 |
Load wheel | mm | Φ82*110/84*84 | |
Balance wheel | mm | Φ100*40 | |
Driving wheel wheelbase | mm | 560 | |
Load wheel wheelbase | mm | 367/512 | |
Dimensions | Max. lift height | mm | 120 |
Fork ground clearance | mm | 25 | |
Total width | mm | 820 | |
Fork dimensions | mm | L/W/H=1150*173*60 | |
Fork width | mm | 540/685 | |
Turning radius | mm | 1740 | |
Performance | Traction speed(load/unload) | Km/h | 5.5/6.0 |
Lifting speed(load/ unload) | mm/s | 25/30 | |
Lowering speed(load/unload) | mm/s | 30/25 | |
Max. grade ability(load/unload) | % | 8/15 | |
Brake type | Electromagnetic braking | ||
Motors & Battery | Traction motor | Kw | 1.5 |
Lift motor | Kw | 0.8 | |
Battery volts/ampere | V/Ah | 24/160 | |
Battery weight | Kg | 155 | |
Noise | dB | 69 |
