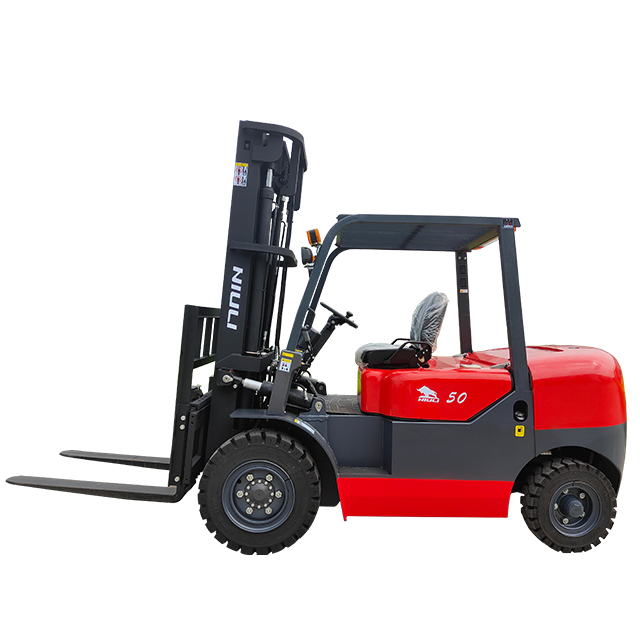

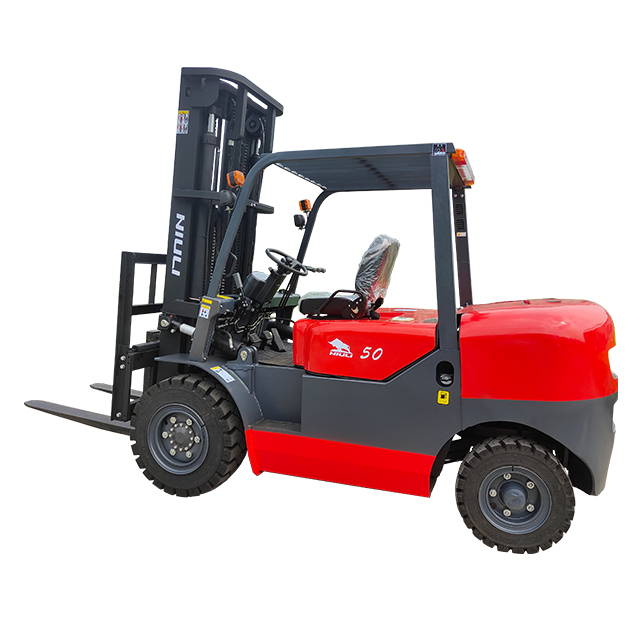

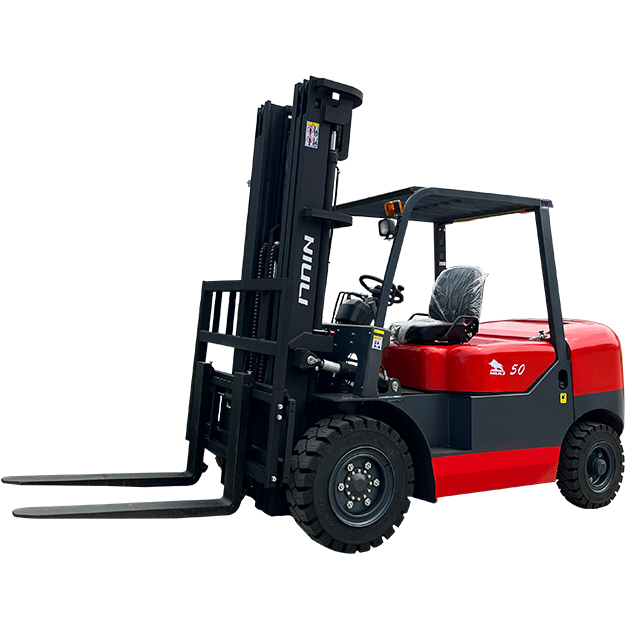

CPCD50 5T Diesel Forklift

General	1	Model				CPC50		CPCD50
	2	Power Type				Diesel		Diesel
	3	Rated Capacity			kg	5000		5000
	4	Load center			mm	500		500
Characteristic*Dimension	5	Lift Height			mm	3000		3000
	6	Fork Size	LWT		mm	107015050		107015050
	7	Mast Tilt Angle	F/R		Deng	6°/12°		6°/12°
	8	Front Overhang(wheel center to fork face)			mm	560		560
	9	Ground Clearance(Bottom of mast)			mm	160		160
	10	Overall Dimension	Length of fork (with/without fork)		mm	4320/3218		4320/3218
	11		Overall width		mm	1490		1490
	12		Mast lowered height		mm	2245		2245
	13		Mast extended height (with backrest)		mm	4260		4260
	14		Overhead guard height		mm	2290		2290
	15	Truning radius(outside)			mm	2974		2974
	16	Min. intersecting aisle			mm	3100		3100
Performance	17	speed	Travel(full/empty load)		km/h	18/19		18/19
	18		Lifting(full/empty load)		mm/s	380/410		380/410
	19	Max. gradeability			%	20		20
Chassis	20	Tire	Front			250-15-18PR		250-15-18PR
	21		Rear			7.00-12-12PR		7.00-12-12PR
	22	Wheelbase			mm	2100		2100
	23	Self weight			kg	6600		6600
Power&Transmission	24	Battery	Voltage/Capacity		V/Ah	(12/80)*2		(12/80)*2
	25	Engine	Model			CY6102BG	S6S	CY6102BG	S6S
	26		Manufacturer			ChaoChai	Mitsubishi	ChaoChai	Mitsubishi
	27		Rated output/r.p.m.		Kw/r.p.m	81/2500	52/2300	81/2500	52/2300
	28		Rated torque/r.p.m		Nm/r.p.m	353/1650	137.7/1800	353/1650	137.7/1800
	29		No. of cylinder			6	6	6	6
	30		Bore*stroke		mm	102*118	94*102	102*118	94*102
	31		Displacement		cc	5795	4997	5795	4997
	32		Fuel tank capacity		L	110		110
	33	Transmission	Type			Machanical		Hydrauic
	34		Stage	FWD*RVS		2\2		2\2
	35	Operating pressure for attachment			Mpa	18.5		18.5
