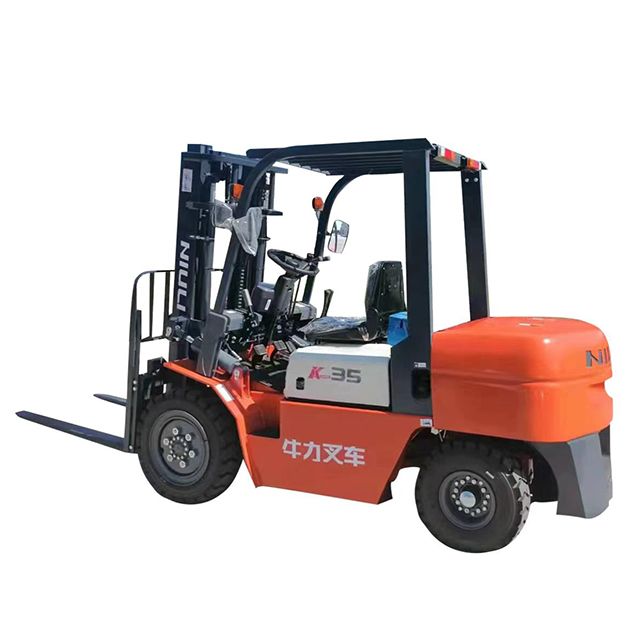

CPCD30-K 3.0T Diesel Forklift

CPCD30/35-K is improved on the basis of CPCD30/35. Model K has a higher chassis and better performance, which makes model K forklift have better trafficability and can calmly face the extremely harsh working environment

Availability:



Inquire Add to Basket

Model:
CPCD30
Brand:
NIULI
Code:
8427900000

Product Description

General	1	Model				CPC30		CPCD30
	2	Power Type				Diesel		Diesel
	3	Rated Capacity			kg	3000		3000
	4	Load center			mm	500		500
Characteristic*Dimension	5	Lift Height			mm	3000		3000
	6	Fork Size	LWT		mm	107012545		107012545
	7	Mast Tilt Angle	F/R		Deng	6°/12°		6°/12°
	8	Front Overhang(wheel center to fork face)			mm	500		500
	9	Ground Clearance(Bottom of mast)			mm	126		126
	10	Overall Dimension	Length of fork (with/without fork)		mm	3790/2700		3790/2700
	11		Overall width		mm	1230		1230
	12		Mast lowered height		mm	2105		2105
	13		Mast extended height (with backrest)		mm	4110		4110
	14		Overhead guard height		mm	2140		2140
	15	Truning radius(outside)			mm	2415		2415
	16	Min. intersecting aisle			mm	2500		2500
Performance	17	speed	Travel(full/empty load)		km/h	18/19		18/19
	18		Lifting(full/empty load)		mm/s	460/540		460/540
	19	Max. gradeability			%	20		20
Chassis	20	Tire	Front			28*9-15-12PR		28*9-15-12PR
	21		Rear			6.50-10-10PR		6.50-10-10PR
	22	Wheelbase			mm	1650		1650
	23	Self weight			kg	4280		4280
Power&Transmission	24	Battery	Voltage/Capacity		V/Ah	12/120		12/120

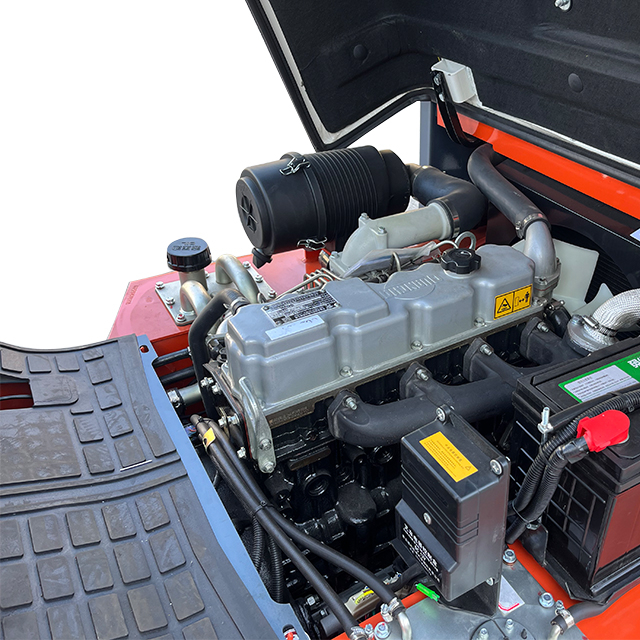

	25	Engine	Model			C240	C490BPG	C240	C490BPG
	26		Manufacturer			ISUZU	XinChang	ISUZU	XinChang
	27		Rated output/r.p.m.		Kw/r.p.m	34.3/2500	40/2650	34.3/2500	40/2650
	28		Rated torque/r.p.m		Nm/r.p.m	137.7/1800	160/1800-2000	137.7/1800	160/1800-2000
	29		No. of cylinder			4	4	4	4
	30		Bore*stroke		mm	86*102	90*105	86*102	90*105
	31		Displacement		cc	2369	2670	2369	2670
	32		Fuel tank capacity		L	60	60	60	60
	33	Transmission	Type			Machanical		Hydrauic
	34		Stage	FWD*RVS		1/1(2/2)/1/1		1/1(2/2)/1/1
	35	Operating pressure for attachment			Mpa	17.5		17.5
