If you work in a warehouse with high shelving and narrow aisles, you know that standard forklifts don't always cut it. Navigating tight corners while trying to stack heavy pallets thirty feet in the air requires specialized equipment. This is exactly where the reach lift truck shines.
These machines are essential for maximizing storage density and operational efficiency in modern logistics. But what exactly makes them different from a standard counterbalance forklift, and why are they so popular in distribution centers?
In this guide, we will break down what a reach lift truck is, how it functions, and the key differences between standard lift trucks and reach trucks.

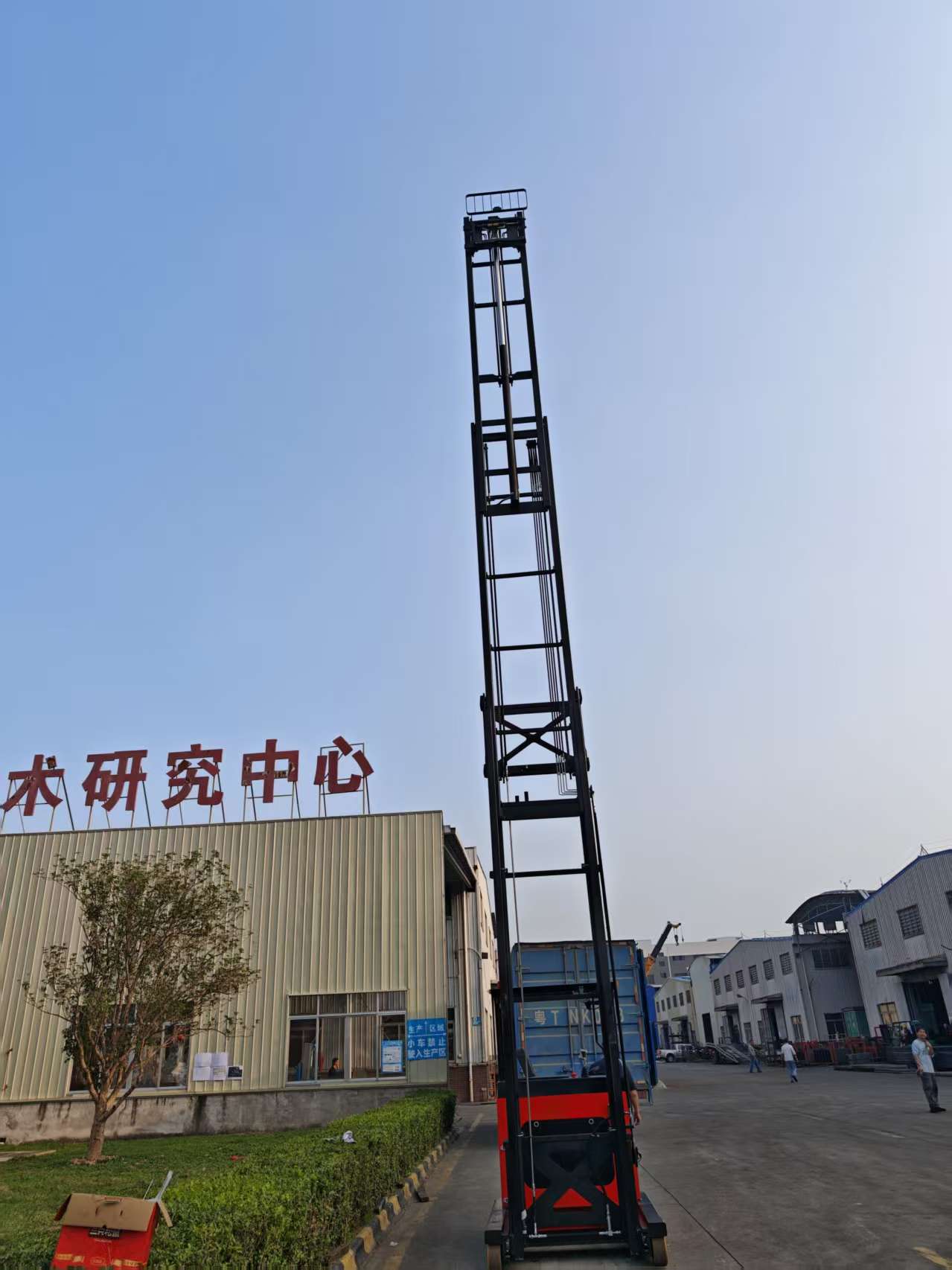

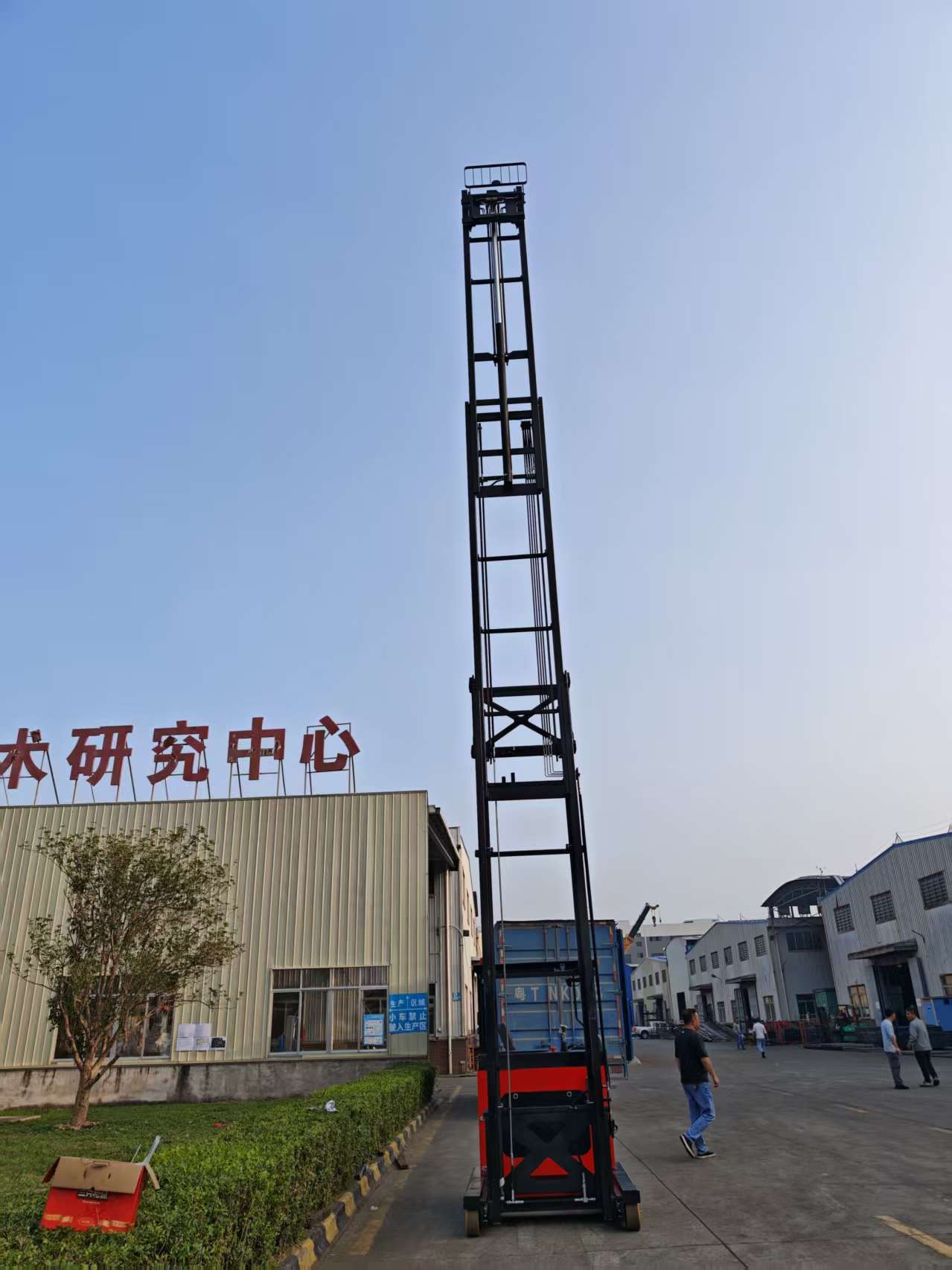

A reach lift truck, commonly referred to simply as a reach truck, is a type of Class II electric motor narrow aisle truck. It is designed specifically for warehouse operations where space is at a premium and racking is built high to maximize vertical storage.
The defining feature of this vehicle is its ability to "reach" out. Unlike a standard forklift where the forks are fixed to the mast, a reach truck has a mechanism (a pantograph) that allows the carriage and forks to extend forward away from the mast. This allows the operator to deposit or retrieve pallets from racks without moving the base of the truck.
Because they are designed for indoor use on smooth surfaces, reach trucks typically have:
Two outer legs: These help distribute the load weight.
A single set of wheels at the back: Located under the operator's seating or standing position, allowing for an incredibly tight turning radius.
Electric power: They run on batteries, making them quiet and emission-free, perfect for enclosed spaces.
1
While the basic function remains the same, there are different configurations to suit various warehouse needs.
Type | Description | Best Used For |
|---|---|---|
Pantograph Reach Truck | Uses a scissor-like mechanism to extend the forks forward. | Most common in North American warehouses; great for double-deep racking. |
Moving Mast Reach Truck | The entire mast moves forward on rails rather than just the forks extending. | Common in Europe; offers excellent residual capacity at height. |
High-Level Reach Truck | Designed to reach extreme heights (sometimes over 40 feet). | High-density, high-bay warehouses. |
Multidirectional Reach Truck | Can move sideways as well as forward/backward. | Handling long loads like lumber or piping in narrow aisles. |
The operation of a reach truck is distinct because the center of gravity shifts during use.
On a standard counterbalance forklift, the weight of the truck (specifically the heavy battery and counterweight at the rear) offsets the load on the forks. A reach truck works a bit differently. It uses its stabilizing legs to support the load.
When the load is lifted, the machine acts somewhat like a counterbalance truck. However, when the forks are extended (reached out), the center of gravity shifts forward. The stabilizing legs keep the unit from tipping over. This design eliminates the need for a massive counterweight at the back, which is why reach trucks are so much more compact than standard forklifts.
The operator typically sits sideways or stands, which provides better visibility when driving in reverse—a common necessity in narrow aisles.
The terms "lift truck" and "reach truck" are often confused, but in the material handling world, they refer to distinct pieces of equipment. "Lift truck" is a broad category that includes all powered industrial trucks used to lift and move materials. A standard counterbalance forklift is the most recognizable type of lift truck. A reach truck is a specialized subset of this category.
Here is a breakdown of the key differences:
The primary reason businesses choose a reach truck over a standard lift truck is space.
Standard Lift Truck (Counterbalance): These require wide aisles (usually 11-13 feet) to turn around safely. Their long chassis and rear counterweight make them bulky.
Reach Truck: These are designed for narrow aisles (often 8-10 feet). Because the load is carried closer to the wheelbase and the truck doesn't need a heavy counterweight, the chassis is much shorter. The tight turning radius allows them to pivot almost on the spot.
If you need to go high, the reach truck is the winner.
Standard Lift Truck: Typically lifts loads between 10 to 15 feet, though some models go higher. They are generally limited by stability issues at greater heights.
Reach Truck: Can easily lift loads to heights of 30 to 40 feet or more. The stabilizing legs provide a solid base, allowing for safer lifting at significant heights.
While reach trucks win on height, standard lift trucks often win on raw power and versatility.
Standard Lift Truck: Available in massive capacities, ranging from 3,000 lbs to over 70,000 lbs for industrial models. They are generally better for extremely heavy loads at ground level.
Reach Truck: Typically has a lower maximum weight capacity, usually capping out around 3,000 to 5,500 lbs. They are optimized for standard pallet weights rather than heavy industrial machinery.
The environment dictates which machine you need.
Standard Lift Truck: Can be equipped with pneumatic tires for outdoor use on gravel or uneven surfaces. They are versatile workhorses for loading docks and construction sites.
Reach Truck: Almost exclusively for indoor use. They have low clearance and cushion tires designed for smooth, flat concrete floors. Using a reach truck on asphalt or gravel would damage the machine and likely get it stuck.
1
Feature | Standard Lift Truck (Counterbalance) | Reach Truck |
|---|---|---|
Aisle Width Req. | Wide (11-13 ft) | Narrow (8-10 ft) |
Max Lift Height | Moderate (approx. 15-20 ft) | High (30-40+ ft) |
Reach Mechanism | No (Mast tilts only) | Yes (Pantograph or Moving Mast) |
Primary Use | Docks, outdoor yards, general transport | High-density racking, narrow aisles |
Tires | Cushion or Pneumatic | Cushion only (smooth floors) |
Deciding between a standard forklift and a reach truck comes down to your warehouse layout and storage goals.
You should choose a reach truck if:
You are running out of floor space: You need to build your racking higher rather than expanding your warehouse footprint.
You have narrow aisles: Your racking configuration doesn't allow enough room for a standard counterbalance forklift to turn.
You handle double-deep racking: Pantograph reach trucks are specifically designed to reach over one pallet to grab the one behind it.
You operate strictly indoors: Your floor surface is smooth concrete.
Conversely, stick with a standard lift truck if you work outdoors, need to move goods across uneven surfaces, or handle exceptionally heavy loads that don't need to be stored high up.
Understanding the capabilities of a reach lift truck is the first step toward a more efficient warehouse. By leveraging the height and maneuverability of these machines, you can store more product in less space, ultimately driving down your storage costs per square foot.
Whether you are designing a new facility or upgrading your fleet, matching the right truck to your racking system is critical for safety and productivity.
