CTQ15-C
NIULI
8427900000

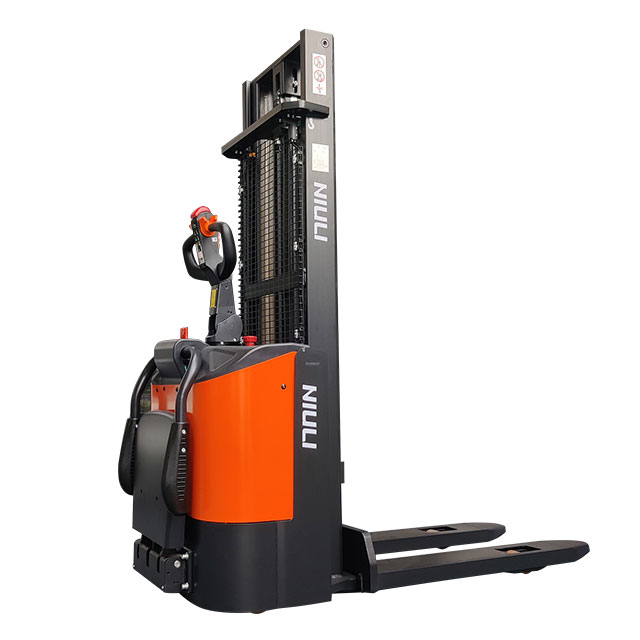

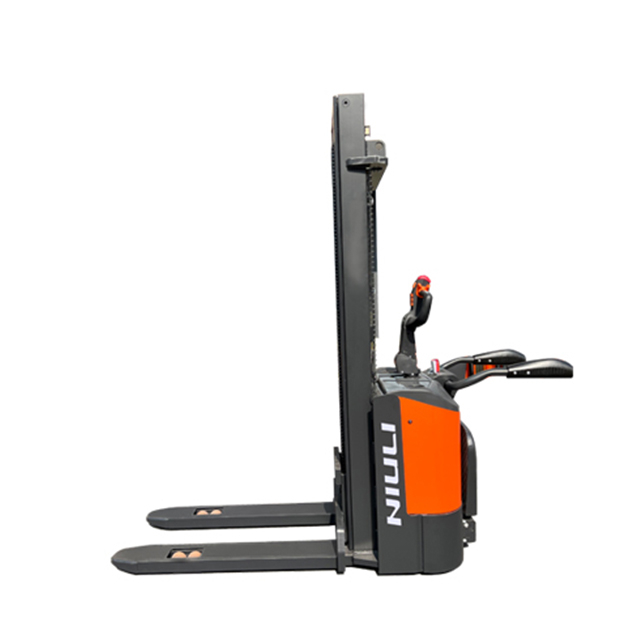

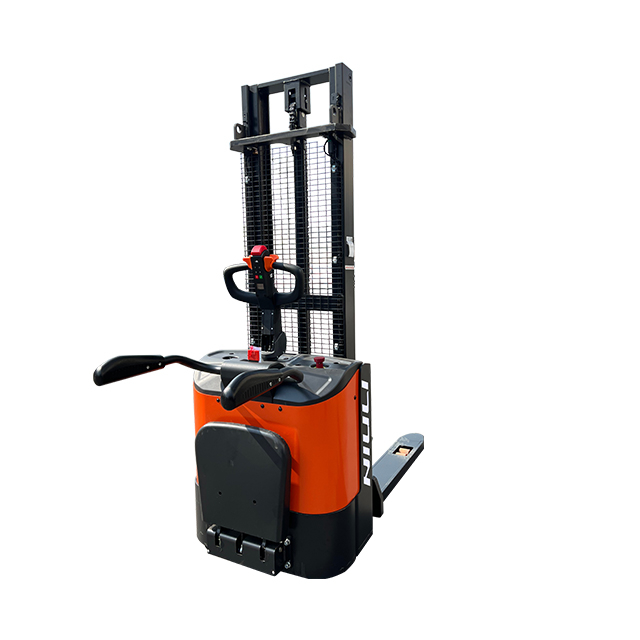

• CTQC is an economical station driving electric stacker, which is suitable for horizontal short distance cargo transportation. It is a combination of walking and station driving vehicles. Economical and durable, with a payload of 1500kg. The vehicle body is heavy, high in strength, strong in stability, easy to install and maintain, and suitable for cargo handling in factories, warehouses, supermarkets and other places.
• CTQC whole vehicle system adopts analog circuit control, which eliminates redundant fancy functions and strengthens necessary safety functions. Besides, it also strengthens main action functions, lowers fault points, simplifies lines and makes maintenance simple
• CTQC adopts ergonomically designed intelligent handle to ensure comfortable operation and optimize the comfort of operators. All switches are integrated in the humanized touch position for convenient operation.
Parameters | Model |
| CTQC |
Brand |
| NIULI | |
Opreate type |
| Stand up | |
Rated capacity | KG | 1500 | |
Load center | mm | 600 | |
Drive unit |
| Electric | |
Wheelbase | mm | 1232 | |
Self weight(with battery) | Kg | 865 | |
Wheels & Tyres | Driving wheel | mm | 210*70 |
Load wheel | mm | 80*70 | |
Balance wheel | mm | 210*70 | |
Driving wheel wheelbase | mm | 557 | |
Load wheel wheelbase | mm | 410/525 | |
Dimensions | Max. lift height | mm | 3515 |
Max. working height | mm | 4005 | |
Fork ground clearance | mm | 25 | |
Total width | mm | 820 | |
Fork dimensions | mm | L/W/H=1150*180*60 | |
Fork width | mm | 570/685 | |
Turning radius | mm | 1487 | |
Performance | Traction speed(load/unload) | Km/h | 4.0/4.2 |
Lifting speed(load/ unload) | mm/s | 68/162 | |
Lowering speed(load/unload) | mm/s | 142/136 | |
Max. grade ability(load/unolad) | % | 5/10 | |
Brake type |
| Electromagnetic braking | |
Motors & Battery | Traction motor | Kw | 0.75 |
Lift motor | Kw | 2.2 | |
Battery volts/ampere | V/Ah | 2*12/106 | |
Battery weight | Kg | 2*34 |
